OpenStack User Guide / Horizon User Guide
Applies to SUSE OpenStack Cloud Crowbar

3 Horizon User Guide



How to use Horizon in your own projects.

3.1 OpenStack Dashboard User Documentation



As a cloud end user, you can use the OpenStack dashboard to provision your own resources within the limits set by administrators. You can modify the examples provided in this section to create other types and sizes of server instances.

3.1.1 Log in to the dashboard



The dashboard is generally installed on the controller node.

  1. Ask the cloud operator for the host name or public IP address from which you can access the dashboard, and for your user name and password. If the cloud supports multi-domain model, you also need to ask for your domain name.

  2. Open a web browser that has JavaScript and cookies enabled.

    Note
    Note

    To use the Virtual Network Computing (VNC) client for the dashboard, your browser must support HTML5 Canvas and HTML5 WebSockets. The VNC client is based on noVNC. For details, see noVNC: HTML5 VNC Client. For a list of supported browsers, see Browser support.

  3. In the address bar, enter the host name or IP address for the dashboard, for example, https://ipAddressOrHostName/.

    Note
    Note

    If a certificate warning appears when you try to access the URL for the first time, a self-signed certificate is in use, which is not considered trustworthy by default. Verify the certificate or add an exception in the browser to bypass the warning.

  4. On the Log In page, enter your user name and password, and click Sign In. If the cloud supports multi-domain model, you also need to enter your domain name.

    The top of the window displays your user name. You can also access the Settings tab (Section 3.1.1.4, “OpenStack dashboard — Settings tab”) or sign out of the dashboard.

    The visible tabs and functions in the dashboard depend on the access permissions, or roles, of the user you are logged in as.

Note
Note

Some tabs, such as Orchestration and Firewalls, only appear on the dashboard if they are properly configured.

3.1.1.1 OpenStack dashboard — Project tab



Projects are organizational units in the cloud and are also known as tenants or accounts. Each user is a member of one or more projects. Within a project, a user creates and manages instances.

From the Project tab, you can view and manage the resources in a selected project, including instances and images. You can select the project from the drop-down menu at the top left. If the cloud supports multi-domain model, you can also select the domain from this menu.

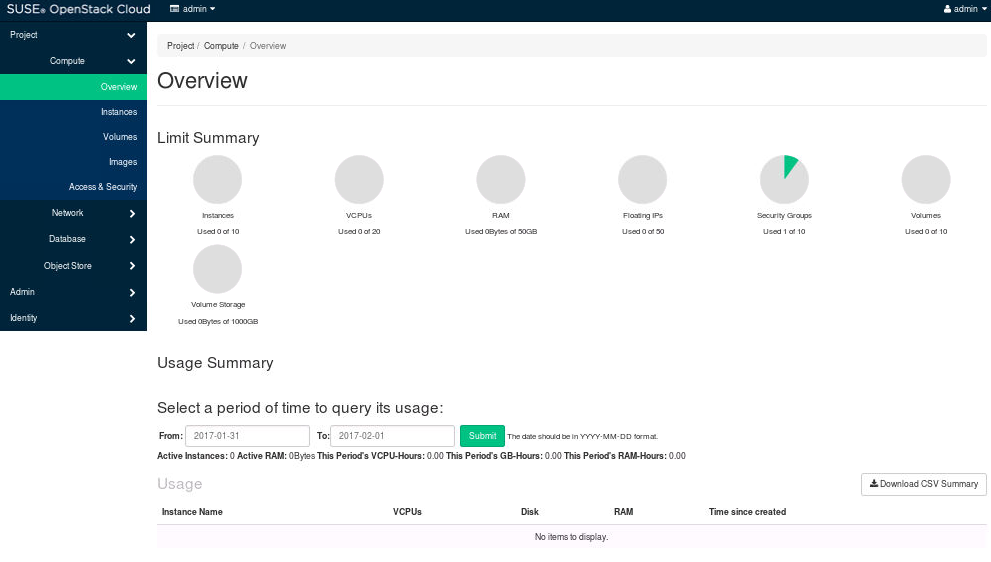

Figure: Project tab
Figure 3.1: Figure: Project tab


From the Project tab, you can access the following categories:

3.1.1.1.1 Compute tab


  • Overview: View reports for the project.

  • Instances: View, launch, create a snapshot from, stop, pause, or reboot instances, or connect to them through VNC.

  • Volumes: Use the following tabs to complete these tasks:

    • Volumes: View, create, edit, and delete volumes.

    • Volume Snapshots: View, create, edit, and delete volume snapshots.

  • Images: View images and instance snapshots created by project users, plus any images that are publicly available. Create, edit, and delete images, and launch instances from images and snapshots.

  • Access & Security: Use the following tabs to complete these tasks:

    • Security Groups: View, create, edit, and delete security groups and security group rules.

    • Key Pairs: View, create, edit, import, and delete key pairs.

    • Floating IPs: Allocate an IP address to or release it from a project.

    • API Access: View API endpoints.

  • Shares: Use the following tabs to complete these tasks:

    • Shares: View, create, manage, and delete shares.

    • Snapshots: View, manage, and delete volume snapshots.

    • Share Networks: View, manage, and delete share networks.

    • Security Services: View, manage, and delete security services.

3.1.1.1.2 Network tab


  • Network Topology: View the network topology.

  • Networks: Create and manage public and private networks.

  • Routers: Create and manage routers.

  • Load Balancers: Create and manage load balancers.

    • Pools: Add and manage pools.

    • Members: Add and manage members.

    • Monitors: Add and manage monitors.

  • Firewalls: Create and manage firewalls.

    • Firewalls: Create and manage firewalls.

    • Firewall Policies: Add and manage firewall policies.

    • Firewall Rules: Add and manage firewall rules.

3.1.1.1.3 Orchestration tab


  • Stacks: Use the REST API to orchestrate multiple composite cloud applications.

  • Resource Types: Show a list of all the supported resource types for HOT templates.

3.1.1.1.4 Object Store tab


  • Containers: Create and manage containers and objects.

3.1.1.2 OpenStack dashboard — Admin tab



Administrative users can use the Admin tab to view usage and to manage instances, volumes, flavors, images, networks, and so on.

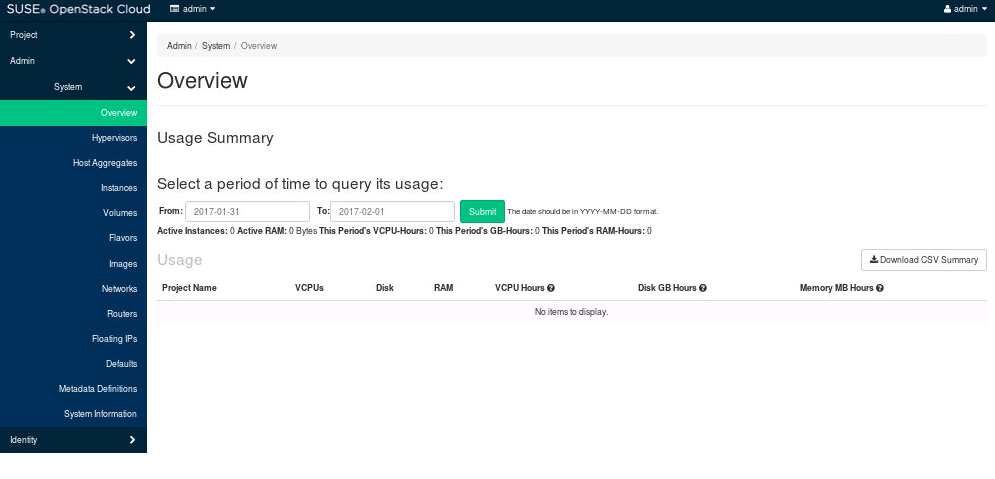

Figure: Admin tab
Figure 3.2: Figure: Admin tab


From the Admin tab, you can access the following category to complete these tasks:

3.1.1.2.1 System tab


  • Overview: View basic reports.

  • Resource Usage: Use the following tabs to view the following usages:

    • Usage Report: View the usage report.

    • Stats: View the statistics of all resources.

  • Hypervisors: View the hypervisor summary.

  • Host Aggregates: View, create, and edit host aggregates. View the list of availability zones.

  • Instances: View, pause, resume, suspend, migrate, soft or hard reboot, and delete running instances that belong to users of some, but not all, projects. Also, view the log for an instance or access an instance through VNC.

  • Volumes: Use the following tabs to complete these tasks:

    • Volumes: View, create, manage, and delete volumes.

    • Volume Types: View, create, manage, and delete volume types.

    • Volume Snapshots: View, manage, and delete volume snapshots.

  • Flavors: View, create, edit, view extra specifications for, and delete flavors. A flavor is the size of an instance.

  • Images: View, create, edit properties for, and delete custom images.

  • Networks: View, create, edit properties for, and delete networks.

  • Routers: View, create, edit properties for, and delete routers.

  • Defaults: View default quota values. Quotas are hard-coded in OpenStack Compute and define the maximum allowable size and number of resources.

  • Metadata Definitions: Import namespace and view the metadata information.

  • System Information: Use the following tabs to view the service information:

    • Services: View a list of the services.

    • Compute Services: View a list of all Compute services.

    • Block Storage Services: View a list of all Block Storage services.

    • Network Agents: View the network agents.

    • Orchestration Services: View a list of all Orchestration services.

  • Shares: Use the following tabs to complete these tasks:

    • Shares: View, create, manage, and delete shares.

    • Snapshots: View, manage, and delete volume snapshots.

    • Share Networks: View, manage, and delete share networks.

    • Security Services: View, manage, and delete security services.

    • Share Types: View, create, manage, and delete share types.

    • Share Servers: View, manage, and delete share servers.

3.1.1.3 OpenStack dashboard — Identity tab

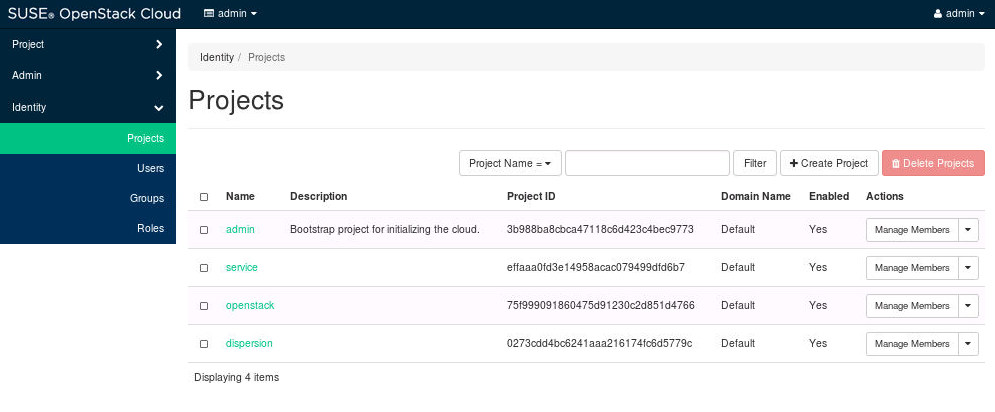

Figure:Identity tab
Figure 3.3: Figure:Identity tab


  • Projects: View, create, assign users to, remove users from, and delete projects.

  • Users: View, create, enable, disable, and delete users.

3.1.1.4 OpenStack dashboard — Settings tab

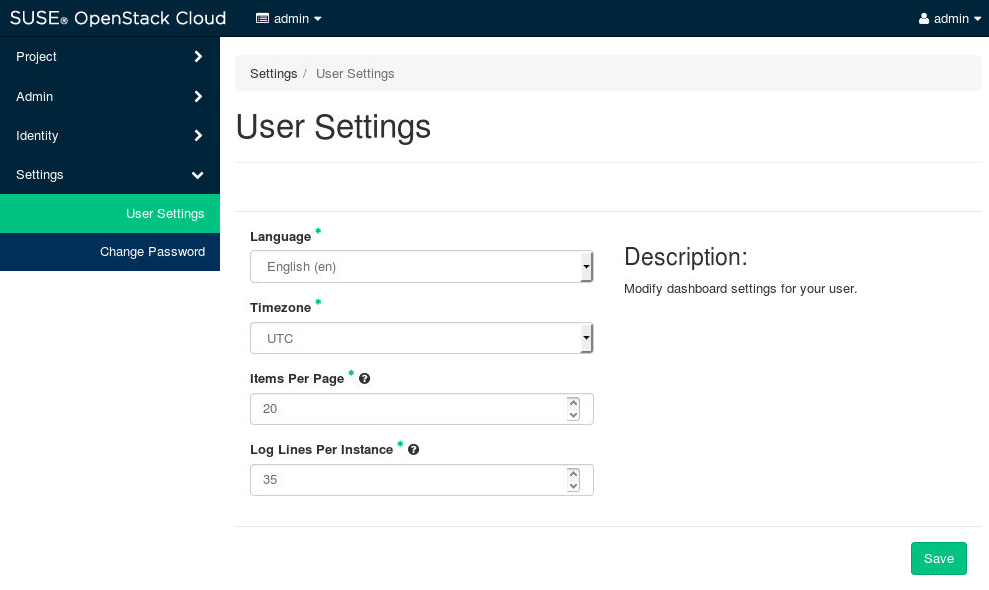

Figure:Settings tab
Figure 3.4: Figure:Settings tab


Click the Settings button from the user drop down menu at the top right of any page, you will see the Settings tab.

  • User Settings: View and manage dashboard settings.

  • Change Password: Change the password of the user.

3.1.2 Upload and manage images



A virtual machine image, referred to in this document simply as an image, is a single file that contains a virtual disk that has a bootable operating system installed on it. Images are used to create virtual machine instances within the cloud. For information about creating image files, see the OpenStack Virtual Machine Image Guide.

Depending on your role, you may have permission to upload and manage virtual machine images. Operators might restrict the upload and management of images to cloud administrators or operators only. If you have the appropriate privileges, you can use the dashboard to upload and manage images in the admin project.

Note
Note

You can also use the openstack and glance command-line clients or the Image service to manage images.

3.1.2.1 Upload an image



Follow this procedure to upload an image to a project:

  1. Log in to the dashboard.

  2. Select the appropriate project from the drop down menu at the top left.

  3. On the Project tab, open the Compute tab and click Images category.

  4. Click Create Image.

    The Create An Image dialog box appears.

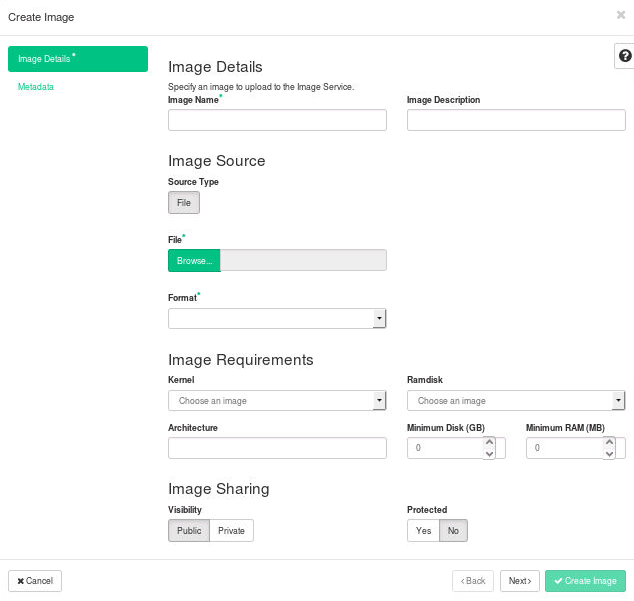

    Dashboard — Create Image
    Figure 3.5: Dashboard — Create Image


  5. Enter the following values:

    Image Name

    Enter a name for the image.

    Image Description

    Enter a brief description of the image.

    Image Source

    Choose the image source from the dropdown list. Your choices are Image Location and Image File.

    Image File or Image Location

    Based on your selection for Image Source, you either enter the location URL of the image in the Image Location field, or browse for the image file on your file system and add it.

    Format

    Select the image format (for example, QCOW2) for the image.

    Architecture

    Specify the architecture. For example, i386 for a 32-bit architecture or x86_64 for a 64-bit architecture.

    Minimum Disk (GB)

    Leave this field empty.

    Minimum RAM (MB)

    Leave this field empty.

    Copy Data

    Specify this option to copy image data to the Image service.

    Visibility

    The access permission for the image. Public or Private.

    Protected

    Select this check box to ensure that only users with permissions can delete the image. Yes or No.

    Image Metadata

    Specify this option to add resource metadata. The glance Metadata Catalog provides a list of metadata image definitions. (Note: Not all cloud providers enable this feature.)

  6. Click Create Image.

    The image is queued to be uploaded. It might take some time before the status changes from Queued to Active.

3.1.2.2 Update an image



Follow this procedure to update an existing image.

  1. Log in to the dashboard.

  2. Select the appropriate project from the drop down menu at the top left.

  3. Select the image that you want to edit.

  4. In the Actions column, click the menu button and then select Edit Image from the list.

  5. In the Edit Image dialog box, you can perform various actions. For example:

    • Change the name of the image.

    • Select the Public check box to make the image public.

    • Clear the Public check box to make the image private.

  6. Click Edit Image.

3.1.2.3 Delete an image



Deletion of images is permanent and cannot be reversed. Only users with the appropriate permissions can delete images.

  1. Log in to the dashboard.

  2. Select the appropriate project from the drop down menu at the top left.

  3. On the Project tab, open the Compute tab and click Images category.

  4. Select the images that you want to delete.

  5. Click Delete Images.

  6. In the Confirm Delete Images dialog box, click Delete Images to confirm the deletion.

3.1.3 Configure access and security for instances



Before you launch an instance, you should add security group rules to enable users to ping and use SSH to connect to the instance. Security groups are sets of IP filter rules that define networking access and are applied to all instances within a project. To do so, you either add rules to the default security group Section 3.1.3.1, “Add a rule to the default security group” or add a new security group with rules.

Key pairs are SSH credentials that are injected into an instance when it is launched. To use key pair injection, the image that the instance is based on must contain the cloud-init package. Each project should have at least one key pair. For more information, see the section Section 3.1.3.2, “Add a key pair”.

If you have generated a key pair with an external tool, you can import it into OpenStack. The key pair can be used for multiple instances that belong to a project. For more information, see the section Section 3.1.3.3, “Import a key pair”.

Note
Note

A key pair belongs to an individual user, not to a project. To share a key pair across multiple users, each user needs to import that key pair.

When an instance is created in OpenStack, it is automatically assigned a fixed IP address in the network to which the instance is assigned. This IP address is permanently associated with the instance until the instance is terminated. However, in addition to the fixed IP address, a floating IP address can also be attached to an instance. Unlike fixed IP addresses, floating IP addresses are able to have their associations modified at any time, regardless of the state of the instances involved.

3.1.3.1 Add a rule to the default security group



This procedure enables SSH and ICMP (ping) access to instances. The rules apply to all instances within a given project, and should be set for every project unless there is a reason to prohibit SSH or ICMP access to the instances.

This procedure can be adjusted as necessary to add additional security group rules to a project, if your cloud requires them.

Note
Note

When adding a rule, you must specify the protocol used with the destination port or source port.

  1. Log in to the dashboard.

  2. Select the appropriate project from the drop down menu at the top left.

  3. On the Project tab, open the Compute tab and click Access & Security category. The Security Groups tab shows the security groups that are available for this project.

  4. Select the default security group and click Manage Rules.

  5. To allow SSH access, click Add Rule.

  6. In the Add Rule dialog box, enter the following values:

    • Rule: SSH

    • Remote: CIDR

    • CIDR: 0.0.0.0/0

    Note
    Note

    To accept requests from a particular range of IP addresses, specify the IP address block in the CIDR box.

  7. Click Add.

    Instances will now have SSH port 22 open for requests from any IP address.

  8. To add an ICMP rule, click Add Rule.

  9. In the Add Rule dialog box, enter the following values:

    • Rule: All ICMP

    • Direction: Ingress

    • Remote: CIDR

    • CIDR: 0.0.0.0/0

  10. Click Add.

    Instances will now accept all incoming ICMP packets.

3.1.3.2 Add a key pair



Create at least one key pair for each project.

  1. Log in to the dashboard.

  2. Select the appropriate project from the drop down menu at the top left.

  3. On the Project tab, open the Compute tab and click Access & Security category.

  4. Click the Key Pairs tab, which shows the key pairs that are available for this project.

  5. Click Create Key Pair.

  6. In the Create Key Pair dialog box, enter a name for your key pair, and click Create Key Pair.

  7. Respond to the prompt to download the key pair.

3.1.3.3 Import a key pair



  1. Log in to the dashboard.

  2. Select the appropriate project from the drop down menu at the top left.

  3. On the Project tab, open the Compute tab and click Access & Security category.

  4. Click the Key Pairs tab, which shows the key pairs that are available for this project.

  5. Click Import Key Pair.

  6. In the Import Key Pair dialog box, enter the name of your key pair, copy the public key into the Public Key box, and then click Import Key Pair.

  7. Save the *.pem file locally.

  8. To change its permissions so that only you can read and write to the file, run the following command:

    $ chmod 0600 yourPrivateKey.pem
    Note
    Note

    If you are using the Dashboard from a Windows computer, use PuTTYgen to load the *.pem file and convert and save it as *.ppk. For more information see the WinSCP web page for PuTTYgen.

  9. To make the key pair known to SSH, run the ssh-add command.

    $ ssh-add yourPrivateKey.pem

The Compute database registers the public key of the key pair.

The Dashboard lists the key pair on the Access & Security tab.

3.1.3.4 Allocate a floating IP address to an instance



When an instance is created in OpenStack, it is automatically assigned a fixed IP address in the network to which the instance is assigned. This IP address is permanently associated with the instance until the instance is terminated.

However, in addition to the fixed IP address, a floating IP address can also be attached to an instance. Unlike fixed IP addresses, floating IP addresses can have their associations modified at any time, regardless of the state of the instances involved. This procedure details the reservation of a floating IP address from an existing pool of addresses and the association of that address with a specific instance.

  1. Log in to the dashboard.

  2. Select the appropriate project from the drop down menu at the top left.

  3. On the Project tab, open the Compute tab and click Access & Security category.

  4. Click the Floating IPs tab, which shows the floating IP addresses allocated to instances.

  5. Click Allocate IP To Project.

  6. Choose the pool from which to pick the IP address.

  7. Click Allocate IP.

  8. In the Floating IPs list, click Associate.

  9. In the Manage Floating IP Associations dialog box, choose the following options:

    • The IP Address field is filled automatically, but you can add a new IP address by clicking the + button.

    • In the Port to be associated field, select a port from the list.

      The list shows all the instances with their fixed IP addresses.

  10. Click Associate.

Note
Note

To disassociate an IP address from an instance, click the Disassociate button.

To release the floating IP address back into the floating IP pool, click the Release Floating IP option in the Actions column.

3.1.4 Launch and manage instances



Instances are virtual machines that run inside the cloud. You can launch an instance from the following sources:

  • Images uploaded to the Image service.

  • Image that you have copied to a persistent volume. The instance launches from the volume, which is provided by the cinder-volume API through iSCSI.

  • Instance snapshot that you took.

3.1.4.1 Launch an instance



  1. Log in to the dashboard.

  2. Select the appropriate project from the drop down menu at the top left.

  3. On the Project tab, open the Compute tab and click Instances category.

    The dashboard shows the instances with its name, its private and floating IP addresses, size, status, task, power state, and so on.

  4. Click Launch Instance.

  5. In the Launch Instance dialog box, specify the following values:

    Details tab

    Instance Name

    Assign a name to the virtual machine.

    Availability Zone

    By default, this value is set to the availability zone given by the cloud provider (for example, us-west or apac-south). For some cases, it could be nova.

    Note
    Note

    The name you assign here becomes the initial host name of the server. If the name is longer than 63 characters, the Compute service truncates it automatically to ensure dnsmasq works correctly.

    After the server is built, if you change the server name in the API or change the host name directly, the names are not updated in the dashboard.

    Server names are not guaranteed to be unique when created so you could have two instances with the same host name.

    Count

    To launch multiple instances, enter a value greater than 1. The default is 1.

    Source tab

    Instance Boot Source

    Your options are:

    Boot from image

    If you choose this option, a new field for Image Name displays. You can select the image from the list.

    Boot from snapshot

    If you choose this option, a new field for Instance Snapshot displays. You can select the snapshot from the list.

    Boot from volume

    If you choose this option, a new field for Volume displays. You can select the volume from the list.

    Boot from image (creates a new volume)

    With this option, you can boot from an image and create a volume by entering the Device Size and Device Name for your volume. Click the Delete Volume on Instance Delete option to delete the volume on deleting the instance.

    Boot from volume snapshot (creates a new volume)

    Using this option, you can boot from a volume snapshot and create a new volume by choosing Volume Snapshot from a list and adding a Device Name for your volume. Click the Delete Volume on Instance Delete option to delete the volume on deleting the instance.

    Image Name

    This field changes based on your previous selection. If you have chosen to launch an instance using an image, the Image Name field displays. Select the image name from the dropdown list.

    Instance Snapshot

    This field changes based on your previous selection. If you have chosen to launch an instance using a snapshot, the Instance Snapshot field displays. Select the snapshot name from the dropdown list.

    Volume

    This field changes based on your previous selection. If you have chosen to launch an instance using a volume, the Volume field displays. Select the volume name from the dropdown list. If you want to delete the volume on instance delete, check the Delete Volume on Instance Delete option.

    Flavor tab

    Flavor

    Specify the size of the instance to launch.

    Note
    Note

    The flavor is selected based on the size of the image selected for launching an instance. For example, while creating an image, if you have entered the value in the Minimum RAM (MB) field as 2048, then on selecting the image, the default flavor is m1.small.

    Networks tab

    Selected Networks

    To add a network to the instance, click the + in the Available field.

    Network Ports tab

    Ports

    Activate the ports that you want to assign to the instance.

    Security Groups tab

    Security Groups

    Activate the security groups that you want to assign to the instance.

    Security groups are a kind of cloud firewall that define which incoming network traffic is forwarded to instances.

    If you have not created any security groups, you can assign only the default security group to the instance.

    Key Pair tab

    Key Pair

    Specify a key pair.

    If the image uses a static root password or a static key set (neither is recommended), you do not need to provide a key pair to launch the instance.

    Configuration tab

    Customization Script Source

    Specify a customization script that runs after your instance launches.

    Metadata tab

    Available Metadata

    Add Metadata items to your instance.

  6. Click Launch Instance.

    The instance starts on a compute node in the cloud.

Note
Note

If you did not provide a key pair, security groups, or rules, users can access the instance only from inside the cloud through VNC. Even pinging the instance is not possible without an ICMP rule configured.

You can also launch an instance from the Images or Volumes category when you launch an instance from an image or a volume respectively.

When you launch an instance from an image, OpenStack creates a local copy of the image on the compute node where the instance starts.

For details on creating images, see Creating images manually in the OpenStack Virtual Machine Image Guide.

When you launch an instance from a volume, note the following steps:

  • To select the volume from which to launch, launch an instance from an arbitrary image on the volume. The arbitrary image that you select does not boot. Instead, it is replaced by the image on the volume that you choose in the next steps.

    To boot a Xen image from a volume, the image you launch in must be the same type, fully virtualized or paravirtualized, as the one on the volume.

  • Select the volume or volume snapshot from which to boot. Enter a device name. Enter vda for KVM images or xvda for Xen images.

Note
Note

When running QEMU without support for the hardware virtualization, set cpu_mode="none" alongside virt_type=qemu in /etc/nova/nova-compute.conf to solve the following error:

libvirtError: unsupported configuration: CPU mode 'host-model'
for ``x86_64`` qemu domain on ``x86_64`` host is not supported by hypervisor

3.1.4.2 Connect to your instance by using SSH



To use SSH to connect to your instance, use the downloaded keypair file.

  1. Copy the IP address for your instance.

  2. Use the ssh command to make a secure connection to the instance.

  3. At the prompt, type yes.

It is also possible to SSH into an instance without an SSH keypair, if the administrator has enabled root password injection. For more information about root password injection, see Injecting the administrator password in the OpenStack Administrator Guide.

3.1.4.3 Track usage for instances



You can track usage for instances for each project. You can track costs per month by showing meters like number of vCPUs, disks, RAM, and uptime for all your instances.

  1. Log in to the dashboard.

  2. Select the appropriate project from the drop down menu at the top left.

  3. On the Project tab, open the Compute tab and click Overview category.

  4. To query the instance usage for a month, select a month and click Submit.

  5. To download a summary, click Download CSV Summary.

3.1.4.4 Create an instance snapshot



  1. Log in to the dashboard.

  2. Select the appropriate project from the drop down menu at the top left.

  3. On the Project tab, open the Compute tab and click the Instances category.

  4. Select the instance from which to create a snapshot.

  5. In the actions column, click Create Snapshot.

  6. In the Create Snapshot dialog box, enter a name for the snapshot, and click Create Snapshot.

    The Images category shows the instance snapshot.

To launch an instance from the snapshot, select the snapshot and click Launch. Proceed with launching an instance.

3.1.4.5 Manage an instance



  1. Log in to the dashboard.

  2. Select the appropriate project from the drop down menu at the top left.

  3. On the Project tab, open the Compute tab and click Instances category.

  4. Select an instance.

  5. In the menu list in the actions column, select the state.

    You can resize or rebuild an instance. You can also choose to view the instance console log, edit instance or the security groups. Depending on the current state of the instance, you can pause, resume, suspend, soft or hard reboot, or terminate it.

3.1.5 Create and manage networks



The OpenStack Networking service provides a scalable system for managing the network connectivity within an OpenStack cloud deployment. It can easily and quickly react to changing network needs (for example, creating and assigning new IP addresses).

Networking in OpenStack is complex. This section provides the basic instructions for creating a network and a router. For detailed information about managing networks, refer to the OpenStack Networking Guide.

3.1.5.1 Create a network



  1. Log in to the dashboard.

  2. Select the appropriate project from the drop down menu at the top left.

  3. On the Project tab, open the Network tab and click Networks category.

  4. Click Create Network.

  5. In the Create Network dialog box, specify the following values.

    Network tab

    Network Name: Specify a name to identify the network.

    Shared: Share the network with other projects. Non admin users are not allowed to set shared option.

    Admin State: The state to start the network in.

    Create Subnet: Select this check box to create a subnet

    You do not have to specify a subnet when you create a network, but if you do not specify a subnet, the network can not be attached to an instance.

    Subnet tab

    Subnet Name: Specify a name for the subnet.

    Network Address: Specify the IP address for the subnet.

    IP Version: Select IPv4 or IPv6.

    Gateway IP: Specify an IP address for a specific gateway. This parameter is optional.

    Disable Gateway: Select this check box to disable a gateway IP address.

    Subnet Details tab

    Enable DHCP: Select this check box to enable DHCP.

    Allocation Pools: Specify IP address pools.

    DNS Name Servers: Specify a name for the DNS server.

    Host Routes: Specify the IP address of host routes.

  6. Click Create.

    The dashboard shows the network on the Networks tab.

3.1.5.2 Create a router



  1. Log in to the dashboard.

  2. Select the appropriate project from the drop down menu at the top left.

  3. On the Project tab, open the Network tab and click Routers category.

  4. Click Create Router.

  5. In the Create Router dialog box, specify a name for the router and External Network, and click Create Router.

    The new router is now displayed in the Routers tab.

  6. To connect a private network to the newly created router, perform the following steps:

    1. On the Routers tab, click the name of the router.

    2. On the Router Details page, click the Interfaces tab, then click Add Interface.

    3. In the Add Interface dialog box, select a Subnet.

      Optionally, in the Add Interface dialog box, set an IP Address for the router interface for the selected subnet.

      If you choose not to set the IP Address value, then by default OpenStack Networking uses the first host IP address in the subnet.

      The Router Name and Router ID fields are automatically updated.

  7. Click Add Interface.

You have successfully created the router. You can view the new topology from the Network Topology tab.

3.1.5.3 Create a port


Warning
Warning

Creating and managing ports requires administrator privileges. Contact an administrator before adding or changing ports.

  1. Log in to the dashboard.

  2. Select the appropriate project from the drop-down menu at the top left.

  3. On the Admin tab, click Networks category.

  4. Click on the Network Name of the network in which the port has to be created.

  5. In the Create Port dialog box, specify the following values.

    Name: Specify name to identify the port.

    Device ID: Device ID attached to the port.

    Device Owner: Device owner attached to the port.

    Binding Host: The ID of the host where the port is allocated.

    Binding VNIC Type: Select the VNIC type that is bound to the neutron port.

  6. Click Create Port.

    The new port is now displayed in the Ports list.

3.1.6 Create and manage object containers



OpenStack Object Storage (swift) is used for redundant, scalable data storage using clusters of standardized servers to store petabytes of accessible data. It is a long-term storage system for large amounts of static data which can be retrieved and updated.

OpenStack Object Storage provides a distributed, API-accessible storage platform that can be integrated directly into an application or used to store any type of file, including VM images, backups, archives, or media files. In the OpenStack dashboard, you can only manage containers and objects.

In OpenStack Object Storage, containers provide storage for objects in a manner similar to a Windows folder or Linux file directory, though they cannot be nested. An object in OpenStack consists of the file to be stored in the container and any accompanying metadata.

3.1.6.1 Create a container



  1. Log in to the dashboard.

  2. Select the appropriate project from the drop down menu at the top left.

  3. On the Project tab, open the Object Store tab and click Containers category.

  4. Click Container.

  5. In the Create Container dialog box, enter a name for the container, and then click Create.

You have successfully created a container.

Note
Note

To delete a container, click the More button and select Delete Container.

3.1.6.2 Upload an object



  1. Log in to the dashboard.

  2. Select the appropriate project from the drop down menu at the top left.

  3. On the Project tab, open the Object Store tab and click Containers category.

  4. Select the container in which you want to store your object.

  5. Click the Upload File icon.

    The Upload File To Container: <name> dialog box appears. <name> is the name of the container to which you are uploading the object.

  6. Enter a name for the object.

  7. Browse to and select the file that you want to upload.

  8. Click Upload File.

You have successfully uploaded an object to the container.

Note
Note

To delete an object, click the More button and select Delete Object.

3.1.6.3 Manage an object



To edit an object

  1. Log in to the dashboard.

  2. Select the appropriate project from the drop down menu at the top left.

  3. On the Project tab, open the Object Store tab and click Containers category.

  4. Select the container in which you want to store your object.

  5. Click the menu button and choose Edit from the dropdown list.

    The Edit Object dialog box is displayed.

  6. Browse to and select the file that you want to upload.

  7. Click Update Object.

Note
Note

To delete an object, click the menu button and select Delete Object.

To copy an object from one container to another

  1. Log in to the dashboard.

  2. Select the appropriate project from the drop down menu at the top left.

  3. On the Project tab, open the Object Store tab and click Containers category.

  4. Select the container in which you want to store your object.

  5. Click the menu button and choose Copy from the dropdown list.

  6. In the Copy Object launch dialog box, enter the following values:

    • Destination Container: Choose the destination container from the list.

    • Path: Specify a path in which the new copy should be stored inside of the selected container.

    • Destination object name: Enter a name for the object in the new container.

  7. Click Copy Object.

To create a metadata-only object without a file

You can create a new object in container without a file available and can upload the file later when it is ready. This temporary object acts a place-holder for a new object, and enables the user to share object metadata and URL info in advance.

  1. Log in to the dashboard.

  2. Select the appropriate project from the drop down menu at the top left.

  3. On the Project tab, open the Object Store tab and click Containers category.

  4. Select the container in which you want to store your object.

  5. Click Upload Object.

    The Upload Object To Container: <name> dialog box is displayed.

    <name> is the name of the container to which you are uploading the object.

  6. Enter a name for the object.

  7. Click Update Object.

To create a pseudo-folder

Pseudo-folders are similar to folders in your desktop operating system. They are virtual collections defined by a common prefix on the object’s name.

  1. Log in to the dashboard.

  2. Select the appropriate project from the drop down menu at the top left.

  3. On the Project tab, open the Object Store tab and click Containers category.

  4. Select the container in which you want to store your object.

  5. Click Create Pseudo-folder.

    The Create Pseudo-Folder in Container<name> dialog box is displayed. <name> is the name of the container to which you are uploading the object.

  6. Enter a name for the pseudo-folder.

    A slash (/) character is used as the delimiter for pseudo-folders in Object Storage.

  7. Click Create.

3.1.7 Create and manage volumes



Volumes are block storage devices that you attach to instances to enable persistent storage. You can attach a volume to a running instance or detach a volume and attach it to another instance at any time. You can also create a snapshot from or delete a volume. Only administrative users can create volume types.

3.1.7.1 Create a volume



  1. Log in to the dashboard.

  2. Select the appropriate project from the drop down menu at the top left.

  3. On the Project tab, open the Compute tab and click Volumes category.

  4. Click Create Volume.

    In the dialog box that opens, enter or select the following values.

    Volume Name: Specify a name for the volume.

    Description: Optionally, provide a brief description for the volume.

    Volume Source: Select one of the following options:

    • No source, empty volume: Creates an empty volume. An empty volume does not contain a file system or a partition table.

    • Snapshot: If you choose this option, a new field for Use snapshot as a source displays. You can select the snapshot from the list.

    • Image: If you choose this option, a new field for Use image as a source displays. You can select the image from the list.

    • Volume: If you choose this option, a new field for Use volume as a source displays. You can select the volume from the list. Options to use a snapshot or a volume as the source for a volume are displayed only if there are existing snapshots or volumes.

    Type: Leave this field blank.

    Size (GB): The size of the volume in gibibytes (GiB).

    Availability Zone: Select the Availability Zone from the list. By default, this value is set to the availability zone given by the cloud provider (for example, us-west or apac-south). For some cases, it could be nova.

  5. Click Create Volume.

The dashboard shows the volume on the Volumes tab.

3.1.7.2 Attach a volume to an instance



After you create one or more volumes, you can attach them to instances. You can attach a volume to one instance at a time.

  1. Log in to the dashboard.

  2. Select the appropriate project from the drop down menu at the top left.

  3. On the Project tab, open the Compute tab and click Volumes category.

  4. Select the volume to add to an instance and click Manage Attachments.

  5. In the Manage Volume Attachments dialog box, select an instance.

  6. Enter the name of the device from which the volume is accessible by the instance.

    Note
    Note

    The actual device name might differ from the volume name because of hypervisor settings.

  7. Click Attach Volume.

    The dashboard shows the instance to which the volume is now attached and the device name.

You can view the status of a volume in the Volumes tab of the dashboard. The volume is either Available or In-Use.

Now you can log in to the instance and mount, format, and use the disk.

3.1.7.3 Detach a volume from an instance



  1. Log in to the dashboard.

  2. Select the appropriate project from the drop down menu at the top left.

  3. On the Project tab, open the Compute tab and click the Volumes category.

  4. Select the volume and click Manage Attachments.

  5. Click Detach Volume and confirm your changes.

A message indicates whether the action was successful.

3.1.7.4 Create a snapshot from a volume



  1. Log in to the dashboard.

  2. Select the appropriate project from the drop down menu at the top left.

  3. On the Project tab, open the Compute tab and click Volumes category.

  4. Select a volume from which to create a snapshot.

  5. In the Actions column, click Create Snapshot.

  6. In the dialog box that opens, enter a snapshot name and a brief description.

  7. Confirm your changes.

    The dashboard shows the new volume snapshot in Volume Snapshots tab.

3.1.7.5 Edit a volume



  1. Log in to the dashboard.

  2. Select the appropriate project from the drop down menu at the top left.

  3. On the Project tab, open the Compute tab and click Volumes category.

  4. Select the volume that you want to edit.

  5. In the Actions column, click Edit Volume.

  6. In the Edit Volume dialog box, update the name and description of the volume.

  7. Click Edit Volume.

    Note
    Note

    You can extend a volume by using the Extend Volume option available in the More dropdown list and entering the new value for volume size.

3.1.7.6 Delete a volume



When you delete an instance, the data in its attached volumes is not deleted.

  1. Log in to the dashboard.

  2. Select the appropriate project from the drop down menu at the top left.

  3. On the Project tab, open the Compute tab and click Volumes category.

  4. Select the check boxes for the volumes that you want to delete.

  5. Click Delete Volumes and confirm your choice.

    A message indicates whether the action was successful.

3.1.8 Create and manage shares



Shares are file storage that you provide access to instances. You can allow access to a share to a running instance or deny access to a share and allow access to it to another instance at any time. You can also delete a share. You can create snapshot from a share if the driver supports it. Only administrative users can create share types.

3.1.8.1 Create a share



  1. Log in to the dashboard, choose a project, and click Shares.

  2. Click Create Share.

    In the dialog box that opens, enter or select the following values.

    Share Name: Specify a name for the share.

    Description: Optionally, provide a brief description for the share.

    Share Type: Choose a share type.

    Size (GB): The size of the share in gibibytes (GiB).

    Share Protocol: Select NFS, CIFS, GlusterFS, or HDFS.

    Share Network: Choose a share network.

    Metadata: Enter metadata for the share creation if needed.

  3. Click Create Share.

The dashboard shows the share on the Shares tab.

3.1.8.2 Delete a share



  1. Log in to the dashboard, choose a project, and click Shares.

  2. Select the check boxes for the shares that you want to delete.

  3. Click Delete Shares and confirm your choice.

    A message indicates whether the action was successful.

3.1.8.3 Allow access



  1. Log in to the dashboard, choose a project, and click Shares.

  2. Go to the share that you want to allow access and choose Manage Rules from Actions.

  3. Click Add rule.

    Access Type: Choose ip, user, or cert.

    Access Level: Choose read-write or read-only.

    Access To: Fill in Access To field.

  4. Click Add Rule.

    A message indicates whether the action was successful.

3.1.8.4 Deny access



  1. Log in to the dashboard, choose a project, and click Shares.

  2. Go to the share that you want to deny access and choose Manage Rules from Actions.

  3. Choose the rule you want to delete.

  4. Click Delete rule and confirm your choice.

    A message indicates whether the action was successful.

3.1.8.5 Edit share metadata



  1. Log in to the dashboard, choose a project, and click Shares.

  2. Go to the share that you want to edit and choose Edit Share Metadata from Actions.

  3. Metadata: To add share metadata, use key=value. To unset metadata, use key.

  4. Click Edit Share Metadata.

    A message indicates whether the action was successful.

3.1.8.6 Edit share



  1. Log in to the dashboard, choose a project, and click Shares.

  2. Go to the share that you want to edit and choose Edit Share from Actions.

  3. Share Name: Enter a new share name.

  4. Description: Enter a new description.

  5. Click Edit Share.

    A message indicates whether the action was successful.

3.1.8.7 Extend share



  1. Log in to the dashboard, choose a project, and click Shares.

  2. Go to the share that you want to edit and choose Extend Share from Actions.

  3. New Size (GB): Enter new size.

  4. Click Extend Share.

    A message indicates whether the action was successful.

3.1.8.8 Create share network



  1. Log in to the dashboard, choose a project, click Shares, and click Share Networks.

  2. Click Create Share Network.

    In the dialog box that opens, enter or select the following values.

    Name: Specify a name for the share network.

    Description: Optionally, provide a brief description for the share network.

    Neutron Net: Choose a neutron network.

    Neutron Subnet: Choose a neutron subnet.

  3. Click Create Share Network.

The dashboard shows the share network on the Share Networks tab.

3.1.8.9 Delete a share network



  1. Log in to the dashboard, choose a project, click Shares, and click Share Networks.

  2. Select the check boxes for the share networks that you want to delete.

  3. Click Delete Share Networks and confirm your choice.

    A message indicates whether the action was successful.

3.1.8.10 Edit share network



  1. Log in to the dashboard, choose a project, click Shares, and click Share Networks.

  2. Go to the share network that you want to edit and choose Edit Share Network from Actions.

  3. Name: Enter a new share network name.

  4. Description: Enter a new description.

  5. Click Edit Share Network.

    A message indicates whether the action was successful.

3.1.8.11 Create security service



  1. Log in to the dashboard, choose a project, click Shares, and click Security Services.

  2. Click Create Security Service.

    In the dialog box that opens, enter or select the following values.

    Name: Specify a name for the security service.

    DNS IP: Enter the DNS IP address.

    Server: Enter the server name.

    Domain: Enter the domain name.

    User: Enter the user name.

    Password: Enter the password.

    Confirm Password: Enter the password again to confirm.

    Type: Choose the type from Active Directory, LDAP, or Kerberos.

    Description: Optionally, provide a brief description for the security service.

  3. Click Create Security Service.

The dashboard shows the security service on the Security Services tab.

3.1.8.12 Delete a security service



  1. Log in to the dashboard, choose a project, click Shares, and click Security Services.

  2. Select the check boxes for the security services that you want to delete.

  3. Click Delete Security Services and confirm your choice.

    A message indicates whether the action was successful.

3.1.8.13 Edit security service



  1. Log in to the dashboard, choose a project, click Shares, and click Security Services.

  2. Go to the security service that you want to edit and choose Edit Security Service from Actions.

  3. Name: Enter a new security service name.

  4. Description: Enter a new description.

  5. Click Edit Security Service.

    A message indicates whether the action was successful.

3.1.9 Launch and manage stacks



OpenStack Orchestration is a service that you can use to orchestrate multiple composite cloud applications. This service supports the use of both the Amazon Web Services (AWS) CloudFormation template format through both a Query API that is compatible with CloudFormation and the native OpenStack Heat Orchestration Template (HOT) format through a REST API.

These flexible template languages enable application developers to describe and automate the deployment of infrastructure, services, and applications. The templates enable creation of most OpenStack resource types, such as instances, floating IP addresses, volumes, security groups, and users. Once created, the resources are referred to as stacks.

The template languages are described in the Template Guide.

3.1.9.1 Launch a stack



  1. Log in to the dashboard.

  2. Select the appropriate project from the drop down menu at the top left.

  3. On the Project tab, open the Orchestration tab and click Stacks category.

  4. Click Launch Stack.

  5. In the Select Template dialog box, specify the following values:

    Template Source

    Choose the source of the template from the list.

    Template URL/File/Data

    Depending on the source that you select, enter the URL, browse to the file location, or directly include the template.

    Environment Source

    Choose the source of the environment from the list. The environment files contain additional settings for the stack.

    Environment File/Data

    Depending on the source that you select, browse to the file location, directly include the environment

  6. Click Next.

  7. In the Launch Stack dialog box, specify the following values:

    Stack Name

    Enter a name to identify the stack.

    Creation Timeout (minutes)

    Specify the number of minutes that can elapse before the launch of the stack times out.

    Rollback On Failure

    Select this check box if you want the service to roll back changes if the stack fails to launch.

    Password for user “demo”

    Specify the password that the default user uses when the stack is created.

    DBUsername

    Specify the name of the database user.

    LinuxDistribution

    Specify the Linux distribution that is used in the stack.

    DBRootPassword

    Specify the root password for the database.

    KeyName

    Specify the name of the key pair to use to log in to the stack.

    DBName

    Specify the name of the database.

    DBPassword

    Specify the password of the database.

    InstanceType

    Specify the flavor for the instance.

  8. Click Launch to create a stack. The Stacks tab shows the stack.

After the stack is created, click on the stack name to see the following details:

Topology

The topology of the stack.

Overview

The parameters and details of the stack.

Resources

The resources used by the stack.

Events

The events related to the stack.

Template

The template for the stack.

3.1.9.2 Manage a stack



  1. Log in to the dashboard.

  2. Select the appropriate project from the drop down menu at the top left.

  3. On the Project tab, open the Orchestration tab and click Stacks category.

  4. Select the stack that you want to update.

  5. Click Change Stack Template.

  6. In the Select Template dialog box, select the new template source or environment source.

  7. Click Next.

    The Update Stack Parameters window appears.

  8. Enter new values for any parameters that you want to update.

  9. Click Update.

3.1.9.3 Delete a stack



When you delete a stack, you cannot undo this action.

  1. Log in to the dashboard.

  2. Select the appropriate project from the drop down menu at the top left.

  3. On the Project tab, open the Orchestration tab and click Stacks category.

  4. Select the stack that you want to delete.

  5. Click Delete Stack.

  6. In the confirmation dialog box, click Delete Stack to confirm the deletion.

3.1.10 Create and manage databases



The Database service provides scalable and reliable cloud provisioning functionality for both relational and non-relational database engines. Users can quickly and easily use database features without the burden of handling complex administrative tasks.

3.1.10.1 Create a database instance



Prerequisites. Before you create a database instance, you need to configure a default datastore and make sure you have an appropriate flavor for the type of database instance you want.

  1. Configure a default datastore.

    Because the dashboard does not let you choose a specific datastore to use with an instance, you need to configure a default datastore. The dashboard then uses the default datastore to create the instance.

    1. Add the following line to /etc/trove/trove.conf:

      default_datastore = DATASTORE_NAME

      Replace DATASTORE_NAME with the name that the administrative user set when issuing the trove-manage command to create the datastore. You can use the trove datastore-list command to display the datastores that are available in your environment.

      For example, if your MySQL data store name is set to mysql, your entry would look like this:

      default_datastore = mysql

    2. Restart Database services on the controller node:

      # service trove-api restart
# service trove-taskmanager restart
# service trove-conductor restart

  2. Verify flavor.

    Make sure an appropriate flavor exists for the type of database instance you want.

Create database instance. Once you have configured a default datastore and verified that you have an appropriate flavor, you can create a database instance.

  1. Log in to the dashboard.

  2. From the CURRENT PROJECT on the Project tab, select the appropriate project.

  3. On the Project tab, open the Database tab and click Instances category. This lists the instances that already exist in your environment.

  4. Click Launch Instance.

  5. In the Launch Database dialog box, specify the following values.

    Details

    Database Name: Specify a name for the database instance.

    Flavor: Select an appropriate flavor for the instance.

    Volume Size: Select a volume size. Volume size is expressed in GB.

    Initialize Databases: Initial Database

    Optionally provide a comma separated list of databases to create, for example:

    database1, database2, database3

    Initial Admin User: Create an initial admin user. This user will have access to all the databases you create.

    Password: Specify a password associated with the initial admin user you just named.

    Host: Optionally, allow the user to connect only from this host. If you do not specify a host, this user will be allowed to connect from anywhere.

  6. Click the Launch button. The new database instance appears in the databases list.

3.1.10.2 Backup and restore a database



You can use Database services to backup a database and store the backup artifact in the Object Storage service. Later on, if the original database is damaged, you can use the backup artifact to restore the database. The restore process creates a database instance.

This example shows you how to back up and restore a MySQL database.

3.1.10.2.1 To backup the database instance


  1. Log in to the dashboard.

  2. From the CURRENT PROJECT on the Project tab, select the appropriate project.

  3. On the Project tab, open the Database tab and click Instances category. This displays the existing instances in your system.

  4. Click Create Backup.

  5. In the Backup Database dialog box, specify the following values:

    Name

    Specify a name for the backup.

    Database Instance

    Select the instance you want to back up.

  6. Click Backup. The new backup appears in the backup list.

3.1.10.2.2 To restore a database instance


Now assume that your original database instance is damaged and you need to restore it. You do the restore by using your backup to create a new database instance.

  1. Log in to the dashboard.

  2. From the CURRENT PROJECT on the Project tab, select the appropriate project.

  3. On the Project tab, open the Database tab and click Backups category. This lists the available backups.

  4. Check the backup you want to use and click Restore Backup.

  5. In the Launch Database dialog box, specify the values you want for the new database instance.

  6. Click the Restore From Database tab and make sure that this new instance is based on the correct backup.

  7. Click Launch.

    The new instance appears in the database instances list.

3.1.10.3 Update a database instance



You can change various characteristics of a database instance, such as its volume size and flavor.

3.1.10.3.1 To change the volume size of an instance


  1. Log in to the dashboard.

  2. From the CURRENT PROJECT on the Project tab, select the appropriate project.

  3. On the Project tab, open the Database tab and click Instances category. This displays the existing instances in your system.

  4. Check the instance you want to work with. In the Actions column, expand the drop down menu and select Resize Volume.

  5. In the Resize Database Volume dialog box, fill in the New Size field with an integer indicating the new size you want for the instance. Express the size in GB, and note that the new size must be larger than the current size.

  6. Click Resize Database Volume.

3.1.10.3.2 To change the flavor of an instance


  1. Log in to the dashboard.

  2. From the CURRENT PROJECT on the Project tab, select the appropriate project.

  3. On the Project tab, open the Database tab and click Instances category. This displays the existing instances in your system.

  4. Check the instance you want to work with. In the Actions column, expand the drop down menu and select Resize Instance.

  5. In the Resize Database Instance dialog box, expand the drop down menu in the New Flavor field. Select the new flavor you want for the instance.

  6. Click Resize Database Instance.

3.1.11 View and manage load balancers v2



Load-Balancer-as-a-Service (LBaaS) enables networking to distribute incoming requests evenly among designated instances. This distribution ensures that the workload is shared predictably among instances and enables more effective use of system resources. Use one of these load-balancing methods to distribute incoming requests:

  • Round robin: Rotates requests evenly between multiple instances.

  • Source IP: Requests from a unique source IP address are consistently directed to the same instance.

  • Least connections: Allocates requests to the instance with the least number of active connections.

As an end user, you can create and manage load balancers and related objects for users in various projects. You can also delete load balancers and related objects.

LBaaS v2 has several new concepts to understand:

Load balancer

The load balancer occupies a neutron network port and has an IP address assigned from a subnet.

Listener

Each port that listens for traffic on a particular load balancer is configured separately and tied to the load balancer. Multiple listeners can be associated with the same load balancer.

Pool

A pool is a group of hosts that sits behind the load balancer and serves traffic through the load balancer.

Member

Members are the actual IP addresses that receive traffic from the load balancer. Members are associated with pools.

Health monitor

Members may go offline from time to time and health monitors diverts traffic away from members that are not responding properly. Health monitors are associated with pools.

3.1.11.1 View existing load balancers



  1. Log in to the OpenStack dashboard.

  2. On the Project tab, open the Network tab, and click the Load Balancers category.

    This view shows the list of existing load balancers. To view details of any of the load balancers, click on the specific load balancer.

3.1.11.2 Create a load balancer



  1. Log in to the OpenStack dashboard.

  2. On the Project tab, open the Network tab, and click the Load Balancers category.

  3. Click the Create Load Balancer button.

    Use the concepts described in the overview section to fill in the necessary information about the load balancer you want to create.

    Keep in mind, the health checks routinely run against each instance within a target load balancer and the result of the health check is used to determine if the instance receives new connections.

Note
Note

A message indicates whether the action succeeded.

3.1.11.3 Delete a load balancer



  • Select the load balancer you want to delete and click the Delete Load Balancer button.

    To be deleted successfully, a load balancer must not have any listeners or pools associated with it. The delete action is also available in the Actions column for the individual load balancers.

3.1.12 Supported Browsers



Horizon is primarily tested and supported on the latest version of Firefox, the latest version of Chrome, and IE9+. Issues related to Safari and Opera will also be considered.

This page aims to informally document what that means for different releases, everyone is warmly encouraged to update this page based on the versions they’ve tested with.

Legend:

  • Very good: Very well tested, should work as expected

  • Good: Moderately tested, should look nice and work fine, maybe a few visual hiccups

  • Poor: Doesn’t look good

  • Broken: Essential functionality not working (link to bug in the notes)

  • No: Not supported

3.1.12.1 Kilo




Status

Notes

Firefox

Very good

31+. (Earlier versions?)

Firefox ESR

Very good

31+

Chrome

Very good

43.0.2357.81

IE 11

Good?



IE 10

Good?



IE 9

?



IE 8 and below

Not supported.



Safari

?



Opera

?



3.1.12.2 Juno




Status

Notes

Firefox

Very good

31+. (Earlier versions?)

Firefox ESR

?



Chrome

Very good

Versions?

IE 11

Good?

Open IE Bugs.

IE 10

Good?

Open IE Bugs.

IE 9

?

Open IE Bugs.

IE 8 and below

Not supported.

No.

Safari

?



Opera

?



3.1.12.3 Icehouse




Status

Notes

Firefox

Very good

Versions?

Firefox ESR

Very good

Windows 24.7.0 ESR

Chrome

Very good

Windows Version 36, RHEL version 27.0

Chromium

Very good

version 31.0

IE 11

?



IE 10

?



IE 9

?



IE 8 and below

?



Safari

?



Opera

?
