21 Samba Clustering #

A clustered Samba server provides a High Availability solution in your heterogeneous networks. This chapter explains some background information and how to set up a clustered Samba server.

21.1 Conceptual Overview #

Trivial Database (TDB) has been used by Samba for many years. It allows multiple applications to write simultaneously. To make sure all write operations are successfully performed and do not collide with each other, TDB uses an internal locking mechanism.

Cluster Trivial Database (CTDB) is a small extension of the existing TDB. CTDB is described by the project as a “cluster implementation of the TDB database used by Samba and other projects to store temporary data”.

Each cluster node runs a local CTDB daemon. Samba communicates with its local CTDB daemon instead of writing directly to its TDB. The daemons exchange metadata over the network, but actual write and read operations are done on a local copy with fast storage. The concept of CTDB is displayed in Figure 21.1, “Structure of a CTDB Cluster”.

Note: CTDB For Samba Only

The current implementation of the CTDB Resource Agent configures CTDB to only manage Samba. Everything else, including IP failover, should be configured with Pacemaker.

CTDB is only supported for completely homogeneous clusters. For example, all nodes in the cluster need to have the same architecture. You cannot mix x86 with AMD64/Intel 64.

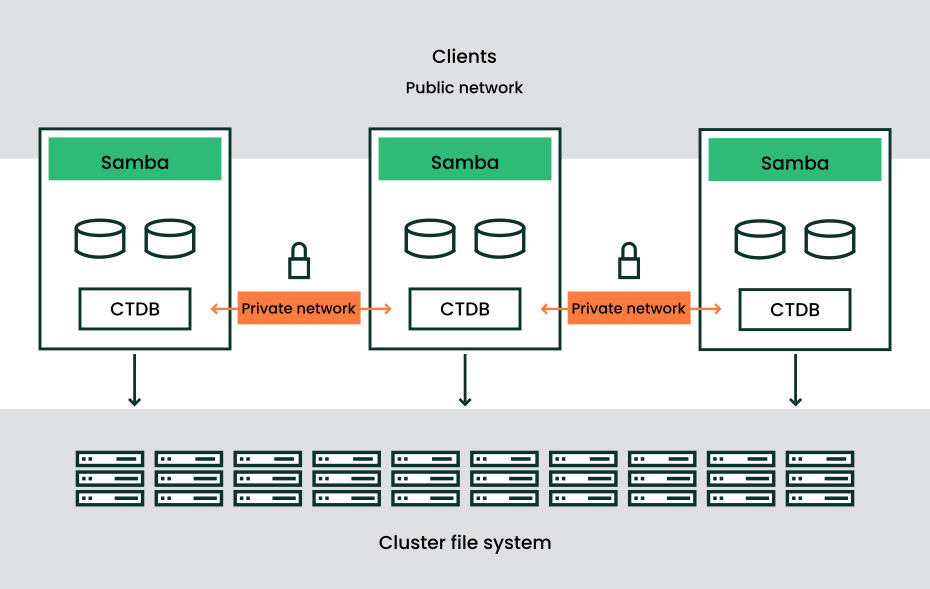

Figure 21.1: Structure of a CTDB Cluster #

A clustered Samba server must share certain data:

Mapping table that associates Unix user and group IDs to Windows users and groups.
The user database must be synchronized between all nodes.
Join information for a member server in a Windows domain must be available on all nodes.
Metadata needs to be available on all nodes, like active SMB sessions, share connections, and various locks.

The goal is that a clustered Samba server with N+1 nodes is faster than with only N nodes. One node is not slower than an unclustered Samba server.

21.2 Basic Configuration #

Note: Changed Configuration Files

The CTDB Resource Agent automatically changes /etc/sysconfig/ctdb. Use crm ra info CTDB to list all parameters that can be specified for the CTDB resource.

To set up a clustered Samba server, proceed as follows:

Procedure 21.1: Setting Up a Basic Clustered Samba Server #

Prepare your cluster:
1. Make sure the following packages are installed before you proceed: ctdb, tdb-tools, and samba (needed for smb and nmb resources).
2. Configure your cluster (Pacemaker, OCFS2) as described in this guide in Part II, “Configuration and Administration”.
3. Configure a shared file system, like OCFS2, and mount it, for example, on /srv/clusterfs. See Chapter 16, OCFS2 for more information.
4. If you want to turn on POSIX ACLs, enable it:
  - For a new OCFS2 file system use:
    # mkfs.ocfs2 --fs-features=xattr ...
  - For an existing OCFS2 file system use:
    # tunefs.ocfs2 --fs-feature=xattr DEVICE
    Make sure the acl option is specified in the file system resource. Use the crm shell as follows:
    crm(live)configure# primitive ocfs2-3 ocf:heartbeat:Filesystem params options="acl" ...
5. Make sure the services ctdb, smb, and nmb are disabled:
```
# systemctl disable ctdb
# systemctl disable smb
# systemctl disable nmb
```
6. Open port 4379 of your firewall on all nodes. This is needed for CTDB to communicate with other cluster nodes.
Create a directory for the CTDB lock on the shared file system:
```
# mkdir -p /srv/clusterfs/samba/
```
In /etc/ctdb/nodes insert all nodes which contain all private IP addresses of each node in the cluster:
```
192.168.1.10
192.168.1.11
```

Configure Samba. Add the following lines in the [global] section of /etc/samba/smb.conf. Use the host name of your choice in place of "CTDB-SERVER" (all nodes in the cluster will appear as one big node with this name, effectively):

[global]
    # ...
    # settings applicable for all CTDB deployments
    netbios name = CTDB-SERVER
    clustering = yes
    idmap config * : backend = tdb2
    passdb backend = tdbsam
    ctdbd socket = /var/lib/ctdb/ctdb.socket
    # settings necessary for CTDB on OCFS2
    fileid:algorithm = fsid
    vfs objects = fileid
    # ...

Copy the configuration file to all of your nodes by using csync2:
```
# csync2 -xv
```
For more information, see Procedure 4.9, “Synchronizing the Configuration Files with Csync2”.

Add a CTDB resource to the cluster:

# crm configure
crm(live)configure# primitive ctdb CTDB params \
    ctdb_manages_winbind="false" \
    ctdb_manages_samba="false" \
    ctdb_recovery_lock="/srv/clusterfs/samba/ctdb.lock" \
    ctdb_socket="/var/lib/ctdb/ctdb.socket" \
      op monitor interval="10" timeout="20" \
      op start interval="0" timeout="90" \
      op stop interval="0" timeout="100"
crm(live)configure# primitive nmb systemd:nmb \
    op start timeout="60" interval="0" \
    op stop timeout="60" interval="0" \
    op monitor interval="60" timeout="60"
crm(live)configure# primitive smb systemd:smb \
    op start timeout="60" interval="0" \
    op stop timeout="60" interval="0" \
    op monitor interval="60" timeout="60"
crm(live)configure# group g-ctdb ctdb nmb smb
crm(live)configure# clone cl-ctdb g-ctdb meta interleave="true"
crm(live)configure# colocation col-ctdb-with-clusterfs inf: cl-ctdb cl-clusterfs
crm(live)configure# order o-clusterfs-then-ctdb inf: cl-clusterfs cl-ctdb
crm(live)configure# commit

Add a clustered IP address:

crm(live)configure# primitive ip IPaddr2 params ip=192.168.2.222 \
    unique_clone_address="true" \
    op monitor interval="60" \
    meta resource-stickiness="0"
crm(live)configure# clone cl-ip ip \
    meta interleave="true" clone-node-max="2" globally-unique="true"
crm(live)configure# colocation col-ip-with-ctdb 0: cl-ip cl-ctdb
crm(live)configure# order o-ip-then-ctdb 0: cl-ip cl-ctdb
crm(live)configure# commit

If unique_clone_address is set to true, the IPaddr2 resource agent adds a clone ID to the specified address, leading to three different IP addresses. These are usually not needed, but help with load balancing. For further information about this topic, see Section 13.2, “Configuring Load Balancing with Linux Virtual Server”.

Commit your change:
```
crm(live)configure# commit
```

Check the result:

# crm status
Clone Set: cl-storage [dlm]
     Started: [ factory-1 ]
     Stopped: [ factory-0 ]
Clone Set: cl-clusterfs [clusterfs]
     Started: [ factory-1 ]
     Stopped: [ factory-0 ]
 Clone Set: cl-ctdb [g-ctdb]
     Started: [ factory-1 ]
     Started: [ factory-0 ]
 Clone Set: cl-ip [ip] (unique)
     ip:0       (ocf:heartbeat:IPaddr2):       Started factory-0
     ip:1       (ocf:heartbeat:IPaddr2):       Started factory-1

Test from a client machine. On a Linux client, run the following command to see if you can copy files from and to the system:
```
# smbclient //192.168.2.222/myshare
```

21.3 Joining an Active Directory Domain #

Active Directory (AD) is a directory service for Windows server systems.

The following instructions outline how to join a CTDB cluster to an Active Directory domain:

Create a CTDB resource as described in Procedure 21.1, “Setting Up a Basic Clustered Samba Server”.
Install the samba-winbind package.
Disable the winbind service:
```
# systemctl disable winbind
```

Define a winbind cluster resource:

# crm configure
crm(live)configure# primitive winbind systemd:winbind \
    op start timeout="60" interval="0" \
    op stop timeout="60" interval="0" \
    op monitor interval="60" timeout="60"
crm(live)configure# commit

Edit the g-ctdb group and insert winbind between the nmb and smb resources:
```
crm(live)configure# edit g-ctdb
```
Save and close the editor with :–w (vim).

Consult your Windows Server documentation for instructions on how to set up an Active Directory domain. In this example, we use the following parameters:

AD and DNS server	win2k3.2k3test.example.com
AD domain	2k3test.example.com
Cluster AD member NetBIOS name	CTDB-SERVER

Procedure 21.2, “Joining Active Directory”

Finally, join your cluster to the Active Directory server:

Procedure 21.2: Joining Active Directory #

Make sure the following files are included in Csync2's configuration to become installed on all cluster hosts:
```
/etc/samba/smb.conf
/etc/security/pam_winbind.conf
/etc/krb5.conf
/etc/nsswitch.conf
/etc/security/pam_mount.conf.xml
/etc/pam.d/common-session
```
You can also use YaST's Configure Csync2 module for this task, see Section 4.7, “Transferring the Configuration to All Nodes”.
Run YaST and open the Windows Domain Membership module from the Network Services entry.
Enter your domain or workgroup settings and finish with Ok.

21.4 Debugging and Testing Clustered Samba #

To debug your clustered Samba server, the following tools which operate on different levels are available:

ctdb_diagnostics

Run this tool to diagnose your clustered Samba server. Detailed debug messages should help you track down any problems you might have.

The ctdb_diagnostics command searches for the following files which must be available on all nodes:

/etc/krb5.conf
/etc/hosts
/etc/ctdb/nodes
/etc/sysconfig/ctdb
/etc/resolv.conf
/etc/nsswitch.conf
/etc/sysctl.conf
/etc/samba/smb.conf
/etc/fstab
/etc/multipath.conf
/etc/pam.d/system-auth
/etc/sysconfig/nfs
/etc/exports
/etc/vsftpd/vsftpd.conf

If the files /etc/ctdb/public_addresses and /etc/ctdb/static-routes exist, they will be checked as well.

ping_pong

Check whether your file system is suitable for CTDB with ping_pong. It performs certain tests of your cluster file system like coherence and performance (see http://wiki.samba.org/index.php/Ping_pong) and gives some indication how your cluster may behave under high load.

send_arp Tool and SendArp Resource Agent

The SendArp resource agent is located in /usr/lib/heartbeat/send_arp (or /usr/lib64/heartbeat/send_arp). The send_arp tool sends out a gratuitous ARP (Address Resolution Protocol) packet and can be used for updating other machines' ARP tables. It can help to identify communication problems after a failover process. If you cannot connect to a node or ping it although it shows the clustered IP address for Samba, use the send_arp command to test if the nodes only need an ARP table update.

For more information, refer to http://wiki.wireshark.org/Gratuitous_ARP.

To test certain aspects of your cluster file system proceed as follows:

Procedure 21.3: Test Coherence and Performance of Your Cluster File System #

Start the command ping_pong on one node and replace the placeholder N with the amount of nodes plus one. The file ABSPATH/data.txt is available in your shared storage and is therefore accessible on all nodes (ABSPATH indicates an absolute path):
```
ping_pong ABSPATH/data.txt N
```
Expect a very high locking rate as you are running only one node. If the program does not print a locking rate, replace your cluster file system.
Start a second copy of ping_pong on another node with the same parameters.
Expect to see a dramatic drop in the locking rate. If any of the following applies to your cluster file system, replace it:
- ping_pong does not print a locking rate per second,
- the locking rates in the two instances are not almost equal,
- the locking rate did not drop after you started the second instance.
Start a third copy of ping_pong. Add another node and note how the locking rates change.
Kill the ping_pong commands one after the other. You should observe an increase of the locking rate until you get back to the single node case. If you did not get the expected behavior, find more information in Chapter 16, OCFS2.
