Virtualization

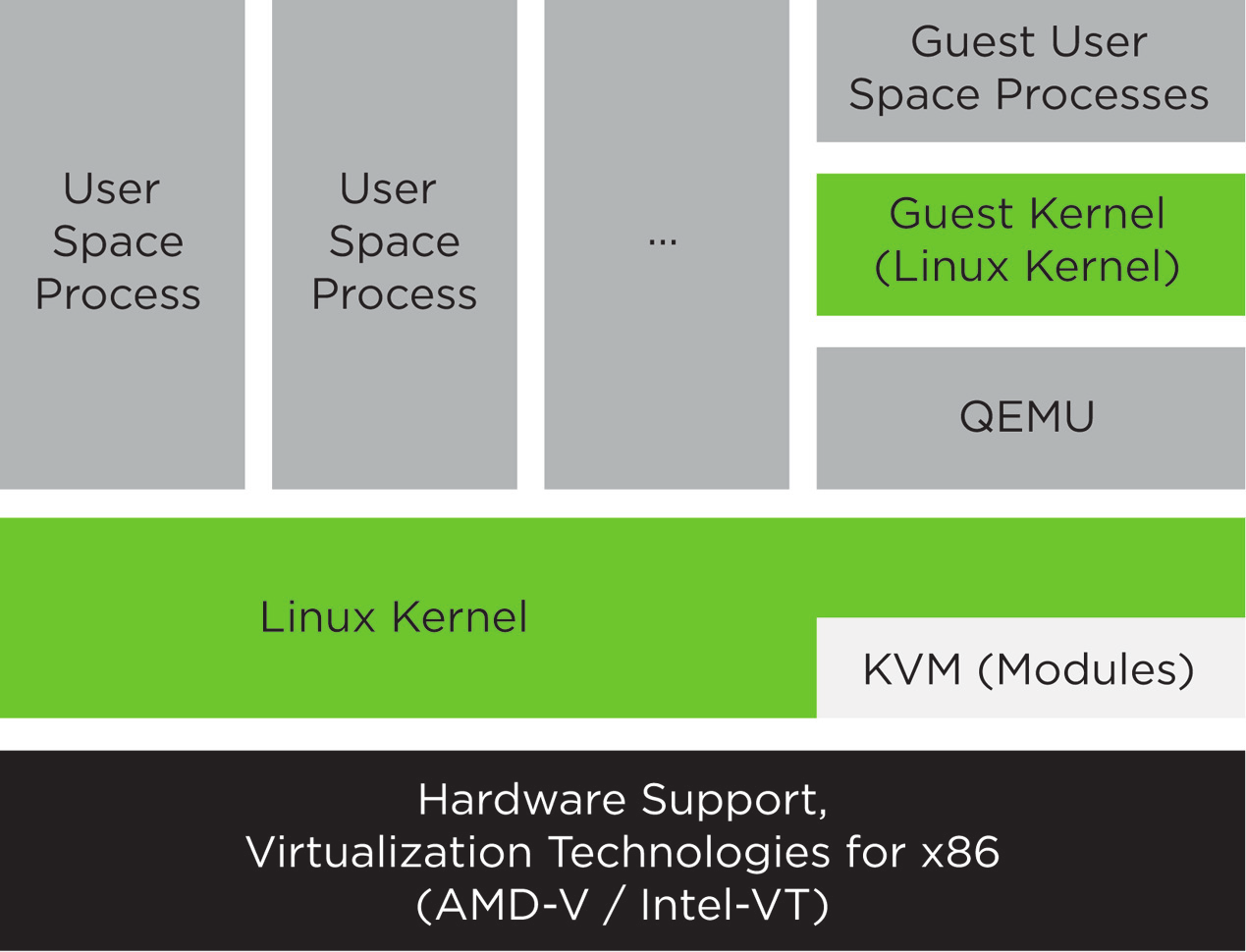

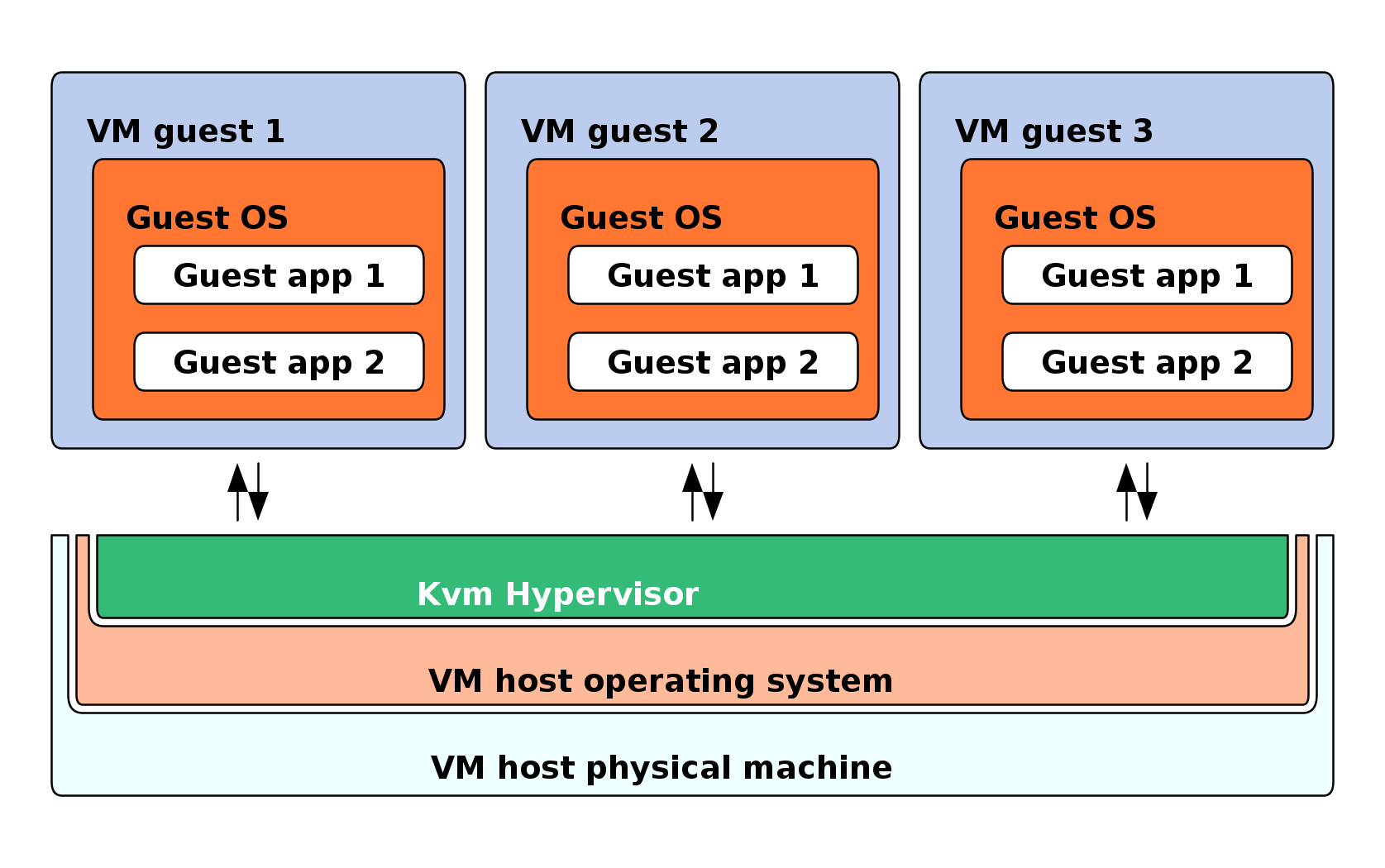

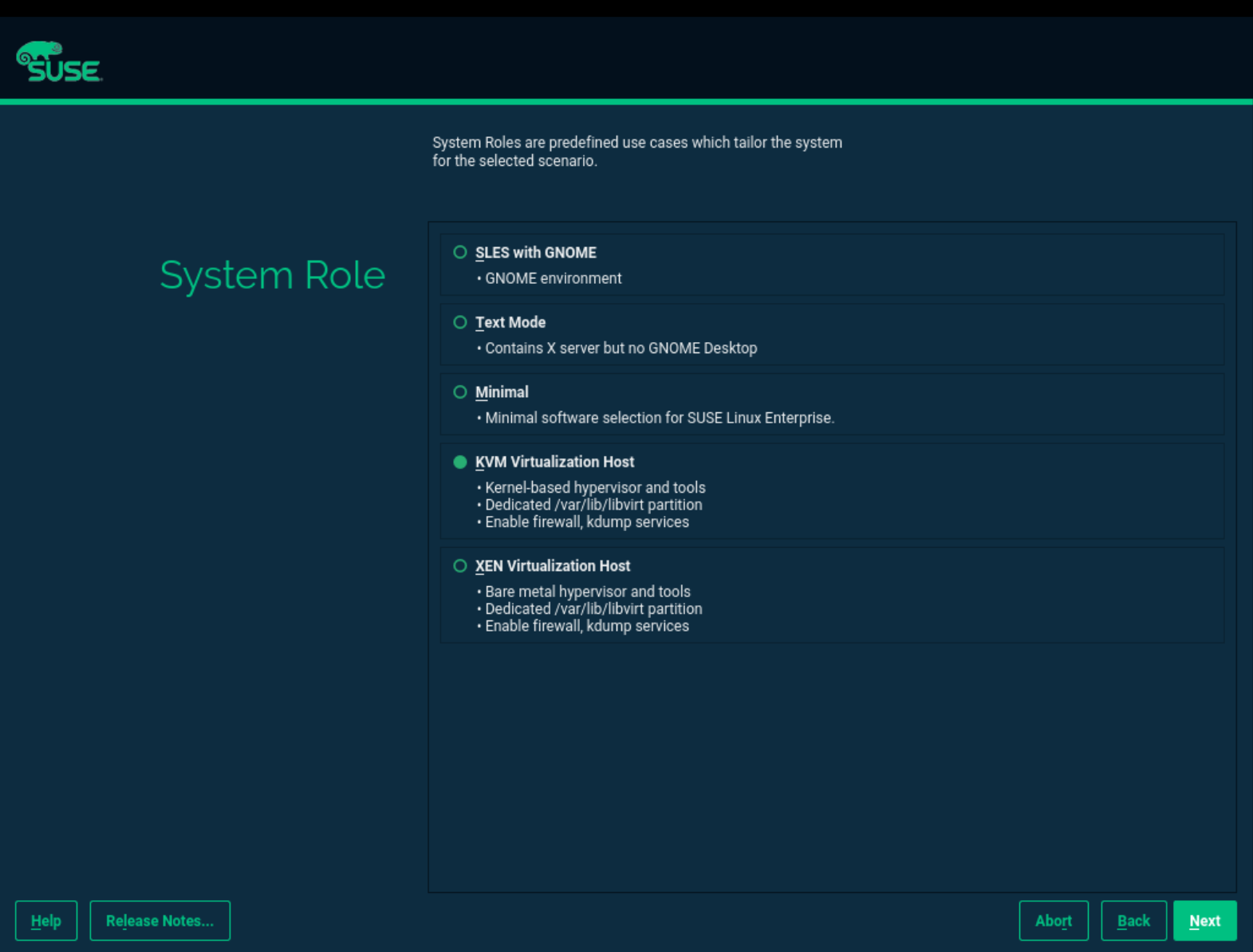

SUSE supports KVM full virtualization on AMD64/Intel 64, AArch64, IBM Z and IBM LinuxONE hosts.

Note: KVM kernel modules not loading

The KVM kernel modules only load if the CPU hardware virtualization features are available.

However, additional RAM for each virtualized guest is needed. It should at least be the same amount that is needed for a physical installation. It is also strongly recommended having at least one processor core or hyper-thread for each running guest.

Note: AArch64

AArch64 is a continuously evolving platform. It does not have a traditional standards and compliance certification program to enable interoperability with operating systems and hypervisors. Ask your vendor for the support statement on SUSE Linux Enterprise Server.

Note: POWER

Running KVM hypervisor on the POWER platform is not supported.

Supported (and tested) virtualization limits of a SUSE Linux Enterprise Server 16.0 host running Linux guests on AMD64/Intel 64. For other operating systems, refer to the specific vendor.

Note

KVM host limits are identical to SUSE Linux Enterprise Server (see the corresponding section of release notes), except for:

• Maximum virtual CPUs per VM: see recommendations in the Virtualization Best Practices Guide regarding the overcommitment of physical CPUs. The total virtual CPUs should be proportional to the available physical CPUs.

To improve the performance of the guest operating system, paravirtualized drivers are provided when available. Although they are not required, it is strongly recommended to use them.

The paravirtualized drivers are available as follows:

SUSE supports offline migration, powering off a guest VM, then moving it to a host running a different SLE product, from SLE 12 to SLE 15 SPX. The following host operating system combinations are fully supported (L3) for migrating guests from one host to another:

This section lists support status of live migration scenarios when running virtualized on top of SLES. The following host operating system combinations are fully supported (L3 according to the respective product life cycle).

Note: Live migration

• SUSE always supports live migration of virtual machines between hosts running SLES with successive service pack numbers. For example, from SLES 16 to 16.1.

• SUSE strives to support live migration of virtual machines from a host running a service pack under LTSS to a host running a newer service pack, within the same major version of SUSE Linux Enterprise Server. SUSE only performs minimal testing of LTSS-to-newer migration scenarios and recommends thorough on-site testing before attempting to migrate critical virtual machines.

Important: Confidential Computing

SLES 15 SP6 includes kernel patches and tooling to enable Intel TDX Confidential Computing technology in the product. As this technology is not yet fully ready for a production environment, it is provided as a technology preview.

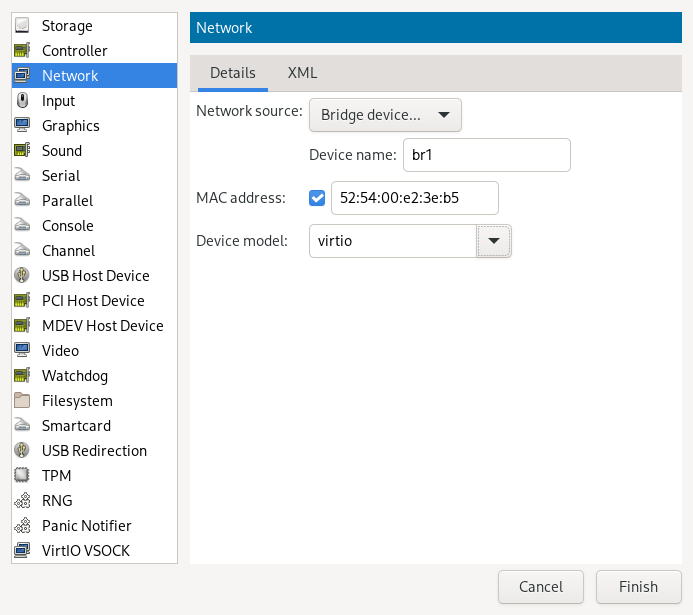

The network bridge configuration provides a Layer 2 switch for VM Guests, switching Layer 2 Ethernet packets between ports on the bridge based on MAC addresses associated with the ports. This gives the VM Guest Layer 2 access to the VM Host Server's network. This configuration is analogous to connecting the VM Guest's virtual Ethernet cable into a hub that is shared with the host and other VM Guests running on the host. The configuration is often referred to as shared physical device.

The network bridge configuration is the default configuration of SUSE Linux Enterprise Server when configured as a KVM hypervisor. It is the preferred configuration when you simply want to connect VM Guests to the VM Host Server's LAN.

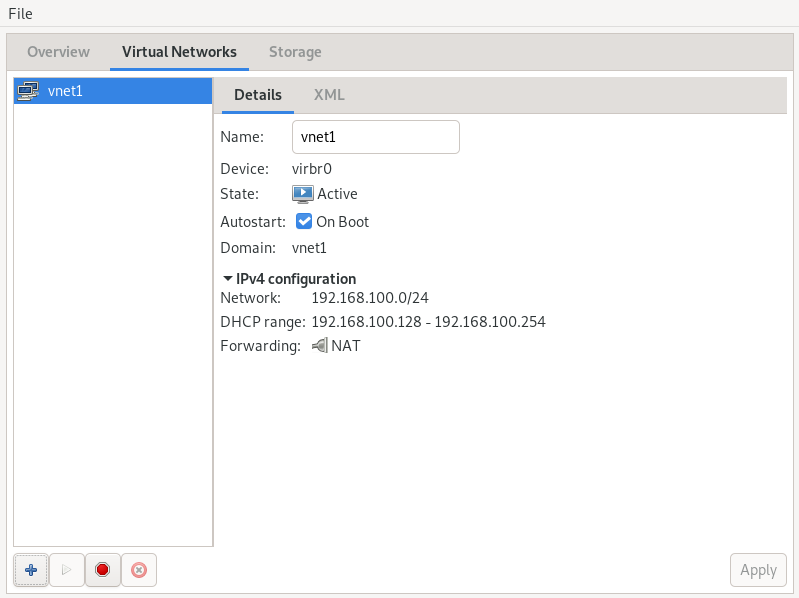

libvirt-managed virtual networks are similar to bridged networks, but typically have no Layer 2 connection to the VM Host Server. Connectivity to the VM Host Server's physical network is accomplished with Layer 3 forwarding, which introduces additional packet processing on the VM Host Server as compared to a Layer 2 bridged network. Virtual networks also provide DHCP and DNS services for VM Guests. For more information on libvirt virtual networks, see the Network XML format documentation at https://libvirt.org/formatnetwork.html.

A standard libvirt installation on SUSE Linux Enterprise Server already comes with a predefined virtual network named default. It provides DHCP and DNS services for the network, along with connectivity to the VM Host Server's physical network using the network address translation (NAT) forwarding mode. Although it is predefined, the default virtual network needs to be explicitly enabled by the administrator. For more information on the forwarding modes supported by libvirt, see the Connectivity section of the Network XML format documentation at https://libvirt.org/formatnetwork.html#elementsConnect.

libvirt-managed virtual networks can be used to satisfy a wide range of use cases, but are commonly used on VM Host Servers that have a wireless connection or dynamic/sporadic network connectivity, such as laptops. Virtual networks are also useful when the VM Host Server's network has limited IP addresses, allowing forwarding of packets between the virtual network and the VM Host Server's network. However, most server use cases are better suited for the network bridge configuration, where VM Guests are connected to the VM Host Server's LAN.

Warning: Enabling forwarding mode

Enabling forwarding mode in a libvirt virtual network enables forwarding in the VM Host Server by setting /proc/sys/net/ipv4/ip_forward and /proc/sys/net/ipv6/conf/all/forwarding to 1, which turns the VM Host Server into a router. Restarting the VM Host Server's network may reset the values and disable forwarding. To avoid this behavior, explicitly enable forwarding in the VM Host Server by editing the /etc/sysctl.conf file and adding:

net.ipv4.ip_forward = 1

net.ipv6.conf.all.forwarding = 1

> sudo virsh help network
Networking (help keyword 'network'):
 net-autostart                  autostart a network
        net-create                     create a network from an XML file
        net-define                     define (but don't start) a network from an XML file
        net-destroy                    destroy (stop) a network
        net-dumpxml                    network information in XML
        net-edit                       edit XML configuration for a network
        net-event                      Network Events
        net-info                       network information
        net-list                       list networks
        net-name                       convert a network UUID to network name
        net-start                      start a (previously defined) inactive network
        net-undefine                   undefine an inactive network
        net-update                     update parts of an existing network's configuration
 net-uuid                       convert a network name to network UUID

> sudo virsh help net-create
  NAME
    net-create - create a network from an XML file

  SYNOPSIS
    net-create <file>

  DESCRIPTION
    Create a network.

  OPTIONS
    [--file] <string>  file containing an XML network description

> sudo virsh net-create VNET_DEFINITION.xml

> sudo virsh net-define VNET_DEFINITION.xml

<network>
<name>vnet_nated</name>1
<bridge name="virbr1"/>2
 <forward mode="nat"/>3
 <ip address="192.168.122.1" netmask="255.255.255.0">4
  <dhcp>
   <range start="192.168.122.2" end="192.168.122.254"/>5
   <host mac="52:54:00:c7:92:da" name="host1.testing.com" \
    ip="192.168.1.101"/>6
   <host mac="52:54:00:c7:92:db" name="host2.testing.com" \
    ip="192.168.1.102"/>
   <host mac="52:54:00:c7:92:dc" name="host3.testing.com" \
    ip="192.168.1.103"/>
  </dhcp>
 </ip>
</network>

<network>
 <name>vnet_routed</name>
 <bridge name="virbr1"/>
 <forward mode="route" dev="eth1"/>1
 <ip address="192.168.122.1" netmask="255.255.255.0">
  <dhcp>
   <range start="192.168.122.2" end="192.168.122.254"/>
  </dhcp>
 </ip>
</network>

<network>
 <name>vnet_isolated</name>
 <bridge name="virbr3"/>
 <ip address="192.168.152.1" netmask="255.255.255.0">
  <dhcp>
   <range start="192.168.152.2" end="192.168.152.254"/>
  </dhcp>
 </ip>
 </network>

<network>
        <name>host-bridge</name>
        <forward mode="bridge"/>
        <bridge name="br0"/>
</network>

> sudo virsh net-list --all

 Name                 State      Autostart     Persistent
----------------------------------------------------------
 crowbar              active     yes           yes
 vnet_nated           active     yes           yes
 vnet_routed          active     yes           yes
 vnet_isolated        inactive   yes           yes

> sudo virsh list
 Id    Name                           State
----------------------------------------------------
 1     nated_sles12sp3                running
 ...

> sudo virsh domifaddr nated_sles12sp3 --interface vnet0 --source lease
 Name       MAC address          Protocol     Address
-------------------------------------------------------------------------------
 vnet0      52:54:00:9e:0d:2b    ipv6         fd00:dead:beef:55::140/64
 -          -                    ipv4         192.168.100.168/24

> sudo virsh domiflist nated_sles12sp3
Interface  Type       Source       Model       MAC
---------------------------------------------------------
vnet0      network    vnet_nated   virtio      52:54:00:9e:0d:2b

> sudo virsh net-info vnet_routed
Name:           vnet_routed
UUID:           756b48ff-d0c6-4c0a-804c-86c4c832a498
Active:         yes
Persistent:     yes
Autostart:      yes
Bridge:         virbr5

> sudo virsh net-list --inactive
 Name                 State      Autostart     Persistent
----------------------------------------------------------
 vnet_isolated        inactive   yes           yes

> sudo virsh net-start vnet_isolated
Network vnet_isolated started

> sudo virsh net-list --inactive
 Name                 State      Autostart     Persistent
----------------------------------------------------------
 vnet_isolated        active     yes           yes

> sudo virsh net-destroy vnet_isolated
Network vnet_isolated destroyed

> sudo virsh net-undefine vnet_isolated
Network vnet_isolated has been undefined

Managing storage from the command line is also possible by using virsh. However, creating storage pools is currently not supported by SUSE. Therefore, this section is restricted to documenting functions such as starting, stopping and deleting pools, and volume management.

A list of all virsh subcommands for managing pools and volumes is available by running virsh help pool and virsh help volume, respectively.

> virsh pool-list --details

> virsh pool-info POOL

> virsh vol-list --details POOL

> virsh vol-create-as POOL1NAME2 12G --format3raw|qcow24 --allocation 4G5

> virsh vol-clone NAME_EXISTING_VOLUME1NAME_NEW_VOLUME2 --pool POOL3

6.2.1.4 Deleting volumes from a storage pool #



To permanently delete a volume from a pool, use the subcommand vol-delete:

> virsh vol-delete NAME --pool POOL

--pool is optional. libvirt tries to locate the volume automatically. If that fails, specify this parameter.

Warning: No checks upon volume deletion

A volume is deleted in any case, regardless of whether it is currently used in an active or inactive VM Guest. There is no way to recover a deleted volume.

Whether a volume is used by a VM Guest can only be detected by using by the method described in Procedure 1, “Listing all storage volumes currently used on a VM Host Server”.

6.2.1.5 Attaching volumes to a VM Guest #



After you create a volume as described in Section 6.2.1.3, “Adding volumes to a storage pool”, you can attach it to a virtual machine and use it as a hard disk:

> virsh attach-disk DOMAIN SOURCE_IMAGE_FILE TARGET_DISK_DEVICE

For example:

> virsh attach-disk sles12sp3 /virt/images/example_disk.qcow2 sda2

To check if the new disk is attached, inspect the result of the virsh dumpxml command:

# virsh dumpxml sles12sp3
[...]
<disk type='file' device='disk'>
 <driver name='qemu' type='raw'/>
 <source file='/virt/images/example_disk.qcow2'/>
 <backingStore/>
 <target dev='sda2' bus='scsi'/>
 <alias name='scsi0-0-0'/>
 <address type='drive' controller='0' bus='0' target='0' unit='0'/>
</disk>
[...]

6.2.1.5.1 Hotplug or persistent change #



You can attach disks to both active and inactive domains. The attachment is controlled by the --live and --config options:

--live

Hotplugs the disk to an active domain. The attachment is not saved in the domain configuration. Using --live on an inactive domain is an error.

--config

Changes the domain configuration persistently. The attached disk is then available after the next domain start.

--live--config

Hotplugs the disk and adds it to the persistent domain configuration.

Tip: virsh attach-device

virsh attach-device is the more generic form of virsh attach-disk. You can use it to attach other types of devices to a domain.

# virsh detach-disk DOMAIN TARGET_DISK_DEVICE

# virsh detach-disk sles12sp3 sda2

The Virtual Machine Manager provides a graphical interface—the Storage Manager—to manage storage volumes and pools. To access it, either right-click a connection and choose Details, or highlight a connection and choose Edit › Connection Details. Select the Storage tab.

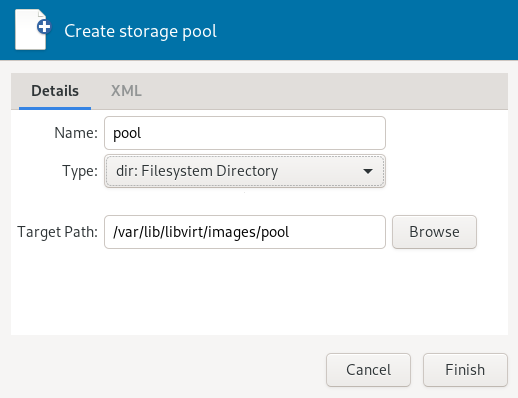

6.2.2.2 Managing storage pools #

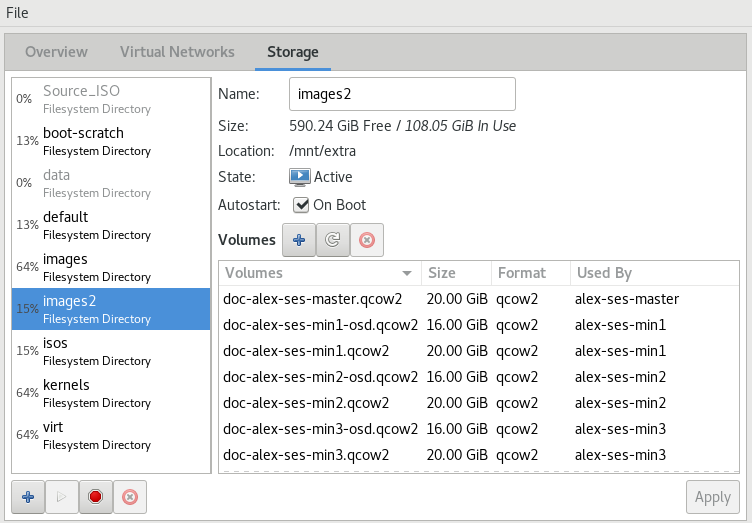

Virtual Machine Manager's Storage Manager lets you create or delete volumes in a pool. You may also temporarily deactivate or permanently delete existing storage pools. Changing the basic configuration of a pool is currently not supported by SUSE.

6.2.2.2.1 Starting, stopping, and deleting pools #



The purpose of storage pools is to provide block devices located on the VM Host Server that can be added to a VM Guest when managing it from remote. To make a pool temporarily inaccessible from remote, click Stop in the bottom left corner of the Storage Manager. Stopped pools are marked with State: Inactive and are grayed out in the list pane. By default, a newly created pool is automatically started On Boot of the VM Host Server.

To start an inactive pool and make it available from remote again, click Start in the bottom left corner of the Storage Manager.

Note: A pool's state does not affect attached volumes

Volumes from a pool attached to VM Guests are always available, regardless of the pool's state (Active (stopped) or Inactive (started)). The state of the pool solely affects the ability to attach volumes to a VM Guest via remote management.

To permanently make a pool inaccessible, click Delete in the bottom left corner of the Storage Manager. You can only delete inactive pools. Deleting a pool does not physically erase its contents on VM Host Server—it only deletes the pool configuration. However, you need to be extra careful when deleting pools, especially when deleting LVM volume group-based tools:

Warning: Deleting storage pools

Deleting storage pools based on local file system directories, local partitions or disks has no effect on the availability of volumes from these pools currently attached to VM Guests.

Volumes located in pools of type iSCSI, SCSI, LVM group or Network Exported Directory become inaccessible from the VM Guest if the pool is deleted. Although the volumes themselves are not deleted, the VM Host Server can no longer access the resources.

Volumes on iSCSI/SCSI targets or Network Exported Directory become accessible again when creating an adequate new pool or when mounting/accessing these resources directly from the host system.

When deleting an LVM group-based storage pool, the LVM group definition is erased and the LVM group no longer exists on the host system. The configuration is not recoverable and all volumes from this pool are lost.

6.2.2.2.2 Adding volumes to a storage pool #



Virtual Machine Manager lets you create volumes in all storage pools, except in pools of types Multipath, iSCSI or SCSI. A volume in these pools is equivalent to a LUN and cannot be changed from within libvirt.

1. A new volume can either be created using the Storage Manager or while adding a new storage device to a VM Guest. In either case, select a storage pool from the left panel, then click Create new volume.

2. Specify a Name for the image and choose an image format.

   SUSE currently only supports raw or qcow2 images. The latter option is not available on LVM group-based pools.

   Next to Max Capacity, specify the maximum size that the disk image is allowed to reach. Unless you are working with a qcow2 image, you can also set an amount for Allocation that should be allocated initially. If the two values differ, a sparse image file is created, which grows on demand.

   For qcow2 images, you can use a Backing Store (also called “backing file”), which constitutes a base image. The newly created qcow2 image then only records the changes that are made to the base image.

3. Start the volume creation by clicking Finish.

6.2.2.2.3 Deleting volumes from a storage pool #



Deleting a volume can only be done from the Storage Manager, by selecting a volume and clicking Delete Volume. Confirm with Yes.

Warning: Volumes can be deleted even while in use

Volumes can be deleted even if they are currently used in an active or inactive VM Guest. There is no way to recover a deleted volume.

Whether a volume is used by a VM Guest is indicated in the Used By column in the Storage Manager.

PXE boot enables your virtual machine to boot from the installation media via the network, instead of from a physical medium or an installation disk image.

To let your VM boot from a PXE server, follow these steps:

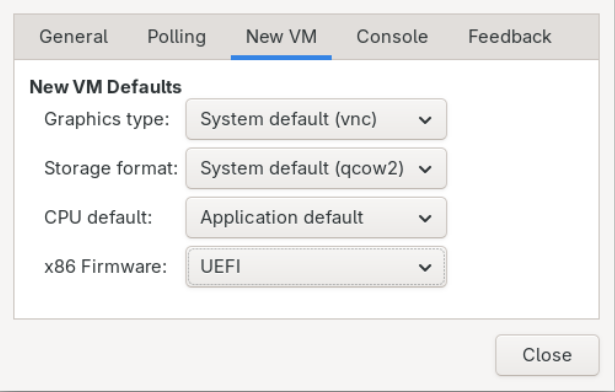

The UEFI firmware used by virtual machines is provided by OVMF (Open Virtual Machine Firmware). The qemu-ovmf-x86_64 package provides firmware for AMD64/Intel 64 VM Guests. Firmware for AArch64 VM Guests is provided by the qemu-uefi-aarch64 package. Both packages include several firmware variants, each supporting a different set of features and capabilities. The packages also include JSON firmware descriptor files, which describe the features and capabilities of each variant.

libvirt supports two methods of selecting virtual machine UEFI firmware: automatic and manual. With automatic selection, libvirt will select a firmware based on an optional set of features specified by the user. If no explicit features are specified, libvirt will select a firmware with secure boot enabled and Microsoft keys enrolled. When using manual selection, the full path of the firmware and any optional settings must be explicitly specified. Users can reference the JSON descriptor files to find a firmware that satisfies their requirements.

Tip

The directory /usr/share/qemu/firmware contains all the JSON files used by libvirt. This file gives you detailed information about the firmware, including the capabilities of the features.

When using virt-install, automatic firmware selection is enabled by specifying the firmware=efi parameter to the boot option, for example, --boot firmware=efi. The selection process can be influenced by requesting the presence or absence of firmware features. The following example illustrates automatic firmware selection with UEFI Secure Boot disabled.

> virt-install --connect qemu:///system --virt-type kvm \
--name sle15sp5 --memory 1024 --disk size=10 --cdrom /dev/cdrom --graphics vnc \
--boot firmware=efi,firmware.feature0.name=secure-boot,firmware.feature0.enabled=no \
--os-variant sle15sp5

Note

To ensure persistent VM Guests use the same firmware and variable store throughout their lifetime, libvirt will record automatically selected firmware in the VM Guest XML configuration. Automatic firmware selection is a one-time activity. Once firmware has been selected, it will only change if the VM Guest administrator explicitly does so using the manual firmware selection method.

The loader and nvram parameters are used for manual firmware selection. loader is required, and nvram defines an optional UEFI variable store. The following example illustrates manual firmware selection with secure boot enabled.

> virt-install --connect qemu:///system --virt-type kvm \
--name sle15sp5 --memory 1024 --disk size=10 --cdrom /dev/cdrom --graphics vnc \
--boot loader=/usr/share/qemu/ovmf-x86_64-smm-code.bin,loader.readonly=yes,loader.type=pflash,loader.secure=yes,nvram.template=/usr/share/qemu/ovmf-x86_64-smm-vars.bin \
--os-variant sle15sp5

Note

libvirt cannot modify any characteristics of the UEFI firmware. For example, it cannot disable UEFI Secure Boot in a firmware that has UEFI Secure Boot enabled, even when specifying loader.secure=no. libvirt will ensure the specified firmware can satisfy any specified features. For example, it will reject configuration that disables secure boot with loader.secure=no, but specifies a firmware that has UEFI Secure Boot enabled.

The qemu-ovmf-x86_64 package contains several UEFI firmware images. For example, the following subset supports SMM, UEFI Secure Boot, and has either Microsoft, openSUSE or SUSE UEFI CA keys enrolled:

# rpm -ql qemu-ovmf-x86_64
[...]
/usr/share/qemu/ovmf-x86_64-smm-ms-code.bin
/usr/share/qemu/ovmf-x86_64-smm-ms-vars.bin
/usr/share/qemu/ovmf-x86_64-smm-opensuse-code.bin
/usr/share/qemu/ovmf-x86_64-smm-opensuse-vars.bin
/usr/share/qemu/ovmf-x86_64-smm-suse-code.bin
/usr/share/qemu/ovmf-x86_64-smm-suse-vars.bin
[...]

For the AArch64 architecture, the package is named qemu-uefi-aarch32:

# rpm -ql qemu-uefi-aarch32
[...]
/usr/share/qemu/aavmf-aarch32-code.bin
/usr/share/qemu/aavmf-aarch32-vars.bin
/usr/share/qemu/firmware
/usr/share/qemu/firmware/60-aavmf-aarch32.json
/usr/share/qemu/qemu-uefi-aarch32.bin

The *-code.bin files are the UEFI firmware files. The *-vars.bin files are corresponding variable store images that can be used as a template for a per-VM non-volatile store. libvirt copies the specified vars template to a per-VM path under /var/lib/libvirt/qemu/nvram/ when first creating the VM. Files without code or vars in the name can be used as a single UEFI image. They are not as useful, since no UEFI variables persist across power cycles of the VM.

The *-ms*.bin files contain UEFI CA keys as found on real hardware. Therefore, they are configured as the default in libvirt. Likewise, the *-suse*.bin files contain preinstalled SUSE keys. There is also a set of files with no preinstalled keys.

For more details on OVMF, see http://www.linux-kvm.org/downloads/lersek/ovmf-whitepaper-c770f8c.txt.

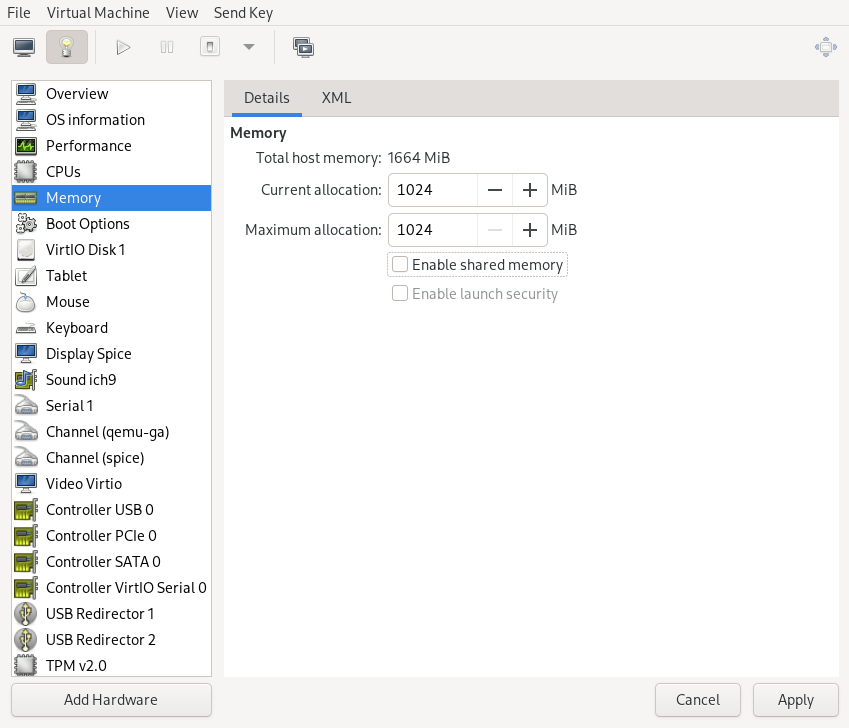

Memory ballooning is a method to change the amount of memory used by VM Guest at runtime. KVM hypervisors provides this method, but it needs to be supported by the guest as well.

While openSUSE and SLE-based guests support memory ballooning, Windows guests need the Virtual Machine Driver Pack (VMDP) to provide ballooning. To set the maximum memory greater than the initial memory configured for Windows guests, follow these steps:

Certain operating systems, such as SUSE Linux Enterprise Server, offer to include add-on products in the installation process. If the add-on product installation source is provided via SUSE Customer Center, no special VM Guest configuration is needed. If it is provided via CD/DVD or ISO image, it is necessary to provide the VM Guest installation system with both the standard installation medium image and the image of the add-on product.

If you are using the GUI-based installation, select Customize Configuration Before Install in the last step of the wizard and add the add-on product ISO image via Add Hardware › Storage. Specify the path to the image and set the Device Type to CD-ROM.

If you are installing from the command line, you need to set up the virtual CD/DVD drives with the --disk parameter rather than with --cdrom. The device that is specified first is used for booting.

The number of allocated CPUs is stored in the VM Guest's XML configuration file in /etc/libvirt/qemu/ in the vcpu element:

<vcpu placement='static'>1</vcpu>

In this example, the VM Guest has only one allocated CPU. The following procedure shows how to change the number of allocated CPUs for the VM Guest:

You can also change the number of CPUs while the VM Guest is running. CPUs can be hotplugged until the maximum number configured at VM Guest start is reached. Likewise, they can be hot-unplugged until the lower limit of 1 is reached. The following example shows changing the active CPU count from 2 to a predefined maximum of 4.

The CPU model exposed to a VM Guest can often influence the workload running within it. The default CPU model is derived from a CPU mode known as host-model.

<cpu mode='host-model'/>

When starting a VM Guest with the CPU mode host-model, libvirt copies its model of the host CPU into the VM Guest definition. The host CPU model and features copied to the VM Guest definition can be observed in the output of the virsh capabilities.

Another interesting CPU mode is host-passthrough.

<cpu mode='host-passthrough'/>

When starting a VM Guest with the CPU mode host-passthrough, it is presented with a CPU that is exactly the same as the VM Host Server CPU. This can be useful when the VM Guest workload requires CPU features not available in libvirt's simplified host-model CPU. The host-passthrough CPU mode comes with the disadvantage of reduced migration flexibility. A VM Guest with host-passthrough CPU mode can only be migrated to a VM Host Server with identical hardware.

When using the host-passthrough CPU mode, it is still possible to disable undesirable features. The following configuration presents the VM Guest with a CPU that is exactly the same as the host CPU but with the vmx feature disabled.

<cpu mode='host-passthrough'>
  <feature policy='disable' name='vmx'/>
  </cpu>

The custom CPU mode is another common mode used to define a normalized CPU that can be migrated throughout dissimilar hosts in a cluster. For example, in a cluster with hosts containing Nehalem, IvyBridge and SandyBridge CPUs, the VM Guest can be configured with a custom CPU mode that contains a Nehalem CPU model.

<cpu mode='custom' match='exact'>
  <model fallback='allow'>Nehalem</model>
  <feature policy='require' name='vme'/>
  <feature policy='require' name='ds'/>
  <feature policy='require' name='acpi'/>
  <feature policy='require' name='ss'/>
  <feature policy='require' name='ht'/>
  <feature policy='require' name='tm'/>
  <feature policy='require' name='pbe'/>
  <feature policy='require' name='dtes64'/>
  <feature policy='require' name='monitor'/>
  <feature policy='require' name='ds_cpl'/>
  <feature policy='require' name='vmx'/>
  <feature policy='require' name='est'/>
  <feature policy='require' name='tm2'/>
  <feature policy='require' name='xtpr'/>
  <feature policy='require' name='pdcm'/>
  <feature policy='require' name='dca'/>
  <feature policy='require' name='rdtscp'/>
  <feature policy='require' name='invtsc'/>
  </cpu>

For more information on libvirt's CPU model and topology options, see the CPU model and topology documentation at https://libvirt.org/formatdomain.html#cpu-model-and-topology.

The VM Guest's boot order is represented through the order of devices in the XML configuration file. As the devices are interchangeable, it is possible to change the boot order of the VM Guest.

Direct Kernel Boot allows you to boot from a kernel and initrd stored on the host. Set the path to both files in the kernel and initrd elements:

<os>
    ...
  <kernel>/root/f8-i386-vmlinuz</kernel>
  <initrd>/root/f8-i386-initrd</initrd>
    ...
<os>

To enable Direct Kernel Boot:

To support IBM Z, QEMU extended PCI representation by allowing the user to configure extra attributes. Two more attributes—uid and fid—were added to the <zpci/> libvirt specification. uid represents user-defined identifier, while fid represents PCI function identifier. These attributes are optional and if you do not specify them, they are automatically generated with non-conflicting values.

To include zPCI attribute in your domain specification, use the following example definition:

<controller type='pci' index='0' model='pci-root'/>
<controller type='pci' index='1' model='pci-bridge'>
  <model name='pci-bridge'/>
  <target chassisNr='1'/>
  <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x0'>
    <zpci uid='0x0001' fid='0x00000000'/>
  </address>
</controller>
<interface type='bridge'>
  <source bridge='virbr0'/>
  <model type='virtio'/>
  <address type='pci' domain='0x0000' bus='0x01' slot='0x01' function='0x0'>
    <zpci uid='0x0007' fid='0x00000003'/>
  </address>
</interface>

The following requirements must be met to use SR-IOV;:

Tip: Checking if a device is SR-IOV-capable

The information whether a device is SR-IOV-capable can be obtained from its PCI descriptor by running lspci. A device that supports SR-IOV; reports a capability similar to the following:

Capabilities: [160 v1] Single Root I/O Virtualization

Note: Adding an SR-IOV device at VM Guest creation

Before adding an SR-IOV device to a VM Guest when initially setting it up, the VM Host Server already needs to be configured as described in Section 8.9.2, “Loading and configuring the SR-IOV host drivers”.

To access and initialize VFs, an SR-IOV-capable driver needs to be loaded on the host system.

As an alternative, you can also load the driver via SYSFS:

When the SR-IOV; hardware is properly set up on the VM Host Server, you can add VFs to VM Guests. To do so, you need to collect specific data first.

If you define the PCI address of a VF into a VM Guest's configuration statically as described in Section 8.9.3, “Adding a VF network device to a VM Guest”, it is hard to migrate such guest to another host. The host must have identical hardware in the same location on the PCI bus, or the VM Guest configuration must be modified before each start.

Another approach is to create a libvirt network with a device pool that contains all the VFs of an SR-IOV; device. The VM Guest then references this network, and each time it is started, a single VF is dynamically allocated to it. When the VM Guest is stopped, the VF is returned to the pool, available for another guest.

<network>
  <name>passthrough</name>
    <forward mode='hostdev' managed='yes'>
      <pf dev='eth0'/>
    </forward>
  </network>

> sudo virsh net-define /tmp/passthrough.xml
> sudo virsh net-autostart passthrough
> sudo virsh net-start passthrough

<interface type='network'>
  <source network='passthrough'>
</interface>

<network connections='1'>
  <name>passthrough</name>
  <uuid>a6a26429-d483-d4ed-3465-4436ac786437</uuid>
  <forward mode='hostdev' managed='yes'>
    <pf dev='eth0'/>
    <address type='pci' domain='0x0000' bus='0x02' slot='0x10' function='0x1'/>
    <address type='pci' domain='0x0000' bus='0x02' slot='0x10' function='0x3'/>
    <address type='pci' domain='0x0000' bus='0x02' slot='0x10' function='0x5'/>
    <address type='pci' domain='0x0000' bus='0x02' slot='0x10' function='0x7'/>
    <address type='pci' domain='0x0000' bus='0x02' slot='0x11' function='0x1'/>
    <address type='pci' domain='0x0000' bus='0x02' slot='0x11' function='0x3'/>
    <address type='pci' domain='0x0000' bus='0x02' slot='0x11' function='0x5'/>
  </forward>
  </network>

The multiqueue virtio-net feature scales the network performance by allowing the VM Guest's virtual CPUs to transfer packets in parallel.

To enable multiqueue virtio-net for a specific VM Guest, edit its XML configuration as described in Section 8.1, “Editing the VM configuration” and modify its network interface as follows:

<interface type='network'>
 [...]
 <model type='virtio'/>
 <driver name='vhost' queues='NUMBER_OF_QUEUES'/>
</interface>

IBM Z machines include cryptographic hardware with useful functions such as random number generation, digital signature generation, or encryption. KVM allows dedicating these crypto adapters to guests as pass-through devices. The means that the hypervisor cannot observe communications between the guest and the device.

This section describes how to dedicate a crypto adapter and domains on an IBM Z host to a KVM guest. The procedure includes the following basic steps:

Overview shows basic details about VM Guest and the hypervisor.

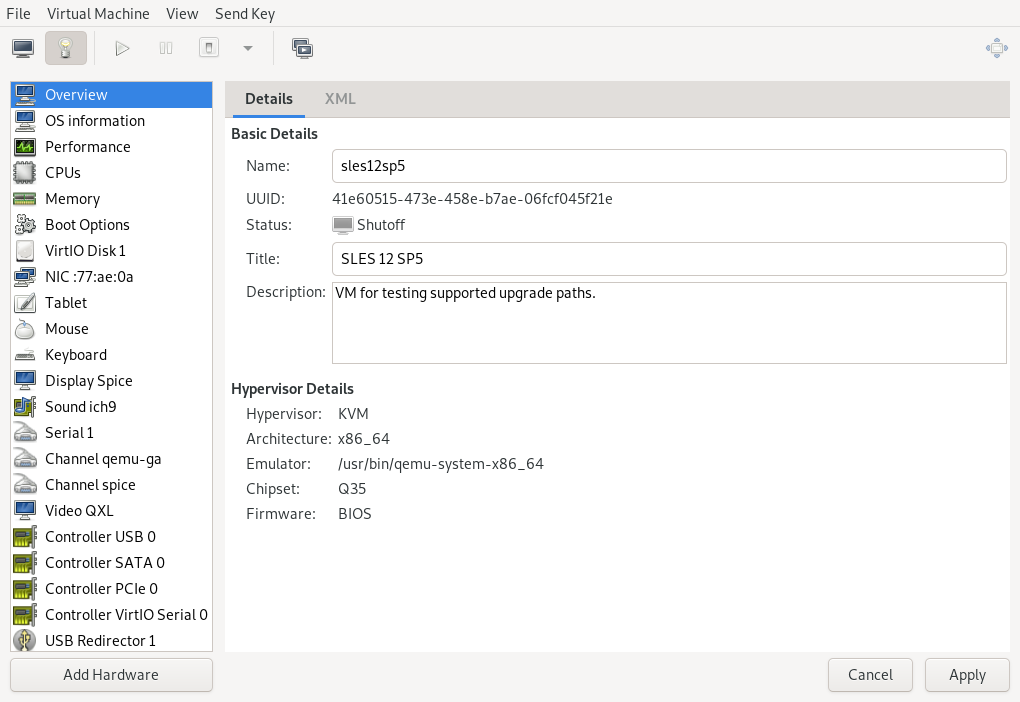

Figure 6: Overview details #



Name, Title, and Description are editable and help you identify VM Guest in the Virtual Machine Manager list of machines.

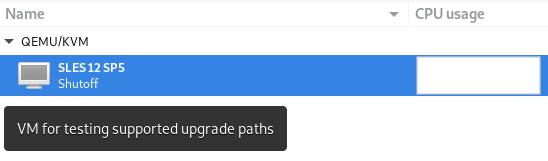

Figure 7: VM Guest title and description #



UUID shows the universally unique identifier of the virtual machine, while Status shows its current status—Running, Paused, or Shutoff.

The Hypervisor Details section shows the hypervisor type, CPU architecture, used emulator, and chipset type. None of the hypervisor parameters can be changed.

Performance shows regularly updated charts of CPU and memory usage, and disk and network I/O.

Figure 8: Performance #



Tip: Enabling disabled charts

Not all the charts in the Graph view are enabled by default. To enable these charts, go to File › View Manager, then select Edit › Preferences › Polling, and check the charts that you want to see regularly updated.

Figure 9: Statistics charts #



CPU includes detailed information about VM Guest processor configuration.

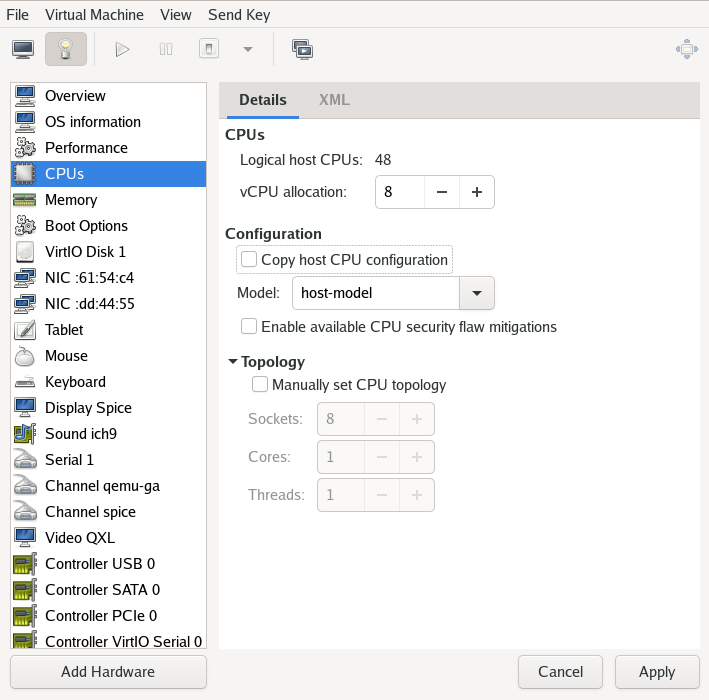

Figure 10: Processor view #



In the CPUs section, you can configure the number of virtual CPUs allocated to the VM Guest. Logical host CPUs shows the number of online and usable CPUs on the VM Host Server.

The Configuration section lets you configure the CPU model and topology.

When activated, the Copy host CPU configuration option uses the host CPU model for VM Guest. You can see the details of the host CPU model in the output of the virsh capabilities command. When deactivated, the CPU model needs to be specified from the models available in the drop-down box.

The host CPU model provides a good trade-off between CPU features and the ability to migrate the VM Guest. libvirt does not model every aspect of each CPU, so the VM Guest CPU does not match the VM Host Server CPU exactly. But the ABI provided to the VM Guest is reproducible and during migration the complete CPU model definition is transferred to the destination VM Host Server, ensuring the migrated VM Guest can see the exact same CPU model on the destination.

The host-passthrough model provides the VM Guest with a CPU that is exactly the same as the VM Host Server CPU. This can be useful when the VM Guest workload requires CPU features not available in libvirt's simplified host-model CPU. The host-passthrough model comes with the disadvantage of reduced migration capability. A VM Guest with host-passthrough model CPU can only be migrated to a VM Host Server with identical hardware.

For more information on libvirt's CPU model and topology options, see the CPU model and topology documentation at https://libvirt.org/formatdomain.html#cpu-model-and-topology.

After you activate Manually set CPU topology, you can specify a custom number of sockets, cores and threads for the CPU.

Memory contains information about the memory that is available to VM Guest.

Figure 11: Memory view #



Important: Large memory VM Guests

VM Guests with memory requirements of 4 TB or more must either use the host-passthrough CPU mode, or explicitly specify the virtual CPU address size when using host-model or custom CPU modes. The default virtual CPU address size for these modes may not be sufficient for memory configurations of 4 TB or more. The address size can only be specified by editing the VM Guests XML configuration. See Section 8.6, “Configuring memory allocation” for more information on specifying virtual CPU address size.

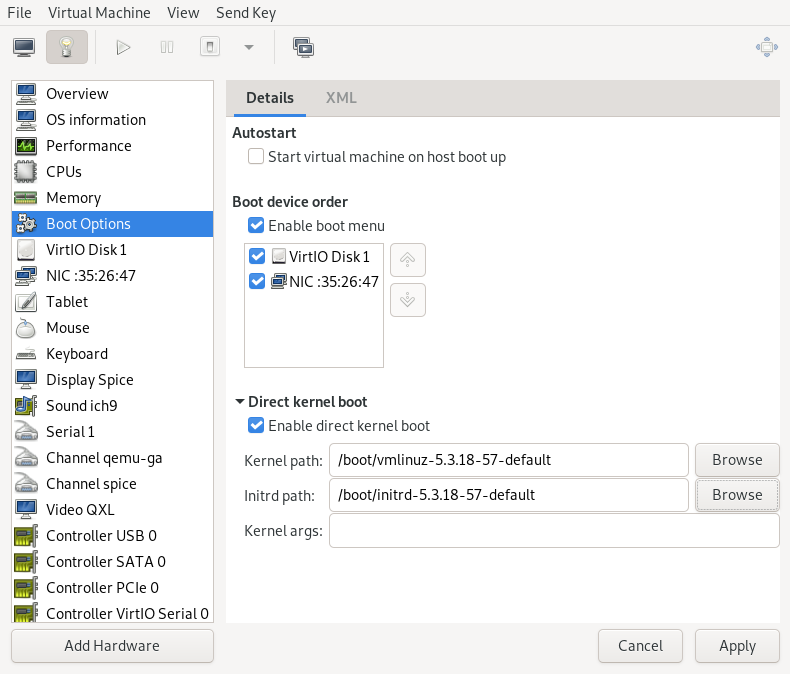

Boot Options introduces options affecting the VM Guest boot process.

Figure 12: Boot options #



In the Autostart section, you can specify whether the virtual machine should automatically start during the VM Host Server boot phase.

In the Boot device order, activate the devices used for booting VM Guest. You can change their order with the up and down arrow buttons on the right side of the list. To choose from a list of bootable devices on VM Guest start, activate Enable boot menu.

To boot a different kernel than the one on the boot device, activate Enable direct kernel boot and specify the paths to the alternative kernel and initrd placed on the VM Host Server file system. You can also specify kernel arguments that are passed to the loaded kernel.

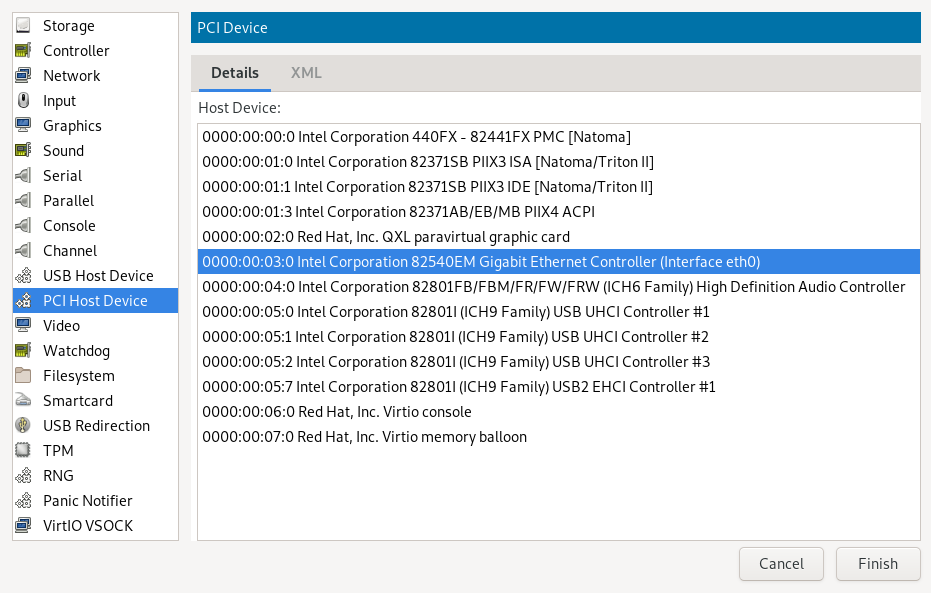

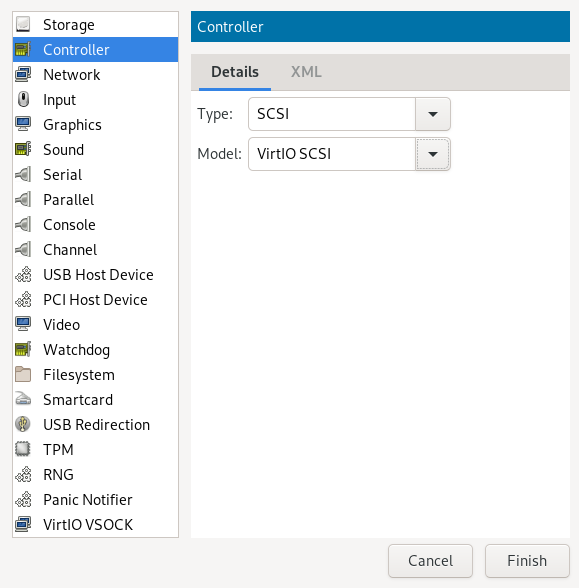

The following procedure describes how to assign a PCI device from the host machine to a VM Guest using Virtual Machine Manager:

Important: SLES 11 SP4 KVM guests

On a newer QEMU machine type (pc-i440fx-2.0 or higher) with SLES 11 SP4 KVM guests, the acpiphp module is not loaded by default in the guest. This module must be loaded to enable hotplugging of disk and network devices. To load the module manually, use the command modprobe acpiphp. It is also possible to autoload the module by adding install acpiphp /bin/true to the /etc/modprobe.conf.local file.

Important: KVM guests using QEMU Q35 machine type

KVM guests using the QEMU Q35 machine type have a PCI topology that includes a pcie-root controller and seven pcie-root-port controllers. The pcie-root controller does not support hotplugging. Each pcie-root-port controller supports hotplugging a single PCIe device. PCI controllers cannot be hotplugged, so plan accordingly and add more pcie-root-ports for more than seven hotplugged PCIe devices. A pcie-to-pci-bridge controller can be added to support hotplugging legacy PCI devices. See https://libvirt.org/pci-hotplug.html for more information about PCI topology between QEMU machine types.

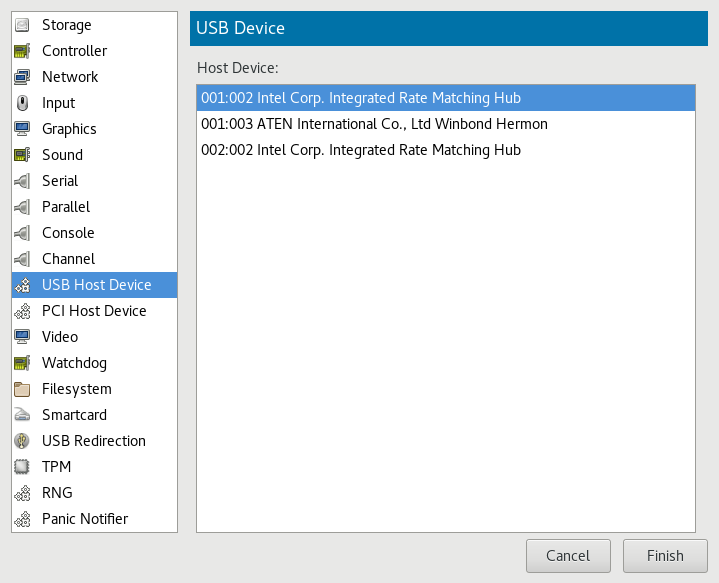

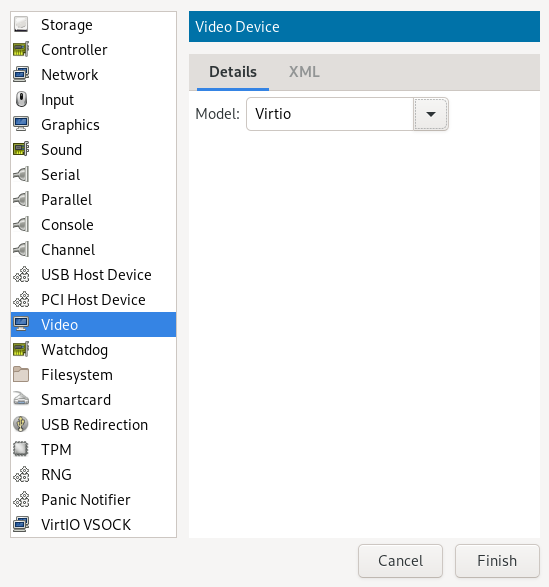

To assign a host USB device to VM Guest using Virtual Machine Manager, follow these steps:

Locking virtual disks is not enabled by default on SUSE Linux Enterprise Server. To enable and automatically start it upon rebooting, perform the following steps:

By default virtlockd is configured to automatically lock all disks configured for your VM Guests. The default setting uses a “direct” lockspace, where the locks are acquired against the actual file paths associated with the VM Guest <disk> devices. For example, flock(2) is called directly on /var/lib/libvirt/images/my-server/disk0.raw when the VM Guest contains the following <disk> device:

<disk type='file' device='disk'>
 <driver name='qemu' type='raw'/>
 <source file='/var/lib/libvirt/images/my-server/disk0.raw'/>
 <target dev='vda' bus='virtio'/>
</disk>

The virtlockd configuration can be changed by editing the file /etc/libvirt/qemu-lockd.conf. It also contains detailed comments with further information. Make sure to activate configuration changes by reloading virtlockd:

> sudo systemctl reload virtlockd

file_lockspace_dir = "/MY_LOCKSPACE_DIRECTORY"

lvm_lockspace_dir = "/MY_LOCKSPACE_DIRECTORY"
iscsi_lockspace_dir = "/MY_LOCKSPACE_DIRECTORY"

The main window of the Virtual Machine Manager lists all VM Guests for each VM Host Server it is connected to. Each VM Guest entry contains the machine's name, its status (Running, Paused, or Shutoff) displayed as an icon and literally, and a CPU usage bar.

Use the command virsh list to get a list of VM Guests:

For more information and further options, see virsh help list or man 1 virsh.

Opening a graphical console to a VM Guest lets you interact with the machine like a physical host via a VNC connection. If accessing the VNC server requires authentication, you are prompted to enter a user name (if applicable) and a password.

When you click into the VNC console, the cursor is “grabbed” and cannot be used outside the console anymore. To release it, press Alt–Ctrl.

Tip: Seamless (absolute) cursor movement

To prevent the console from grabbing the cursor and to enable seamless cursor movement, add a tablet input device to the VM Guest.

Certain key combinations such as Ctrl–Alt–Del are interpreted by the host system and are not passed to the VM Guest. To pass such key combinations to a VM Guest, open the Send Key menu from the VNC window and choose the desired key combination entry. The Send Key menu is only available when using Virtual Machine Manager and virt-viewer. With Virtual Machine Manager, you can alternatively use the “sticky key” feature as explained in Tip: Passing key combinations to virtual machines.

Note: Supported VNC viewers

Principally all VNC viewers can connect to the console of a VM Guest. However, if you are using SASL authentication and/or TLS/SSL connection to access the guest, the options are limited. Common VNC viewers such as tightvnc or tigervnc support neither SASL authentication nor TLS/SSL.

11.2.1.2 Opening a graphical console with virt-viewer #



virt-viewer is a simple VNC viewer with added functionality for displaying VM Guest consoles. For example, it can be started in “wait” mode, where it waits for a VM Guest to start before it connects. It also supports automatically reconnecting to a VM Guest that is rebooted.

virt-viewer addresses VM Guests by name, by ID or by UUID. Use virsh list --all to get this data.

To connect to a guest that is running or paused, use either the ID, UUID or name. VM Guests that are shut off do not have an ID—you can only connect to them by UUID or name.

Connect to guest with the ID 8

> virt-viewer 8

Connect to the inactive guest named sles12; the connection window opens once the guest starts

> virt-viewer --wait sles12

With the --wait option, the connection is upheld even if the VM Guest is not running at the moment. When the guest starts, the viewer is launched.

For more information, see virt-viewer --help or man 1 virt-viewer.

Note: Password input on remote connections with SSH

When using virt-viewer to open a connection to a remote host via SSH, the SSH password needs to be entered twice. The first time for authenticating with libvirt, the second time for authenticating with the VNC server. The second password needs to be provided on the command line where virt-viewer was started.

Accessing the graphical console of a virtual machine requires a graphical environment on the client accessing the VM Guest. As an alternative, virtual machines managed with libvirt can also be accessed from the shell via the serial console and virsh. To open a serial console to a VM Guest named “sles12”, run the following command:

> virsh console sles12

virsh console takes two optional flags: --safe ensures exclusive access to the console, --force disconnects any existing sessions before connecting. Both features need to be supported by the guest operating system.

Being able to connect to a VM Guest via serial console requires that the guest operating system supports serial console access and is properly supported. Refer to the guest operating system manual for more information.

Tip: Enabling serial console access for SUSE Linux Enterprise and openSUSE guests

Serial console access in SUSE Linux Enterprise and openSUSE is disabled by default. To enable it, proceed as follows:

SLES 15, 16 and openSUSE

Add console=ttyS0 to the Kernel Command Line Parameter.

SLES 11

Add console=ttyS0 to the Kernel Command Line Parameter. Additionally, edit /etc/inittab and uncomment the line with the following content:

#S0:12345:respawn:/sbin/agetty -L 9600 ttyS0 vt102

Changing a VM Guest's state can be done either from Virtual Machine Manager's main window, or from a VNC window.

In the following examples, the state of a VM Guest named “sles12” is changed.

libvirt provides more control over the save and restore operations than Virtual Machine Manager. virsh save and virsh restore support several options to modify the behavior of the operations. In the most basic form, a VM Guest is saved by providing its name, ID, or UUID and a file name. For example:

> virsh save openSUSE-Leap /virtual/saves/openSUSE-Leap.vmsav

A basic VM Guest restore operation only requires specifying the save file name. For example:

> virsh restore /virtual/saves/openSUSE-Leap.vmsav

As VM Guest memory size increases, save and restore operations may require additional options to attain satisfactory transfer rates, particularly when the save image files are backed by high throughput storage. The VM Host Server file system cache is often counterproductive in these scenarios and should be avoided with the bypass-cache option. For example:

> virsh save --bypass-cache openSUSE-Leap /virtual/saves/openSUSE-Leap.vmsav

> virsh restore --bypass-cache /virtual/saves/openSUSE-Leap.vmsav

The time required to save and restore VM Guests to high throughput storage can be improved by using multiple channels to write and read the VM Guest memory pages. As noted in Section 11.4, “Saving and restoring the state of a VM Guest”, the sparse image format is required to use multiple channels. When selecting the number of channels, care must be taken to ensure the operation does not adversely affect other workloads running on the VM Host Server. When the VM Host Server resources are statically partitioned, general advice would be to use the same number of channels as physical CPUs dedicated to the VM Guest. The vCPUs of a VM Guest are stopped at the start of a save operation, thus it would be safe to use those CPU resources to save VM Guest memory pages.

The following examples save and restore a VM Guest using 4 channels, while also bypassing the VM Host Server file system cache:

> virsh save --bypass-cache --image-format sparse --parallel-channels 4 openSUSE-Leap /virtual/saves/openSUSE-Leap.vmsav

> virsh restore --bypass-cache --parallel-channels 4 /virtual/saves/openSUSE-Leap.vmsav

The image format is encoded in the save image file and does not need to be specified during a restore operation.

For more information on save/restore and the supported options, see virsh help save, virsh help restore or man 1 virsh.

There are several specific terms used to describe the types of snapshots:

Important: Internal snapshots only

Virtual Machine Manager supports only internal snapshots, either live or offline.

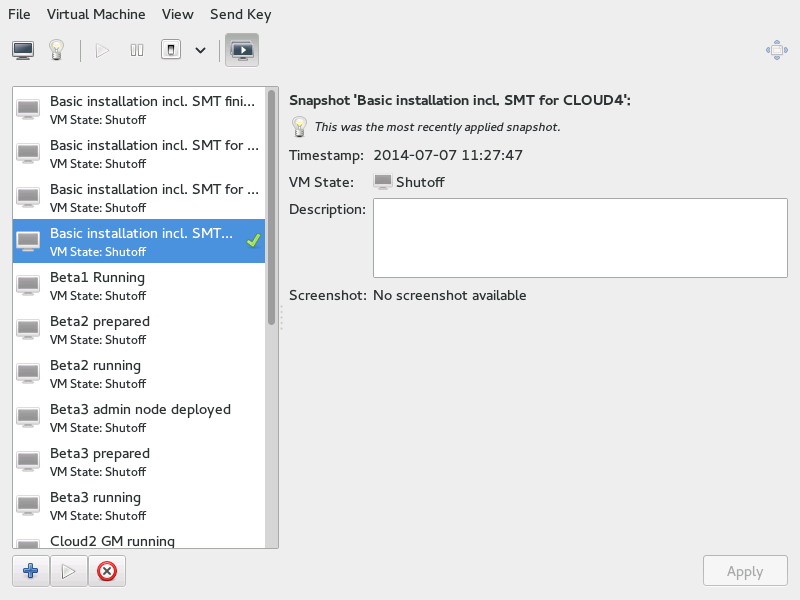

To open the snapshot management view in Virtual Machine Manager, open the VNC window as described in Section 11.2.1.1, “Opening a graphical console with Virtual Machine Manager”. Now either choose View › Snapshots or click Manage VM Snapshots in the toolbar.

The list of existing snapshots for the chosen VM Guest is displayed in the left-hand part of the window. The snapshot that was last started is marked with a green tick. The right-hand part of the window shows details of the snapshot currently marked in the list. These details include the snapshot's title and time stamp, the state of the VM Guest at the time the snapshot was taken and a description. Snapshots of running guests also include a screenshot. The Description can be changed directly from this view. Other snapshot data cannot be changed.

To list all existing snapshots for a domain (admin_server in the following), run the snapshot-list command:

> virsh snapshot-list --domain sle-ha-node1
 Name                 Creation Time             State
------------------------------------------------------------
 sleha_12_sp2_b2_two_node_cluster 2016-06-06 15:04:31 +0200 shutoff
 sleha_12_sp2_b3_two_node_cluster 2016-07-04 14:01:41 +0200 shutoff
 sleha_12_sp2_b4_two_node_cluster 2016-07-14 10:44:51 +0200 shutoff
 sleha_12_sp2_rc3_two_node_cluster 2016-10-10 09:40:12 +0200 shutoff
 sleha_12_sp2_gmc_two_node_cluster 2016-10-24 17:00:14 +0200 shutoff
 sleha_12_sp3_gm_two_node_cluster 2017-08-02 12:19:37 +0200 shutoff
 sleha_12_sp3_rc1_two_node_cluster 2017-06-13 13:34:19 +0200 shutoff
 sleha_12_sp3_rc2_two_node_cluster 2017-06-30 11:51:24 +0200 shutoff
 sleha_15_b6_two_node_cluster 2018-02-07 15:08:09 +0100 shutoff
 sleha_15_rc1_one-node 2018-03-09 16:32:38 +0100 shutoff

The snapshot that was last started is shown with the snapshot-current command:

> virsh snapshot-current --domain admin_server
Basic installation incl. SMT for CLOUD4

Details about a particular snapshot can be obtained by running the snapshot-info command:

> virsh snapshot-info --domain admin_server \
   -name  "Basic installation incl. SMT for CLOUD4"
Name:           Basic installation incl. SMT for CLOUD4
Domain:         admin_server
Current:        yes
State:          shutoff
Location:       internal
Parent:         Basic installation incl. SMT for CLOUD3-HA
Children:       0
Descendants:    0
Metadata:       yes

> virsh snapshot-create-as --domain admin_server1 --name "Snapshot 1"2 \
--description "First snapshot"3

> virsh snapshot-create-as --domain admin_server --name \
 "Offline external snapshot" --disk-only

> virsh snapshot-create-as --domain admin_server --name \
 "Offline external snapshot" \
 --disk-only --diskspec vda,snapshot=external,file=/path/to/snapshot_file

> virsh snapshot-create-as --domain admin_server --name \
 "Offline external snapshot" --live \
 --memspec snapshot=external,file=/path/to/snapshot_file

> virsh snapshot-create-as --domain admin_server --name \
 "Offline external snapshot" --live \
 --memspec snapshot=external,file=/path/to/snapshot_file
 --diskspec vda,snapshot=external,file=/path/to/snapshot_file

> virsh snapshot-delete --domain admin_server --snapshotname "Snapshot 2"

> virsh snapshot-revert --domain admin_server --snapshotname "Snapshot 1"

> virsh snapshot-revert --domain admin_server --current

To delete a VM Guest, it needs to be shut down first. It is not possible to delete a running guest. For information on shutting down, see Section 11.3, “Changing a VM Guest's state: start, stop, pause”.

To delete a VM Guest with virsh, run virsh undefine VM_NAME.

> virsh undefine sles12

There is no option to automatically delete the attached storage files. If they are managed by libvirt, delete them as described in Section 6.2.1.4, “Deleting volumes from a storage pool”.

After starting Virtual Machine Manager and connecting to the VM Host Server, a CPU usage graph of all the running guests is displayed.

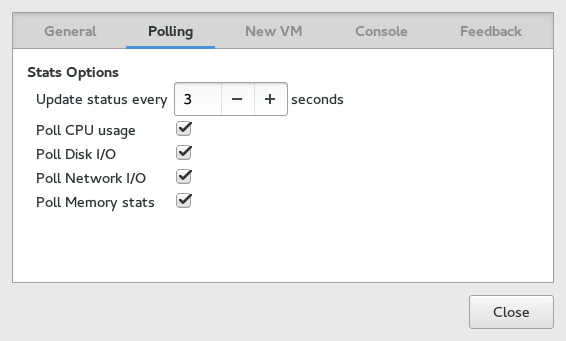

It is also possible to get information about disk and network usage with this tool, however, you must first activate this in Preferences:

Afterward, the disk and network statistics are also displayed in the main window of the Virtual Machine Manager.

More precise data is available from the VNC window. Open a VNC window as described in Section 11.2.1, “Opening a graphical console”. Choose Details from the toolbar or the View menu. The statistics are displayed from the Performance entry of the left-hand tree menu.

virt-top is a command-line tool similar to the well-known process monitoring tool top. virt-top uses libvirt and therefore is capable of showing statistics for VM Guests running on different hypervisors.

By default virt-top shows statistics for all running VM Guests. Among the data that is displayed is the percentage of memory used (%MEM) and CPU (%CPU) and the uptime of the guest (TIME). The data is updated regularly (every three seconds by default). The following shows the output on a VM Host Server with seven VM Guests, four of them inactive:

virt-top 13:40:19 - x86_64 8/8CPU 1283MHz 16067MB 7.6% 0.5%
7 domains, 3 active, 3 running, 0 sleeping, 0 paused, 4 inactive D:0 O:0 X:0
CPU: 6.1%  Mem: 3072 MB (3072 MB by guests)

   ID S RDRQ WRRQ RXBY TXBY %CPU %MEM    TIME   NAME
    7 R  123    1  18K  196  5.8  6.0   0:24.35 sled12_sp1
    6 R    1    0  18K    0  0.2  6.0   0:42.51 sles12_sp1
    5 R    0    0  18K    0  0.1  6.0  85:45.67 opensuse_leap
    -                                           (Ubuntu_1410)
    -                                           (debian_780)
    -                                           (fedora_21)
    -                                           (sles11sp3)

By default the output is sorted by ID. Use the following key combinations to change the sort field:

To use any other field for sorting, press Shift–F and select a field from the list. To toggle the sort order, use Shift–R.

virt-top also supports different views on the VM Guests data, which can be changed on-the-fly by pressing the following keys:

virt-top supports more hot keys to change the view of the data and many command line switches that affect the behavior of the program. For more information, see man 1 virt-top.

kvm_stat can be used to trace KVM performance events. It monitors /sys/kernel/debug/kvm, so it needs the debugfs to be mounted. On SUSE Linux Enterprise Server it should be mounted by default. In case it is not mounted, use the following command:

> sudo mount -t debugfs none /sys/kernel/debug

kvm_stat can be used in three different modes:

kvm_stat                    # update in 1 second intervals
kvm_stat -1                 # 1 second snapshot
kvm_stat -l > kvmstats.log  # update in 1 second intervals in log format
                            # can be imported to a spreadsheet

kvm statistics

 efer_reload                  0       0
 exits                 11378946  218130
 fpu_reload               62144     152
 halt_exits              414866     100
 halt_wakeup             260358      50
 host_state_reload       539650     249
 hypercalls                   0       0
 insn_emulation         6227331  173067
 insn_emulation_fail          0       0
 invlpg                  227281      47
 io_exits                113148      18
 irq_exits               168474     127
 irq_injections          482804     123
 irq_window               51270      18
 largepages                   0       0
 mmio_exits                6925       0
 mmu_cache_miss           71820      19
 mmu_flooded              35420       9
 mmu_pde_zapped           64763      20
 mmu_pte_updated              0       0
 mmu_pte_write           213782      29
 mmu_recycled                 0       0
 mmu_shadow_zapped       128690      17
 mmu_unsync                  46      -1
 nmi_injections               0       0
 nmi_window                   0       0
 pf_fixed               1553821     857
 pf_guest               1018832     562
 remote_tlb_flush        174007      37
 request_irq                  0       0
 signal_exits                 0       0
 tlb_flush               394182     148

See https://clalance.blogspot.com/2009/01/kvm-performance-tools.html for further information on how to interpret these values.

libvirtd authentication is configured in /etc/libvirt/libvirtd.conf. The configuration made here applies to all libvirt tools such as the Virtual Machine Manager or virsh.

libvirt offers two sockets: a read-only socket for monitoring purposes and a read-write socket to be used for management operations. Access to both sockets can be configured independently. By default, both sockets are owned by root.root. Default access permissions on the read-write socket are restricted to the user root (0700) and fully open on the read-only socket (0777).

The following instructions describe how to configure access permissions for the read-write socket. The same instructions also apply to the read-only socket. All configuration steps need to be carried out on the VM Host Server.

Note: Default authentication settings on SUSE Linux Enterprise Server

The default authentication method on SUSE Linux Enterprise Server is access control for Unix sockets. Only the user root may authenticate. When accessing the libvirt tools as a non-root user directly on the VM Host Server, you need to provide the root password through Polkit once. You are then granted access for the current and for future sessions.

Alternatively, you can configure libvirt to allow “system” access to non-privileged users. See Section 12.2.1, ““system” access for non-privileged users” for details.
