SUSE Linux Enterprise Server 15 SP6

Creating Customized Virtual Machines Using `virt-scenario`

Publication Date: 24 Oct 2025

WHAT?

When deploying multiple virtual machines (VM), they often serve a similar purpose. virt-scenario offers a way to quickly create a VM following a predefined scenario. As an option, you can create a secure VM or override certain default virt-scenario settings.

WHY?

This article introduces the virt-scenario tool and describes available predefined scenarios for creating VMs. It outlines steps to create a VM suitable for a selected scenario, as well as available commands for the virt-scenario interactive shell.

EFFORT

It takes up to 30 minutes to understand virt-scenario and use it to create a basic VM. To learn and try additional topics, for example, how to override default values or use interactive commands, you need additional time.

REQUIREMENTS

virt-scenario requires KVM and libvirt virtualization environment configured and related daemons running.
Secure virtual machines are supported only by an AMD processor that supports AMD SEV or SEV-ES technology. For more information about SUSE and AMD SEV, refer to https://documentation.suse.com/sles/html/SLES-amd-sev/article-amd-sev.html.

Revision History: Creating Customized Virtual Machines Using virt-scenario

1 Introduction to `virt-scenario` #

virt-scenario is a tool that helps you create virtual machines (VM) suitable for a specific scenario. It provides predefined profiles that include optimal settings for each scenario. You can override settings that are common to all profiles.

Important

Although virt-scenario generally provides the best possible configuration for a specific scenario, this cannot be guaranteed because each environment may have specific requirements.

1.1 How does `virt-scenario` work? #

An interactive virt-scenario script creates a libvirt XML configuration file for a VM based on the following:

selected basic profile
overridden values for common parameters
parameters that you specify interactively

After the configuration is validated, virt-scenario adjusts the VM Host Server system and creates the image file for the VM Guest. You can then operate the VM using standard libvirt commands.

1.2 Benefits of using `virt-scenario` #

Creating virtual machines is fast and simple. virt-scenario leaves all the virtualization complexity aside. You can focus on basic features only.
Fine-tuned profiles already offer optimal settings for specified scenarios. You do not have to search and copy them to each virtual machine of the same type, just use the same profile.
The override mechanism lets you specify other values than the profile's default for selected options. This way, you can customize virtual machines to your needs.

2 Creating VMs #

The virt-scenario command presents an interactive shell where you optionally specify configuration parameters and finally select the target scenario. Its welcome screen shows categories with available commands.

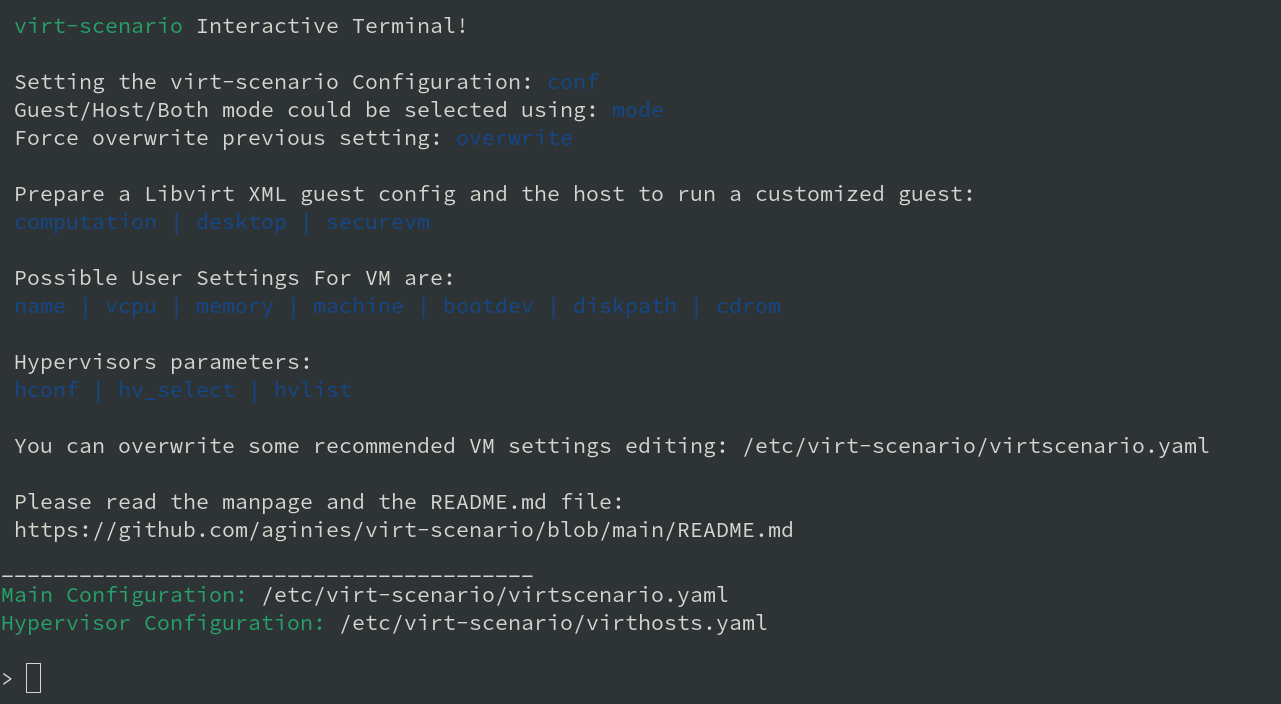

Figure 1: virt-scenario welcome screen #

Each command has a built-in description of its usage. Enter help COMMAND_NAME to view it on the screen.

Warning: Unsafe force_sev option

The force_sev option is only provided for testing purposes. It forces the extraction of the Platform Diffie-Hellman key (PDH) on the current AMD SEV system. The PDH file is used to negotiate a master secret between the SEV firmware and the external entities. This file must be stored in a secure place.

After you finish the optional configuration steps, enter the name of one of the scenarios—computation, desktop or securevm. virt-scenario then compiles all the configuration, prepares the VM Host Server, and saves the libvirt XML file of the new VM in ~/.local/virt-scenario/vmconfig.

2.1 Overriding default scenario settings #

On each run, virt-scenario reads settings for a new VM from the /etc/virt-scenario/virtscenario.yaml file. Change settings in this file to affect all VMs created by virt-scenario.

The following is an example of /etc/virt-scenario/virtscenario.yaml:

config:
  - path: /etc/virt-scenario
  - vm-config-store: ~/.local/virtscenario/
emulator:
  - emulator: /usr/bin/qemu-system-x86_64
input:
  - keyboard: virtio
  - mouse: virtio
architecture:
  - arch: x86_64
STORAGE_DATA:
# some options are only available with qcow2 format and
# will be ignored in case of any other image format
  - disk_type: file
  - disk_cache: none
  - disk_target: vda
  - disk_bus: virtio
  - path: /var/livirt/images
  - format: qcow2
# host side: qemu-img creation options (-o), qemu-img --help
  - unit: G
  - capacity: 20
  - cluster_size: 1024k
  - lazy_refcounts: on
preallocation: full
  - preallocation: off
  - compression_type: zlib
  - encryption: off
host_filesystem:
  - fmode: 644
  - dmode: 755
  - source_dir: /tmp
  - target_dir: /tmp/host

Back up /etc/virt-scenario/virtscenario.yaml before modifying it as incorrect parameters may lead to an invalid VM configuration.
Copy /etc/virt-scenario/virtscenario.yaml to a different location and modify the settings that you need to override.
Important: Include all settings and keep section names
In the overriding virtscenario.yaml file, you need to include all available settings from the original virtscenario.yaml file, not only the modified settings. Also, never change section names in virtscenario.yaml or its overriding copies. Doing so might cause virt-scenario to misinterpret matching settings, leading to an invalid VM configuration.
On the next virt-scenario run, specify the path to the new configuration file with the conf command, for example:
```
> conf /home/tux/virt-scenarios/my-overriden-scenario.yaml
```

2.2 Specifying the `virt-scenario` mode #

By default, virt-scenario creates the libvirt XML configuration of the new guest and adjusts the VM Host Server. You can instruct virt-scenario to perform only part of the task. After entering the mode command, you can specify one of the following options:

guest: Creates only the libvirt XML configuration of the guest. Use guest if you want to create an XML representation of a VM but not modify the host machine settings. Suitable for transferring the XML to another host.
host: Prepares the VM Host Server system only. When deploying multiple VMs with similar configuration, the host system may already have been adjusted appropriately, and it is useless to adjust it again.
both: Creates the guest configuration and prepares the host. This is the default mode.

2.3 Interactive commands #

You can use the following commands when configuring a new VM using the virt-scenario interactive shell.

Each command has a built-in description of its usage. Enter help COMMAND_NAME to view it on the screen.

Hypervisor configuration #

hvconf: Loads the hypervisor configuration.
hvselect: Sets the hypervisor for which VMs are configured.
hvlist: Lists the available hypervisors.
overwrite: Forces overwriting the previous configuration.

Guest configuration #

name: Defines the name of the VM.
vcpu: Specifies the number of virtual CPUs.
memory: Specifies the memory size (in GiB).
machine: Selects the machine type.
bootdev: Selects the boot device.
diskpath: Specifies the directory where to store the VM disk image.
conf: Specifies the path to the custom virtscenario.yaml file.
cdrom: Specifies the path to the CD/DVD installation media.

Generate VM configuration #

computation: Creates a libvirt XML configuration and VM Host Server adjustments for the computation scenario.
desktop: Creates a libvirt XML configuration and VM Host Server adjustments for the desktop scenario.
securevm: Creates a libvirt XML configuration and VM Host Server adjustments for the secure VM scenario.

3 Predefined scenarios #

When creating a VM, you can specify one of the following scenarios:

securevm: Selecting this scenario results in an encrypted VM image with a high level of isolation and data security.
computation: This scenario puts emphasis on the high performance of the resulting VM.
desktop: The result of this scenario is a VM suitable for running desktop applications.

The following tables show default settings for each scenario:

Table 1: Default storage settings #

Setting	securevm	computation	desktop
preallocation	metadata	off	metadata
encryption	on	off	off
disk_cache	writethrough	unsafe*	none
lazy_refcounts	on	on	off
format	qcow2	raw	qcow2
disk bus	virtio	virtio	virtio
capacity	20G	20G	20G
cluster_size	1024k	N/A	1024k

* the unsafe cache mode may cause data loss and, for example, destroy a Btrfs file system after an unclean shutdown

Table 2: Default host settings #

Setting	securevm	computation	desktop
Transparent HugePages	on	on	on
KSM	disable	enable	enable
KSM merge across	disable	enable	enable
swappiness	0	0	35
IO Scheduler	bfq	mq-deadline	mq-deadline

Table 3: Default guest settings #

Setting	securevm	computation	desktop
CPU migratable	off	off	on
machine	pc-q35-6.2	pc-q35-6.2	pc-q35-6.2
watchdog	none	i6300esb poweroff	none
boot UEFI	auto	auto	auto
vTPM	tpm-crb 2.0	none	none
iothreads	disable	4	4
video	qxl	qxl	virtio
network	e1000	virtio	e1000
keyboard	ps2	virtio	virtio
mouse	disable	virtio	virtio
on_poweroff	destroy	restart	destroy
on_reboot	destroy	restart	restart
on_crash	destroy	restart	destroy
suspend_to_mem	off	off	on
suspend_to_disk	off	off	on
features	acpi apic pae	acpi apic pae	acpi apic pae
host fs fmode, dmode, source_dir, target_dir	N/A	N/A	644 755 /tmp/ /tmp/host

Table 4: Default SEV settings #

Setting	securevm	computation	desktop
kvm SEV	mem_encrypt=on kvm_amd sev=1 sev_es=1	N/A	N/A
sec cbitpos	auto	N/A	N/A
sec reducedPhysBits	auto	N/A	N/A
sec policy	auto	N/A	N/A

4 Managing VMs #

After you created a VM using the virt-scenario interactive shell, use the virt-scenario-launch command to manage it. The command identifies VMs by their name as displayed by the --list option.

# virt-scenario-launch --list
  Version: 2.1.2
  Available VMs:
    ALP_OS
    desktop
    testing_vm
    SLE15_HPC

When the VM is identified, you can manage it by passing the following options to virt-scenario-launch.

--help

Prints short descriptions of available options.

--start

Starts the VM and prints security attestation information, for example:

# virt-scenario-launch --start ALP_OS
  Connected to libvirtd socket; Version: 7001000
  SEV(-ES) attestation passed!
  Validation successfull for domain ALPOS

--status

Shows the status of the VM, for example:

# virt-scenario-launch --status ALP_OS
  Version: 2.1.2
  Connecting to libvirt qemu:///system ...
  Connected to libvirtd socket; Version: 7001000
  Domain SLE15SP5HPC state: Shutoff

--off

Shuts a VM down.

# virt-scenario-launch --off ALP_OS

--force

Forces a VM off.

# virt-scenario-launch --force ALP_OS
