This document provides simplified instructions for installing and setting up a SUSE OpenStack Cloud. Use this quickstart guide to build testing, demonstration, and lab-type environments., rather than production installations. When you complete this quickstart process, you will have a fully functioning SUSE OpenStack Cloud demo environment.

Note

These simplified instructions are intended for testing or demonstration. Instructions for production installations are in Book “Installing with Cloud Lifecycle Manager”.

The following are short descriptions of the components that SUSE OpenStack Cloud employs when installing and deploying your cloud.

Ansible.  Ansible is a powerful configuration management tool used by SUSE OpenStack Cloud to manage nearly all aspects of your cloud infrastructure. Most commands in this quickstart guide execute Ansible scripts, known as playbooks. You will run playbooks that install packages, edit configuration files, manage network settings, and take care of the general administration tasks required to get your cloud up and running.

Get more information on Ansible at https://www.ansible.com/.

Cobbler.  Cobbler is another third-party tool used by SUSE OpenStack Cloud to deploy operating systems across the physical servers that make up your cloud. Find more info at http://cobbler.github.io/.

Git.  Git is the version control system used to manage the configuration files that define your cloud. Any changes made to your cloud configuration files must be committed to the locally hosted git repository to take effect. Read more information on Git at https://git-scm.com/.

Successfully deploying a SUSE OpenStack Cloud environment is a large endeavor, but it is not complicated. For a successful deployment, you must put a number of components in place before rolling out your cloud. Most importantly, a basic SUSE OpenStack Cloud requires the proper network infrastrucure. Because SUSE OpenStack Cloud segregates the network traffic of many of its elements, if the necessary networks, routes, and firewall access rules are not in place, communication required for a successful deployment will not occur.

When your network infrastructure is in place, go ahead and set up the Cloud Lifecycle Manager. This is the server that will orchestrate the deployment of the rest of your cloud. It is also the server you will run most of your deployment and management commands on.

Set up the Cloud Lifecycle Manager

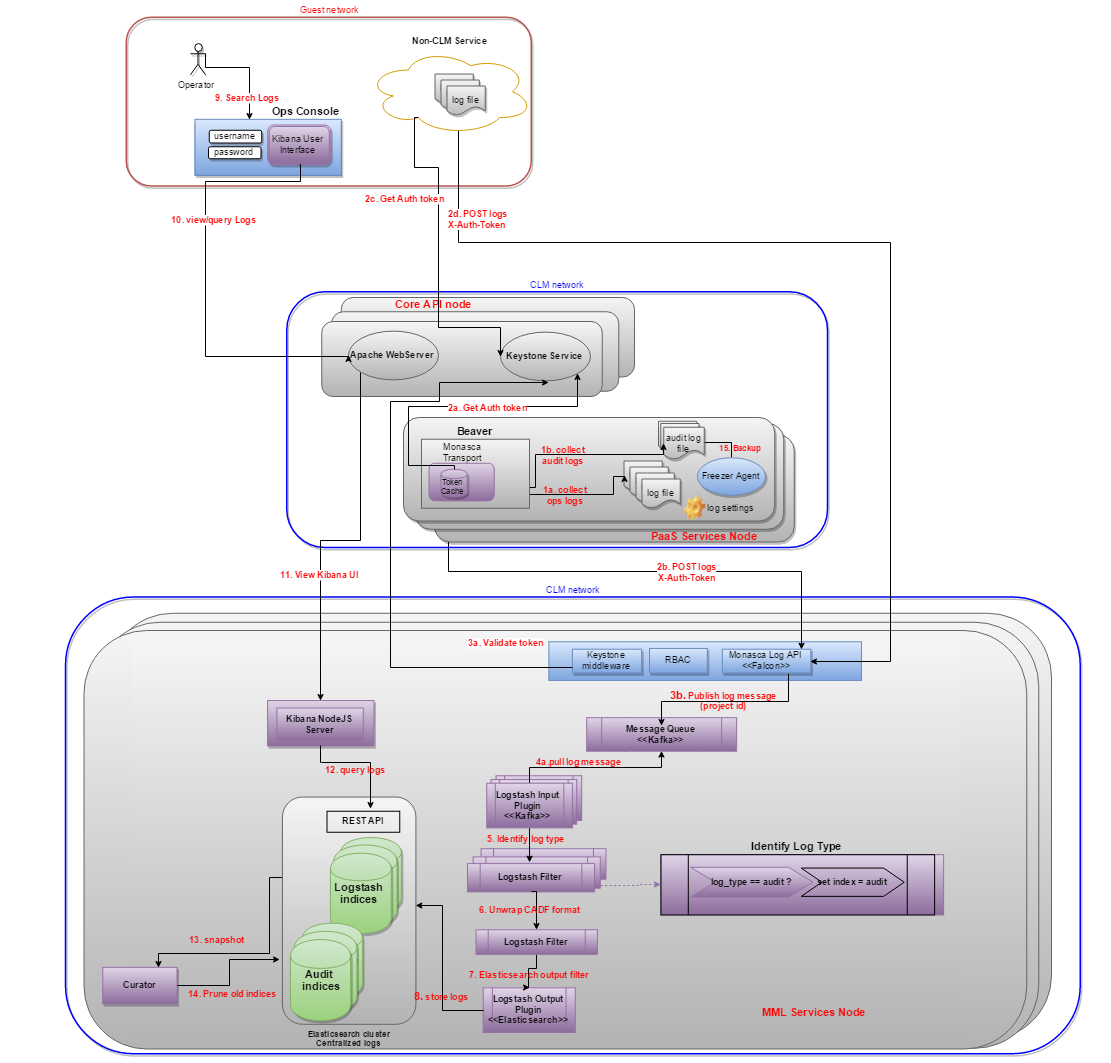

SUSE OpenStack Cloud uses the ELK (Elasticsearch, Logstash, Kibana) stack for log management across the entire cloud infrastructure. This configuration facilitates simple administration as well as integration with third-party tools. This tutorial covers how to forward your logs to a third-party tool or service, and how to access and search the Elasticsearch log stores through API endpoints.

The ELK logging stack consists of the Elasticsearch, Logstash, and Kibana elements:

You can query the Elasticsearch indexes through various language-specific APIs, as well as directly over the IP address and port that Elasticsearch exposes on your implementation. By default, Elasticsearch presents from localhost, port 9200. You can run queries directly from a terminal using curl. For example:

curl -XGET 'http://localhost:9200/_search?q=tag:yourSearchTag'

The preceding command searches all indexes for all data with the "yourSearchTag" tag.

You can also use the Elasticsearch API from outside the logging node. This method connects over the Kibana VIP address, port 5601, using basic http authentication. For example, you can use the following command to perform the same search as the preceding search:

curl -u kibana:<password> kibana_vip:5601/_search?q=tag:yourSearchTag

You can further refine your search to a specific index of data, in this case the "elasticsearch" index:

curl -XGET 'http://localhost:9200/elasticsearch/_search?q=tag:yourSearchTag'

The search API is RESTful, so responses are provided in JSON format. Here's a sample (though empty) response:

{
    "took":13,
    "timed_out":false,
    "_shards":{
        "total":45,
        "successful":45,
        "failed":0
    },
    "hits":{
        "total":0,
        "max_score":null,
        "hits":[]
    }
}

You can find more detailed Elasticsearch API documentation at https://www.elastic.co/guide/en/elasticsearch/reference/current/search.html.

Review the Elasticsearch Python API documentation at the following sources: http://elasticsearch-py.readthedocs.io/en/master/api.html

Read the Elasticsearch Java API documentation at https://www.elastic.co/guide/en/elasticsearch/client/java-api/current/index.html.

You can configure Logstash to ship your logs to an outside storage and indexing system, such as Splunk. Setting up this configuration is as simple as editing a few configuration files, and then running the Ansible playbooks that implement the changes. Here are the steps.

Please note that configuring the receiving service will vary from product to product. Consult the documentation for your particular product for instructions on how to set it up to receive log files from Logstash.

The SUSE OpenStack Cloud 8 logging solution provides a flexible and extensible framework to centralize the collection and processing of logs from all nodes in your cloud. The logs are shipped to a highly available and fault-tolerant cluster where they are transformed and stored for better searching and reporting. The SUSE OpenStack Cloud 8 logging solution uses the ELK stack (Elasticsearch, Logstash and Kibana) as a production-grade implementation and can support other storage and indexing technologies.

You can configure Logstash, the service that aggregates and forwards the logs to a searchable index, to send the logs to a third-party target, such as Splunk.

For how to integrate the SUSE OpenStack Cloud 8 centralized logging solution with Splunk, including the steps to set up and forward logs, please refer to Section 3.1, “Splunk Integration”.

To configure your SUSE OpenStack Cloud cloud to use an outside user-management source, perform the following steps:

Splunk is software for searching, monitoring, and analyzing machine-generated big data, via a web-style interface. Splunk captures, indexes and correlates real-time data in a searchable repository from which it can generate graphs, reports, alerts, dashboards and visualizations. It is commercial software (unlike Elasticsearch) and more details about Splunk can be found at https://www.splunk.com.

This documentation assumes that you already have Splunk set up and running. For help with installing and setting up Splunk, refer to Splunk Tutorial.

There are different ways in which a log message (or "event" in Splunk's terminology) can be sent to Splunk. These steps will set up a TCP port where Splunk will listen for messages.

When you have Splunk set up and configured to receive log messages, you can configure SUSE OpenStack Cloud 8 to forward the logs to Splunk.

To both verify that your integration worked and to search your log messages that have been forwarded you can navigate back to your Splunk dashboard. In the search field, use this string:

source="tcp:TCP_PORT_NUMBER"

Find information on using the Splunk search tool at http://docs.splunk.com/Documentation/Splunk/6.4.3/SearchTutorial/WelcometotheSearchTutorial.

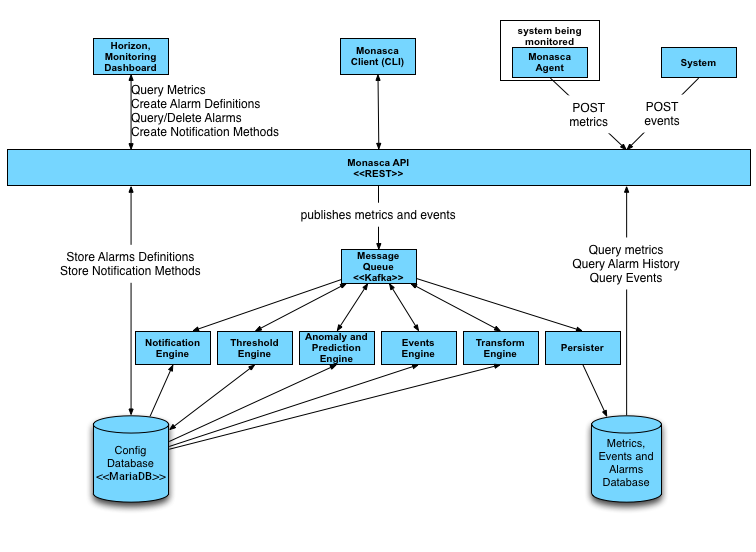

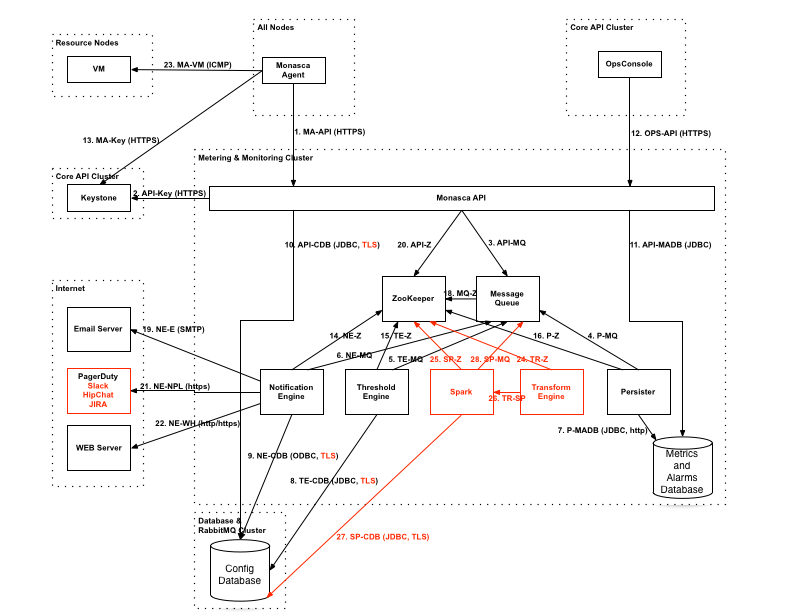

SUSE OpenStack Cloud comes with a monitoring engine (Monasca) and a separate management dashboard (Operations Console). Monasca is extremely scalable, designed to cope with the constant change in monitoring sources and services found in a cloud environment. Monitoring agents running on hosts (physical and virtual) submit data to the Monasca message bus via a RESTful API. Threshold and notification engines then trigger alarms when predefined thresholds are passed. Notification methods are flexible and extensible. Typical examples of notification methods would be emails generated or creating alarms in PagerDuty.

While extensible, Monasca is largely focused on monitoring cloud infrastructures rather than traditional environments such as server hardware, network links, switches, etc. For more details about the monitoring service, see Section 12.1, “Monitoring”.

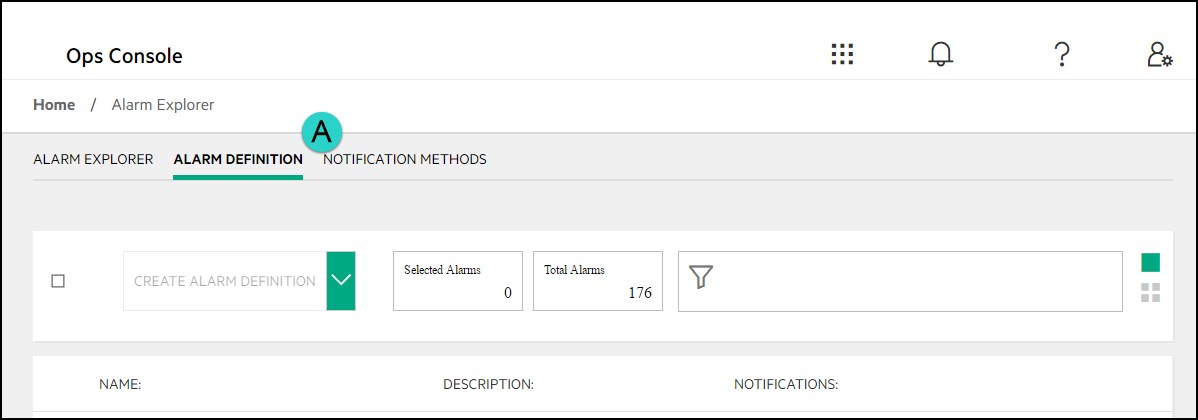

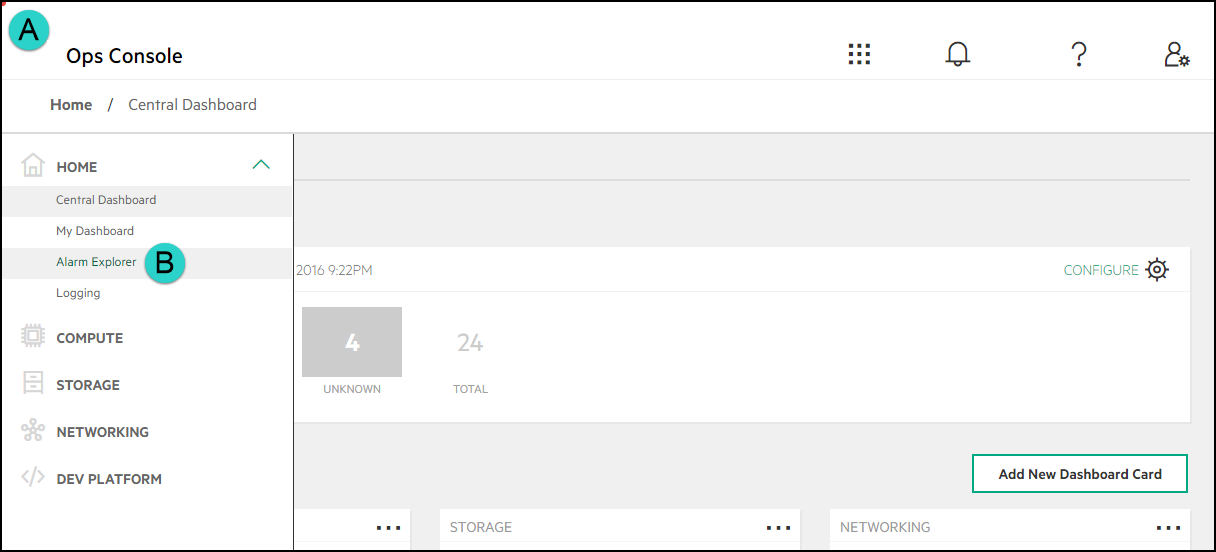

The Operations Console (Ops Console) provides cloud administrators a clear web interfaces to view alarm status, management alarm workflow, and configure alarms and thresholds. For more details about the Ops Console, see Book “User Guide”, Chapter 1 “Using the Operations Console”, Section 1.1 “Operations Console Overview”.

Nagios is an industry leading open source monitoring service with extensive plugins and agents. Nagios checks are either run directly from the monitoring server or run on a remote host via an agent and with results submitted back to the monitoring server. While Nagios has proven extremely flexible and scalable, it requires significant explicit configuration. Using Nagios to monitor guest virtual machines becomes more challenging because virtual machines can be ephemeral which means new virtual machines are created and destroyed regularly. Configuration automation (Chef, Puppet, Ansible etc) can create a more dynamic Nagios setup but they still require the Nagios service to be restarted every time a new host is added.

A key benefit of Nagios style monitoring is that it allows for SUSE OpenStack Cloud to be monitored externally, from a user or service perspective. For example, checks can be created to monitor availability of all the API endpoints from external locations or even to create and destroy instances to ensure the entire system is working as expected.

Many private cloud operators already have existing monitoring solutions such as Nagios and Icinga. We recommend that you extend your existing solutions into Monasca or forward Monasca alerts to your existing solution to maximize coverage and reduce risk.

Integration between Nagios and Monasca can occur at two levels, at the individual check level or at the management interfaces. Both options are discussed in the following sections.

Running Nagios-style checks in the Monasca agents

The Monasca agent is installed on all SUSE OpenStack Cloud servers and includes the ability to execute Nagios-style plugins as well as its own plugin scripts. For this configuration check, plugins need to be installed on the required server then added to the Monasca configuration under /etc/monasca/agent/conf.d. Care should be taken as plugins that take a long time (greater than 10 seconds) to run can result in the Monasca agent failing to run its own checks in the allotted time and therefore stopping all client monitoring. Issues have been seen with hardware monitoring plugins that can take greater than 30 seconds and any plugins relying on name resolution when DNS services are not available. Details on the required Monasca configuration can be found at https://github.com/openstack/monasca-agent/blob/master/docs/Plugins.md#nagios-wrapper.

Use Case:

Limitation

Using Nagios as a central dashboard

It is possible to create a Nagios-style plugin that will query the Monasca API endpoint for an alarm status to create Nagios alerts and alarms based on Monasca alarms and filters. Monasca alarms appear in Nagios using two approaches, one listing checks by service and the other listing checks by physical host.

In the top section of the Nagios-style plugin, services can be created under a dummy host, monasca_endpoint. Each service retrieves all alarms based on defined dimensions. For example the ardana-compute check will return all alarms with the compute (Nova) dimension.

In the bottom section, the physical servers making up the SUSE OpenStack Cloud cluster can be defined and checks can be run. For example, one could check the server hardware from the Nagios server using a third party plugin and the another could retrieve all monasca alarms related to that host.

To build this configuration, a custom Nagios plugin (Please see example plugin at: https://github.com/openstack/python-monascaclient/tree/stable/pike/examples) was created with the following options:

check_monasca –c CREDENTIALS -d DIMENSION -v VALUE

Examples:

To check alarms on test-ccp-comp001-mgmt you would use:

check_monasca –c service.osrc –d hostname –v test-ccp-comp001-mgmt

To check all Network related alarms, you would use:

check_monasca –c service.osrc –d service –v networking

Use Cases:

Limitations

Using Operations Console as central dashboard

Nagios has the ability to run custom scripts in response to events. It is therefore possible to write a plugin to update Monasca whenever a Nagios alert occurs. The Operations Console could then be used as a central reporting dashboard for both Monasca and Nagios alarms. The external Nagios alarms can have their own check dimension and could be displayed as a separate group in the Operations Console.

Use Cases

Limitations

SUSE OpenStack Cloud-specific Nagios Plugins

Several OpenStack plugin packages exist (see https://launchpad.net/ubuntu/+source/nagios-plugins-openstack) that are useful to run from external sources to ensure the overall system is working as expected. Monasca requires some OpenStack components to be working in order to work at all. For example, if Keystone were unavailable, Monasca could not authenticate client or console requests. An external service check could highlight this.

Alarm status differences

Monasca and Nagios treat alarms and status in different ways and for the two systems to talk there needs to be a mapping between them. The following table details the alarm parameters available for each:

In the plugin described here, the mapping was created with this flow:

Monasca OK -> Nagios OK
Monasca ALARM ( LOW or MEDIUM ) -> Nagios Warning
Monasca ALARM ( HIGH ) -> Nagios Critical

Alarm workflow differences

In both, system alarms can be acknowledged in the dashboards to indicate they are being worked on (or ignored). Not all the scenarios above will provide the same level of workflow integration.

Monasca, the SUSE OpenStack Cloud 8 monitoring service, collects information about your cloud's systems, and allows you to create alarm definitions based on these measurements. Monasca-agent is the component that collects metrics such as metric storage and alarm thresholding and forwards them to the monasca-api for further processing.

With a small amount of configuration, you can use the detection and check plugins that are provided with your cloud to monitor integrated third-party components. In addition, you can write custom plugins and integrate them with the existing monitoring service.

Find instructions for customizing existing plugins to monitor third-party components in the Section 3.4.4, “Configuring Check Plugins”.

Find instructions for installing and configuring new custom plugins in the Section 3.4.3, “Writing Custom Plugins”.

You can also use existing alarm definitions, as well as create new alarm definitions that relate to a custom plugin or metric. Instructions for defining new alarm definitions are in the Section 3.4.6, “Configuring Alarm Definitions”.

You can use the Operations Console and Monasca CLI to list all of the alarms, alarm-definitions, and metrics that exist on your cloud.

The Monasca agent (monasca-agent) collects information about your cloud using the installed plugins. The plugins are written in Python, and determine the monitoring metrics for your system, as well as the interval for collection. The default collection interval is 30 seconds, and we strongly recommend not changing this default value.

The following two types of custom plugins can be added to your cloud.

Monasca-agent is installed on every server in your cloud, and provides plugins that monitor the following.

Monasca is pre-configured with default check plugins and associated detection plugins. The default plugins can be reconfigured to monitor third-party components, and often only require small adjustments to adapt them to this purpose. Find a list of the default plugins here: https://github.com/openstack/monasca-agent/blob/master/docs/Plugins.md#detection-plugins

Often, a single check plugin will be used to monitor multiple services. For example, many services use the http_check.py detection plugin to detect the up/down status of a service endpoint. Often the process.py check plugin, which provides process monitoring metrics, is used as a basis for a custom process detection plugin.

More information about the Monasca agent can be found in the following locations

When the pre-built Monasca plugins do not meet your monitoring needs, you can write custom plugins to monitor your cloud. After you have written a plugin, you must install and configure it.

When your needs dictate a very specific custom monitoring check, you must provide both a detection and check plugin.

The steps involved in configuring a custom plugin include running a detection plugin and passing any necesssary parameters to the detection plugin so the resulting check configuration file is created with all necessary data.

When using an existing check plugin to monitor a third-party component, a custom detection plugin is needed only if there is not an associated default detection plugin.

Check plugin configuration files

Each plugin needs a corresponding YAML configuration file with the same stem name as the plugin check file. For example, the plugin file http_check.py (in /usr/lib/python2.7/site-packages/monasca_agent/collector/checks_d/) should have a corresponding configuration file, http_check.yaml (in /etc/monasca/agent/conf.d/http_check.yaml). The stem name http_check must be the same for both files.

Permissions for the YAML configuration file must be read+write for mon-agent user (the user that must also own the file), and read for the mon-agent group. Permissions for the file must be restricted to the mon-agent user and monasca group. The following example shows correct permissions settings for the file http_check.yaml.

ardana > ls -alt /etc/monasca/agent/conf.d/http_check.yaml
-rw-r----- 1 monasca-agent monasca 10590 Jul 26 05:44 http_check.yaml

A check plugin YAML configuration file has the following structure.

init_config:
    key1: value1
    key2: value2

instances:
    - name: john_smith
      username: john_smith
      password: 123456
    - name: jane_smith
      username: jane_smith
      password: 789012

In the above file structure, the init_config section allows you to specify any number of global key:value pairs. Each pair will be available on every run of the check that relates to the YAML configuration file.

The instances section allows you to list the instances that the related check will be run on. The check will be run once on each instance listed in the instances section. Ensure that each instance listed in the instances section has a unique name.

Custom detection plugins

Detection plugins should be written to perform checks that ensure that a component can be monitored on a host. Any arguments needed by the associated check plugin are passed into the detection plugin at setup (configuration) time. The detection plugin will write to the associated check configuration file.

When a detection plugin is successfully run in the configuration step, it will write to the check configuration YAML file. The configuration file for the check is written to the following directory.

/etc/monasca/agent/conf.d/

Writing process detection plugin using the ServicePlugin class

The monasca-agent provides a ServicePlugin class that makes process detection monitoring easy.

Process check

The process check plugin generates metrics based on the process status for specified process names. It generates process.pid_count metrics for the specified dimensions, and a set of detailed process metrics for the specified dimensions by default.

The ServicePlugin class allows you to specify a list of process name(s) to detect, and uses psutil to see if the process exists on the host. It then appends the process.yml configuration file with the process name(s), if they do not already exist.

The following is an example of a process.py check ServicePlugin.

import monasca_setup.detection

class MonascaTransformDetect(monasca_setup.detection.ServicePlugin):
    """Detect Monasca Transform daemons and setup configuration to monitor them."""
    def __init__(self, template_dir, overwrite=False, args=None):
        log.info("      Watching the monasca transform processes.")
        service_params = {
            'args': {},
            'template_dir': template_dir,
            'overwrite': overwrite,
            'service_name': 'monasca-transform',
            'process_names': ['monasca-transform','pyspark',
                              'transform/lib/driver']
        }
        super(MonascaTransformDetect, self).__init__(service_params)

Writing a Custom Detection Plugin using Plugin or ArgsPlugin classes

A custom detection plugin class should derive from either the Plugin or ArgsPlugin classes provided in the /usr/lib/python2.7/site-packages/monasca_setup/detection directory.

If the plugin parses command line arguments, the ArgsPlugin class is useful. The ArgsPlugin class derives from the Plugin class. The ArgsPlugin class has a method to check for required arguments, and a method to return the instance that will be used for writing to the configuration file with the dimensions from the command line parsed and included.

If the ArgsPlugin methods do not seem to apply, then derive directly from the Plugin class.

When deriving from these classes, the following methods should be implemented.

The following is an example custom detection plugin.

import ast
import logging

import monasca_setup.agent_config
import monasca_setup.detection

log = logging.getLogger(__name__)


class HttpCheck(monasca_setup.detection.ArgsPlugin):
    """Setup an http_check according to the passed in args.
       Despite being a detection plugin this plugin does no detection and will be a noop without   arguments.
       Expects space separated arguments, the required argument is url. Optional parameters include:
       disable_ssl_validation and match_pattern.
    """

    def _detect(self):
        """Run detection, set self.available True if the service is detected.
        """
        self.available = self._check_required_args(['url'])

    def build_config(self):
        """Build the config as a Plugins object and return.
        """
        config = monasca_setup.agent_config.Plugins()
        # No support for setting headers at this time
        instance = self._build_instance(['url', 'timeout', 'username', 'password',
                                         'match_pattern', 'disable_ssl_validation',
                                         'name', 'use_keystone', 'collect_response_time'])

        # Normalize any boolean parameters
        for param in ['use_keystone', 'collect_response_time']:
            if param in self.args:
                instance[param] = ast.literal_eval(self.args[param].capitalize())
        # Set some defaults
        if 'collect_response_time' not in instance:
            instance['collect_response_time'] = True
        if 'name' not in instance:
            instance['name'] = self.args['url']

        config['http_check'] = {'init_config': None, 'instances': [instance]}

        return config

Installing a detection plugin in the OpenStack version delivered with SUSE OpenStack Cloud

Install a plugin by copying it to the plugin directory (/usr/lib/python2.7/site-packages/monasca_agent/collector/checks_d/).

The plugin should have file permissions of read+write for the root user (the user that should also own the file) and read for the root group and all other users.

The following is an example of correct file permissions for the http_check.py file.

-rw-r--r-- 1 root root 1769 Sep 19 20:14 http_check.py

Detection plugins should be placed in the following directory.

/usr/lib/monasca/agent/custom_detect.d/

The detection plugin directory name should be accessed using the monasca_agent_detection_plugin_dir Ansible variable. This variable is defined in the roles/monasca-agent/vars/main.yml file.

monasca_agent_detection_plugin_dir: /usr/lib/monasca/agent/custom_detect.d/

Example: Add Ansible monasca_configure task to install the plugin. (The monasca_configure task can be added to any service playbook.) In this example, it is added to ~/openstack/ardana/ansible/roles/_CEI-CMN/tasks/monasca_configure.yml.

---
- name: _CEI-CMN | monasca_configure |
    Copy Ceilometer Custom plugin
  become: yes
  copy:
    src: ardanaceilometer_mon_plugin.py
    dest: "{{ monasca_agent_detection_plugin_dir }}"
    owner: root
    group: root
    mode: 0440

Custom check plugins

Custom check plugins generate metrics. Scalability should be taken into consideration on systems that will have hundreds of servers, as a large number of metrics can affect performance by impacting disk performance, RAM and CPU usage.

You may want to tune your configuration parameters so that less-important metrics are not monitored as frequently. When check plugins are configured (when they have an associated YAML configuration file) the agent will attempt to run them.

Checks should be able to run within the 30-second metric collection window. If your check runs a command, you should provide a timeout to prevent the check from running longer than the default 30-second window. You can use the monasca_agent.common.util.timeout_command to set a timeout for in your custom check plugin python code.

Find a description of how to write custom check plugins at https://github.com/openstack/monasca-agent/blob/master/docs/Customizations.md#creating-a-custom-check-plugin

Custom checks derive from the AgentCheck class located in the monasca_agent/collector/checks/check.py file. A check method is required.

Metrics should contain dimensions that make each item that you are monitoring unique (such as service, component, hostname). The hostname dimension is defined by default within the AgentCheck class, so every metric has this dimension.

A custom check will do the following.

Metric Types:

The following is an example component check named SimpleCassandraExample.

import monasca_agent.collector.checks as checks
from monasca_agent.common.util import timeout_command

CASSANDRA_VERSION_QUERY = "SELECT version();"


class SimpleCassandraExample(checks.AgentCheck):

    def __init__(self, name, init_config, agent_config):
        super(SimpleCassandraExample, self).__init__(name, init_config, agent_config)

    @staticmethod
    def _get_config(instance):
        user = instance.get('user')
        password = instance.get('password')
        service = instance.get('service')
        timeout = int(instance.get('timeout'))

        return user, password, service, timeout

    def check(self, instance):
        user, password, service, node_name, timeout = self._get_config(instance)

        dimensions = self._set_dimensions({'component': 'cassandra', 'service': service}, instance)

        results, connection_status = self._query_database(user, password, timeout, CASSANDRA_VERSION_QUERY)

        if connection_status != 0:
            self.gauge('cassandra.connection_status', 1, dimensions=dimensions)
        else:
            # successful connection status
            self.gauge('cassandra.connection_status', 0, dimensions=dimensions)

    def _query_database(self, user, password, timeout, query):
        stdout, stderr, return_code = timeout_command(["/opt/cassandra/bin/vsql", "-U", user, "-w", password, "-A", "-R",
                                                       "|", "-t", "-F", ",", "-x"], timeout, command_input=query)
        if return_code == 0:
            # remove trailing newline
            stdout = stdout.rstrip()
            return stdout, 0
        else:
            self.log.error("Error querying cassandra with return code of {0} and error {1}".format(return_code, stderr))
            return stderr, 1

Installing check plugin

The check plugin needs to have the same file permissions as the detection plugin. File permissions must be read+write for the root user (the user that should own the file), and read for the root group and all other users.

Check plugins should be placed in the following directory.

/usr/lib/monasca/agent/custom_checks.d/

The check plugin directory should be accessed using the monasca_agent_check_plugin_dir Ansible variable. This variable is defined in the roles/monasca-agent/vars/main.yml file.

monasca_agent_check_plugin_dir: /usr/lib/monasca/agent/custom_checks.d/

Manually configure a plugin when unit-testing using the monasca-setup script installed with the monasca-agent

Find a good explanation of configuring plugins here: https://github.com/openstack/monasca-agent/blob/master/docs/Agent.md#configuring

SSH to a node that has both the monasca-agent installed as well as the component you wish to monitor.

The following is an example command that configures a plugin that has no parameters (uses the detection plugin class name).

root # /usr/bin/monasca-setup -d ARDANACeilometer

The following is an example command that configures the apache plugin and includes related parameters.

root # /usr/bin/monasca-setup -d apache -a 'url=http://192.168.245.3:9095/server-status?auto'

If there is a change in the configuration it will restart the monasca-agent on the host so the configuration is loaded.

After the plugin is configured, you can verify that the configuration file has your changes (see the next Verify that your check plugin is configured section).

Use the monasca CLI to see if your metric exists (see the Verify that metrics exist section).

Using Ansible modules to configure plugins in SUSE OpenStack Cloud 8

The monasca_agent_plugin module is installed as part of the monasca-agent role.

The following Ansible example configures the process.py plugin for the Ceilometer detection plugin. The following example only passes in the name of the detection class.

- name: _CEI-CMN | monasca_configure |
    Run Monasca agent Cloud Lifecycle Manager specific ceilometer detection plugin
  become: yes
  monasca_agent_plugin:
    name: "ARDANACeilometer"

If a password or other sensitive data are passed to the detection plugin, the no_log option should be set to True. If the no_log option is not set to True, the data passed to the plugin will be logged to syslog.

The following Ansible example configures the Cassandra plugin and passes in related arguments.

 - name: Run Monasca Agent detection plugin for Cassandra
   monasca_agent_plugin:
     name: "Cassandra"
     args="directory_names={{ FND_CDB.vars.cassandra_data_dir }},{{ FND_CDB.vars.cassandra_commit_log_dir }} process_username={{ FND_CDB.vars.cassandra_user }}"
   when: database_type == 'cassandra'

The following Ansible example configures the Keystone endpoint using the http_check.py detection plugin. The class name httpcheck of the http_check.py detection plugin is the name.

root # - name:  keystone-monitor | local_monitor |
    Setup active check on keystone internal endpoint locally
  become: yes
  monasca_agent_plugin:
    name: "httpcheck"
    args: "use_keystone=False \
           url=http://{{ keystone_internal_listen_ip }}:{{
               keystone_internal_port }}/v3 \
           dimensions=service:identity-service,\
                       component:keystone-api,\
                       api_endpoint:internal,\
                       monitored_host_type:instance"
  tags:
    - keystone
    - keystone_monitor

Verify that your check plugin is configured

All check configuration files are located in the following directory. You can see the plugins that are running by looking at the plugin configuration directory.

/etc/monasca/agent/conf.d/

When the monasca-agent starts up, all of the check plugins that have a matching configuration file in the /etc/monasca/agent/conf.d/ directory will be loaded.

If there are errors running the check plugin they will be written to the following error log file.

/var/log/monasca/agent/collector.log

You can change the monasca-agent log level by modifying the log_level option in the /etc/monasca/agent/agent.yaml configuration file, and then restarting the monasca-agent, using the following command.

root # service openstack-monasca-agent restart

You can debug a check plugin by running monasca-collector with the check option. The following is an example of the monasca-collector command.

tux > sudo /usr/bin/monasca-collector check CHECK_NAME

Verify that metrics exist

Begin by logging in to your deployer or controller node.

Run the following set of commands, including the monasca metric-list command. If the metric exists, it will be displayed in the output.

ardana > source ~/service.osrc
ardana > monasca metric-list --name METRIC_NAME

Collecting metrics on your virtual machines can greatly affect performance. SUSE OpenStack Cloud 8 supports 200 compute nodes, with up to 40 VMs each. If your environment is managing maximum number of VMs, adding a single metric for all VMs is the equivalent of adding 8000 metrics.

Because of the potential impact that new metrics have on system performance, consider adding only new metrics that are useful for alarm-definition, capacity planning, or debugging process failure.

The monasca-api-spec, found here https://github.com/openstack/monasca-api/blob/master/docs/monasca-api-spec.md provides an explanation of Alarm Definitions and Alarms. You can find more information on alarm definition expressions at the following page: https://github.com/openstack/monasca-api/blob/master/docs/monasca-api-spec.md#alarm-definition-expressions.

When an alarm definition is defined, the monasca-threshold engine will generate an alarm for each unique instance of the match_by metric dimensions found in the metric. This allows a single alarm definition that can dynamically handle the addition of new hosts.

There are default alarm definitions configured for all "process check" (process.py check) and "HTTP Status" (http_check.py check) metrics in the monasca-default-alarms role. The monasca-default-alarms role is installed as part of the Monasca deployment phase of your cloud's deployment. You do not need to create alarm definitions for these existing checks.

Third parties should create an alarm definition when they wish to alarm on a custom plugin metric. The alarm definition should only be defined once. Setting a notification method for the alarm definition is recommended but not required.

The following Ansible modules used for alarm definitions are installed as part of the monasca-alarm-definition role. This process takes place during the Monasca set up phase of your cloud's deployment.

The following examples, found in the ~/openstack/ardana/ansible/roles/monasca-default-alarms directory, illustrate how Monasca sets up the default alarm definitions.

Monasca Notification Methods

The monasca-api-spec, found in the following link, provides details about creating a notification https://github.com/openstack/monasca-api/blob/master/docs/monasca-api-spec.md#create-notification-method

The following are supported notification types.

The keystone_admin_tenant project is used so that the alarms will show up on the Operations Console UI.

The following file snippet shows variables from the ~/openstack/ardana/ansible/roles/monasca-default-alarms/defaults/main.yml file.

---
notification_address: root@localhost
notification_name: 'Default Email'
notification_type: EMAIL

monasca_keystone_url: "{{ KEY_API.advertises.vips.private[0].url }}/v3"
monasca_api_url: "{{ MON_AGN.consumes_MON_API.vips.private[0].url }}/v2.0"
monasca_keystone_user: "{{ MON_API.consumes_KEY_API.vars.keystone_monasca_user }}"
monasca_keystone_password: "{{ MON_API.consumes_KEY_API.vars.keystone_monasca_password | quote }}"
monasca_keystone_project: "{{ KEY_API.vars.keystone_admin_tenant }}"

monasca_client_retries: 3
monasca_client_retry_delay: 2

You can specify a single default notification method in the ~/openstack/ardana/ansible/roles/monasca-default-alarms/tasks/main.yml file. You can also add or modify the notification type and related details using the Operations Console UI or Monasca CLI.

The following is a code snippet from the ~/openstack/ardana/ansible/roles/monasca-default-alarms/tasks/main.yml file.

---
- name: monasca-default-alarms | main | Setup default notification method
  monasca_notification_method:
    name: "{{ notification_name }}"
    type: "{{ notification_type }}"
    address: "{{ notification_address }}"
    keystone_url: "{{ monasca_keystone_url }}"
    keystone_user: "{{ monasca_keystone_user }}"
    keystone_password: "{{ monasca_keystone_password }}"
    keystone_project: "{{ monasca_keystone_project }}"
    monasca_api_url: "{{ monasca_api_url }}"
  no_log: True
  tags:
    - system_alarms
    - monasca_alarms
    - openstack_alarms
  register: default_notification_result
  until: not default_notification_result | failed
  retries: "{{ monasca_client_retries }}"
  delay: "{{ monasca_client_retry_delay }}"

Monasca Alarm Definition

In the alarm definition "expression" field, you can specify the metric name and threshold. The "match_by" field is used to create a new alarm for every unique combination of the match_by metric dimensions.

Find more details on alarm definitions at the Monasca API documentation: (https://github.com/stackforge/monasca-api/blob/master/docs/monasca-api-spec.md#alarm-definitions-and-alarms).

The following is a code snippet from the ~/openstack/ardana/ansible/roles/monasca-default-alarms/tasks/main.yml file.

- name: monasca-default-alarms | main | Create Alarm Definitions
  monasca_alarm_definition:
    name: "{{ item.name }}"
    description: "{{ item.description | default('') }}"
    expression: "{{ item.expression }}"
    keystone_token: "{{ default_notification_result.keystone_token }}"
    match_by: "{{ item.match_by | default(['hostname']) }}"
    monasca_api_url: "{{ default_notification_result.monasca_api_url }}"
    severity: "{{ item.severity | default('LOW') }}"
    alarm_actions:
      - "{{ default_notification_result.notification_method_id }}"
    ok_actions:
      - "{{ default_notification_result.notification_method_id }}"
    undetermined_actions:
      - "{{ default_notification_result.notification_method_id }}"
  register: monasca_system_alarms_result
  until: not monasca_system_alarms_result | failed
  retries: "{{ monasca_client_retries }}"
  delay: "{{ monasca_client_retry_delay }}"
  with_flattened:
    - monasca_alarm_definitions_system
    - monasca_alarm_definitions_monasca
    - monasca_alarm_definitions_openstack
    - monasca_alarm_definitions_misc_services
  when: monasca_create_definitions

In the following example ~/openstack/ardana/ansible/roles/monasca-default-alarms/vars/main.yml Ansible variables file, the alarm definition named Process Check sets the match_by variable with the following parameters.

monasca_alarm_definitions_system:
  - name: "Host Status"
    description: "Alarms when the specified host is down or not reachable"
    severity: "HIGH"
    expression: "host_alive_status > 0"
    match_by:
      - "target_host"
      - "hostname"
  - name: "HTTP Status"
    description: >
      "Alarms when the specified HTTP endpoint is down or not reachable"
    severity: "HIGH"
    expression: "http_status > 0"
    match_by:
      - "service"
      - "component"
      - "hostname"
      - "url"
  - name: "CPU Usage"
    description: "Alarms when CPU usage is high"
    expression: "avg(cpu.idle_perc) < 10 times 3"
  - name: "High CPU IOWait"
    description: "Alarms when CPU IOWait is high, possible slow disk issue"
    expression: "avg(cpu.wait_perc) > 40 times 3"
    match_by:
      - "hostname"
  - name: "Disk Inode Usage"
    description: "Alarms when disk inode usage is high"
    expression: "disk.inode_used_perc > 90"
    match_by:
      - "hostname"
      - "device"
    severity: "HIGH"
  - name: "Disk Usage"
    description: "Alarms when disk usage is high"
    expression: "disk.space_used_perc > 90"
    match_by:
      - "hostname"
      - "device"
    severity: "HIGH"
  - name: "Memory Usage"
    description: "Alarms when memory usage is high"
    severity: "HIGH"
    expression: "avg(mem.usable_perc) < 10 times 3"
  - name: "Network Errors"
    description: >
      "Alarms when either incoming or outgoing network errors are high"
    severity: "MEDIUM"
    expression: "net.in_errors_sec > 5 or net.out_errors_sec > 5"
  - name: "Process Check"
    description: "Alarms when the specified process is not running"
    severity: "HIGH"
    expression: "process.pid_count < 1"
    match_by:
      - "process_name"
      - "hostname"
  - name: "Crash Dump Count"
    description: "Alarms when a crash directory is found"
    severity: "MEDIUM"
    expression: "crash.dump_count > 0"
    match_by:
      - "hostname"

The preceding configuration would result in the creation of an alarm for each unique metric that matched the following criteria.

process.pid_count + process_name + hostname

Check that the alarms exist

Begin by using the following commands, including monasca alarm-definition-list, to check that the alarm definition exists.

ardana > source ~/service.osrc
ardana > monasca alarm-definition-list --name ALARM_DEFINITION_NAME

Then use either of the following commands to check that the alarm has been generated. A status of "OK" indicates a healthy alarm.

ardana > monasca alarm-list --metric-name metric name

Or

ardana > monasca alarm-list --alarm-definition-id ID_FROM_ALARM-DEFINITION-LIST

Note

To see CLI options use the monasca help command.

Alarm state upgrade considerations

If the name of a monitoring metric changes or is no longer being sent, existing alarms will show the alarm state as UNDETERMINED. You can update an alarm definition as long as you do not change the metric name or dimension name values in the expression or match_by fields. If you find that you need to alter either of these values, you must delete the old alarm definitions and create new definitions with the updated values.

If a metric is never sent, but had a related alarm definition, then no alarms would exist. If you find that no metrics are never sent, then you should remove the related alarm definition.

When removing an alarm definition, the Ansible module monasca_alarm_definition supports the state "absent".

The following file snippet shows an example of how to remove an alarm definition by setting the state to absent.

- name: monasca-pre-upgrade | Remove alarm definitions
   monasca_alarm_definition:
     name: "{{ item.name }}"
     state: "absent"
     keystone_url: "{{ monasca_keystone_url }}"
     keystone_user: "{{ monasca_keystone_user }}"
     keystone_password: "{{ monasca_keystone_password }}"
     keystone_project: "{{ monasca_keystone_project }}"
     monasca_api_url: "{{ monasca_api_url }}"
   with_items:
     - { name: "Kafka Consumer Lag" }

An alarm exists in the OK state when the monasca threshold engine has seen at least one metric associated with the alarm definition and has not exceeded the alarm definition threshold.

Monasca-agent is an OpenStack open-source project. Monasca can also monitor non-openstack services. Third parties should install custom plugins into their SUSE OpenStack Cloud 8 system using the steps outlined in the Section 3.4.3, “Writing Custom Plugins”. If the OpenStack community determines that the custom plugins are of general benefit, the plugin may be added to the openstack/monasca-agent so that they are installed with the monasca-agent. During the review process for openstack/monasca-agent there are no guarantees that code will be approved or merged by a deadline. Open-source contributors are expected to help with codereviews in order to get their code accepted. Once changes are approved and integrated into the openstack/monasca-agent and that version of the monasca-agent is integrated with SUSE OpenStack Cloud 8, the third party can remove the custom plugin installation steps since they would be installed in the default monasca-agent venv.

Find the open source repository for the monaca-agent here: https://github.com/openstack/monasca-agent

Use Identity API version 3.0. Identity API v2.0 is deprecated. Many features such as LDAP integration and fine-grained access control will not work with v2.0. Below are a few more questions you may have regarding versions.

Why does the Keystone identity catalog still show version 2.0?

Tempest tests still use the v2.0 API. They are in the process of migrating to v3.0. We will remove the v2.0 version once tempest has migrated the tests. The Identity catalog has v2.0 version just to support tempest migration.

Will the Keystone identity v3.0 API work if the identity catalog has only the v2.0 endpoint?

Identity v3.0 does not rely on the content of the catalog. It will continue to work regardless of the version of the API in the catalog.

Which CLI client should you use?

You should use the OpenStack CLI, not the Keystone CLI as it is deprecated. The Keystone CLI does not support v3.0 API, only the OpenStack CLI supports the v3.0 API.

The authentication function provides the initial login function to OpenStack. Keystone supports multiple sources of authentication, including a native or built-in authentication system. The Keystone native system can be used for all user management functions for proof of concept deployments or small deployments not requiring integration with a corporate authentication system, but it lacks some of the advanced functions usually found in user management systems such as forcing password changes. The focus of the Keystone native authentication system is to be the source of authentication for OpenStack-specific users required for the operation of the various OpenStack services. These users are stored by Keystone in a default domain; the addition of these IDs to an external authentication system is not required.

Keystone is more commonly integrated with external authentication systems such as OpenLDAP or Microsoft Active Directory. These systems are usually centrally deployed by organizations to serve as the single source of user management and authentication for all in-house deployed applications and systems requiring user authentication. In addition to LDAP and Microsoft Active Directory, support for integration with Security Assertion Markup Language (SAML)-based identity providers from companies such as Ping, CA, IBM, Oracle, and others is also nearly "production-ready".

Keystone also provides architectural support via the underlying Apache deployment for other types of authentication systems such as Multi-Factor Authentication. These types of systems typically require driver support and integration from the respective provider vendors.

Note

While support for Identity Providers and Multi-factor authentication is available in Keystone, it has not yet been certified by the SUSE OpenStack Cloud engineering team and is an experimental feature in SUSE OpenStack Cloud.

LDAP-compatible directories such as OpenLDAP and Microsoft Active Directory are recommended alternatives to using the Keystone local authentication. Both methods are widely used by organizations and are integrated with a variety of other enterprise applications. These directories act as the single source of user information within an organization. Keystone can be configured to authenticate against an LDAP-compatible directory on a per-domain basis.

Domains, as explained in Section 4.3, “Understanding Domains, Projects, Users, Groups, and Roles”, can be configured so that based on the user ID, a incoming user is automatically mapped to a specific domain. This domain can then be configured to authenticate against a specific LDAP directory. The user credentials provided by the user to Keystone are passed along to the designated LDAP source for authentication. This communication can be optionally configured to be secure via SSL encryption. No special LDAP administrative access is required, and only read-only access is needed for this configuration. Keystone will not add any LDAP information. All user additions, deletions, and modifications are performed by the application's front end in the LDAP directories. After a user has been successfully authenticated, he is then assigned to the groups, roles, and projects defined by the Keystone domain or project administrators. This information is stored within the Keystone service database.

Another form of external authentication provided by the Keystone service is via integration with SAML-based Identity Providers (IdP) such as Ping Identity, IBM Tivoli, and Microsoft Active Directory Federation Server. A SAML-based identity provider provides authentication that is often called "single sign-on". The IdP server is configured to authenticate against identity sources such as Active Directory and provides a single authentication API against multiple types of downstream identity sources. This means that an organization could have multiple identity storage sources but a single authentication source. In addition, if a user has logged into one such source during a defined session time frame, they do not need to re-authenticate within the defined session. Instead, the IdP will automatically validate the user to requesting applications and services.

A SAML-based IdP authentication source is configured with Keystone on a per-domain basis similar to the manner in which native LDAP directories are configured. Extra mapping rules are required in the configuration that define which Keystone group an incoming UID is automatically assigned to. This means that groups need to be defined in Keystone first, but it also removes the requirement that a domain or project admin assign user roles and project membership on a per-user basis. Instead, groups are used to define project membership and roles and incoming users are automatically mapped to Keystone groups based on their upstream group membership. This provides a very consistent role-based access control (RBAC) model based on the upstream identity source. The configuration of this option is fairly straightforward. IdP vendors such as Ping and IBM are contributing to the maintenance of this function and have also produced their own integration documentation. Microsoft Active Directory Federation Services (ADFS) is used for functional testing and future documentation.

The third Keystone-supported authentication source is known as Multi-Factor Authentication (MFA). MFA typically requires an external source of authentication beyond a login name and password, and can include options such as SMS text, a temporal token generator, a fingerprint scanner, etc. Each of these types of MFA are usually specific to a particular MFA vendor. The Keystone architecture supports an MFA-based authentication system, but this has not yet been certified or documented for SUSE OpenStack Cloud.

The second major function provided by the Keystone service is access authorization that determines what resources and actions are available based on the UserID, the role of the user, and the projects that a user is provided access to. All of this information is created, managed, and stored by Keystone. These functions are applied via the Horizon web interface, the OpenStack command-line interface, or the direct Keystone API.

Keystone provides support for organizing users via three entities including:

Keystone also provides the means to create and assign roles to groups of users or individual users. The role names are created and user assignments are made within Keystone. The actual function of a role is defined currently per each OpenStack service via scripts. When a user requests access to an OpenStack service, his access token contains information about his assigned project membership and role for that project. This role is then matched to the service-specific script and the user is allowed to perform functions within that service defined by the role mapping.

The following supported Keystone features are enabled by default in the SUSE OpenStack Cloud 8 release.

Implied rules

To allow for the practice of hierarchical permissions in user roles, this feature enables roles to be linked in such a way that they function as a hierarchy with role inheritance.

When a user is assigned a superior role, the user will also be assigned all roles implied by any subordinate roles. The hierarchy of the assigned roles will be expanded when issuing the user a token.

Domain-specific roles

This feature extends the principle of implied roles to include a set of roles that are specific to a domain. At the time a token is issued, the domain-specific roles are not included in the token, however, the roles that they map to are.

The following is a list of features which are fully supported in the SUSE OpenStack Cloud 8 release, but are disabled by default. Customers can run a playbook to enable the features.

Multiple LDAP backends for each domain

This feature allows identity backends to be configured on a domain-by-domain basis. Domains will be capable of having their own exclusive LDAP service (or multiple services). A single LDAP service can also serve multiple domains, with each domain in a separate subtree.

To implement this feature, individual domains will require domain-specific configuration files. Domains that do not implement this feature will continue to share a common backend driver.

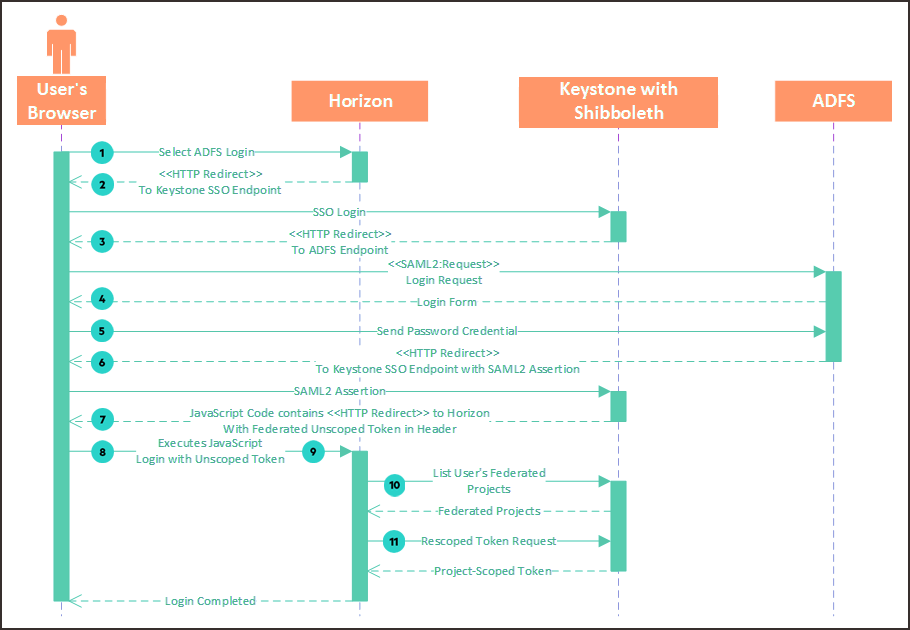

WebSSO

This feature enables the Keystone service to provide federated identity services through a token-based single sign-on page. This feature is disabled by default, as it requires explicit configuration.

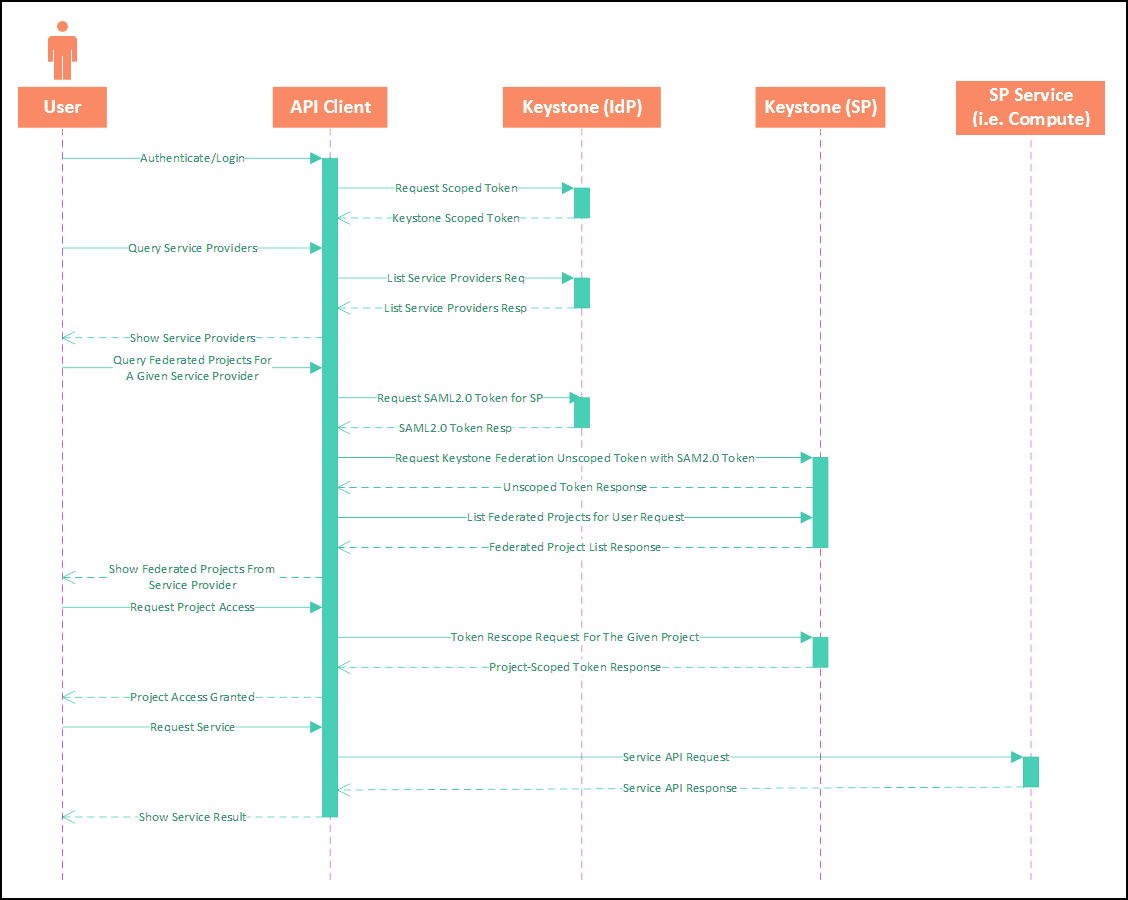

Keystone-to-Keystone (K2K) federation

This feature enables separate Keystone instances to federate identities among the instances, offering inter-cloud authorization. This feature is disabled by default, as it requires explicit configuration.

Fernet token provider

Provides tokens in the fernet format. This is an experimental feature and is disabled by default.

Domain-specific config in SQL

Using the new REST APIs, domain-specific configuration options can be stored in a SQL database instead of in configuration files.

The following is a list of extensions which are disabled by default in SUSE OpenStack Cloud 8, according to Keystone policy.

Most large business organizations use an identity system such as Microsoft Active Directory to store and manage their internal user information. A variety of applications such as HR systems are, in turn, used to manage the data inside of Active Directory. These same organizations often deploy a separate user management system for external users such as contractors, partners, and customers. Multiple authentication systems are then deployed to support multiple types of users.

An LDAP-compatible directory such as Active Directory provides a top-level organization or domain component. In this example, the organization is called Acme. The domain component (DC) is defined as acme.com. Underneath the top level domain component are entities referred to as organizational units (OU). Organizational units are typically designed to reflect the entity structure of the organization. For example, this particular schema has 3 different organizational units for the Marketing, IT, and Contractors units or departments of the Acme organization. Users (and other types of entities like printers) are then defined appropriately underneath each organizational entity. The Keystone domain entity can be used to match the LDAP OU entity; each LDAP OU can have a corresponding Keystone domain created. In this example, both the Marketing and IT domains represent internal employees of Acme and use the same authentication source. The Contractors domain contains all external people associated with Acme. UserIDs associated with the Contractor domain are maintained in a separate user directory and thus have a different authentication source assigned to the corresponding Keystone-defined Contractors domain.

A public cloud deployment usually supports multiple, separate organizations. Keystone domains can be created to provide a domain per organization with each domain configured to the underlying organization's authentication source. For example, the ABC company would have a Keystone domain created called "abc". All users authenticating to the "abc" domain would be authenticated against the authentication system provided by the ABC organization; in this case ldap://ad.abc.com

A domain is a top-level container targeted at defining major organizational entities.

A UUID is a domain administrator for a given domain if that UID has a domain-scoped token scoped for the given domain. This means that the UID has the "admin" role assigned to it for the selected domain.

The domain administrator creates projects within his assigned domain and assigns the project admin role to each project to a selected UID. A UID is a project administrator for a given project if that UID has a project-scoped token scoped for the given project. There can be multiple projects per domain. The project admin sets the project quota settings, adds/deletes users and groups to and from the project, and defines the user/group roles for the assigned project. Users can be belong to multiple projects and have different roles on each project. Users are assigned to a specific domain and a default project. Roles are assigned per project.

Each user belongs to one domain only. Domain assignments are defined either by the domain configuration files or by a domain administrator when creating a new, local (user authenticated against Keystone) user. There is no current method for "moving" a user from one domain to another. A user can belong to multiple projects within a domain with a different role assignment per project. A group is a collection of users. Users can be assigned to groups either by the project admin or automatically via mappings if an external authentication source is defined for the assigned domain. Groups can be assigned to multiple projects within a domain and have different roles assigned to the group per project. A group can be assigned the "admin" role for a domain or project. All members of the group will be an "admin" for the selected domain or project.

Service roles represent the functionality used to implement the OpenStack role based access control (RBAC), model used to manage access to each OpenStack service. Roles are named and assigned per user or group for each project by the identity service. Role definition and policy enforcement are defined outside of the identity service independently by each OpenStack service. The token generated by the identity service for each user authentication contains the role assigned to that user for a particular project. When a user attempts to access a specific OpenStack service, the role is parsed by the service, compared to the service-specific policy file, and then granted the resource access defined for that role by the service policy file.

Each service has its own service policy file with the /etc/[SERVICE_CODENAME]/policy.json file name format where [SERVICE_CODENAME] represents a specific OpenStack service name. For example, the OpenStack Nova service would have a policy file called /etc/nova/policy.json. With Service policy files can be modified and deployed to control nodes from the Cloud Lifecycle Manager. Administrators are advised to validate policy changes before checking in the changes to the site branch of the local git repository before rolling the changes into production. Do not make changes to policy files without having a way to validate them.

The policy files are located at the following site branch locations on the Cloud Lifecycle Manager.

~/openstack/ardana/ansible/roles/GLA-API/templates/policy.json.j2
~/openstack/ardana/ansible/roles/ironic-common/files/policy.json
~/openstack/ardana/ansible/roles/KEYMGR-API/templates/policy.json
~/openstack/ardana/ansible/roles/heat-common/files/policy.json
~/openstack/ardana/ansible/roles/CND-API/templates/policy.json
~/openstack/ardana/ansible/roles/nova-common/files/policy.json
~/openstack/ardana/ansible/roles/CEI-API/templates/policy.json.j2
~/openstack/ardana/ansible/roles/neutron-common/templates/policy.json.j2

For test and validation, policy files can be modified in a non-production environment from the ~/scratch/ directory. For a specific policy file, run a search for policy.json. To deploy policy changes for a service, run the service specific reconfiguration playbook (for example, nova-reconfigure.yml). For a complete list of reconfiguration playbooks, change directories to ~/scratch/ansible/next/ardana/ansible and run this command:

ardana > ls | grep reconfigure

A read-only role named project_observer is explicitly created in SUSE OpenStack Cloud 8. Any user who is granted this role can use list_project.

The SUSE OpenStack Cloud Identity service, based on the OpenStack Keystone API, provides UserID authentication and access authorization to help organizations achieve their access security and compliance objectives and successfully deploy OpenStack. In short, the Identity service is the gateway to the rest of the OpenStack services.

The identity service is installed automatically by the Cloud Lifecycle Manager (just after MySQL and RabbitMQ). When your cloud is up and running, you can customize Keystone in a number of ways, including integrating with LDAP servers. This topic describes the default configuration. See Section 4.8, “Reconfiguring the Identity Service” for changes you can implement. Also see Section 4.9, “Integrating LDAP with the Identity Service” for information on integrating with an LDAP provider.

Note that you should use identity API version 3.0. Identity API v2.0 was has been deprecated. Many features such as LDAP integration and fine-grained access control will not work with v2.0. The following are a few questions you may have regarding versions.

Why does the Keystone identity catalog still show version 2.0?

Tempest tests still use the v2.0 API. They are in the process of migrating to v3.0. We will remove the v2.0 version once tempest has migrated the tests. The Identity catalog has version 2.0 just to support tempest migration.

Will the Keystone identity v3.0 API work if the identity catalog has only the v2.0 endpoint?

Identity v3.0 does not rely on the content of the catalog. It will continue to work regardless of the version of the API in the catalog.

Which CLI client should you use?

You should use the OpenStack CLI, not the Keystone CLI, because it is deprecated. The Keystone CLI does not support the v3.0 API; only the OpenStack CLI supports the v3.0 API.

The authentication function provides the initial login function to OpenStack. Keystone supports multiple sources of authentication, including a native or built-in authentication system. You can use the Keystone native system for all user management functions for proof-of-concept deployments or small deployments not requiring integration with a corporate authentication system, but it lacks some of the advanced functions usually found in user management systems such as forcing password changes. The focus of the Keystone native authentication system is to be the source of authentication for OpenStack-specific users required to operate various OpenStack services. These users are stored by Keystone in a default domain; the addition of these IDs to an external authentication system is not required.

Keystone is more commonly integrated with external authentication systems such as OpenLDAP or Microsoft Active Directory. These systems are usually centrally deployed by organizations to serve as the single source of user management and authentication for all in-house deployed applications and systems requiring user authentication. In addition to LDAP and Microsoft Active Directory, support for integration with Security Assertion Markup Language (SAML)-based identity providers from companies such as Ping, CA, IBM, Oracle, and others is also nearly "production-ready."

Keystone also provides architectural support through the underlying Apache deployment for other types of authentication systems, such as multi-factor authentication. These types of systems typically require driver support and integration from the respective providers.

Note

While support for Identity providers and multi-factor authentication is available in Keystone, it has not yet been certified by the SUSE OpenStack Cloud engineering team and is an experimental feature in SUSE OpenStack Cloud.

LDAP-compatible directories such as OpenLDAP and Microsoft Active Directory are recommended alternatives to using Keystone local authentication. Both methods are widely used by organizations and are integrated with a variety of other enterprise applications. These directories act as the single source of user information within an organization. You can configure Keystone to authenticate against an LDAP-compatible directory on a per-domain basis.

Domains, as explained in Section 4.3, “Understanding Domains, Projects, Users, Groups, and Roles”, can be configured so that, based on the user ID, an incoming user is automatically mapped to a specific domain. You can then configure this domain to authenticate against a specific LDAP directory. User credentials provided by the user to Keystone are passed along to the designated LDAP source for authentication. You can optionally configure this communication to be secure through SSL encryption. No special LDAP administrative access is required, and only read-only access is needed for this configuration. Keystone will not add any LDAP information. All user additions, deletions, and modifications are performed by the application's front end in the LDAP directories. After a user has been successfully authenticated, that user is then assigned to the groups, roles, and projects defined by the Keystone domain or project administrators. This information is stored in the Keystone service database.

Another form of external authentication provided by the Keystone service is through integration with SAML-based identity providers (IdP) such as Ping Identity, IBM Tivoli, and Microsoft Active Directory Federation Server. A SAML-based identity provider provides authentication that is often called "single sign-on." The IdP server is configured to authenticate against identity sources such as Active Directory and provides a single authentication API against multiple types of downstream identity sources. This means that an organization could have multiple identity storage sources but a single authentication source. In addition, if a user has logged into one such source during a defined session time frame, that user does not need to reauthenticate within the defined session. Instead, the IdP automatically validates the user to requesting applications and services.

A SAML-based IdP authentication source is configured with Keystone on a per-domain basis similar to the manner in which native LDAP directories are configured. Extra mapping rules are required in the configuration that define which Keystone group an incoming UID is automatically assigned to. This means that groups need to be defined in Keystone first, but it also removes the requirement that a domain or project administrator assign user roles and project membership on a per-user basis. Instead, groups are used to define project membership and roles and incoming users are automatically mapped to Keystone groups based on their upstream group membership. This strategy provides a consistent role-based access control (RBAC) model based on the upstream identity source. The configuration of this option is fairly straightforward. IdP vendors such as Ping and IBM are contributing to the maintenance of this function and have also produced their own integration documentation. HPE is using the Microsoft Active Directory Federation Services (AD FS) for functional testing and future documentation.

The third Keystone-supported authentication source is known as multi-factor authentication (MFA). MFA typically requires an external source of authentication beyond a login name and password, and can include options such as SMS text, a temporal token generator, or a fingerprint scanner. Each of these types of MFAs are usually specific to a particular MFA vendor. The Keystone architecture supports an MFA-based authentication system, but this has not yet been certified or documented for SUSE OpenStack Cloud.

Another major function provided by the Keystone service is access authorization that determines which resources and actions are available based on the UserID, the role of the user, and the projects that a user is provided access to. All of this information is created, managed, and stored by Keystone. These functions are applied through the Horizon web interface, the OpenStack command-line interface, or the direct Keystone API.

Keystone provides support for organizing users by using three entities:

Keystone also makes it possible to create and assign roles to groups of users or individual users. Role names are created and user assignments are made within Keystone. The actual function of a role is defined currently for each OpenStack service via scripts. When users request access to an OpenStack service, their access tokens contain information about their assigned project membership and role for that project. This role is then matched to the service-specific script and users are allowed to perform functions within that service defined by the role mapping.

Identity service configuration settings

The identity service configuration options are described in the OpenStack documentation on the Keystone Configuration Options page on the OpenStack site.

Default domain and service accounts

The "default" domain is automatically created during the installation to contain the various required OpenStack service accounts, including the following:

These are required accounts and are used by the underlying OpenStack services. These accounts should not be removed or reassigned to a different domain. These "default" domain should be used only for these service accounts.

For details on how to create additional users, see Book “User Guide”, Chapter 4 “Cloud Admin Actions with the Command Line”.

The following are the preinstalled roles. You can create additional roles by UIDs with the "admin" role. Roles are defined on a per-service basis (more information is available at Manage projects, users, and roles on the OpenStack website).

You can find additional information on these roles in each service policy stored in the /etc/PROJECT/policy.json files where PROJECT is a placeholder for an OpenStack service. For example, the Compute (Nova) service roles are stored in the /etc/nova/policy.json file. Each service policy file defines the specific API functions available to a role label.

You can retrieve the randomly generated Admin password by using this command on the Cloud Lifecycle Manager:

ardana > cat ~/service.osrc

In this example output, the value for OS_PASSWORD is the Admin password:

ardana > cat ~/service.osrc
unset OS_DOMAIN_NAME
export OS_IDENTITY_API_VERSION=3
export OS_AUTH_VERSION=3
export OS_PROJECT_NAME=admin
export OS_PROJECT_DOMAIN_NAME=Default
export OS_USERNAME=admin
export OS_USER_DOMAIN_NAME=Default
export OS_PASSWORD=SlWSfwxuJY0
export OS_AUTH_URL=https://10.13.111.145:5000/v3
export OS_ENDPOINT_TYPE=internalURL
# OpenstackClient uses OS_INTERFACE instead of OS_ENDPOINT
export OS_INTERFACE=internal
export OS_CACERT=/etc/ssl/certs/ca-certificates.crt
export OS_COMPUTE_API_VERSION=2

Encryption passwords supplied to the configuration processor for use with Ansible Vault and for encrypting the configuration processor’s persistent state must have a minimum length of 12 characters and a maximum of 128 characters. Passwords must contain characters from each of the following three categories:

Service Passwords that are automatically generated by the configuration processor are chosen from the 62 characters made up of the 26 uppercase, the 26 lowercase, and the 10 numeric characters, with no preference given to any character or set of characters, with the minimum and maximum lengths being determined by the specific requirements of individual services.

Important

It is possible to use special characters in passwords. However, the $ character must be escaped by entering it twice. For example: the password foo$bar must be specified as foo$$bar.

In SUSE OpenStack Cloud 8, the configuration processor will produce metadata about each of the passwords (and other variables) that it generates in the file ~/openstack/my_cloud/info/private_data_metadata_ccp.yml. A snippet of this file follows. Expand the header to see the file:

metadata_proxy_shared_secret:
  metadata:
  - clusters:
    - cluster1
    component: nova-metadata
    consuming-cp: ccp
    cp: ccp
  version: '2.0'
mysql_admin_password:
  metadata:
  - clusters:
    - cluster1
    component: ceilometer
    consumes: mysql
    consuming-cp: ccp
    cp: ccp
  - clusters:
    - cluster1
    component: heat
    consumes: mysql
    consuming-cp: ccp
    cp: ccp
  - clusters:
    - cluster1
    component: keystone
    consumes: mysql
    consuming-cp: ccp
    cp: ccp
  - clusters:
    - cluster1
    - compute
    component: nova
    consumes: mysql
    consuming-cp: ccp
    cp: ccp
  - clusters:
    - cluster1
    component: cinder
    consumes: mysql
    consuming-cp: ccp
    cp: ccp
  - clusters:
    - cluster1
    component: glance
    consumes: mysql
    consuming-cp: ccp
    cp: ccp
  - clusters:
    - cluster1
    - compute
    component: neutron
    consumes: mysql
    consuming-cp: ccp
    cp: ccp
  - clusters:
    - cluster1
    component: horizon
    consumes: mysql
    consuming-cp: ccp
    cp: ccp
  version: '2.0'
mysql_barbican_password:
  metadata:
  - clusters:
    - cluster1
    component: barbican
    consumes: mysql
    consuming-cp: ccp
    cp: ccp
  version: '2.0'

For each variable, there is a metadata entry for each pair of services that use the variable including a list of the clusters on which the service component that consumes the variable (defined as "component:" in private_data_metadata_ccp.yml above) runs.

Note above that the variable mysql_admin_password is used by a number of service components, and the service that is consumed in each case is mysql, which in this context refers to the MariaDB instance that is part of the product.

First, make sure that you have a copy of private_data_metadata_ccp.yml. If you do not, generate one to run the configuration processor:

ardana > cd ~/openstack/ardana/ansible
ardana > ansible-playbook -i hosts/localhost config-processor-run.yml

Make a copy of the private_data_metadata_ccp.yml file and place it into the ~/openstack/change_credentials directory:

ardana > cp ~/openstack/my_cloud/info/private_data_metadata_control-plane-1.yml \
 ~/openstack/change_credentials/

Edit the copied file in ~/openstack/change_credentials leaving only those passwords you intend to change. All entries in this template file should be deleted except for those passwords.

Important

If you leave other passwords in that file that you do not want to change, they will be regenerated and no longer match those in use which could disrupt operations.

Note

It is required that you change passwords in batches of each category listed below.

For example, the snippet below would result in the configuration processor generating new random values for keystone_backup_password, keystone_ceilometer_password, and keystone_cinder_password:

keystone_backup_password:
  metadata:
  - clusters:
    - cluster0
    - cluster1
    - compute
    component: freezer-agent
    consumes: keystone-api
    consuming-cp: ccp
    cp: ccp
  version: '2.0'
keystone_ceilometer_password:
  metadata:
  - clusters:
    - cluster1
    component: ceilometer-common
    consumes: keystone-api
    consuming-cp: ccp
    cp: ccp
  version: '2.0'
keystone_cinder_password:
  metadata:
  - clusters:
    - cluster1
    component: cinder-api
    consumes: keystone-api
    consuming-cp: ccp
    cp: ccp
  version: '2.0'

Optionally, you can specify a value for the password by including a "value:" key and value at the same level as metadata:

keystone_backup_password:
    value: 'new_password'
    metadata:
    - clusters:
        - cluster0
        - cluster1
        - compute
        component: freezer-agent
        consumes: keystone-api
        consuming-cp: ccp
        cp: ccp
      version: '2.0'

Note that you can have multiple files in openstack/change_credentials. The configuration processor will only read files that end in .yml or .yaml.

Note

If you have specified a password value in your credential change file, you may want to encrypt it using ansible-vault. If you decide to encrypt with ansible-vault, make sure that you use the encryption key you have already used when running the configuration processor.

To encrypt a file using ansible-vault, execute:

ardana > cd ~/openstack/change_credentials
ardana > ansible-vault encrypt credential change file ending in .yml or .yaml

Be sure to provide the encryption key when prompted. Note that if you have specified the wrong ansible-vault password, the configuration-processor will error out with a message like the following:

################################################## Reading Persistent State ##################################################

################################################################################
# The configuration processor failed.
# PersistentStateCreds: User-supplied creds file test1.yml was not parsed properly
################################################################################

The directory openstack/change_credentials is not managed by git, so to rerun the configuration processor to generate new passwords and prepare for the next deployment just enter the following commands:

ardana > cd ~/openstack/ardana/ansible
ardana > ansible-playbook -i hosts/localhost config-processor-run.yml
ardana > ansible-playbook -i hosts/localhost ready-deployment.yml

Note

The files that you placed in ~/openstack/change_credentials should be removed once you have run the configuration processor because the old password values and new password values will be stored in the configuration processor's persistent state.

Note that if you see output like the following after running the configuration processor:

################################################################################
# The configuration processor completed with warnings.
# PersistentStateCreds: User-supplied password name 'blah' is not valid
################################################################################

this tells you that the password name you have supplied, 'blah,' does not exist. A failure to correctly parse the credentials change file will result in the configuration processor erroring out with a message like the following:

################################################## Reading Persistent State ##################################################

################################################################################
# The configuration processor failed.
# PersistentStateCreds: User-supplied creds file test1.yml was not parsed properly
################################################################################

Once you have run the configuration processor to change passwords, an information file ~/openstack/my_cloud/info/password_change.yml similar to the private_data_metadata_ccp.yml is written to tell you which passwords have been changed, including metadata but not including the values.

Once you have completed the steps above to change password(s) value(s) and then prepare for the deployment that will actually switch over to the new passwords, you will need to run some high-level playbooks. The passwords that can be changed are grouped into six categories. The tables below list the password names that belong in each category. The categories are:

It is recommended that you change passwords in batches; in other words, run through a complete password change process for each batch of passwords, preferably in the above order. Once you have followed the process indicated above to change password(s), check the names against the tables below to see which password change playbook(s) you should run.

Changing identity service credentials

The following table lists identity service credentials you can change.

Password name
barbican_admin_password
barbican_service_password
keystone_admin_pwd
keystone_admin_token
keystone_backup_password
keystone_ceilometer_password
keystone_cinder_password
keystone_cinderinternal_password
keystone_demo_pwd
keystone_designate_password
keystone_freezer_password
keystone_glance_password
keystone_glance_swift_password
keystone_heat_password
keystone_magnum_password
keystone_monasca_agent_password
keystone_monasca_password
keystone_neutron_password
keystone_nova_password
keystone_octavia_password
keystone_swift_dispersion_password
keystone_swift_monitor_password
keystone_swift_password
logging_keystone_password
nova_monasca_password

The playbook to run to change Keystone credentials is ardana-keystone-credentials-change.yml. Execute the following commands to make the changes:

ardana > cd ~/scratch/ansible/next/ardana/ansible/
ardana > ansible-playbook -i hosts/verb_hosts ardana-keystone-credentials-change.yml

Changing RabbitMQ credentials

The following table lists the RabbitMQ credentials you can change.

Password name
ops_mon_rmq_password
rmq_barbican_password
rmq_ceilometer_password
rmq_cinder_password
rmq_designate_password
rmq_keystone_password
rmq_magnum_password
rmq_monasca_monitor_password
rmq_nova_password
rmq_octavia_password
rmq_service_password

The playbook to run to change RabbitMQ credentials is ardana-rabbitmq-credentials-change.yml. Execute the following commands to make the changes:

ardana > cd ~/scratch/ansible/next/ardana/ansible/
ardana > ansible-playbook -i hosts/verb_hosts ardana-rabbitmq-credentials-change.yml

Changing MariaDB credentials

The following table lists the MariaDB credentials you can change.

Password name
mysql_admin_password
mysql_barbican_password
mysql_clustercheck_pwd
mysql_designate_password
mysql_magnum_password
mysql_monasca_api_password
mysql_monasca_notifier_password
mysql_monasca_thresh_password
mysql_octavia_password
mysql_powerdns_password
mysql_root_pwd
mysql_service_pwd
mysql_sst_password
ops_mon_mdb_password
mysql_monasca_transform_password
mysql_nova_api_password
password

The playbook to run to change MariaDB credentials is ardana-reconfigure.yml. To make the changes, execute the following commands:

ardana > cd ~/scratch/ansible/next/ardana/ansible/
ardana > ansible-playbook -i hosts/verb_hosts ardana-reconfigure.yml

Changing cluster credentials

The following table lists the cluster credentials you can change.

Password name
haproxy_stats_password
keepalive_vrrp_password

The playbook to run to change cluster credentials is ardana-cluster-credentials-change.yml. To make changes, execute the following commands:

ardana > cd ~/scratch/ansible/next/ardana/ansible/
ardana > ansible-playbook -i hosts/verb_hosts ardana-cluster-credentials-change.yml

Changing Monasca credentials

The following table lists the Monasca credentials you can change.

Password name
mysql_monasca_api_password
mysql_monasca_persister_password
monitor_user_password
cassandra_monasca_api_password
cassandra_monasca_persister_password

The playbook to run to change Monasca credentials is monasca-reconfigure-credentials-change.yml. To make the changes, execute the following commands:

ardana > cd ~/scratch/ansible/next/ardana/ansible/
ardana > ansible-playbook -i hosts/verb_hosts monasca-reconfigure-credentials-change.yml

Changing other credentials

The following table lists the other credentials you can change.

Password name
logging_beaver_password
logging_api_password
logging_monitor_password
logging_kibana_password

The playbook to run to change these credentials is ardana-other-credentials-change.yml. To make the changes, execute the following commands:

ardana > cd ~/scratch/ansible/next/ardana/ansible/
ardana > ansible-playbook -i hosts/verb_hosts ardana-other-credentials-change.yml

To change the keystone credentials of RADOS Gateway, follow the preceding steps documented in Section 4.7, “Changing Service Passwords” by modifying the keystone_rgw_password section in private_data_metadata_ccp.yml file in Section 4.7.4, “Steps to change a password” or Section 4.7.5, “Specifying password value”.

The values of certain variables are immutable, which means that once they have been generated by the configuration processor they cannot be changed. These variables are:

The configuration processor will not re-generate the values of the above passwords, nor will it allow you to specify a value for them. In addition to the above variables, the following are immutable in SUSE OpenStack Cloud 8:

This topic explains configuration options for the Identity service.

SUSE OpenStack Cloud lets you perform updates on the following parts of the Identity service configuration:

To enable or disable Keystone features, do the following:

SUSE OpenStack Cloud 8 supports Fernet tokens by default. The benefit of using Fernet tokens is that tokens are not persisted in a database, which is helpful if you want to deploy the Keystone Identity service as one master and multiple slaves; only roles, projects, and other details will need to be replicated from master to slaves, not the token table.

Note

Tempest does not work with Fernet tokens in SUSE OpenStack Cloud 8. If Fernet tokens are enabled, do not run token tests in Tempest.

Note

During reconfiguration when switching to a Fernet token provider or during Fernet key rotation, you may see a warning in keystone.log stating [fernet_tokens] key_repository is world readable: /etc/keystone/fernet-keys/. This is expected. You can safely ignore this message. For other Keystone operations, you will not see this warning. Directory permissions are actually set to 600 (read/write by owner only), not world readable.

Fernet token-signing key rotation is being handled by a cron job, which is configured on one of the controllers. The controller with the Fernet token-signing key rotation cron job is also known as the Fernet Master node. By default, the Fernet token-signing key is being rotated once every 24 hours. The Fernet token-signing keys are distributed from the Fernet Master node to the rest of the controllers at each rotation. Therefore, the Fernet token-signing keys are consistent for all the controlers at all time.

When enabling Fernet token provider the first time, specific steps are needed to set up the necessary mechanisms for Fernet token-signing key distributions.

When the Fernet token provider is enabled, a Fernet Master alarm definition is also created on Monasca to monitor the Fernet Master node. If the Fernet Master node is offline or unreachable, a CRITICAL alarm will be raised for the Cloud Admin to take corrective actions. If the Fernet Master node is offline for a prolonged period of time, Fernet token-signing key rotation will not be performed. This may introduce security risks to the cloud. The Cloud Admin must take immediate actions to resurrect the Fernet Master node.

The Keystone identity service provides two primary functions: user authentication and access authorization. The user authentication function validates a user's identity. Keystone has a very basic user management system that can be used to create and manage user login and password credentials but this system is intended only for proof of concept deployments due to the very limited password control functions. The internal identity service user management system is also commonly used to store and authenticate OpenStack-specific service account information.

The recommended source of authentication is external user management systems such as LDAP directory services. The identity service can be configured to connect to and use external systems as the source of user authentication. The identity service domain construct is used to define different authentication sources based on domain membership. For example, cloud deployment could consist of as few as two domains:

SUSE OpenStack Cloud can support multiple domains for deployments that support multiple tenants. Multiple domains can be created with each domain configured to either the same or different external authentication sources. This deployment model is known as a "per-domain" model.

There are currently two ways to configure "per-domain" authentication sources:

Instructions for initially creating per-domain configuration files and then migrating to the Database store method via the identity service manager utility are provided as follows.

To update configuration to a specific LDAP domain:

To make the switch, execute the steps below. Remember, you must have already set up the configuration for a file store as explained in Section 4.9.2, “Set up domain-specific driver configuration - file store”, and it must be working properly.

Following is the procedure to switch a domain-specific driver configuration from a database store to a file store. It is assumed that:

There is a chance that LDAP CA certificates may expire or for some reason not work anymore. Below are steps to update the LDAP CA certificates on the identity service side. Follow the steps below to make the updates.

SUSE OpenStack Cloud 8 domain-specific configuration:

SUSE OpenStack Cloud 8 API-based domain-specific configuration management

Note

When integrating with an external identity provider, cloud security is dependent upon the security of that identify provider. You should examine the security of the identity provider, and in particular the SAML 2.0 token generation process and decide what security properties you need to ensure adequate security of your cloud deployment. More information about SAML can be found at https://www.owasp.org/index.php/SAML_Security_Cheat_Sheet.

Identity federation lets you configure SUSE OpenStack Cloud using existing identity management systems such as an LDAP directory as the source of user access authentication. The Keystone-to-Keystone federation (K2K) function extends this concept for accessing resources in multiple, separate SUSE OpenStack Cloud clouds. You can configure each cloud to trust the authentication credentials of other clouds to provide the ability for users to authenticate with their home cloud and to access authorized resources in another cloud without having to reauthenticate with the remote cloud. This function is sometimes referred to as "single sign-on" or SSO.

The SUSE OpenStack Cloud cloud that provides the initial user authentication is called the identity provider (IdP). The identity provider cloud can support domain-based authentication against external authentication sources including LDAP-based directories such as Microsoft Active Directory. The identity provider creates the user attributes, known as assertions, which are used to automatically authenticate users with other SUSE OpenStack Cloud clouds.

An SUSE OpenStack Cloud cloud that provides resources is called a service provider (SP). A service provider cloud accepts user authentication assertions from the identity provider and provides access to project resources based on the mapping file settings developed for each service provider cloud. The following are characteristics of a service provider:

Keystone-to-Keystone federation is supported and enabled in SUSE OpenStack Cloud 8 using configuration parameters in specific Ansible files. Instructions are provided to define and enable the required configurations.

Support for Keystone-to-Keystone federation happens on the API level, and you must implement it using your own client code by calling the supported APIs. Python-keystoneclient has supported APIs to access the K2K APIs.

import json
import os
import requests

import xml.dom.minidom

from keystoneclient.auth.identity import v3
from keystoneclient import session

class K2KClient(object):

    def __init__(self):
        # IdP auth URL
        self.auth_url = "http://192.168.245.9:35357/v3/"
        self.project_name = "admin"
        self.project_domain_name = "Default"
        self.username = "admin"
        self.password = "vvaQIZ1S"
        self.user_domain_name = "Default"
        self.session = requests.Session()
        self.verify = False
        # identity provider Id
        self.idp_id = "z420_idp"
        # service provider Id
        self.sp_id = "z620_sp"
        #self.sp_ecp_url = "https://16.103.149.44:8443/Shibboleth.sso/SAML2/ECP"
        #self.sp_auth_url = "https://16.103.149.44:8443/v3"

    def v3_authenticate(self):
        auth = v3.Password(auth_url=self.auth_url,
                           username=self.username,
                           password=self.password,
                           user_domain_name=self.user_domain_name,
                           project_name=self.project_name,
                           project_domain_name=self.project_domain_name)

        self.auth_session = session.Session(session=requests.session(),
                                       auth=auth, verify=self.verify)
        auth_ref = self.auth_session.auth.get_auth_ref(self.auth_session)
        self.token = self.auth_session.auth.get_token(self.auth_session)

    def _generate_token_json(self):
        return {
            "auth": {
                "identity": {
                    "methods": [
                        "token"
                    ],
                    "token": {
                        "id": self.token
                    }
                },
                "scope": {
                    "service_provider": {
                        "id": self.sp_id
                    }
                }
            }
        }

    def get_saml2_ecp_assertion(self):
        token = json.dumps(self._generate_token_json())
        url = self.auth_url + 'auth/OS-FEDERATION/saml2/ecp'
        r = self.session.post(url=url,
                              data=token,
                              verify=self.verify)
        if not r.ok:
            raise Exception("Something went wrong, %s" % r.__dict__)
        self.ecp_assertion = r.text

    def _get_sp_url(self):
        url = self.auth_url + 'OS-FEDERATION/service_providers/' + self.sp_id
        r = self.auth_session.get(
           url=url,
           verify=self.verify)
        if not r.ok:
            raise Exception("Something went wrong, %s" % r.__dict__)

        sp = json.loads(r.text)[u'service_provider']
        self.sp_ecp_url = sp[u'sp_url']
        self.sp_auth_url = sp[u'auth_url']

    def _handle_http_302_ecp_redirect(self, response, method, **kwargs):
        location = self.sp_auth_url + '/OS-FEDERATION/identity_providers/' + self.idp_id + '/protocols/saml2/auth'
        return self.auth_session.request(location, method, authenticated=False, **kwargs)

    def exchange_assertion(self):
        """Send assertion to a Keystone SP and get token."""
        self._get_sp_url()
        print("SP ECP Url:%s" % self.sp_ecp_url)
        print("SP Auth Url:%s" % self.sp_auth_url)
        #self.sp_ecp_url = 'https://16.103.149.44:8443/Shibboleth.sso/SAML2/ECP'
        r = self.auth_session.post(
            self.sp_ecp_url,
            headers={'Content-Type': 'application/vnd.paos+xml'},
            data=self.ecp_assertion,
            authenticated=False, redirect=False)
        r = self._handle_http_302_ecp_redirect(r, 'GET',
            headers={'Content-Type': 'application/vnd.paos+xml'})
        self.fed_token_id = r.headers['X-Subject-Token']
        self.fed_token = r.text

if __name__ == "__main__":
    client = K2KClient()
    client.v3_authenticate()
    client.get_saml2_ecp_assertion()
    client.exchange_assertion()
    print('Unscoped token_id: %s' % client.fed_token_id)
    print('Unscoped token body:
%s' % client.fed_token)

To set up Keystone as a service provider, follow these steps.

Setting Up an Identity Provider

To set up Keystone as an identity provider, follow these steps:

You can use the script listed earlier, k2kclient.py (Example 4.1, “k2kclient.py”), as an example for the end-to-end flows. To run k2kclient.py, follow these steps:

At this point, the domain or project scope of the unscoped taken can be discovered by sending the following URLs:

ardana > curl -k -X GET -H "X-Auth-Token: unscoped token" \
 https://<sp_public_endpoint>:5000/v3/OS-FEDERATION/domains
ardana > curl -k -X GET -H "X-Auth-Token: unscoped token" \
 https://<sp_public_endpoint:5000/v3/OS-FEDERATION/projects

K2K federation places a lot of responsibility with the user. The complexity is apparent from the following diagram.

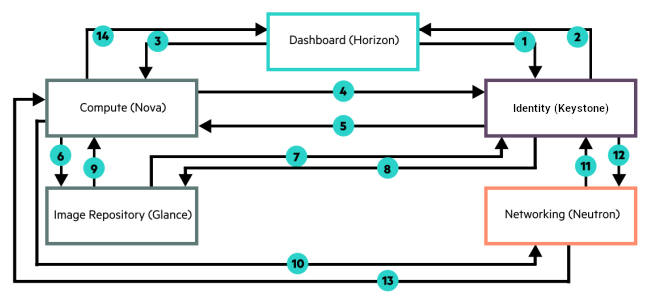

The following diagram illustrates the flow of authentication requests.

Figure 4.1: Keystone Authentication Flow #



The following tests assume one identity provider and one service provider.

Test Case 1: Any federated user in the identity provider maps to a single designated group in the service provider

Test Case 2: A federated user in a specific domain in the identity provider maps to two different groups in the service provider

Test Case 3: A federated user with a specific project in the identity provider maps to a specific group in the service provider

Test Case 4: A federated user with a specific role in the identity provider maps to a specific group in the service provider

Test Case 5: Retain the previous scope for a federated user

Test Case 6: Scope a federated user to a domain

Test Case 7: Test five remote attributes for mapping

Note that similar tests have also been run for two identity providers with one service provider, and for one identity provider with two service providers.

Keep the following points in mind:

Use the following steps to scope a federated user to a domain:

WebSSO, or web single sign-on, is a method for web browsers to receive current authentication information from an identity provider system without requiring a user to log in again to the application displayed by the browser. Users initially access the identity provider web page and supply their credentials. If the user successfully authenticates with the identity provider, the authentication credentials are then stored in the user’s web browser and automatically provided to all web-based applications, such as the Horizon dashboard in SUSE OpenStack Cloud 8. If users have not yet authenticated with an identity provider or their credentials have timed out, they are automatically redirected to the identity provider to renew their credentials.

SUSE OpenStack Cloud 8 provides WebSSO support for the Horizon web interface. This support requires several configuration steps including editing the Horizon configuration file as well as ensuring that the correct Keystone authentication configuration is enabled to receive the authentication assertions provided by the identity provider.

The following is the workflow that depicts how Horizon and Keystone supports WebSSO if no current authentication assertion is available.

The following diagram provides more details on the WebSSO authentication workflow.

Note that the Horizon dashboard service never talks directly to the Keystone identity service until the end of the sequence, after the federated unscoped token negotiation has completed. The browser interacts with the Horizon dashboard service, the Keystone identity service, and AD FS on their respective public endpoints.

The following sequence of events is depicted in the diagram.

For AD FS to be able to communicate with the Keystone identity service, you need to add the Keystone identity service as a trusted relying party for AD FS and also specify the user attributes that you want to send to the Keystone identity service when users authenticate via WebSSO.

For more information, see the Microsoft AD FS wiki, section "Step 2: Configure AD FS 2.0 as the identity provider and shibboleth as the Relying Party".

Log in to the AD FS server.

Add a relying party using metadata

Edit claim rules for relying party trust

This list of Claim Rules is just an example and can be modified or enhanced based on the customer's necessities and AD FS setup specifics.

Create a sample user on the AD FS server

You can test the Horizon dashboard service "Login with ADFS" by opening a browser at the Horizon dashboard service URL and choose Authenticate using: ADFS Credentials. You should be redirected to the ADFS login page and be able to log into the Horizon dashboard service with your ADFS credentials.

This topic describes limitations of and important notes pertaining to the identity service. Domains

Keystone-to-Keystone Federation

Multi-Factor Authentication (MFA)

Hierarchical Multitenancy

Authentication with external authentication systems (LDAP, Active Directory (AD) or Identity Providers)

Integration with LDAP services SUSE OpenStack Cloud 8 domain-specific configuration:

SUSE OpenStack Cloud 8 API-based domain-specific configuration management

WebSSO

Multi-factor authentication (MFA)

Hierarchical multitenancy

Missing quota information for compute resources

Note

An error message that will appear in the default Horizon page if you are running a Swift-only deployment (no Compute service). In this configuration, you will not see any quota information for Compute resources and will see the following error message:

The Compute service is not installed or is not configured properly. No information is available for Compute resources. This error message is expected as no Compute service is configured for this deployment. Please ignore the error message.

The following is the benchmark of the performance that is based on 150 concurrent requests and run for 10 minute periods of stable load time.

Considering that token creation operations do not happen as frequently as token validation operations, you are likely to experience less of a performance problem regardless of the extended time for token creation.

Keystone relies on two cron jobs to periodically clean up expired tokens and for token revocation. The following is how the cron jobs appear on the system:

1 1 * * * /opt/stack/service/keystone/venv/bin/keystone-manage token_flush
1 1,5,10,15,20 * * * /opt/stack/service/keystone/venv/bin/revocation_cleanup.sh

By default, the two cron jobs are enabled on controller node 1 only, not on the other two nodes. When controller node 1 is down or has failed for any reason, these two cron jobs must be manually set up on one of the other two nodes.

These steps will show you how to create a Nova aggregate and how to add a compute host to it. You can run these steps on any machine that contains the NovaClient that also has network access to your cloud environment. These requirements are met by the Cloud Lifecycle Manager.

The Nova scheduler has two filters that can help with differentiating between different compute hosts that we'll describe here.

Note

For details about other available filters, see Filter Scheduler.

Using the AggregateImagePropertiesIsolation Filter

Using the AggregateInstanceExtraSpecsFilter Filter

These steps can be used to edit a flavor's metadata in the Horizon dashboard to add the extra_specs for a cpu_model:

If you wish to change the CPU and/or RAM overcommit ratio settings for your entire environment then you can do so via your Cloud Lifecycle Manager with these steps.

If you wish to enable these features, use these steps on your lifecycle manager. This will deploy a set of public and private SSH keys to the Compute hosts, allowing the nova user SSH access between each of your Compute hosts.

This feature is disabled by default. However, if you have previously enabled it and wish to re-disable it, you can use these steps on your lifecycle manager. This will remove the set of public and private SSH keys that were previously added to the Compute hosts, removing the nova users SSH access between each of your Compute hosts.

If you want to configure and re-size ESX compute instance(s), perform the following steps:

In SUSE OpenStack Cloud 8, by default, the Glance image caching option is not enabled. You have the option to have image caching enabled and these steps will show you how to do that.

The main benefits to using image caching is that it will allow the Glance service to return the images faster and it will cause less load on other services to supply the image.

In order to use the image caching option you will need to supply a logical volume for the service to use for the caching.

If you wish to use the Glance image caching option, you will see the section below in your ~/openstack/my_cloud/definition/data/disks_controller.yml file. You will specify the mount point for the logical volume you wish to use for this.

An existing volume image cache is not properly deleted when Cinder detects the source image has changed. After updating any source image, delete the cache volume so that the cache is refreshed.

The volume image cache must be deleted before trying to use the associated source image in any other volume operations. This includes creating bootable volumes or booting an instance with create volume enabled and the updated image as the source image.

When creating images, one of the options you have is to copy the image from a remote location to your local Glance store. You do this by specifying the --copy-from option when creating the image. To use this feature though you need to ensure the following conditions are met:

Enabling the HTTP Glance Store

For more information on the Networking for ESXi Hypervisor (OVSvApp), see the following references:

Write down the Hostname and ESXi configuration IP addresses of OVSvAPP VMs of that ESX cluster before deleting the VMs. These IP address and Hostname will be used to cleanup Monasca alarm definitions.

Perform the following steps:

Perform the following steps to remove an existing cluster from the compute resource pool.

Perform the following procedure to cleanup Monasca agents for ovsvapp-agent service.

Once you have removed the Compute proxy, the alarms against them will still trigger. Therefore to resolve this, you must perform the following steps.

Perform the following procedure:

Write down the Hostname and ESXi configuration IP addresses of OVSvAPP VMs of that ESX cluster before deleting the VMs. These IP address and Hostname will be used to clean up Monasca alarm definitions.

The ESXi node is removed from the vCenter.

After removing ESXi node from a vCenter, perform the following procedure to clean up neutron agents for ovsvapp-agent service.

If you have more than one host, perform the preceding procedure for all the hosts.

Perform the following procedure to clean up Monasca agents for ovsvapp-agent service.

Perform the following procedure to clean up the entries of OVSvAPP VM from /etc/host.

Complete these steps from the Cloud Lifecycle Manager to remove the OVSvAPP VM:

Perform the following procedure to remove DRS rules, which is added by OVSvAPP installer to ensure that OVSvAPP does not get migrated to other hosts.

To change the OVSVAPP log level to DEBUG, do the following:

To enable OVSVAPP Service for centralized logging:

Using the Monasca agent, the following services are monitored on the OVSvApp appliance:

If any of the above three processes fail to run on the OVSvApp appliance it will lead to network disruption for the tenant virtual machines. This is why they are monitored.

The monasca-agent periodically reports the status of these processes and metrics data ('load' - cpu.load_avg_1min, 'process' - process.pid_count, 'memory' - mem.usable_perc, 'disk' - disk.space_used_perc, 'cpu' - cpu.idle_perc for examples) to the Monasca server.

Once the vApp is configured and up, the monasca-agent will attempt to register with the Monasca server. After successful registration, the monitoring begins on the processes listed above and you will be able to see status updates on the server side.

The monasca-agent monitors the processes at the system level so, in the case of failures of any of the configured processes, updates should be seen immediately from Monasca.

To check the events from the server side, log into the Operations Console. For more details on how to use the Operations Console, see Book “User Guide”, Chapter 1 “Using the Operations Console”, Section 1.1 “Operations Console Overview”.

SUSE OpenStack Cloud supports setting up multiple block storage backends and multiple volume types.

Whether you have a single or multiple block storage back-ends defined in your cinder.conf.j2 file, you can create one or more volume types using the specific attributes associated with the back-end. You can find details on how to do that for each of the supported back-end types here:

Creating volume types allows you to create standard specifications for your volumes.

Volume types are used to specify a standard Block Storage back-end and collection of extra specifications for your volumes. This allows an administrator to give its users a variety of options while simplifying the process of creating volumes.

The tasks involved in this process are:

7.1.2.1 Create a Volume Type for your Volumes #



The default volume type will be thin provisioned and will have no fault tolerance (RAID 0). You should configure Cinder to fully provision volumes, and you may want to configure fault tolerance. Follow the instructions below to create a new volume type that is fully provisioned and fault tolerant:

Perform the following steps to create a volume type using the Horizon GUI:

1. Log in to the Horizon dashboard. See Book “User Guide”, Chapter 3 “Cloud Admin Actions with the Dashboard” for details on how to do this.

2. Ensure that you are scoped to your admin Project. Then under the Admin menu in the navigation pane, click on Volumes under the System subheading.

3. Select the Volume Types tab and then click the Create Volume Type button to display a dialog box.

4. Enter a unique name for the volume type and then click the Create Volume Type button to complete the action.

The newly created volume type will be displayed in the Volume Types list confirming its creation.

Important

If you do not specify a default type then your volumes will default unpredictably. We recommend that you create a volume type that meets the needs of your environment and specify it here.
