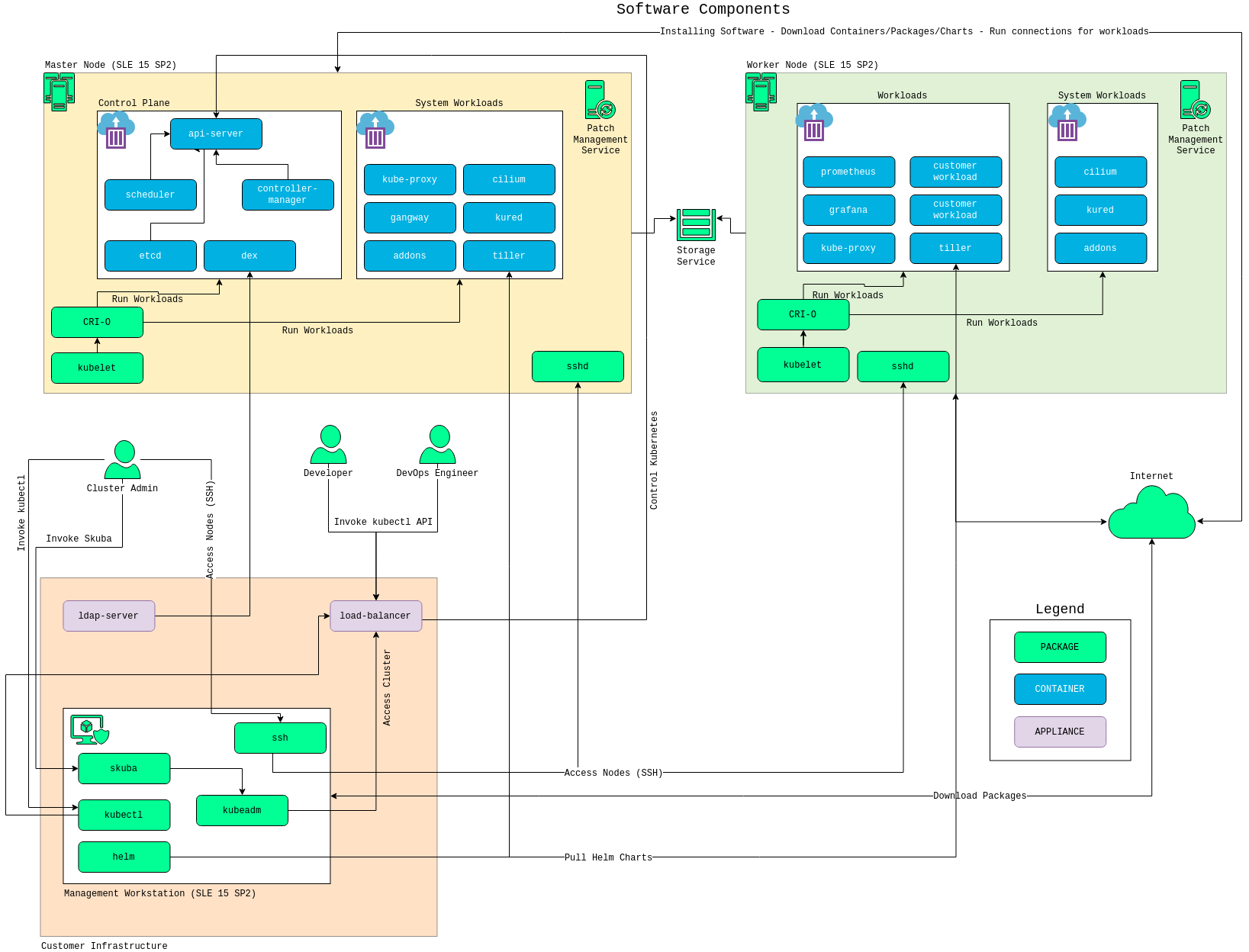

In order to deploy and control a SUSE CaaS Platform cluster you will need at least one machine capable of running skuba. This typically is a regular desktop workstation or laptop running SLE 15 SP2 or later.

The skuba CLI package is available from the SUSE CaaS Platform module. You will need a valid SUSE Linux Enterprise and SUSE CaaS Platform subscription to install this tool on the workstation.

Important: Time Synchronization

It is vital that the management workstation runs an NTP client and that time synchronization is configured to the same NTP servers, which you will use later to synchronize the cluster nodes.

The storage sizes in the following lists are absolute minimum configurations.

Sizing of the storage for worker nodes depends largely on the expected amount of container images, their size and change rate. The basic operating system for all nodes might also include snapshots (when using btrfs) that can quickly fill up existing space.

We recommend provisioning a separate storage partition for container images on each (worker) node that can be adjusted in size when needed. Storage for /var/lib/containers on the worker nodes should be approximately 50GB in addition to the base OS storage.

1.3.2.1 Master Nodes #

Up to 5 worker nodes (minimum):

• Storage: 50 GB+

• (v)CPU: 2

• RAM: 4 GB

• Network: Minimum 1Gb/s (faster is preferred)

Up to 10 worker nodes:

• Storage: 50 GB+

• (v)CPU: 2

• RAM: 8 GB

• Network: Minimum 1Gb/s (faster is preferred)

Up to 100 worker nodes:

• Storage: 50 GB+

• (v)CPU: 4

• RAM: 16 GB

• Network: Minimum 1Gb/s (faster is preferred)

Up to 250 worker nodes:

• Storage: 50 GB+

• (v)CPU: 8

• RAM: 16 GB

• Network: Minimum 1Gb/s (faster is preferred)

Important

Using a minimum of 2 (v)CPUs is a hard requirement, deploying a cluster with less processing units is not possible.

1.3.2.2 Worker nodes #

Important

The worker nodes must have sufficient memory, CPU and disk space for the Pods/containers/applications that are planned to be hosted on these workers.

A worker node requires the following resources:

• CPU cores: 1.250

• RAM: 1.2 GB

Based on these values, the minimal configuration of a worker node is:

• Storage: Depending on workloads, minimum 20-30 GB to hold the base OS and required packages. Mount additional storage volumes as needed.

• (v)CPU: 2

• RAM: 2 GB

• Network: Minimum 1Gb/s (faster is preferred)

Calculate the size of the required (v)CPU by adding up the base requirements, the estimated additional essential cluster components (logging agent, monitoring agent, configuration management, etc.) and the estimated CPU workloads:

• 1.250 (base requirements) + 0.250 (estimated additional cluster components) + estimated workload CPU requirements

Calculate the size of the RAM using a similar formula:

• 1.2 GB (base requirements) + 500 MB (estimated additional cluster components) + estimated workload RAM requirements

Note

These values are provided as a guide to work in most cases. They may vary based on the type of the running workloads.

For master nodes you must ensure storage performance of at least 50 to 500 sequential IOPS with disk bandwidth depending on your cluster size. It is highly recommended to use SSD.

"Typically 50 sequential IOPS (for example, a 7200 RPM disk) is required.
For heavily loaded clusters, 500 sequential IOPS (for example, a typical local SSD
or a high performance virtualized block device) is recommended."

"Typically 10MB/s will recover 100MB data within 15 seconds.
For large clusters, 100MB/s or higher is suggested for recovering 1GB data
within 15 seconds."

https://github.com/etcd-io/etcd/blob/master/Documentation/op-guide/hardware.md#disks

This is extremely important to ensure a proper functioning of the critical component etcd.

It is possible to preliminary validate these requirements by using fio. This tool allows us to simulate etcd I/O (input/output) and to find out from the output statistics whether or not the storage is suitable.

From the outputs, the interesting part is fsync/fdatasync/sync_file_range where the values are expressed in microseconds (usec). A disk is considered sufficient when the value of the 99.00th percentile is below 10000usec (10ms).

Be careful though, this benchmark is for etcd only and does not take into consideration external disk usage. This means that a value slightly under 10ms should be taken with precaution as other workloads will have an impact on the disks.

Warning

If the storage is very slow, the values can be expressed directly in milliseconds.

Let’s see two different examples:

[...]
  fsync/fdatasync/sync_file_range:
    sync (usec): min=251, max=1894, avg=377.78, stdev=69.89
    sync percentiles (usec):
     |  1.00th=[  273],  5.00th=[  285], 10.00th=[  297], 20.00th=[  330],
     | 30.00th=[  343], 40.00th=[  355], 50.00th=[  367], 60.00th=[  379],
     | 70.00th=[  400], 80.00th=[  424], 90.00th=[  465], 95.00th=[  506],
     | 99.00th=[  594], 99.50th=[  635], 99.90th=[  725], 99.95th=[  742], 1
     | 99.99th=[ 1188]
[...]

[...]
  fsync/fdatasync/sync_file_range:
    sync (msec): min=10, max=124, avg=17.62, stdev= 3.38
    sync percentiles (usec):
     |  1.00th=[11731],  5.00th=[11994], 10.00th=[12911], 20.00th=[16712],
     | 30.00th=[17695], 40.00th=[17695], 50.00th=[17695], 60.00th=[17957],
     | 70.00th=[17957], 80.00th=[17957], 90.00th=[19530], 95.00th=[22676],
     | 99.00th=[28705], 99.50th=[30016], 99.90th=[41681], 99.95th=[59507], 1
     | 99.99th=[89654]
[...]

Important

The service subnet and pod subnet must not overlap.

Please plan generously for workload and the expected size of the networks before bootstrapping.

The default pod subnet is 10.244.0.0/16. It allows for 65536 IP addresses overall. Assignment of CIDR’s is by default /24 (254 usable IP addresses per node).

The default node allocation of /24 means a hard cluster node limit of 256 since this is the number of /24 ranges that fit in a /16 range.

Depending on the size of the nodes that you are planning to use (in terms of resources), or on the number of nodes you are planning to have, the CIDR can be adjusted to be bigger on a per node basis but the cluster would accommodate less nodes overall.

If you are planning to use more or less pods per node or have a higher number of nodes, you can adjust these settings to match your requirements. Please make sure that the networks are suitably sized to adjust to future changes in the cluster.

You can also adjust the service subnet size, this subnet must not overlap with the pod CIDR, and it should be big enough to accommodate all services.

For more advanced network requirements please refer to: https://docs.cilium.io/en/v1.6/concepts/ipam/#address-management

Warning

Using IPv6 addresses is currently not supported.

All nodes must be assigned static IPv4 addresses, which must not be changed manually afterwards.

Important

Plan carefully for required IP ranges and future scenarios as it is not possible to reconfigure the IP ranges once the deployment is complete.

The Kubernetes networking model requires that your nodes have IP forwarding enabled in the kernel. skuba checks this value when installing your cluster and installs a rule in /etc/sysctl.d/90-skuba-net-ipv4-ip-forward.conf to make it persistent.

Other software can potentially install rules with higher priority overriding this value and causing machines to not behave as expected after rebooting.

You can manually check if this is enabled using the following command:

# sysctl net.ipv4.ip_forward

net.ipv4.ip_forward = 1

net.ipv4.ip_forward must be set to 1. Additionally, you can check in what order persisted rules are processed by running sysctl --system -a.

Besides the SUSE provided packages and containers, SUSE CaaS Platform is typically used with third party provided containers and charts.

The following SUSE provided resources must be available:

If you wish to use Upstream / Third-Party resources, please also allow the following:

Please note that not all installation scenarios will need all of these resources.

Note

If you are deploying into an air gap scenario, you must ensure that the resources required from these locations are present and available on your internal mirror server.

Please make sure that all your Kubernetes components can communicate with each other. This might require the configuration of routing when using multiple network adapters per node.

Refer to: https://v1-18.docs.kubernetes.io/docs/setup/independent/install-kubeadm/#check-network-adapters.

Configure firewall and other network security to allow communication on the default ports required by Kubernetes: https://v1-18.docs.kubernetes.io/docs/setup/independent/install-kubeadm/#check-required-ports

All master nodes of the cluster must have a minimum 1Gb/s network connection to fulfill the requirements for etcd.

"1GbE is sufficient for common etcd deployments. For large etcd clusters,
a 10GbE network will reduce mean time to recovery."

https://github.com/etcd-io/etcd/blob/master/Documentation/op-guide/hardware.md#network

Do not grant access to the kubeconfig file or any workstation configured with this configuration to unauthorized personnel. In the current state, full administrative access is granted to the cluster.

Authentication is done via the kubeconfig file generated during deployment. This file will grant full access to the cluster and all workloads. Apply best practices for access control to workstations configured to administer the SUSE CaaS Platform cluster.

The SUSE CaaS Platform leverages Kubernetes role-based access control (RBAC) for authentication and will need to have an external authentication server such as LDAP, Active Directory, or similar to validate the user’s entity and grant different user roles or cluster role permission.

Some addon services are desired to be highly available. These services require enough cluster nodes available to run replicas of their services.

When the cluster is deployed with enough nodes for replica sizes, those service distributions will be balanced across the cluster.

For clusters deployed with a node number lower than the default replica sizes, services will still try to find a suitable node to run on. However it is likely you will see services all running on the same nodes, defeating the purpose of high availability.

You can check the deployment replica size after node bootstrap. The number of cluster nodes should be equal or greater than the DESIRED replica size.

kubectl get rs -n kube-system

After deployment, if the number of healthy nodes falls below the number required for fulfilling the replica sizing, service replicas will show in Pending state until either the unhealthy node recovers or a new node is joined to cluster.

The following describes two methods for replica management if you wish to work with a cluster below the default replica size requirement.

In order to successfully deploy SUSE CaaS Platform, you need to have SSH keys loaded into an SSH agent. This is important, because it is required in order to use the installation tools skuba and terraform.

Note

The use of ssh-agent comes with some implications for security that you should take into consideration.

The pitfalls of using ssh-agent

To avoid these risks please make sure to either use ssh-agent -t <TIMEOUT> and specify a time after which the agent will self-terminate, or terminate the agent yourself before logging out by running ssh-agent -k.

To log in to the created cluster nodes from the Management machine, you need to configure an SSH key pair. This key pair needs to be trusted by the user account you will log in with into each cluster node; that user is called "sles" by default. In order to use the installation tools terraform and skuba, this trusted keypair must be loaded into the SSH agent.

You can load multiple keys into your agent using the ssh-add <PATH_TO_KEY> command. Keys should be password protected as a security measure. The ssh-add command will prompt for your password, then the agent caches the decrypted key material for a configurable lifetime. The -t lifetime option to ssh-add specifies a maximum time to cache the specific key. See man ssh-add for more information.

Warning: Specify a key expiration time

The ssh key is decrypted when loaded into the key agent. Though the key itself is not accesible from the agent, anyone with access to the agent’s control socket file can use the private key contents to impersonate the key owner. By default, socket access is limited to the user who launched the agent. None the less, it is good security practice to specify an expiration time for the decrypted key using the -t option. For example: ssh-add -t 1h30m $HOME/.ssh/id.ecdsa would expire the decrypted key in 1.5 hours. . Alternatively, ssh-agent can also be launched with -t to specify a default timeout. For example: eval $( ssh-agent -t 120s ) would default to a two minute (120 second) timeout for keys added. If timeouts are specified for both programs, the timeout from ssh-add is used. See man ssh-agent and man ssh-add for more information.

Note: Usage of multiple identities with ssh-agent

Skuba will try all the identities loaded into the ssh-agent until one of them grants access to the node, or until the SSH server’s maximum authentication attempts are exhausted. This could lead to undesired messages in SSH or other security/authentication logs on your local machine.

Note

The registration code for SUSE CaaS Platform.4 also contains the activation permissions for the underlying SUSE Linux Enterprise operating system. You can use your SUSE CaaS Platform registration code to activate the SUSE Linux Enterprise Server 15 SP2 subscription during installation.

You need a subscription registration code to use SUSE CaaS Platform. You can retrieve your registration code from SUSE Customer Center.

Tip

If you can not find SUSE CaaS Platform in the list of subscriptions please contact your local administrator responsible for software subscriptions or SUSE support.

During deployment of the cluster nodes, each machine will be assigned a unique ID in the /etc/machine-id file by Terraform or AutoYaST. If you are using any (semi-)manual methods of deployments that involve cloning of machines and deploying from templates, you must make sure to delete this file before creating the template.

If two nodes are deployed with the same machine-id, they will not be correctly recognized by skuba.

Important: Regenerating Machine ID

In case you are not using Terraform or AutoYaST you must regenerate machine IDs manually.

During the template preparation you will have removed the machine ID from the template image. This ID is required for proper functionality in the cluster and must be (re-)generated on each machine.

Log in to each virtual machine created from the template and run:

rm /etc/machine-id
dbus-uuidgen --ensure
systemd-machine-id-setup
systemctl restart systemd-journald

This will regenerate the machine id values for DBUS (/var/lib/dbus/machine-id) and systemd (/etc/machine-id) and restart the logging service to make use of the new IDs.

For any deployment type you will need skuba and Terraform. These packages are available from the SUSE CaaS Platform package sources. They are provided as an installation "pattern" that will install dependencies and other required packages in one simple step.

Access to the packages requires the SUSE CaaS Platform, Containers and Public Cloud extension modules. Enable the modules during the operating system installation or activate them using SUSE Connect.

sudo SUSEConnect -r  <CAASP_REGISTRATION_CODE> 1
sudo SUSEConnect -p sle-module-containers/15.2/x86_64 2
sudo SUSEConnect -p sle-module-public-cloud/15.2/x86_64 3
sudo SUSEConnect -p caasp/4.5/x86_64 -r <CAASP_REGISTRATION_CODE> 4

Install the required tools:

sudo zypper in -t pattern SUSE-CaaSP-Management

This will install the skuba command line tool and Terraform; as well as various default configurations and examples.

Note: Using a Proxy Server

Sometimes you need a proxy server to be able to connect to the SUSE Customer Center. If you have not already configured a system-wide proxy, you can temporarily do so for the duration of the current shell session like this:

1. Expose the environmental variable http_proxy:

   export http_proxy=http://PROXY_IP_FQDN:PROXY_PORT

2. Replace <PROXY_IP_FQDN> by the IP address or a fully qualified domain name (FQDN) of the proxy server and <PROXY_PORT> by its port.

3. If you use a proxy server with basic authentication, create the file $HOME/.curlrc with the following content:

   --proxy-user "<USER>:<PASSWORD>"

   Replace <USER> and <PASSWORD> with the credentials of an allowed user for the proxy server, and consider limiting access to the file (chmod 0600).

Important

Setting up a load balancer is mandatory in any production environment.

SUSE CaaS Platform requires a load balancer to distribute workload between the deployed master nodes of the cluster. A failure-tolerant SUSE CaaS Platform cluster will always use more than one control plane node as well as more than one load balancer, so there isn’t a single point of failure.

There are many ways to configure a load balancer. This documentation cannot describe all possible combinations of load balancer configurations and thus does not aim to do so. Please apply your organization’s load balancing best practices.

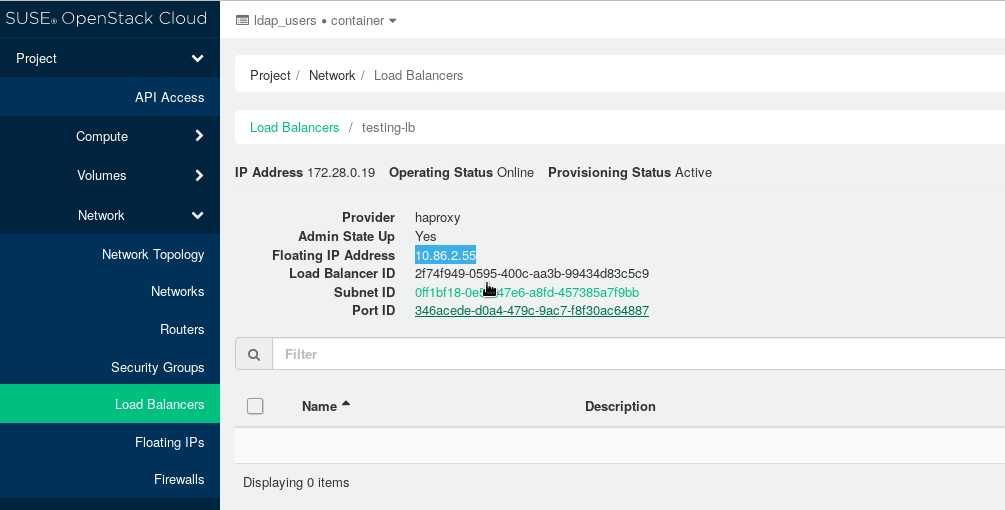

For SUSE OpenStack Cloud, the Terraform configurations shipped with this version will automatically deploy a suitable load balancer for the cluster.

For bare metal, KVM, or VMware, you must configure a load balancer manually and allow it access to all master nodes created during Chapter 4, Bootstrapping the Cluster.

The load balancer should be configured before the actual deployment. It is needed during the cluster bootstrap, and also during upgrades. To simplify configuration, you can reserve the IPs needed for the cluster nodes and pre-configure these in the load balancer.

The load balancer needs access to port 6443 on the apiserver (all master nodes) in the cluster. It also needs access to Gangway port 32001 and Dex port 32000 on all master and worker nodes in the cluster for RBAC authentication.

We recommend performing regular HTTPS health checks on each master node /healthz endpoint to verify that the node is responsive. This is particularly important during upgrades, when a master node restarts the apiserver. During this rather short time window, all requests have to go to another master node’s apiserver. The master node that is being upgraded will have to be marked INACTIVE on the load balancer pool at least during the restart of the apiserver. We provide reasonable defaults for that on our default openstack load balancer Terraform configuration.

The following contains examples for possible load balancer configurations based on SUSE Linux Enterprise Server 15 SP2 and nginx or HAProxy.

3.1.5.1 Nginx TCP Load Balancer with Passive Checks #

For TCP load balancing, we can use the ngx_stream_module module (available since version 1.9.0). In this mode, nginx will just forward the TCP packets to the master nodes.

The default mechanism is round-robin so each request will be distributed to a different server.

Warning

The open source version of Nginx referred to in this guide only allows the use of passive health checks. nginx will mark a node as unresponsive only after a failed request. The original request is lost and not forwarded to an available alternative server.

This load balancer configuration is therefore only suitable for testing and proof-of-concept (POC) environments.

For production environments, we recommend the use of SUSE Linux Enterprise High Availability Extension 15

3.1.5.1.1 Configuring the Load Balancer #

1. Register SLES and enable the "Server Applications" module:

   SUSEConnect -r CAASP_REGISTRATION_CODE
   SUSEConnect --product sle-module-server-applications/15.2/x86_64

2. Install Nginx:

   zypper in nginx

3. Write the configuration in /etc/nginx/nginx.conf:

   user  nginx;
   worker_processes  auto;

   load_module /usr/lib64/nginx/modules/ngx_stream_module.so;

   error_log  /var/log/nginx/error.log;
   error_log  /var/log/nginx/error.log  notice;
   error_log  /var/log/nginx/error.log  info;

   events {
       worker_connections  1024;
       use epoll;
   }

   stream {
       log_format proxy '$remote_addr [$time_local] '
                        '$protocol $status $bytes_sent $bytes_received '
                        '$session_time "$upstream_addr"';

       error_log  /var/log/nginx/k8s-masters-lb-error.log;
       access_log /var/log/nginx/k8s-masters-lb-access.log proxy;

       upstream k8s-masters {
           #hash $remote_addr consistent; 1
           server master00:6443 weight=1 max_fails=2 fail_timeout=5s; 2
           server master01:6443 weight=1 max_fails=2 fail_timeout=5s;
           server master02:6443 weight=1 max_fails=2 fail_timeout=5s;
       }
       server {
           listen 6443;
           proxy_connect_timeout 5s;
           proxy_timeout 30s;
           proxy_pass k8s-masters;
       }

       upstream dex-backends {
           #hash $remote_addr consistent; 3
           server master00:32000 weight=1 max_fails=2 fail_timeout=5s; 4
           server master01:32000 weight=1 max_fails=2 fail_timeout=5s;
           server master02:32000 weight=1 max_fails=2 fail_timeout=5s;
       }
       server {
           listen 32000;
           proxy_connect_timeout 5s;
           proxy_timeout 30s;
           proxy_pass dex-backends; 5
       }

       upstream gangway-backends {
           #hash $remote_addr consistent; 6
           server master00:32001 weight=1 max_fails=2 fail_timeout=5s; 7
           server master01:32001 weight=1 max_fails=2 fail_timeout=5s;
           server master02:32001 weight=1 max_fails=2 fail_timeout=5s;
       }
       server {
           listen 32001;
           proxy_connect_timeout 5s;
           proxy_timeout 30s;
           proxy_pass gangway-backends; 8
       }
   }

   1 3 6	Note: To enable session persistence, uncomment the hash option so the same client will always be redirected to the same server except if this server is unavailable.
   2 4 7	Replace the individual masterXX with the IP/FQDN of your actual master nodes (one entry each) in the upstream k8s-masters section.
   5 8	Dex port 32000 and Gangway port 32001 must be accessible through the load balancer for RBAC authentication.

4. Configure firewalld to open up port 6443. As root, run:

   firewall-cmd --zone=public --permanent --add-port=6443/tcp
   firewall-cmd --zone=public --permanent --add-port=32000/tcp
   firewall-cmd --zone=public --permanent --add-port=32001/tcp
   firewall-cmd --reload

5. Start and enable Nginx. As root, run:

   systemctl enable --now nginx

3.1.5.1.2 Verifying the Load Balancer #

Important

The SUSE CaaS Platform cluster must be up and running for this to produce any useful results. This step can only be performed after Chapter 4, Bootstrapping the Cluster is completed successfully.

To verify that the load balancer works, you can run a simple command to repeatedly retrieve cluster information from the master nodes. Each request should be forwarded to a different master node.

From your workstation, run:

while true; do skuba cluster status; sleep 1; done;

There should be no interruption in the skuba cluster status running command.

On the load balancer virtual machine, check the logs to validate that each request is correctly distributed in a round robin way.

# tail -f /var/log/nginx/k8s-masters-lb-access.log
10.0.0.47 [17/May/2019:13:49:06 +0000] TCP 200 2553 1613 1.136 "10.0.0.145:6443"
10.0.0.47 [17/May/2019:13:49:08 +0000] TCP 200 2553 1613 0.981 "10.0.0.148:6443"
10.0.0.47 [17/May/2019:13:49:10 +0000] TCP 200 2553 1613 0.891 "10.0.0.7:6443"
10.0.0.47 [17/May/2019:13:49:12 +0000] TCP 200 2553 1613 0.895 "10.0.0.145:6443"
10.0.0.47 [17/May/2019:13:49:15 +0000] TCP 200 2553 1613 1.157 "10.0.0.148:6443"
10.0.0.47 [17/May/2019:13:49:17 +0000] TCP 200 2553 1613 0.897 "10.0.0.7:6443"

3.1.5.2 HAProxy TCP Load Balancer with Active Checks #

Warning: Package Support

HAProxy is available as a supported package with a SUSE Linux Enterprise High Availability Extension 15 subscription.

Alternatively, you can install HAProxy from SUSE Package Hub but you will not receive product support for this component.

HAProxy is a very powerful load balancer application which is suitable for production environments. Unlike the open source version of nginx mentioned in the example above, HAProxy supports active health checking which is a vital function for reliable cluster health monitoring.

The version used at this date is the 1.8.7.

Important

The configuration of an HA cluster is out of the scope of this document.

The default mechanism is round-robin so each request will be distributed to a different server.

The health-checks are executed every two seconds. If a connection fails, the check will be retried two times with a timeout of five seconds for each request. If no connection succeeds within this interval (2x5s), the node will be marked as DOWN and no traffic will be sent until the checks succeed again.

3.1.5.2.1 Configuring the Load Balancer #

1. Register SLES and enable the "Server Applications" module:

   SUSEConnect -r CAASP_REGISTRATION_CODE
   SUSEConnect --product sle-module-server-applications/15.2/x86_64

2. Enable the source for the haproxy package:

   • If you are using the SUSE Linux Enterprise High Availability Extension

     SUSEConnect --product sle-ha/15.2/x86_64 -r ADDITIONAL_REGCODE

   • If you want the free (unsupported) package:

     SUSEConnect --product PackageHub/15.2/x86_64

3. Configure /dev/log for HAProxy chroot (optional)

   This step is only required when HAProxy is configured to run in a jail directory (chroot). This is highly recommended since it increases the security of HAProxy.

   Since HAProxy is chrooted, it’s necessary to make the log socket available inside the jail directory so HAProxy can send logs to the socket.

   mkdir -p /var/lib/haproxy/dev/ && touch /var/lib/haproxy/dev/log

   This systemd service will take care of mounting the socket in the jail directory.

   cat > /etc/systemd/system/bindmount-dev-log-haproxy-chroot.service <<EOF
   [Unit]
   Description=Mount /dev/log in HAProxy chroot
   After=systemd-journald-dev-log.socket
   Before=haproxy.service

   [Service]
   Type=oneshot
   ExecStart=/bin/mount --bind /dev/log /var/lib/haproxy/dev/log

   [Install]
   WantedBy=multi-user.target
   EOF

   Enabling the service will make the changes persistent after a reboot.

   systemctl enable --now bindmount-dev-log-haproxy-chroot.service

4. Install HAProxy:

   zypper in haproxy

5. Write the configuration in /etc/haproxy/haproxy.cfg:



   Note

   Replace the individual <MASTER_XX_IP_ADDRESS> with the IP of your actual master nodes (one entry each) in the server lines. Feel free to leave the name argument in the server lines (master00 and etc.) as is - it only serves as a label that will show up in the haproxy logs.

   global
     log /dev/log local0 info 1
     chroot /var/lib/haproxy 2
     user haproxy
     group haproxy
     daemon

   defaults
     mode       tcp
     log        global
     option     tcplog
     option     redispatch
     option     tcpka
     retries    2
     http-check     expect status 200 3
     default-server check check-ssl verify none
     timeout connect 5s
     timeout client 5s
     timeout server 5s
     timeout tunnel 86400s 4

   listen stats 5
     bind    *:9000
     mode    http
     stats   hide-version
     stats   uri       /stats

   listen apiserver 6
     bind   *:6443
     option httpchk GET /healthz
     server master00 <MASTER_00_IP_ADDRESS>:6443
     server master01 <MASTER_01_IP_ADDRESS>:6443
     server master02 <MASTER_02_IP_ADDRESS>:6443

   listen dex 7
     bind   *:32000
     option httpchk GET /healthz
     server master00 <MASTER_00_IP_ADDRESS>:32000
     server master01 <MASTER_01_IP_ADDRESS>:32000
     server masetr02 <MASTER_02_IP_ADDRESS>:32000

   listen gangway 8
     bind   *:32001
     option httpchk GET /
     server master00 <MASTER_00_IP_ADDRESS>:32001
     server master01 <MASTER_01_IP_ADDRESS>:32001
     server master02 <MASTER_02_IP_ADDRESS>:32001

   1	Forward the logs to systemd journald, the log level can be set to debug to increase verbosity.
   2	Define if it will run in a chroot.
   4	This timeout is set to 24h in order to allow long connections when accessing pod logs or port forwarding.
   5	URL to expose HAProxy stats on port 9000, it is accessible at http://loadbalancer:9000/stats
   3	The performed health checks will expect a 200 return code
   6	Kubernetes apiserver listening on port 6443, the checks are performed against https://MASTER_XX_IP_ADDRESS:6443/healthz
   7	Dex listening on port 32000, it must be accessible through the load balancer for RBAC authentication, the checks are performed against https://MASTER_XX_IP_ADDRESS:32000/healthz
   8	Gangway listening on port 32001, it must be accessible through the load balancer for RBAC authentication, the checks are performed against https://MASTER_XX_IP_ADDRESS:32001/

6. Configure firewalld to open up port 6443. As root, run:

   firewall-cmd --zone=public --permanent --add-port=6443/tcp
   firewall-cmd --zone=public --permanent --add-port=32000/tcp
   firewall-cmd --zone=public --permanent --add-port=32001/tcp
   firewall-cmd --reload

7. Start and enable HAProxy. As root, run:

   systemctl enable --now haproxy

3.1.5.2.2 Verifying the Load Balancer #

Important

The SUSE CaaS Platform cluster must be up and running for this to produce any useful results. This step can only be performed after Chapter 4, Bootstrapping the Cluster is completed successfully.

To verify that the load balancer works, you can run a simple command to repeatedly retrieve cluster information from the master nodes. Each request should be forwarded to a different master node.

From your workstation, run:

while true; do skuba cluster status; sleep 1; done;

There should be no interruption in the skuba cluster status running command.

On the load balancer virtual machine, check the logs to validate that each request is correctly distributed in a round robin way.

# journalctl -flu haproxy
haproxy[2525]: 10.0.0.47:59664 [30/Sep/2019:13:33:20.578] apiserver apiserver/master00 1/0/578 9727 -- 18/18/17/3/0 0/0
haproxy[2525]: 10.0.0.47:59666 [30/Sep/2019:13:33:22.476] apiserver apiserver/master01 1/0/747 9727 -- 18/18/17/7/0 0/0
haproxy[2525]: 10.0.0.47:59668 [30/Sep/2019:13:33:24.522] apiserver apiserver/master02 1/0/575 9727 -- 18/18/17/7/0 0/0
haproxy[2525]: 10.0.0.47:59670 [30/Sep/2019:13:33:26.386] apiserver apiserver/master00 1/0/567 9727 -- 18/18/17/3/0 0/0
haproxy[2525]: 10.0.0.47:59678 [30/Sep/2019:13:33:28.279] apiserver apiserver/master01 1/0/575 9727 -- 18/18/17/7/0 0/0
haproxy[2525]: 10.0.0.47:59682 [30/Sep/2019:13:33:30.174] apiserver apiserver/master02 1/0/571 9727 -- 18/18/17/7/0 0/0

The JeOS image used to install on SUSE OpenStack Cloud comes only with the basic kernel pre-installed. This will be insufficient to run cilium. Please make sure that you install the kernel-default package on all cluster nodes before proceeding.

You will use Terraform to deploy the required master and worker cluster nodes (plus a load balancer) to SUSE OpenStack Cloud and then use the skuba tool to bootstrap the Kubernetes cluster on top of those.

Note: The default user is 'sles'

The SUSE Linux Enterprise Server 15 SP2 images for SUSE OpenStack Cloud come with predefined user sles, which you use to log in to the cluster nodes. This user has been configured for password-less 'sudo' and is the one recommended to be used by Terraform and skuba.

Important

CRI-O proxy settings must be adjusted on all nodes before joining the cluster!

Please refer to: https://documentation.suse.com/suse-caasp/4.5/html/caasp-admin/_miscellaneous.html#_configuring_httphttps_proxy_for_cri_o

In some environments you must configure the container runtime to access the container registries through a proxy. In this case, please refer to: SUSE CaaS Platform Admin Guide: Configuring HTTP/HTTPS Proxy for CRI-O

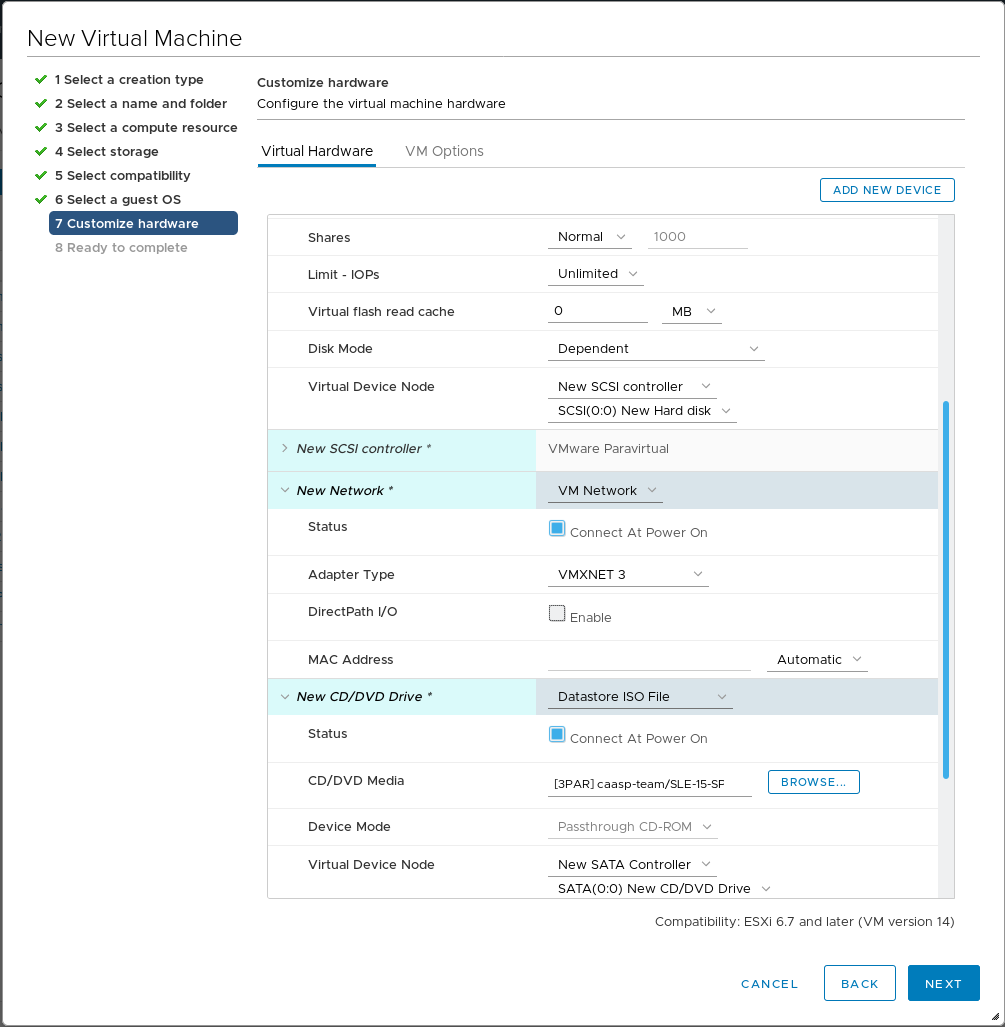

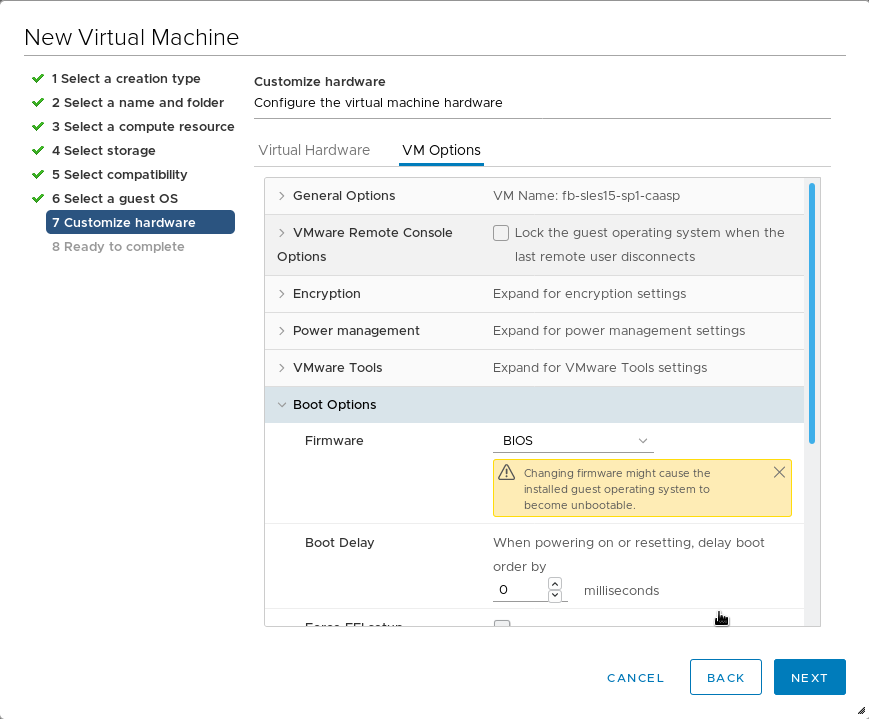

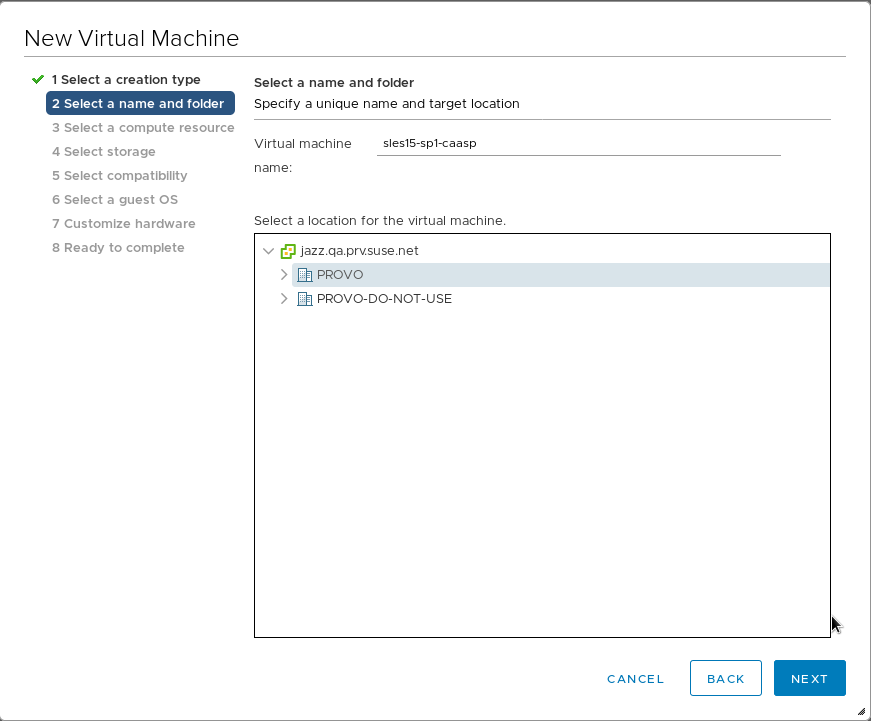

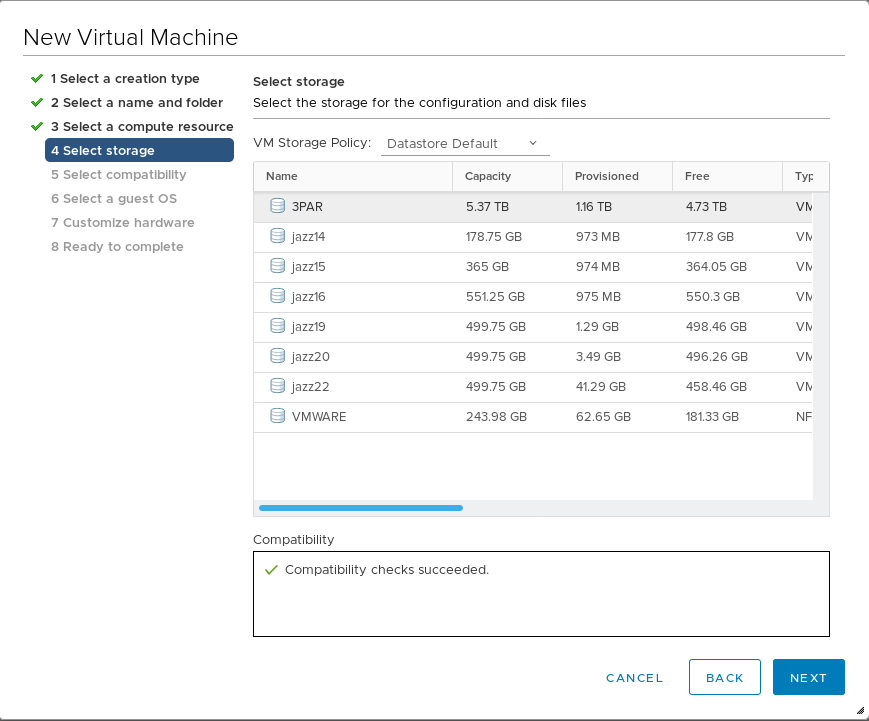

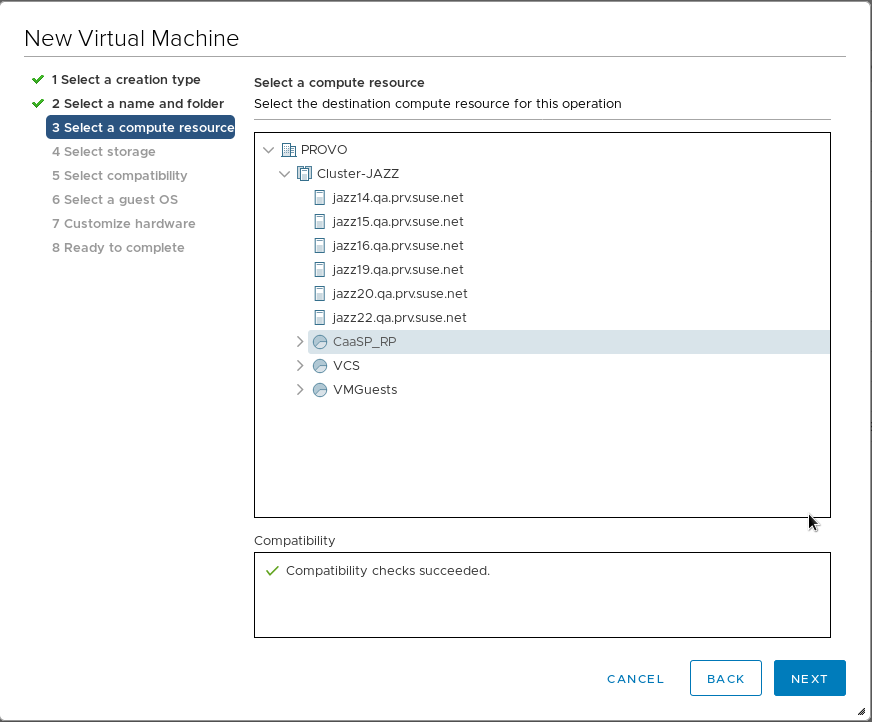

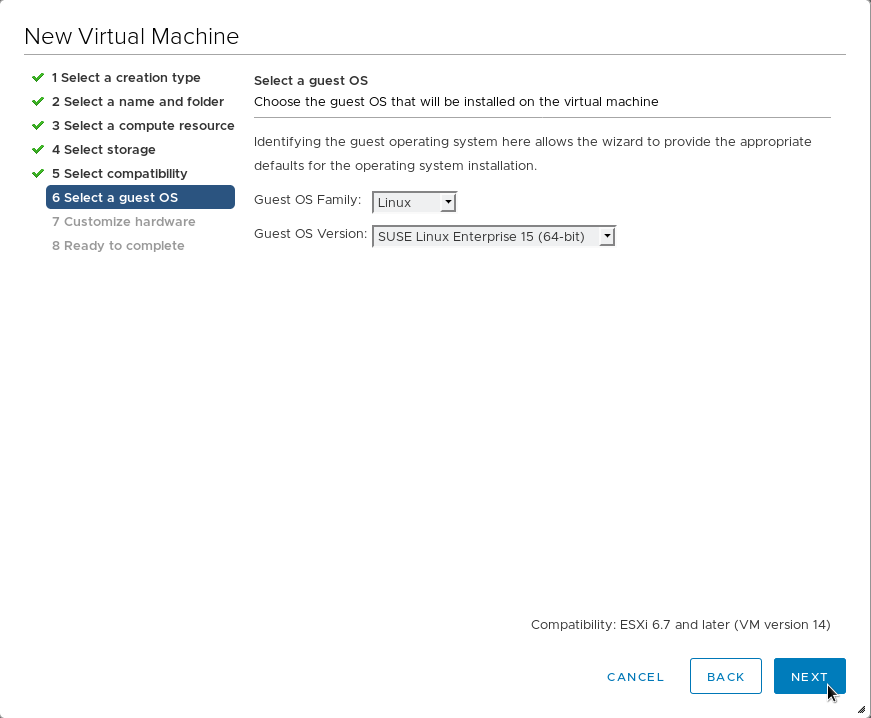

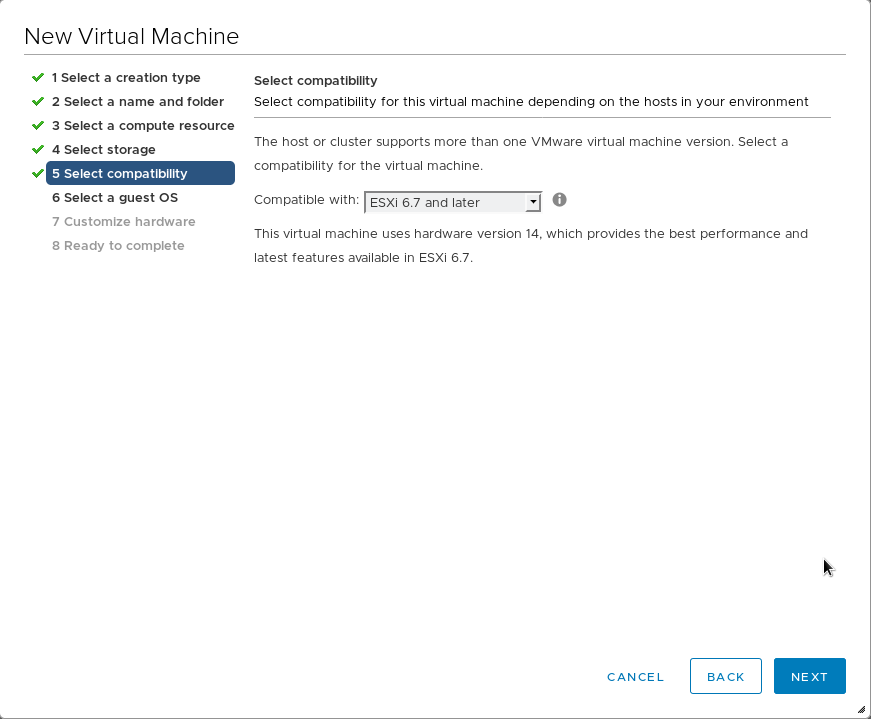

You can deploy SUSE CaaS Platform onto existing VMware instances using AutoYaST or create a VMware template that will also create the instances. You must choose one method to deploy the entire cluster!

Please follow the instructions for you chosen method below and ignore the instructions for the other method.

Note

If you choose the AutoYaST method, please ignore all the following steps for the VMware template creation.

For each VM deployment, follow the AutoYaST installation method used for deployment on bare metal machines as described in Section 3.4, “Deployment on Bare Metal or KVM”.

Important

CRI-O proxy settings must be adjusted on all nodes before joining the cluster!

In some environments you must configure the container runtime to access the container registries through a proxy. In this case, please refer to: SUSE CaaS Platform Admin Guide: Configuring HTTP/HTTPS Proxy for CRI-O

Once the AutoYaST file is available in the network that the machines will be configured in, you can start deploying machines.

The default production scenario consists of 6 nodes:

Depending on the type of load balancer you wish to use, you need to deploy at least 5 machines to serve as cluster nodes and provide a load balancer from the environment.

The load balancer must point at the machines that are assigned to be used as master nodes in the future cluster.

Tip

If you do not wish to use infrastructure load balancers, please deploy additional machines and refer to Section 3.1.5, “Load Balancer”.

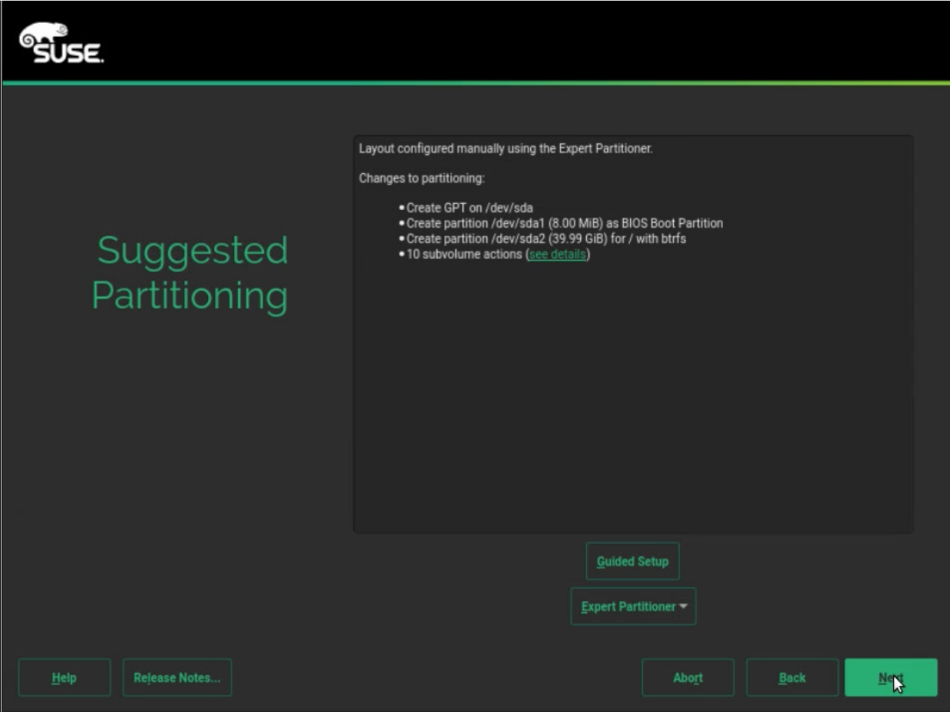

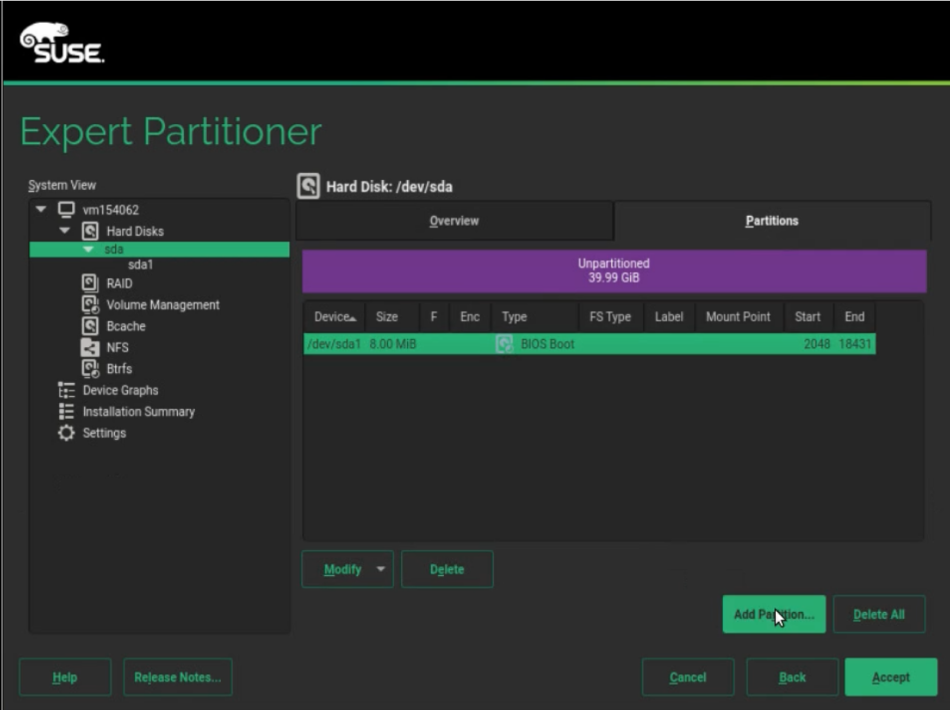

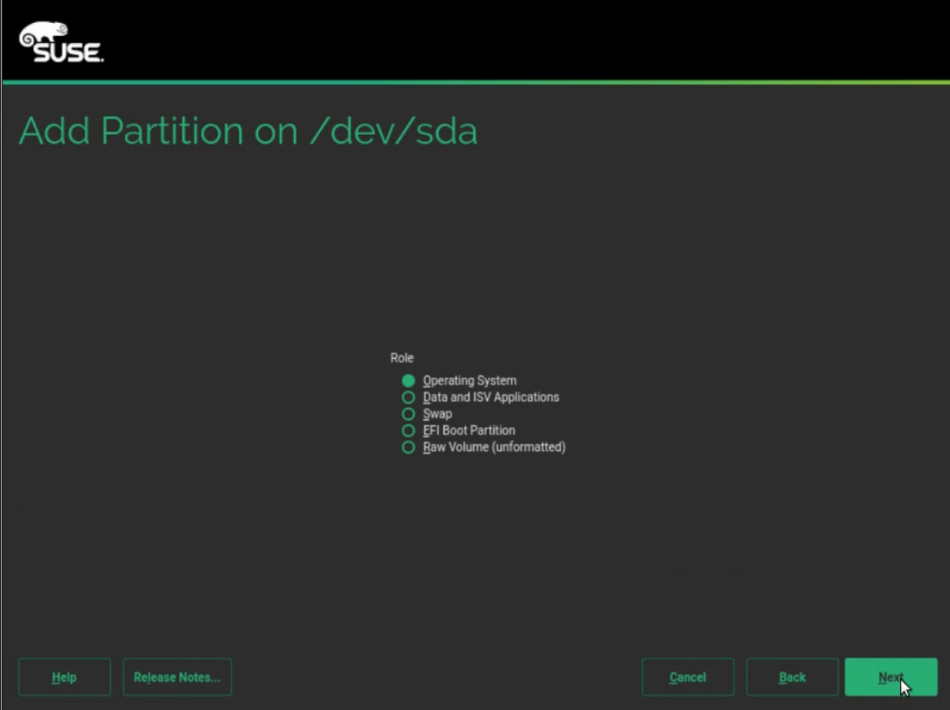

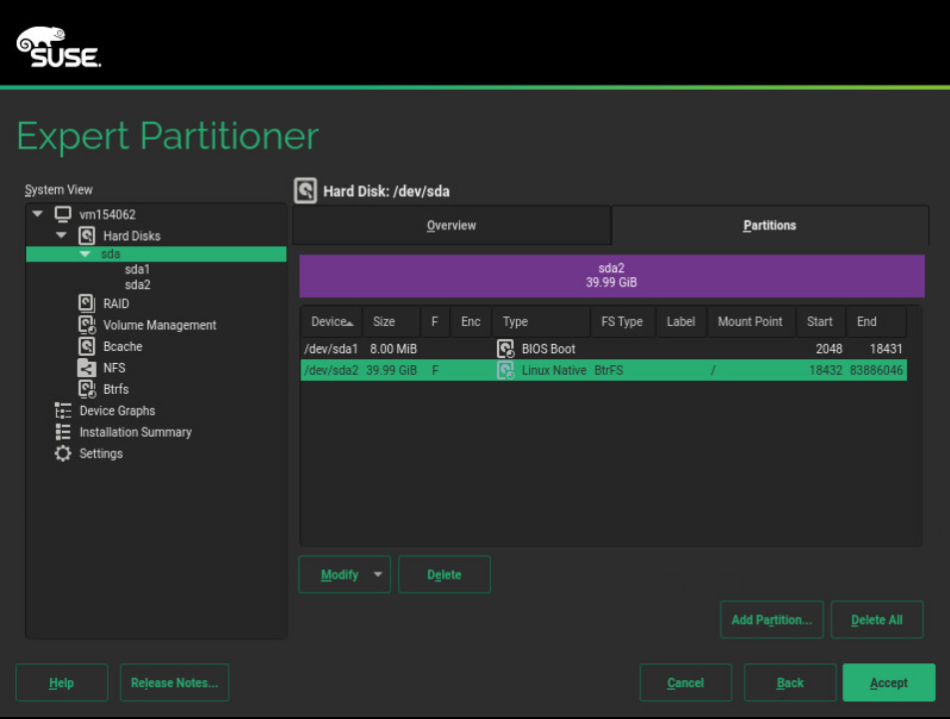

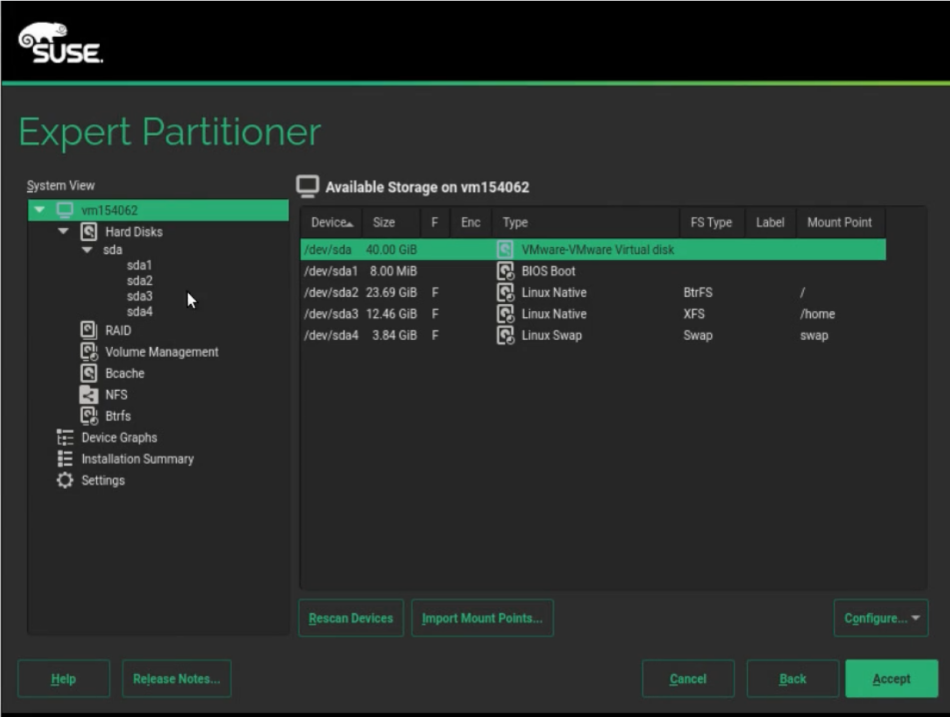

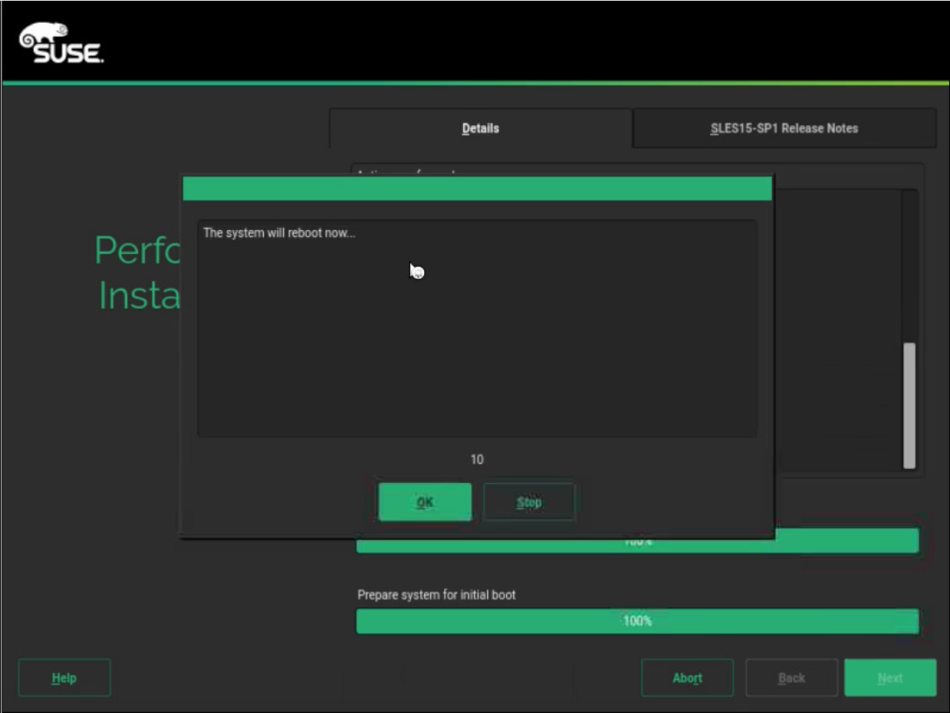

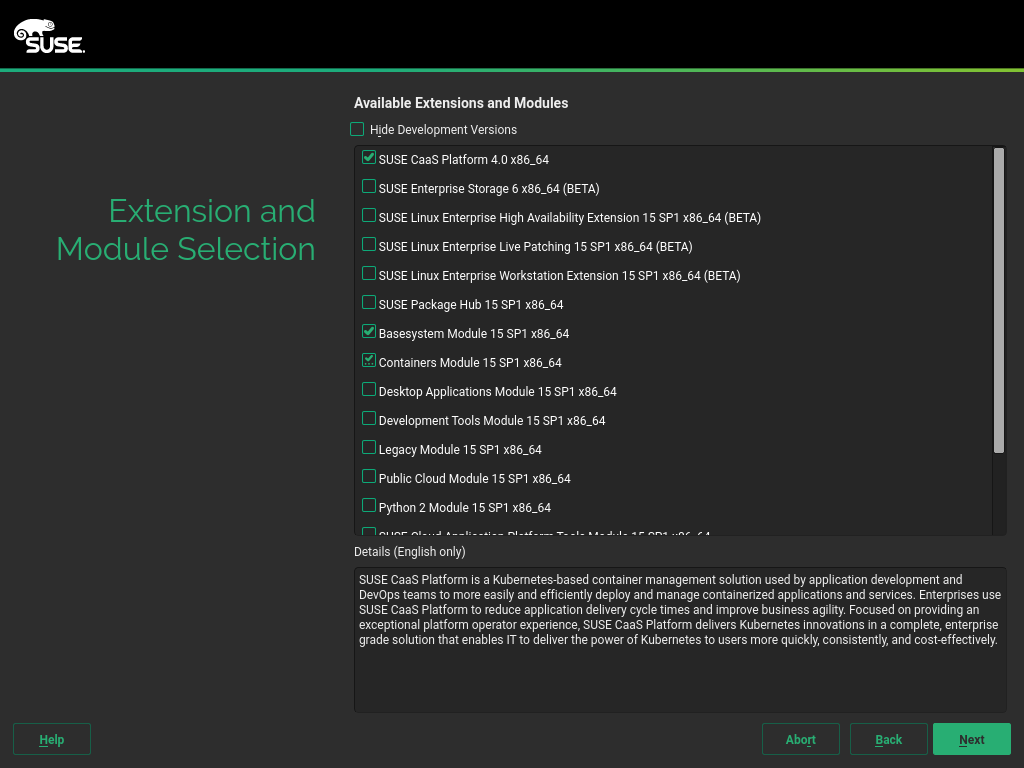

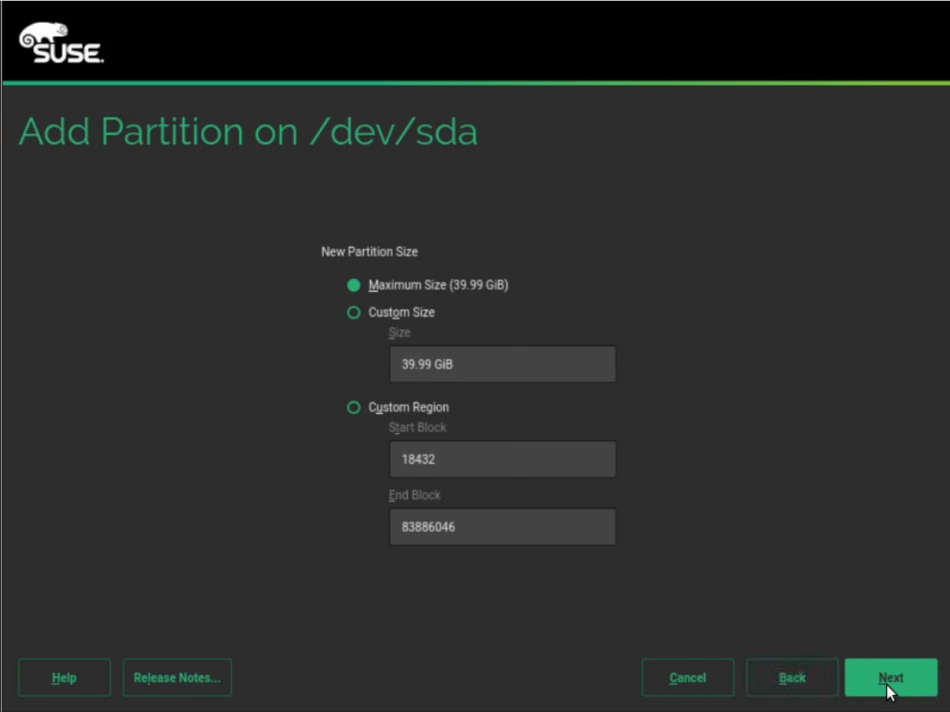

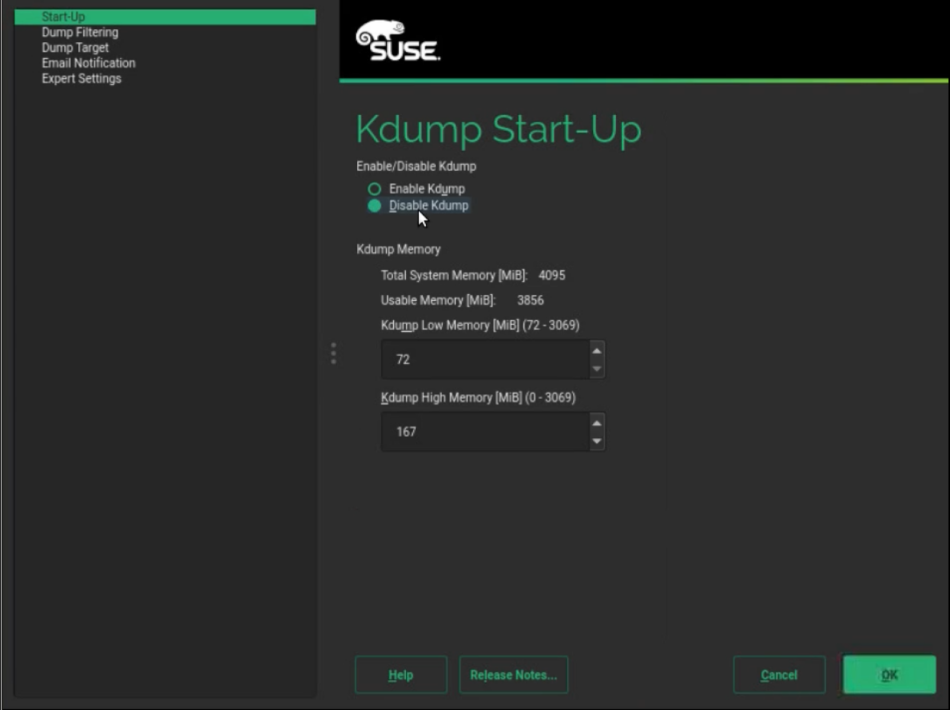

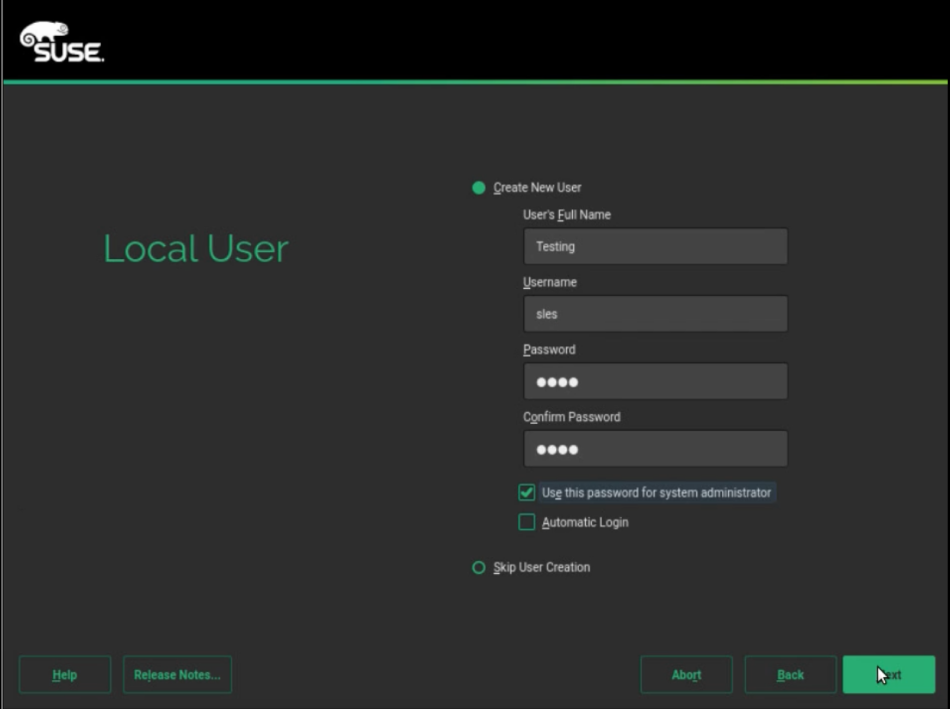

Install SUSE Linux Enterprise Server 15 SP2 from your preferred medium and follow the steps for Invoking the Auto-Installation Process

Provide autoyast=https://[webserver/path/to/autoyast.xml] during the SUSE Linux Enterprise Server 15 SP2 installation.

3.4.3.1 SUSE Linux Enterprise Server Installation #

Note

Use AutoYaST and make sure to use a staged frozen patchlevel via RMT/SUSE Manager to ensure a 100% reproducible setup. RMT Guide

Once the machines have been installed using the AutoYaST file, you are now ready proceed with Chapter 4, Bootstrapping the Cluster.

Retrieve your SUSE CaaS Platform registration code and run the following. Substitute <CAASP_REGISTRATION_CODE> for the code from Section 3.1.2, “Registration Code”.

SUSEConnect -p sle-module-containers/15.2/x86_64
SUSEConnect -p sle-module-public-cloud/15.2/x86_64

SUSEConnect -p caasp/4.5/x86_64 -r <CAASP_REGISTRATION_CODE>

Repeat all preparation steps for any cluster nodes you wish to join. You can then proceed with Chapter 4, Bootstrapping the Cluster.

The AWS deployment created by our Terraform template files leads to the creation of the infrastructure described in the next paragraphs.

On the management machine, find the Terraform template files for AWS in /usr/share/caasp/terraform/aws. These files have been installed as part of the management pattern (sudo zypper in -t pattern SUSE-CaaSP-Management).

Copy this folder to a location of your choice as the files need adjustment.

mkdir -p ~/caasp/deployment/
cp -r /usr/share/caasp/terraform/aws/ ~/caasp/deployment/
cd ~/caasp/deployment/aws/

Once the files are copied, rename the terraform.tfvars.example file to terraform.tfvars:

cp terraform.tfvars.example terraform.tfvars

Edit the terraform.tfvars file and add/modify the following variables:

# prefix that all of the booted machines will use
# IMPORTANT, please enter unique identifier below as value of
# stack_name variable to not interfere with other deployments
stack_name = "caasp" 1

# Number of master nodes
masters = 1 2

# Number of worker nodes
workers = 2 3

# ssh keys to inject into all the nodes
# EXAMPLE:
# authorized_keys = [
#   "ssh-rsa <key-content>"
# ]
authorized_keys = [ 4
  "ssh-rsa <example_key> example@example.com"
]

# To register CaaSP product please use ONLY ONE of the following method
#
# SUSE CaaSP Product Product Key:
#caasp_registry_code = ""  5
#
# SUSE Repository Mirroring Server Name (FQDN):
#rmt_server_name = "rmt.example.com"  6

# List of VPC IDs to join via VPC peer link
#peer_vpc_ids = ["vpc-id1", "vpc-id2"] 7

# Name of the IAM profile to associate to control plane nodes
# Leave empty to have terraform create one.
# This is required to have AWS CPI support working properly.
#
# Note well: you must  have the right set of permissions.
# iam_profile_master = "caasp-k8s-master-vm-profile" 8

# Name of the IAM profile to associate to worker nodes.
# Leave empty to have terraform create one.
# This is required to have AWS CPI support working properly.
#
# Note well: you must  have the right set of permissions.
#iam_profile_worker = "caasp-k8s-worker-vm-profile" 9

Tip

You can set timezone and other parameters before deploying the nodes by modifying the cloud-init template:

• ~/caasp/deployment/aws/cloud-init/cloud-init.yaml.tpl

You can enter the registration code for your nodes in ~/caasp/deployment/aws/registration.auto.tfvars instead of the terraform.tfvars file.

Substitute CAASP_REGISTRATION_CODE for the code from Section 3.1.2, “Registration Code”.

# SUSE CaaSP Product Key
caasp_registry_code = "<CAASP_REGISTRATION_CODE>"

This is required so all the deployed nodes can automatically register with SUSE Customer Center and retrieve packages.

The last step before deploying is to provide the credentials as environment variables that Terraform will automatically retrieve:

To do so, source the following variables, for security reasons turn off bash history:

set +o history
export AWS_ACCESS_KEY_ID="AKIAIOSFODNN7EXAMPLE"
export AWS_SECRET_ACCESS_KEY="wJalrXUtnFEMI/K7MDENG/bPxRfiCYEXAMPLEKEY"
export AWS_DEFAULT_REGION="eu-central-1"
set -o history

It can also be stored in a file, for example aws-credentials:

AWS_ACCESS_KEY_ID="AKIAIOSFODNN7EXAMPLE"
AWS_SECRET_ACCESS_KEY="wJalrXUtnFEMI/K7MDENG/bPxRfiCYEXAMPLEKEY"
AWS_DEFAULT_REGION="eu-central-1"

And sourced:

set -a; source aws-credentials; set +a

Now you can deploy the nodes by running:

terraform init
terraform plan
terraform apply

Check the output for the actions to be taken. Type "yes" and confirm with Enter when ready. Terraform will now provision all the cluster infrastructure.

Important: Public IPs for Nodes

skuba currently cannot access nodes through a bastion host, so all the nodes in the cluster must be directly reachable from the machine where skuba is being run. skuba could be run from one of the master nodes or from a pre-existing bastion host located inside of a joined VPC as described in Section 3.6.1.3, “Join Already Existing VPCs”.

Important: Note Down IP/FQDN For the Nodes

The IP addresses and FQDN of the generated machines will be displayed in the Terraform output during the cluster node deployment. You need these information later to deploy SUSE CaaS Platform.

These information can be obtained at any time by executing the terraform output command within the directory from which you executed Terraform.

Connecting to the cluster nodes can be accomplished only via SSH key-based authentication thanks to the ssh-public key injection done earlier via cloud-init. You can use the predefined ec2-user user to log in.

If the ssh-agent is running in the background, run:

ssh ec2-user@<node-ip-address>

Without the ssh-agent running, run:

ssh ec2-user@<node-ip-address> -i <path-to-your-ssh-private-key>

Once connected, you can execute commands using password-less sudo.

First you need to install skuba on a management machine, like your local workstation:

Tip

Example deployment configuration files for each deployment scenario are installed under /usr/share/caasp/terraform/, or in case of the bare metal deployment: /usr/share/caasp/autoyast/.

Important

CRI-O proxy settings must be adjusted manually on all nodes before joining the cluster!

In some environments you must configure the container runtime to access the container registries through a proxy. In this case, please refer to: SUSE CaaS Platform Admin Guide: Configuring HTTP/HTTPS Proxy for CRI-O

Warning: Secure configuration files access

The directory created during this step contains configuration files that allow full administrator access to your cluster. Apply best practices for access control to this folder.

Now you can initialize the cluster on the deployed machines. As --control-plane enter the IP/FQDN of your load balancer. If you do not use a load balancer use your first master node.

Important

If you are deploying on a cloud provider you must enable vendor specific integrations (CPI). Please refer further below to Section 4.2.3.1, “Enabling Cloud Provider Integration”.

skuba cluster init --control-plane <LB_IP/FQDN> <CLUSTER_NAME>

cluster init generates the folder named <CLUSTER_NAME> and initializes the directory that will hold the configuration (kubeconfig) for the cluster.

Important

The IP/FQDN must be reachable by every node of the cluster and therefore 127.0.0.1/localhost cannot be used.

4.2.1.1 Transitioning from Docker to CRI-O #

SUSE CaaS Platform 4.5.2 default configuration uses the CRI-O Container Engine in conjunction with Docker Linux capabilities. This means SUSE CaaS Platform 4.5.2 containers run on top of CRI-O with the following additional Linux capabilities: audit_write, setfcap and mknod. This measure ensures a transparent transition and seamless compatibility with workloads running on the previous SUSE CaaS Platform versions and out-of-the-box Docker compatibility.

In case you wish to use unmodified CRI-O, use the --strict-capability-defaults option during the initial setup when you run skuba cluster init, which will create the vanilla CRI-O configuration:

skuba cluster init --strict-capability-defaults

Please be aware that this might result in incompatibility with your previously running workloads, unless you explicitly define the additional Linux capabilities required on top of CRI-O defaults.

Important

After the bootstrap of the Kubernetes cluster there will be no easy way to revert this modification. Please choose wisely.

Inspect the kubeadm-init.conf file inside your cluster definition and set extra configuration settings supported by kubeadm. The latest supported version is v1beta1. Later, when you later run skuba node bootstrap, kubeadm will read kubeadm-init.conf and will forcefully set certain settings to the ones required by SUSE CaaS Platform.

networking:
  podSubnet: 10.244.0.0/16
  serviceSubnet: 10.96.0.0/12

Before bootstrapping the cluster, it is advisable to perform some additional configuration.

4.2.3.1 Enabling Cloud Provider Integration #

Enable cloud provider integration to take advantage of the underlying cloud platforms and automatically manage resources like the Load Balancer, Nodes (Instances), Network Routes and Storage services.

If you want to enable cloud provider integration with different cloud platforms, initialize the cluster with the flag --cloud-provider <CLOUD PROVIDER>. The only currently available options are openstack, aws and vsphere, but more options are planned.

Important: Cleanup

By enabling CPI providers your Kubernetes cluster will be able to provision cloud resources on its own (eg: Load Balancers, Persistent Volumes). You will have to manually clean these resources before you destroy the cluster with Terraform.

Not removing resources like Load Balancers created by the CPI will result in Terraform timing out during destroy operations.

Persistent volumes created with the retain policy will exist inside of the external cloud infrastructure even after the cluster is removed.

4.2.3.1.1 OpenStack CPI #

Define the cluster using the following command:

skuba cluster init --control-plane <LB_IP/FQDN> --cloud-provider openstack <CLUSTER_NAME>

Running the above command will create a directory <CLUSTER_NAME>/cloud/openstack with a README.md and an openstack.conf.template in it. Copy openstack.conf.template or create an openstack.conf file inside <CLUSTER_NAME>/cloud/openstack, according to the supported format. The supported format and content can be found in the official Kubernetes documentation:

https://v1-18.docs.kubernetes.io/docs/concepts/cluster-administration/cloud-providers/#openstack

Warning

The file <CLUSTER_NAME>/cloud/openstack/openstack.conf must not be freely accessible. Please remember to set proper file permissions for it, for example 600.

4.2.3.2 Example OpenStack Cloud Provider Configuration #

You can find the required parameters in OpenStack RC File v3.

[Global]
auth-url=<OS_AUTH_URL> 1
username=<OS_USERNAME> 2
password=<OS_PASSWORD> 3
tenant-id=<OS_PROJECT_ID> 4
domain-name=<OS_USER_DOMAIN_NAME> 5
region=<OS_REGION_NAME> 6
ca-file="/etc/pki/trust/anchors/SUSE_Trust_Root.pem" 7
[LoadBalancer]
lb-version=v2 8
subnet-id=<PRIVATE_SUBNET_ID> 9
floating-network-id=<PUBLIC_NET_ID> 10
create-monitor=yes 11
monitor-delay=1m 12
monitor-timeout=30s 13
monitor-max-retries=3 14
[BlockStorage]
bs-version=v2 15
ignore-volume-az=true 16

1	(required) Specifies the URL of the Keystone API used to authenticate the user. This value can be found in Horizon (the OpenStack control panel). under Project > Access and Security > API Access > Credentials.
2	(required) Refers to the username of a valid user set in Keystone.
3	(required) Refers to the password of a valid user set in Keystone.
4	(required) Used to specify the ID of the project where you want to create your resources.
5	(optional) Used to specify the name of the domain your user belongs to.
6	(optional) Used to specify the identifier of the region to use when running on a multi-region OpenStack cloud. A region is a general division of an OpenStack deployment.
7	(optional) Used to specify the path to your custom CA file.
8	(optional) Used to override automatic version detection. Valid values are v1 or v2. Where no value is provided, automatic detection will select the highest supported version exposed by the underlying OpenStack cloud.
9	(optional) Used to specify the ID of the subnet you want to create your load balancer on. Can be found at Network > Networks. Click on the respective network to get its subnets.
10	(optional) If specified, will create a floating IP for the load balancer.
11	(optional) Indicates whether or not to create a health monitor for the Neutron load balancer. Valid values are true and false. The default is false. When true is specified then monitor-delay, monitor-timeout, and monitor-max-retries must also be set.
12	(optional) The time between sending probes to members of the load balancer. Ensure that you specify a valid time unit.
13	(optional) Maximum time for a monitor to wait for a ping reply before it times out. The value must be less than the delay value. Ensure that you specify a valid time unit.
14	(optional) Number of permissible ping failures before changing the load balancer member’s status to INACTIVE. Must be a number between 1 and 10.
15	(optional) Used to override automatic version detection. Valid values are v1, v2, v3 and auto. When auto is specified, automatic detection will select the highest supported version exposed by the underlying OpenStack cloud.
16	(optional) Influences availability zone, use when attaching Cinder volumes. When Nova and Cinder have different availability zones, this should be set to true.

After setting options in the openstack.conf file, please proceed with Section 4.2.5, “Cluster Bootstrap”.

Important

When cloud provider integration is enabled, it’s very important to bootstrap and join nodes with the same node names that they have inside Openstack, as these names will be used by the Openstack cloud controller manager to reconcile node metadata.

4.2.3.2.1 Amazon Web Services (AWS) CPI #

Define the cluster using the following command:

skuba cluster init --control-plane <LB IP/FQDN> --cloud-provider aws <CLUSTER_NAME>

Running the above command will create a directory <CLUSTER_NAME>/cloud/aws with a README.md file in it. No further configuration files are needed.

The supported format and content can be found in the official Kubernetes documentation.

Important

When cloud provider integration is enabled, it’s very important to bootstrap and join nodes with the same node names that they have inside AWS, as these names will be used by the AWS cloud controller manager to reconcile node metadata.

You can use the "private dns" values provided by the Terraform output.

4.2.3.2.2 vSphere CPI (VCP) #

Define the cluster using the following command:

skuba cluster init --control-plane <LB_IP/FQDN> --cloud-provider vsphere <CLUSTER_NAME>

Running the above command will create a directory <CLUSTER_NAME>/cloud/vsphere with a README.md and a vsphere.conf.template in it. Copy vsphere.conf.template or create a vsphere.conf file inside <CLUSTER_NAME>/cloud/vsphere, according to the supported format.

The supported format and content can be found in the official Kubernetes documentation.

Warning

The file <CLUSTER_NAME>/cloud/vsphere/vsphere.conf must not be freely accessible. Please remember to set proper file permissions for it, for example 600.

4.2.3.3 Example vSphere Cloud Provider Configuration #

[Global]
user = "<VC_ADMIN_USERNAME>" 1
password = "<VC_ADMIN_PASSWORD>" 2
port = "443" 3
insecure-flag = "1" 4
[VirtualCenter "<VC_IP_OR_FQDN>"] 5
datacenters = "<VC_DATACENTERS>" 6
[Workspace]
server = "<VC_IP_OR_FQDN>" 7
datacenter = "<VC_DATACENTER>" 8
default-datastore = "<VC_DATASTORE>" 9
resourcepool-path = "<VC_RESOURCEPOOL_PATH>" 10
folder = "<VC_VM_FOLDER>" 11
[Disk]
scsicontrollertype = pvscsi 12
[Network]
public-network = "VM Network" 13
[Labels] 14
region = "<VC_DATACENTER_TAG>" 15
zone = "<VC_CLUSTER_TAG>" 16

1	(required) Refers to the vCenter username for vSphere cloud provider to authenticate with.
2	(required) Refers to the vCenter password for vCenter user specified with user.
3	(optional) The vCenter Server Port. The default is 443 if not specified.
4	(optional) Set to 1 if vCenter used a self-signed certificate.
5	(required) The IP address of the vCenter server.
6	(required) The datacenter name in vCenter where Kubernetes nodes reside.
7	(required) The IP address of the vCenter server for storage provisioning. Usually the same as VirtualCenter
8	(required) The datacenter to provision temporary VMs for volume provisioning.
9	(required) The default datastore to provision temporary VMs for volume provisioning.
10	(required) The resource pool to provision temporary VMs for volume provisioning.
11	(required) The vCenter VM folder where Kubernetes nodes are in.
12	(required) Defines the SCSI controller in use on the VMs. Almost always set to pvscsi.
13	(optional) The network in vCenter where Kubernetes nodes should join. The default is "VM Network" if not specified.
14	(optional) The feature flag for zone and region support. Important The zone and region tags must exist and assigned to datacenter and cluster before bootstrap. Instruction to tag zones and regions, refer to: https://vmware.github.io/vsphere-storage-for-kubernetes/documentation/zones.html#tag-zones-and-regions-in-vcenter.
15	(optional) The category name of the tag assigned to the vCenter datacenter.
16	(optional) The category name of the tag assigned to the vCenter cluster.

After setting options in the vsphere.conf file, please proceed with Section 4.2.5, “Cluster Bootstrap”.

Important: Set vSphere virtual machine hostnames

When cloud provider integration is enabled, it’s very important to bootstrap and join nodes with the node names same as vSphere virtual machine’s hostnames. These names will be used by the vSphere cloud controller manager to reconcile node metadata.

Important: Enable disk.EnableUUID.

Each virtual machine requires to have disk.EnableUUID enabled to successfully mount the virtual disks.

Clusters provisioned following Deploying VMs from the Template with cpi_enable = true automatically enables disk.EnableUUID.

For clusters provisioned by any other method, ensure virtual machines are set to use disk.EnableUUID.

For more information, refer to: Configure Kubernetes Cluster Virtual Machines .

Important: Create a Folder For Your Virtual Machines.

All virtual machines must exist in a folder and provide the name of that folder as the folder variable in the vsphere.conf before bootstrap.

Clusters provisioned following Deploying VMs from the Template with cpi_enable = true automatically create and place all cluster node virtual machines inside a *-cluster folder.

For clusters provisioned by any other method, make sure to create and move all cluster node virtual machines to a folder.

connectors:
- type: ldap
  id: 389ds
  name: 389ds
  config:
    host: ldap.example.org:636 1 2
    rootCAData: <BASE64_ENCODED_PEM_FILE> 3
    bindDN: cn=user-admin,ou=Users,dc=example,dc=org 4
    bindPW: <BIND_DN_PASSWORD> 5
    usernamePrompt: Email Address 6
    userSearch:
      baseDN: ou=Users,dc=example,dc=org 7
      filter: "(objectClass=person)" 8
      username: mail 9
      idAttr: DN 10
      emailAttr: mail 11
      nameAttr: cn 12

--blocking-pod-selector=<LABEL_KEY_1>=<LABEL_VALUE_1>,<LABEL_KEY_2>=<LABEL_VALUE_2>

kubectl apply -k <CLUSTER_NAME>/addons/kured/

Note

By default, any prometheus alert blocks a node from reboot. However you can filter specific alerts to be ignored via the --alert-filter-regexp flag.

Important

The <PROMETHEUS_SERVER_URL> needs to contain the protocol (http:// or https://)

Alternatively you can adapt the kured DaemonSet also later during runtime (after bootstrap) by editing <CLUSTER_NAME>/addons/kured/patches/custom.yaml and executing:

kubectl apply -k <CLUSTER_NAME>/addons/kured/

This will restart all kured pods with the additional configuration flags.
