Cluster management refers to several processes in the life cycle of a cluster and
its individual nodes: bootstrapping, joining and removing nodes.
For maximum automation and ease SUSE CaaS Platform uses the skuba tool,
which simplifies Kubernetes cluster creation and reconfiguration.
You must have the proper SSH keys for accessing the nodes set up and allow passwordless sudo
on the nodes in order to perform many of these steps. If you have followed the standard
deployment procedures this should already be the case.
Please note: If you are using a different management workstation than the one you have used during the initial deployment, you might have to transfer the SSH identities from the original management workstation.
Bootstrapping the cluster is the initial process of starting up a minimal viable cluster and joining the first master node. Only the first master node needs to be bootstrapped, later nodes can simply be joined as described in Section 2.3, “Adding Nodes”.
Before bootstrapping any nodes to the cluster,
you need to create an initial cluster definition folder (initialize the cluster).
This is done using skuba cluster init and its --control-plane flag.
For a step by step guide on how to initialize the cluster, configure updates using kured
and subsequently bootstrap nodes to it, refer to the SUSE CaaS Platform Deployment Guide.
Once you have added the first master node to the cluster using skuba node bootstrap,
use the skuba node join command to add more nodes. Joining master or worker nodes to
an existing cluster should be done sequentially, meaning the nodes have to be added
one after another and not more of them in parallel.
skuba node join --role <MASTER/WORKER> --user <USER_NAME> --sudo --target <IP/FQDN> <NODE_NAME>The mandatory flags for the join command are --role, --user, --sudo and --target.
--role serves to specify if the node is a master or worker.
--sudo is for running the command with superuser privileges,
which is necessary for all node operations.
<USER_NAME> is the name of the user that exists on your SLES machine (default: sles).
--target <IP/FQDN> is the IP address or FQDN of the relevant machine.
<NODE_NAME> is how you decide to name the node you are adding.
New master nodes that you didn’t initially include in your Terraform’s configuration have to be manually added to your load balancer’s configuration.
To add a new worker node, you would run something like:
skuba node join --role worker --user sles --sudo --target 10.86.2.164 worker1If you are using a virtual machine template for creating new cluster nodes, you must make sure that before joining the cloned machine to the cluster it is updated to the same software versions than the other nodes in the cluster.
Refer to Section 4.1, “Update Requirements”.
Nodes with mismatching package or container software versions might not be fully functional.
If you wish to remove a node temporarily, the recommended approach is to first drain the node.
When you want to bring the node back, you only have to uncordon it.
Nodes removed with this method cannot be added back to the cluster or any other skuba-initiated cluster. You must reinstall the entire node and then join it again to the cluster.
The skuba node remove command serves to permanently remove nodes.
Running this command will work even if the target virtual machine is down,
so it is the safest way to remove the node.
skuba node remove <NODE_NAME> [flags]Per default, node removal has an unlimited timeout on waiting for the node to drain.
If the node is unreachable it can not be drained and thus the removal will fail or get stuck indefinitely.
You can specify a time after which removal will be performed without waiting for the node to
drain with the flag --drain-timeout <DURATION>.
For example, waiting for the node to drain for 1 minute and 5 seconds:
skuba node remove caasp-worker1 --drain-timeout 1m5s
For a list of supported time formats run skuba node remove -h.
After the removal of a master node, you have to manually delete its entries from your load balancer’s configuration.
To reconfigure a node, for example to change the node’s role from worker to master, you will need to use a combination of commands.
Run skuba node remove <NODE_NAME>.
Reinstall the node from scratch.
Run skuba node join --role <DESIRED_ROLE> --user <USER_NAME> --sudo --target <IP/FQDN> <NODE_NAME>.
These to commands respectively define if a node is marked as schedulable or unschedulable.
This means that a node is allowed to or not allowed to receive any new workloads.
This can be useful when troubleshooting a node.
To mark a node as unschedulable run:
kubectl cordon <NODE_NAME>To mark a node as schedulable run:
kubectl uncordon <NODE_NAME>Draining a node consists of evicting all the running pods from the current node in order to perform maintenance.
This is a mandatory step in order to ensure a proper functioning of the workloads.
This is achieved using kubectl.
To drain a node run:
kubectl drain <NODE_NAME>This action will also implicitly cordon the node. Therefore once the maintenance is done, uncordon the node to set it back to schedulable.
Refer to the official Kubernetes documentation for more information: https://v1-18.docs.kubernetes.io/docs/tasks/administer-cluster/safely-drain-node/#use-kubectl-drain-to-remove-a-node-from-service
In some scenarios like maintenance windows in your datacenter or some disaster scenarios, you will want to shut down the cluster in a controlled fashion and later on bring it back up safely. Follow the following instructions to safely stop all workloads.
This document is only concerned with shutting down the SUSE CaaS Platform cluster itself.
Any real time data streaming workloads will lose data if not rerouted to an alternative cluster.
Any workloads that hold data only in memory will lose this data. Please check with the provider of your workload/application about proper data persistence in case of shutdown.
Any external storage services must be stopped/started separately. Please refer to the respective storage solution’s documentation.
Create a backup of your cluster.
Scale all applications down to zero by using either the manifests or deployment names:
Do not scale down cluster services.
kubectl scale --replicas=0 -f deployment.yamlor
kubectl scale deploy my-deployment --replicas=0Drain/cordon all worker nodes.
kubectl drain <node name>Run kubectl get nodes and make sure all your worker nodes have the status Ready,SchedulingDisabled.
Proceed to shutdown all your worker nodes on the machine level.
Now it is necessary to find out where the etcd leader is running, that is going to be the last node to shut down.
Find out which pods are running etcd:
$ kubectl get pods -n kube-system -o wide
NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
...
etcd-master-pimp-general-00 1/1 Running 0 23m 10.84.73.114 master-pimp-general-00 <none> <none>
...Then you need to get the list of active etcd members, this will also show which master node is currently the etcd leader.
Either run a terminal session on one of the etcd pods:
kubectl exec -ti -n kube-system etcd-master01 -- sh
# Now run this command
etcdctl --endpoints=https://127.0.0.1:2379 --cacert=/etc/kubernetes/pki/etcd/ca.crt --cert=/etc/kubernetes/pki/etcd/healthcheck-client.crt --key=/etc/kubernetes/pki/etcd/healthcheck-client.key member listor directly execute the command on the pod:
kubectl exec -ti -n kube-system etcd-master01 -- etcdctl --endpoints=https://127.0.0.1:2379 --cacert=/etc/kubernetes/pki/etcd/ca.crt --cert=/etc/kubernetes/pki/etcd/healthcheck-client.crt --key=/etc/kubernetes/pki/etcd/healthcheck-client.key member listThe output will be the same. Note the boolean values at the end of each line.
The current etcd leader will have true.
In this case the node master02 is the current etcd leader.
356ebc35f3e8b25, started, master02, https://172.28.0.16:2380, https://172.28.0.16:2379, true bdef0dced3caa0d4, started, master01, https://172.28.0.15:2380, https://172.28.0.15:2379, false f9ae57d57b369ede, started, master03, https://172.28.0.21:2380, https://172.28.0.21:2379, false
Shutdown all other master nodes, leaving the current etcd leader for last.
Finally, shut down the etcd leader node.
This is the first node that needs to be started back up.
To start up your cluster again, first start your etcd leader and wait until you get status Ready, like this:
skuba cluster status
NAME STATUS ROLE OS-IMAGE KERNEL-VERSION KUBELET-VERSION CONTAINER-RUNTIME HAS-UPDATES HAS-DISRUPTIVE-UPDATES CAASP-RELEASE-VERSION
master01 NotReady master SUSE Linux Enterprise Server 15 SP2 5.3.18-24.15-default v1.18.6 cri-o://1.18.2 yes yes 4.5
master02 Ready master SUSE Linux Enterprise Server 15 SP2 5.3.18-24.15-default v1.18.6 cri-o://1.18.2 yes yes 4.5
master03 NotReady master SUSE Linux Enterprise Server 15 SP2 5.3.18-24.15-default v1.18.6 cri-o://1.18.2 yes yes 4.5
worker01 NotReady,SchedulingDisabled <none> SUSE Linux Enterprise Server 15 SP2 5.3.18-24.15-default v1.18.6 cri-o://1.18.2 yes yes 4.5
worker02 NotReady,SchedulingDisabled <none> SUSE Linux Enterprise Server 15 SP2 5.3.18-24.15-default v1.18.6 cri-o://1.18.2 yes yes 4.5Start the rest of the master nodes, and wait for them to become Ready:
skuba cluster status
NAME STATUS ROLE OS-IMAGE KERNEL-VERSION KUBELET-VERSION CONTAINER-RUNTIME HAS-UPDATES HAS-DISRUPTIVE-UPDATES CAASP-RELEASE-VERSION
master01 Ready master SUSE Linux Enterprise Server 15 SP2 5.3.18-24.15-default v1.18.6 cri-o://1.18.2 yes yes 4.5
master02 Ready master SUSE Linux Enterprise Server 15 SP2 5.3.18-24.15-default v1.18.6 cri-o://1.18.2 yes yes 4.5
master03 Ready master SUSE Linux Enterprise Server 15 SP2 5.3.18-24.15-default v1.18.6 cri-o://1.18.2 yes yes 4.5
worker01 NotReady,SchedulingDisabled <none> SUSE Linux Enterprise Server 15 SP2 5.3.18-24.15-default v1.18.6 cri-o://1.18.2 yes yes 4.5
worker02 NotReady,SchedulingDisabled <none> SUSE Linux Enterprise Server 15 SP2 5.3.18-24.15-default v1.18.6 cri-o://1.18.2 yes yes 4.5Start all the workers, wait until you see them on status Ready,SchedulingDisabled:
skuba cluster status
NAME STATUS ROLE OS-IMAGE KERNEL-VERSION KUBELET-VERSION CONTAINER-RUNTIME HAS-UPDATES HAS-DISRUPTIVE-UPDATES CAASP-RELEASE-VERSION
master01 Ready master SUSE Linux Enterprise Server 15 SP2 5.3.18-24.15-default v1.18.6 cri-o://1.18.2 yes yes 4.5
master02 Ready master SUSE Linux Enterprise Server 15 SP2 5.3.18-24.15-default v1.18.6 cri-o://1.18.2 yes yes 4.5
master03 Ready master SUSE Linux Enterprise Server 15 SP2 5.3.18-24.15-default v1.18.6 cri-o://1.18.2 yes yes 4.5
worker01 Ready,SchedulingDisabled <none> SUSE Linux Enterprise Server 15 SP2 5.3.18-24.15-default v1.18.6 cri-o://1.18.2 yes yes 4.5
worker02 Ready,SchedulingDisabled <none> SUSE Linux Enterprise Server 15 SP2 5.3.18-24.15-default v1.18.6 cri-o://1.18.2 yes yes 4.5Run the command kubectl uncordon <WORKER-NODE>, for each of the worker nodes, your cluster status should now be completely Ready:
skuba cluster status
NAME STATUS ROLE OS-IMAGE KERNEL-VERSION KUBELET-VERSION CONTAINER-RUNTIME HAS-UPDATES HAS-DISRUPTIVE-UPDATES CAASP-RELEASE-VERSION
master01 Ready master SUSE Linux Enterprise Server 15 SP2 5.3.18-24.15-default v1.18.6 cri-o://1.18.2 yes yes 4.5
master02 Ready master SUSE Linux Enterprise Server 15 SP2 5.3.18-24.15-default v1.18.6 cri-o://1.18.2 yes yes 4.5
master03 Ready master SUSE Linux Enterprise Server 15 SP2 5.3.18-24.15-default v1.18.6 cri-o://1.18.2 yes yes 4.5
worker01 Ready <none> SUSE Linux Enterprise Server 15 SP2 5.3.18-24.15-default v1.18.6 cri-o://1.18.2 yes yes 4.5
worker02 Ready <none> SUSE Linux Enterprise Server 15 SP2 5.3.18-24.15-default v1.18.6 cri-o://1.18.2 yes yes 4.5Bring back all your processes by scaling them up again:
kubectl scale --replicas=N -f deployment.yamlor
kubectl scale deploy my-deployment --replicas=NReplace N with the number of replicas you want running.
Verify that all of your workloads and applications have resumed operation properly.
Software can be installed in three basic layers
Linux RPM packages, Kernel, etc. installation via AutoYaST, Terraform or Zypper.
Software that helps/controls execution of workloads in Kubernetes.
Here it entirely depends on the actual makeup of the container what can be installed and how. Please refer to your respecitve container image documentation for further details.
Installation of software in container images is beyond the scope of this document.
Applications that will be deployed to Kubernetes will typically contain all the required software to be executed. In some cases, especially when it comes to the hardware layer abstraction (storage backends, GPU), additional packages must be installed on the underlying operating system outside of Kubernetes.
The following examples show installation of required packages for Ceph, please adjust the list of
packages and repositories to whichever software you need to install.
While you can install any software package from the SLES ecosystem this falls outside of the support scope for SUSE CaaS Platform.
During the rollout of nodes you can use either AutoYaST or Terraform (depending on your chosen deployment type) to automatically install packages to all nodes.
For example, to install additional packages required by the Ceph storage backend you can modify
your autoyast.xml or tfvars.yml files to include the additional repositories and instructions to
install xfsprogs and ceph-common.
tfvars.yml
# EXAMPLE:
# repositories = {
# repository1 = "http://example.my.repo.com/repository1/"
# repository2 = "http://example.my.repo.com/repository2/"
# }
repositories = {
....
}
# Minimum required packages. Do not remove them.
# Feel free to add more packages
packages = [
"kernel-default",
"-kernel-default-base",
"xfsprogs",
"ceph-common"
]autoyast.xml
<!-- install required packages -->
<software>
<image/>
<products config:type="list">
<product>SLES</product>
</products>
<instsource/>
<patterns config:type="list">
<pattern>base</pattern>
<pattern>enhanced_base</pattern>
<pattern>minimal_base</pattern>
<pattern>basesystem</pattern>
</patterns>
<packages config:type="list">
<package>ceph-common</package>
<package>xfsprogs</package>
</packages>
</software>To install software on existing cluster nodes, you must use zypper on each node individually.
Simply log in to a node via SSH and run:
sudo zypper in ceph-common xfsprogs
As of SUSE CaaS Platform 4.5.2, Helm 3 is the default and provided by the package repository.
To install, run the following command from the location where you normally run skuba commands:
sudo zypper install helm3The process for migrating an installation from Helm 2 to Helm 3 has been documented and tested by the Helm community. Refer to:
A healthy SUSE CaaS Platform 4.5.x installation with applications deployed using Helm 2 and Tiller.
A system, which skuba and helm version 2 have run on previously.
The procedure below requires an available internet connection to install the 2to3 plugin. If the installation is in an air gapped environment, the system may need to be moved back out of the air gapped environment.
These instructions are written for a single cluster managed from a single Helm 2 installation. If more than one cluster is being managed by this installation of Helm 2, please reference https://github.com/helm/helm-2to3 for further details and do not do the clean-up step until all clusters are migrated.
This is a procedure for migrating a SUSE CaaS Platform 4.5 deployment that has used Helm 2 to deploy applications.
Install helm3 package in the same location you normally run skuba commands (alongside the helm2 package):
sudo zypper in helm3
Install the 2to3 plugin:
helm3 plugin install https://github.com/helm/helm-2to3.git
Backup Helm 2 data found in the following:
Helm 2 home folder.
Release data from the cluster. Refer to How Helm Uses ConfigMaps to Store Data for details on how Helm 2 stores release data in the cluster. This should apply similarly if Helm 2 is configured for secrets.
Move configuration from 2 to 3:
helm3 2to3 move config
After the move, if you have installed any custom plugins, then check that they work fine with Helm 3. If needed, remove and re-add them as described in https://github.com/helm/helm-2to3s.
If you have configured any local helm chart repositories, you will need to remove and re-add them. For example:
helm3 repo remove <my-custom-repo> helm3 repo add <my-custom-repo> <url-to-custom-repo> helm3 repo update
Migrate Helm releases (deployed charts) in place:
helm3 2to3 convert RELEASE
Clean up Helm 2 data:
Tiller will be cleaned up, and Helm 2 will not be usable on this cluster after cleanup.
helm3 2to3 cleanup
You may now uninstall the helm2 package and use the helm command line from the helm3 package from now on.
sudo zypper remove helm2
If you are upgrading in an air gap environment, you must manually install the "developer" version of the 2to3 plugin.
Install helm3 package in the same location you normally run skuba commands (alongside the helm2 package):
sudo zypper in helm3
Download the latest release from https://github.com/helm/helm-2to3/releases
On your internal workstation unpack the archive file:
mkdir ./helm-2to3 tar -xvf helm-2to3_0.7.0_linux_amd64.tar.gz -C ./helm-2to3
Install the plugin
export HELM_LINTER_PLUGIN_NO_INSTALL_HOOK=true helm plugin install ./helm-2to3
The expected output should contain a message like:
Development mode: not downloading versioned release. Installed plugin: 2to3
Now copy the installed plugin to a sub directory to allow manual execution
cd $HOME/.helm/plugins/helm-2to3/ mkdir bin cp 2to3 bin/2to3
Backup Helm 2 data found in the following:
Helm 2 home folder.
Release data from the cluster. Refer to How Helm Uses ConfigMaps to Store Data for details on how Helm 2 stores release data in the cluster. This should apply similarly if Helm 2 is configured for secrets.
Move configuration from 2 to 3:
helm3 2to3 move config
After the move, if you have installed any custom plugins, then check that they work fine with Helm 3. If needed, remove and re-add them as described in https://github.com/helm/helm-2to3s.
If you have configured any local helm chart repositories, you will need to remove and re-add them. For example:
helm3 repo remove <my-custom-repo> helm3 repo add <my-custom-repo> <url-to-custom-repo> helm3 repo update
Migrate Helm releases (deployed charts) in place:
helm3 2to3 convert RELEASE
Clean up Helm 2 data:
Tiller will be cleaned up, and Helm 2 will not be usable on this cluster after cleanup.
helm3 2to3 cleanup
You may now uninstall the helm2 package and use the helm command line from the helm3 package from now on.
sudo zypper remove helm2
Attempting a cluster update without updating the installed packages pattern on the management node, can lead to an incomplete or failed update.
Before updating a SUSE CaaS Platform cluster, it’s required to update packages installed by the SUSE-CaaSP-Management pattern on the management workstation.
The cluster update depends on updated skuba, but might also require new helm / Terraform or other dependencies which will be updated with the refreshed pattern.
Run sudo zypper update on the management workstation before any attempt to update the cluster.
Updating of Kubernetes and its components from one minor version to the next (for example from 1.16 to 1.17) is handled by skuba.
The reason for this is that minor updates require special plan and apply procedures.
These procedures differ for patch updates (for example 1.16.1 to 1.16.2), which are handled by skuba-update as described in Section 4.4, “Base OS Updates”.
Generally speaking: If you have other deployments not installed via Kubernetes or helm, update them last in the upgrade process.
However, if your applications/deployments in their current versions are incompatible with the Kubernetes version that you are upgrading to, you must update these applications/deployments to a compatible version before attempting a cluster upgrade.
Refer to the individual application/deployment for the requirements for Kubernetes version and dependencies.
The general procedure should look like this:
Check if all current versions of applications and deployments in the cluster will work on the new Kubernetes version you plan to install.
If an application/deployment is incompatible with the new Kubernetes version, update the application/deployment before performing any of the other upgrade steps.
Update the packages and reboot your management workstation to get all the latest changes to skuba, helm and their dependencies.
Run the commands on the management workstation.
skuba addon refresh localconfig
skuba addon upgrade plan
skuba addon upgrade apply
Apply all the configuration files that you modified for addons, the upgrade will have reset the configurations to defaults.
Check if there are addon upgrades available for the current cluster using skuba addon upgrade plan.
Check if all the deployments in the cluster are compatible with the Kubernetes release that will be installed (refer to your individual deployments' documentation).
Check if the kustomize patches manifest is compatible for the current cluster, it will do Kubernetes server-side dry-run validation and displays the error message if present. If the deployment is not compatible you must update it to ensure it working with the updated Kubernetes.
Upgrade all master nodes by sequentially running skuba node upgrade plan and skuba node upgrade apply.
Make sure to wait until all PODs/deployments/DaemonSets are up and running as expected before moving to the next node.
Upgrade all worker nodes by sequentially running skuba node upgrade plan and skuba node upgrade apply.
Make sure to wait until all PODs/deployments/DaemonSets are up and running as expected before moving to the next node.
Check if new addons are available for the new version using skuba addon upgrade plan and do Kubernetes server-side dry-run validation to validates the addon base and patches manifest.
Once all nodes are up to date, update helm and subsequently the helm deployments.
Run sudo zypper up on your management workstation to get the latest version of skuba and its dependencies.
Reboot the machine to make sure that all system changes are correctly applied.
To get an overview of the addon updates available with validating the addon base and patches manifest before being applied to the current cluster, you can run:
skuba cluster upgrade plan
This will show you a list of updates (if available) for different components installed on the cluster. If the cluster is already running the latest available versions, the output should look like this:
Current Kubernetes cluster version: 1.16.2 Latest Kubernetes version: 1.16.2 Congratulations! You are already at the latest version available
If the cluster has a new patch-level or minor Kubernetes version available, the output should look like this:
Current Kubernetes cluster version: 1.15.2 Latest Kubernetes version: 1.16.2 Upgrade path to update from 1.15.2 to 1.16.2: - 1.15.2 -> 1.16.2
Similarly, you can also fetch this information on a per-node basis with the following command:
skuba node upgrade plan <NODE>
For example, if the cluster has a node named worker0 which is running the latest available versions, the output should look like this:
Current Kubernetes cluster version: 1.16.2 Latest Kubernetes version: 1.16.2 Node worker0 is up to date
On the other hand, if this same node has a new patch-level or minor Kubernetes version available, the output should look like this:
Current Kubernetes cluster version: 1.15.2 Latest Kubernetes version: 1.16.2 Current Node version: 1.15.2 Component versions in worker0 - kubelet: 1.15.2 -> 1.16.2 - cri-o: 1.15.0 -> 1.16.0
You will get a similar output if there is a version available on a master node
(named master0 in this example):
Current Kubernetes cluster version: 1.15.2 Latest Kubernetes version: 1.16.2 Current Node version: 1.15.2 Component versions in master0 - apiserver: 1.15.2 -> 1.16.2 - controller-manager: 1.15.2 -> 1.16.2 - scheduler: 1.15.2 -> 1.16.2 - etcd: 3.3.11 -> 3.3.15 - kubelet: 1.15.2 -> 1.16.2 - cri-o: 1.15.0 -> 1.16.0
It may happen that the Kubernetes version on the control plane is too outdated for the update to progress. In this case, you would get output similar to the following:
Current Kubernetes cluster version: 1.15.0 Latest Kubernetes version: 1.15.0 Unable to plan node upgrade: at least one control plane does not tolerate the current cluster version
The control plane consists of these components:
apiserver
controller-manager
scheduler
etcd
kubelet
cri-o
Due to changes to the way skuba handles addons some existing components might be shown as new addon in the status output.
This is expected and no cause for concern. For any upgrade afterwards the addon will be considered known and only show available upgrades.
SUSE CaaS Platform 4.2.1 provides the update of Cilium from 1.5.3 to 1.6.6.
The important change in Cilium 1.6 is usage of Kubernetes CRDs instead of etcd.
skuba performs and automated migration of data from etcd to CRDs.
If that migration is not successful, skuba shows the following warning:
"Could not migrate data from etcd to CRD. Addons upgrade will be continued without it, which will result in temporary connection loss for currently existing pods and services."
That warning means that Cilium is going to regenerate all internal data on the first run after upgrade. It can result in temporary connection loss for pods and services which might take few minutes.
Each Kubernetes cluster version comes with different addons base manifests. To update your local addons cluster folder definition in-sync with current Kubernetes cluster version, please run:
skuba addon refresh localconfig
To get an overview of the addon updates available with validating the addon base and patches manifest before being applied to the current cluster, you can run:
skuba addon upgrade plan
This will show you a list of updates (if available) for different addons installed on the cluster:
Current Kubernetes cluster version: 1.17.4 Latest Kubernetes version: 1.17.4 Addon upgrades for 1.17.4: - cilium: 1.5.3 -> 1.6.6 - dex: 2.16.0 (manifest version from 5 to 6) - gangway: 3.1.0-rev4 (manifest version from 4 to 5) - metrics-server: 0.3.6 (new addon)
If the cluster is already running the latest available versions, the output should look like this:
Current Kubernetes cluster version: 1.17.4 Latest Kubernetes version: 1.17.4 Congratulations! Addons are already at the latest version available
Before updating the nodes you must apply the addon upgrades to your management workstation. Please run:
skuba addon upgrade apply
It is recommended to use a load balancer with active health checks and pool management that will take care of adding/removing nodes to/from the pool during this process.
Updates have to be applied separately to each node, starting with the control plane all the way down to the worker nodes.
Note that the upgrade via skuba node upgrade apply will:
Upgrade the containerized control plane.
Upgrade the rest of the Kubernetes system stack (kubelet, cri-o).
Restart services.
During the upgrade to a newer version, the API server will be unavailable.
During the upgrade all the pods in the worker node will be restarted so it is
recommended to drain the pods if your application requires high availability.
In most cases, the restart is handled by replicaSet.
Upgrade the master nodes:
skuba node upgrade apply --target <MASTER_NODE_IP> --user <USER> --sudo
When all master nodes are upgraded, upgrade the worker nodes as well:
skuba node upgrade apply --target <WORKER_NODE_IP> --user <USER> --sudo
Verify that your cluster nodes are upgraded by running:
skuba cluster upgrade plan
The upgrade via skuba node upgrade apply will:
upgrade the containerized control plane.
upgrade the rest of the Kubernetes system stack (kubelet, cri-o).
temporarily drain/cordon the node before starting the whole process, and then undrain/uncordon the node after the upgrade has been successfully applied.
restart services.
Once you have upgraded all nodes, please run skuba cluster upgrade plan again.
This will show if any upgrades are available that required the versions you just installed.
If there are upgrades available please repeat the procedure until no more new upgrades are shown.
Base operating system updates are handled by skuba-update, which works together
with the kured reboot daemon.
Nodes added to a cluster have the service skuba-update.timer, which is responsible for running automatic updates, activated by default.
This service calls the skuba-update utility and it can be configured with the /etc/sysconfig/skuba-update file.
skuba-update uses the flags --non-interactive and --non-interactive-include-reboot-patches. The --non-interactive flag causes zypper to use default answers to questions rather than prompting a user for answers. In non-interactive mode, the --non-interactive-include-reboot-patches flag causes patches with the rebootSuggested-flag to not be skipped. Zypper does not perform the reboot directly. Instead, kured will be used to safely schedule reboots as needed.
To disable the automatic updates on a node, simply ssh to it and then configure the skuba-update service by editing the /etc/sysconfig/skuba-update file with the following runtime options:
## Path : System/Management ## Description : Extra switches for skuba-update ## Type : string ## Default : "" ## ServiceRestart : skuba-update # SKUBA_UPDATE_OPTIONS="--annotate-only"
It is not required to reload or restart skuba-update.timer.
The --annotate-only flag makes the skuba-update utility only check if updates are available and annotate the node accordingly.
When this flag is activated no updates are installed at all.
When OS updates are disabled, then you will have to manage OS updates manually. In order to do so, you will have to call skuba-update manually on each node.
Do not use zypper up/zypper patch commands as these do not manage the Kubernetes annotations used by kured.
If you perform a manual update using these commands you might render your cluster unusable.
After that, rebooting the node will depend on whether you have also disabled reboots or not. If you have disabled reboots for this node, then you will have to follow the instructions as given in Section 4.4.2, “Completely Disabling Reboots”. Otherwise, you will have to wait until kured performs the reboot of the node
If you would like to take care of reboots manually, either as a temporary measure or permanently, you can disable them by creating a lock:
kubectl -n kube-system annotate ds kured weave.works/kured-node-lock='{"nodeID":"manual"}'This command modifies an annotation (annotate) on the daemonset (ds) named kured.
When automatic reboots are disabled, you will have to manage reboots yourself.
In order to do this, you will have to follow some steps whenever you want to issue a reboot marker for a node.
First of all, you will have to cordon and drain the node:
kubectl cordon <NODE_ID> kubectl drain --force=true \ --ignore-daemonsets=true \ 1 --delete-local-data=false \ 2 --grace-period 600 \ 3 --timeout=900s \ 4 <NODE_ID>
Core components like | |
Continues even if there are pods using | |
Running applications will be notified of termination and given 10 minutes ( | |
Draining of the node will fail after 15 minutes ( |
Depending on your deployed applications, you must adjust the values for --grace-period and --timeout to grant the applications enough time to safely shut down without losing data.
The values here are meant to represent a conservative default for an application like SUSE Cloud Application Platform.
If you do not set these values, applications might never finish and draining of the pod will hang indefinitely.
Only then you will be able to manually reboot the node safely.
Once the node is back, remember to uncordon it so it is scheduleable again:
kubectl uncordon <NODE_ID>
Perform the above steps first on control plane nodes, and afterwards on worker nodes.
If the node that should be rebooted does not contain any workload you can skip the above steps and simply reboot the node.
In exceptional circumstances, such as a node experiencing a permanent failure whilst rebooting, manual intervention may be required to remove the cluster lock:
kubectl -n kube-system annotate ds kured weave.works/kured-node-lock-
This command modifies an annotation (annotate) on the daemonset (ds) named kured.
It explicitly performs an "unset" (-) for the value for the annotation named weave.works/kured-node-lock.
For a successful migration, make sure you are at the latest 4.2 version before migrating your cluster and management workstation to SUSE CaaS Platform 4.5.
For this, please follow the upgrade guide to update all your cluster nodes and management workstation to the latest base OS updates and SUSE CaaS Platform updates. Refer to: https://documentation.suse.com/suse-caasp/4.5/html/caasp-admin/_cluster_updates.html
The node should be able to communicate with the servers for SUSE Customer Center or Repository Mirroring Tool (RMT). Other migration scenarios are covered in the SLES upgrade guide.
In order to reconnect your system to the registration server, run:
SUSEConnect -r <your SCC key> SUSEConnect -p sle-module-containers/15.1/x86_64 -r <your SCC key>
You also need the new zypper migration plugin.
This plugin is used to migrate the node itself to the latest version of SUSE CaaS Platform, such as updating the repositories to the new ones, and calling zypper dup.
This plugin is provided by the zypper-migration-plugin package.
Therefore, you need to install the zypper-migration-plugin package:
zypper -n in zypper-migration-plugin
Then, run the newly installed zypper-migration plugin (on the management node first, then on the rest of the nodes):
zypper migration
If you want migration to progress non-interactive, you can add the flags: --non-interactive --auto-agree-with-licenses
Check that all required repositories are enabled again and have the correct version. Run:
zypper lr -uE
Verify that all repositories on the following list are present and enabled:
The actual Aliases might be different from the ones shown here if they were configured differently during the initial installation of SUSE Linux Enterprise.
The URIs will have long UUID strings (update?<UUID>,product?<UUID>) attached to them. The UUIDs identify your personal licensed product or update repositories.
These have been omitted from this output example.
Check if skuba was indeed upgraded for 4.5:
skuba version
The version must be >= skuba-2.1.
skuba 2 corresponds to SUSE CaaS Platform 4.5, while skuba 1.0-1.4 corresponds to SUSE CaaS Platform 4.
And now run the skuba cluster upgrade commands as it’s done below.
First, check if there are any addons or components to upgrade before you upgrade the nodes:
skuba cluster upgrade plan skuba addon upgrade plan skuba addon upgrade apply
Then, check with cluster status if all nodes have the same Kubernetes version (which must be 1.17.x):
skuba cluster status
If not all nodes are properly upgraded to the same Kubernetes version, then the ones with an older Kubernetes version must be upgraded before attempting a migration. Refer to the update documentation of the previous version to bring all nodes to the latest update state.
Once all nodes have the same Kubernetes version, you must upgrade the CRI-O config:
skuba cluster upgrade localconfig
Run skuba node upgrade:
skuba node upgrade apply --user sles --sudo --target <IP of the node you’ve migrated>
Before repeating the same cycle with the rest of the nodes, please make sure that all the components of the kubernetes stack are running on the freshly upgraded node. You can do this with the following command:
kubectl get all -n kube-system
Now repeat the above steps for all nodes to bring them to the upgraded state.
After upgrading all the nodes, make sure you run another addon upgrade across the cluster:
skuba addon upgrade plan skuba addon upgrade apply
After following all these instructions you should be running SUSE CaaS Platform 4.5. Refer to the release notes for further information on the new features that this release brings. Enjoy!
It is good security practice not to expose the kubernetes API server on the public internet. Use network firewalls that only allow access from trusted subnets.
Users access the API using kubectl, client libraries, or by making REST requests.
Both human users and Kubernetes service accounts can be authorized for API access.
When a request reaches the API, it goes through several stages, that can be explained with the following three questions:
Authentication: who are you? This is accomplished via Section 6.3, “Authentication” to validate the user’s entity and respond to the corresponding user group after successful login.
Authorization: what kind of access do you have? This is accomplished via Section 6.5, “Role-Based Access Control (RBAC)” API, that is a set of permissions for the previously authenticated user. Permissions are purely additive (there are no "deny" rules). A role can be defined within a namespace with a Role, or cluster-wide with a ClusterRole.
Admission Control: what are you trying to do? This is accomplished via Section 6.6, “Admission Controllers”. They can modify (mutate) or validate (accept or reject) requests.
Unlike authentication and authorization, if any admission controller rejects, then the request is immediately rejected.
Users can access with a Web browser or command line to do the authentication or self-configure kubectl to access authorized resources.
Authentication is composed of:
Dex (https://github.com/dexidp/dex) is an identity provider service (idP) that uses OIDC (Open ID Connect: https://openid.net/connect/) to drive authentication for client applications. It acts as a portal to defer authentication to the provider through connected identity providers (connectors).
Client:
Web browser: Gangway (https://github.com/heptiolabs/gangway):
a Web application that enables authentication flow for your SUSE CaaS Platform.
The user can log in, authorize access, download kubeconfig, or self-configure kubectl.
Command-line: skuba auth login, a CLI application that enables authentication flow for your SUSE CaaS Platform. The user can log in, authorize access, and get kubeconfig.
For authorization (Role-Based Access Control, RBAC), administrators can use kubectl to create corresponding
RoleBinding or ClusterRoleBinding for a user or group to limit resource access.

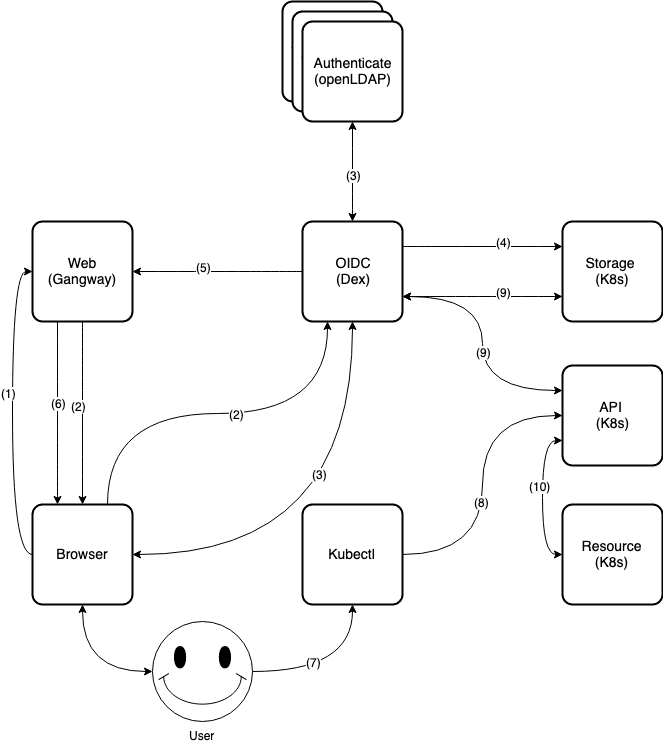

The user requests access through Gangway.
Gangway redirects to Dex.
Dex redirects to a connected identity provider (connector). User login and a request to approve access are generated.
Dex continues with OIDC authentication flow on behalf of the user and creates/updates data to Kubernetes CRDs.
Dex redirects the user to Gangway. This redirect includes (ID/refresh) tokens.

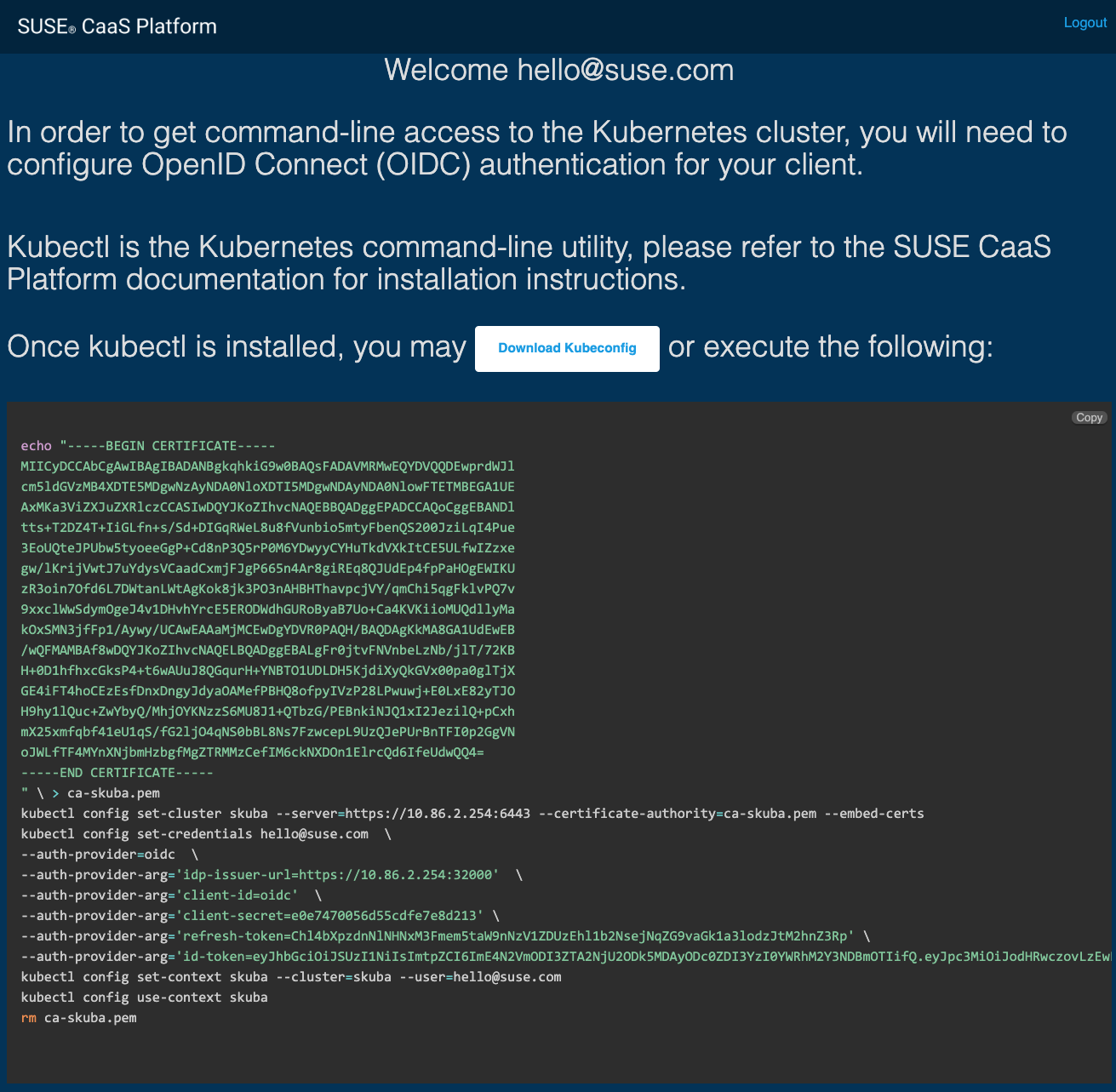

Gangway returns a link to download kubeconfig or self-configures kubectl
instructions to the user.
User downloads kubeconf or self-configures kubectl.
User uses kubectl to connect to the Kubernetes API server.
Kubernetes CRDs validate the Kubernetes API server request and return a response.
The kubectl connects to the authorized Kubernetes resources through the Kubernetes API server.

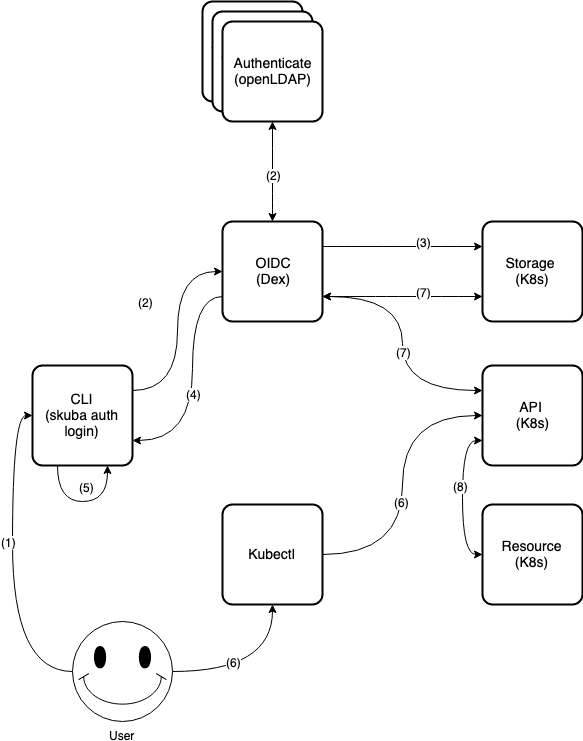

User requests access through skuba auth login with the Dex server URL,
username and password.
Dex uses received username and password to log in and approve the access request to the connected identity providers (connectors).
Dex continues with the OIDC authentication flow on behalf of the user and creates/updates data to the Kubernetes CRDs.
Dex returns the ID token and refreshes token to skuba auth login.
skuba auth login generates the kubeconfig file kubeconf.txt.
User uses kubectl to connect the Kubernetes API server.
Kubernetes CRDs validate the Kubernetes API server request and return a response.
The kubectl connects to the authorized Kubernetes resources through Kubernetes API server.
SUSE CaaS Platform supports user authentication via an external LDAP server like "389 Directory Server" (389-ds) and "Active Directory" by updating the built-in Dex LDAP connector configuration, the administrators can update LDAP identity providers before or after platform deployment.
If you already have an existed LDAP server, you could skip this part.
Deploying an External 389 Directory Server
The 389 Directory Server image registry.suse.com/caasp/v4.5/389-ds:1.4.3
will automatically generate a self-signed certificate and key.
The following instructions show how to deploy the "389 Directory Server"
with a customized configuration using container commands.
Prepare the customized 389 Directory configuration and enter it into the terminal in the following format:
DS_DM_PASSWORD= # Admin Password DS_SUFFIX="dc=example,dc=org" # Domain Suffix DATA_DIR=<PWD>/389_ds_data # Directory Server Data on Host Machine to Mount
Execute the following command to deploy 389-ds in the same terminal.
This will start a non-TLS port (389) and a TLS port (636) together with an
automatically self-signed certificate and key.
docker run -d \ -p 389:3389 \ -p 636:3636 \ -e DS_DM_PASSWORD=<DS_DM_PASSWORD> \ -e DS_SUFFIX=<DS_SUFFIX> \ -v <DATA_DIR>:/data \ --name 389-ds registry.suse.com/caasp/v4.5/389-ds:1.4.3
Deploying an External 389 Directory Server with an External Certificate
To replace the automatically generated certificate with your own, follow these steps:
Stop the running container:
docker stop 389-ds
Copy the external certificate ca.cert and pwdfile.txt to a mounted data directory <DATA_DIR>/ssca/.
ca.cert: CA Certificate.
pwdfile.txt: Password for the CA Certificate.
Copy the external certificate Server-Cert-Key.pem, Server-Cert.crt, and pwdfile-import.txt to a mounted data directory <DATA_DIR>/config/.
Server-Cert-Key.pem: PRIVATE KEY.
Server-Cert.crt: CERTIFICATE.
pwdfile-import.txt: Password for the PRIVATE KEY.
Execute the following command to run the 389 Directory Server with a mounted data the directory from the previous step:
docker start 389-ds
The error message is a warning for 389-ds version 1.4.3 when replacing external certificates.
ERR - attrcrypt_cipher_init - No symmetric key found for cipher AES in backend exampleDB, attempting to create one... INFO - attrcrypt_cipher_init - Key for cipher AES successfully generated and stored ERR - attrcrypt_cipher_init - No symmetric key found for cipher 3DES in backend exampleDB, attempting to create one... INFO - attrcrypt_cipher_init - Key for cipher 3DES successfully generated and stored
It is due to the encrypted key being stored in the dse.ldif.
When replacing the key and certificate in /data/config, 389ds searches dse.ldif for symmetric key and create one if it does not exist.
389-ds developers are planning a fix that switches 389-ds to use the nssdb exclusively.
In both directories, user-regular1 and user-regular2 are members of the k8s-users group,
and user-admin is a member of the k8s-admins group.
In Active Directory, user-bind is a simple user that is a member of the default Domain Users group.
Hence, we can use it to authenticate, because it has read-only access to Active Directory.
The mail attribute is used to create the RBAC rules.
Example LDIF configuration to initialize LDAP using an LDAP command:
dn: dc=example,dc=org objectClass: top objectClass: domain dc: example
dn: cn=Directory Administrators,dc=example,dc=org objectClass: top objectClass: groupofuniquenames cn: Directory Administrators uniqueMember: cn=Directory Manager
dn: ou=Groups,dc=example,dc=org objectClass: top objectClass: organizationalunit ou: Groups
dn: ou=People,dc=example,dc=org objectClass: top objectClass: organizationalunit ou: People
dn: ou=Users,dc=example,dc=org objectclass: top objectclass: organizationalUnit ou: Users
Example LDIF configuration to configure ACL using an LDAP command:
dn: dc=example,dc=org changetype: modify add: aci aci: (targetattr!="userPassword || aci")(version 3.0; acl "Enable anonymous access"; allow (read, search, compare) userdn="ldap:///anyone";) aci: (targetattr="carLicense || description || displayName || facsimileTelephoneNumber || homePhone || homePostalAddress || initials || jpegPhoto || labeledURI || mail || mobile || pager || photo || postOfficeBox || postalAddress || postalCode || preferredDeliveryMethod || preferredLanguage || registeredAddress || roomNumber || secretary || seeAlso || st || street || telephoneNumber || telexNumber || title || userCertificate || userPassword || userSMIMECertificate || x500UniqueIdentifier")(version 3.0; acl "Enable self write for common attributes"; allow (write) userdn="ldap:///self";) aci: (targetattr ="*")(version 3.0;acl "Directory Administrators Group";allow (all) (groupdn = "ldap:///cn=Directory Administrators, dc=example,dc=org");)
Example LDIF configuration to create user user-regular1 using an LDAP command:
dn: uid=user-regular1,ou=Users,dc=example,dc=org
changetype: add
uid: user-regular1
userPassword: SSHA_PASSWORD 1
objectClass: posixaccount
objectClass: inetOrgPerson
objectClass: person
objectClass: inetUser
objectClass: organizationalPerson
uidNumber: 1200
gidNumber: 500
givenName: User
mail: user-regular1@example.org
sn: Regular1
homeDirectory: /home/regular1
cn: User Regular1SSHA_PASSWORD: The user’s new hashed password. |
Use /usr/sbin/slappasswd to generate the SSHA hash.
/usr/sbin/slappasswd -h {SSHA} -s <USER_PASSWORD>Use /usr/bin/pwdhash to generate the SSHA hash.
/usr/bin/pwdhash -s SSHA <USER_PASSWORD>
Example LDIF configuration to create user user-regular2 using an LDAP command:
dn: uid=user-regular2,ou=Users,dc=example,dc=org
changetype: add
uid: user-regular2
userPassword: SSHA_PASSWORD 1
objectClass: posixaccount
objectClass: inetOrgPerson
objectClass: person
objectClass: inetUser
objectClass: organizationalPerson
uidNumber: 1300
gidNumber: 500
givenName: User
mail: user-regular2@example.org
sn: Regular1
homeDirectory: /home/regular2
cn: User Regular2SSHA_PASSWORD: The user’s new hashed password. |
Use /usr/sbin/slappasswd to generate the SSHA hash.
/usr/sbin/slappasswd -h {SSHA} -s <USER_PASSWORD>Use /usr/bin/pwdhash to generate the SSHA hash.
/usr/bin/pwdhash -s SSHA <USER_PASSWORD>
Example LDIF configuration to create user user-admin using an LDAP command:
dn: uid=user-admin,ou=Users,dc=example,dc=org
changetype: add
uid: user-admin
userPassword: SSHA_PASSWORD 1
objectClass: posixaccount
objectClass: inetOrgPerson
objectClass: person
objectClass: inetUser
objectClass: organizationalPerson
uidNumber: 1000
gidNumber: 100
givenName: User
mail: user-admin@example.org
sn: Admin
homeDirectory: /home/admin
cn: User AdminSSHA_PASSWORD: The user’s new hashed password. |
Use /usr/sbin/slappasswd to generate the SSHA hash.
/usr/sbin/slappasswd -h {SSHA} -s <USER_PASSWORD>Use /usr/bin/pwdhash to generate the SSHA hash.
/usr/bin/pwdhash -s SSHA <USER_PASSWORD>
Example LDIF configuration to create group k8s-users using an LDAP command:
dn: cn=k8s-users,ou=Groups,dc=example,dc=org changetype: add gidNumber: 500 objectClass: groupOfNames objectClass: posixGroup cn: k8s-users ou: Groups memberUid: user-regular1 memberUid: user-regular2
Example LDIF configuration to create group k8s-admins using an LDAP command:
dn: cn=k8s-admins,ou=Groups,dc=example,dc=org changetype: add gidNumber: 100 objectClass: groupOfNames objectClass: posixGroup cn: k8s-admins ou: Groups memberUid: user-admin
Example LDIF configuration to create user user-regular1 using an LDAP command:
dn: cn=user-regular1,ou=Users,dc=example,dc=org objectClass: top objectClass: person objectClass: organizationalPerson objectClass: user cn: user-regular1 sn: Regular1 givenName: User distinguishedName: cn=user-regular1,ou=Users,dc=example,dc=org displayName: User Regular1 memberOf: cn=Domain Users,ou=Users,dc=example,dc=org memberOf: cn=k8s-users,ou=Groups,dc=example,dc=org name: user-regular1 sAMAccountName: user-regular1 objectCategory: cn=Person,cn=Schema,cn=Configuration,dc=example,dc=org mail: user-regular1@example.org
Example LDIF configuration to create user user-regular2 using an LDAP command:
dn: cn=user-regular2,ou=Users,dc=example,dc=org objectClass: top objectClass: person objectClass: organizationalPerson objectClass: user cn: user-regular2 sn: Regular2 givenName: User distinguishedName: cn=user-regular2,ou=Users,dc=example,dc=org displayName: User Regular2 memberOf: cn=Domain Users,ou=Users,dc=example,dc=org memberOf: cn=k8s-users,ou=Groups,dc=example,dc=org name: user-regular2 sAMAccountName: user-regular2 objectCategory: cn=Person,cn=Schema,cn=Configuration,dc=example,dc=org mail: user-regular2@example.org
Example LDIF configuration to create user user-bind using an LDAP command:
dn: cn=user-bind,ou=Users,dc=example,dc=org objectClass: top objectClass: person objectClass: organizationalPerson objectClass: user cn: user-bind sn: Bind givenName: User distinguishedName: cn=user-bind,ou=Users,dc=example,dc=org displayName: User Bind memberOf: cn=Domain Users,ou=Users,dc=example,dc=org name: user-bind sAMAccountName: user-bind objectCategory: cn=Person,cn=Schema,cn=Configuration,dc=example,dc=org mail: user-bind@example.org
Example LDIF configuration to create user user-admin using an LDAP command:
dn: cn=user-admin,ou=Users,dc=example,dc=org objectClass: top objectClass: person objectClass: organizationalPerson objectClass: user cn: user-admin sn: Admin givenName: User distinguishedName: cn=user-admin,ou=Users,dc=example,dc=org displayName: User Admin memberOf: cn=Domain Users,ou=Users,dc=example,dc=org memberOf: cn=k8s-admins,ou=Groups,dc=example,dc=org name: user-admin sAMAccountName: user-admin objectCategory: cn=Person,cn=Schema,cn=Configuration,dc=example,dc=org mail: user-admin@example.org
Example LDIF configuration to create group k8s-users using an LDAP command:
dn: cn=k8s-users,ou=Groups,dc=example,dc=org objectClass: top objectClass: group cn: k8s-users member: cn=user-regular1,ou=Users,dc=example,dc=org member: cn=user-regular2,ou=Users,dc=example,dc=org distinguishedName: cn=k8s-users,ou=Groups,dc=example,dc=org name: k8s-users sAMAccountName: k8s-users objectCategory: cn=Group,cn=Schema,cn=Configuration,dc=example,dc=org
Example LDIF configuration to create group k8s-admins using an LDAP command:
dn: cn=k8s-admins,ou=Groups,dc=example,dc=org objectClass: top objectClass: group cn: k8s-admins member: cn=user-admin,ou=Users,dc=example,dc=org distinguishedName: cn=k8s-admins,ou=Groups,dc=example,dc=org name: k8s-admins sAMAccountName: k8s-admins objectCategory: cn=Group,cn=Schema,cn=Configuration,dc=example,dc=org
You can use standard LDAP administration tools for managing organizations, groups and users remotely.
To do so, install the openldap2-client package on a computer in your network
and make sure that the computer can connect to the LDAP server
(389 Directory Server) on port 389 or secure port 636.
To add a new organizational unit, create an LDIF file (create_ou_groups.ldif) like this:
dn: ou=OU_NAME,dc=example,dc=org changetype: add objectclass: top objectclass: organizationalUnit ou: OU_NAME
Substitute OU_NAME with an organizational unit name of your choice.
Run ldapmodify to add the new organizational unit:
LDAP_PROTOCOL=ldap # ldap, ldaps LDAP_NODE_FQDN=localhost # FQDN of 389 Directory Server LDAP_NODE_PROTOCOL=:389 # Non-TLS (:389), TLS (:636) BIND_DN="cn=Directory Manager" # Admin User LDIF_FILE=./create_ou_groups.ldif # LDIF Configuration File DS_DM_PASSWORD= # Admin Password ldapmodify -v -H <LDAP_PROTOCOL>://<LDAP_NODE_FQDN><LDAP_NODE_PROTOCOL> -D "<BIND_DN>" -f <LDIF_FILE> -w <DS_DM_PASSWORD>
To remove an organizational unit, create an LDIF file (delete_ou_groups.ldif) like this:
dn: ou=OU_NAME,dc=example,dc=org changetype: delete
Substitute OU_NAME with the name of the organizational unit you would like to remove.
Execute ldapmodify to remove the organizational unit:
LDAP_PROTOCOL=ldap # ldap, ldaps LDAP_NODE_FQDN=localhost # FQDN of 389 Directory Server LDAP_NODE_PROTOCOL=:389 # Non-TLS (:389), TLS (:636) BIND_DN="cn=Directory Manager" # Admin User LDIF_FILE=./delete_ou_groups.ldif # LDIF Configuration File DS_DM_PASSWORD= # Admin Password ldapmodify -v -H <LDAP_PROTOCOL>://<LDAP_NODE_FQDN><LDAP_NODE_PROTOCOL> -D "<BIND_DN>" -f <LDIF_FILE> -w <DS_DM_PASSWORD>
To add a new group to an organizational unit, create an LDIF file (create_groups.ldif) like this:
dn: cn=GROUP,ou=OU_NAME,dc=example,dc=org changetype: add objectClass: top objectClass: groupOfNames cn: GROUP
GROUP: Group name
OU_NAME: Organizational unit name
Run ldapmodify to add the new group to the organizational unit:
LDAP_PROTOCOL=ldap # ldap, ldaps LDAP_NODE_FQDN=localhost # FQDN of 389 Directory Server LDAP_NODE_PROTOCOL=:389 # Non-TLS (:389), TLS (:636) BIND_DN="cn=Directory Manager" # Admin User LDIF_FILE=./create_groups.ldif # LDIF Configuration File DS_DM_PASSWORD= # Admin Password ldapmodify -v -H <LDAP_PROTOCOL>://<LDAP_NODE_FQDN><LDAP_NODE_PROTOCOL> -D "<BIND_DN>" -f <LDIF_FILE> -w <DS_DM_PASSWORD>
To remove a group from an organizational unit, create an LDIF file (delete_ou_groups.ldif) like this:
dn: cn=GROUP,ou=OU_NAME,dc=example,dc=org changetype: delete
GROUP: Group name
OU_NAME: organizational unit name
Execute ldapmodify to remove the group from the organizational unit:
LDAP_PROTOCOL=ldap # ldap, ldaps LDAP_NODE_FQDN=localhost # FQDN of 389 Directory Server LDAP_NODE_PROTOCOL=:389 # Non-TLS (:389), TLS (:636) BIND_DN="cn=Directory Manager" # Admin User LDIF_FILE=./delete_ou_groups.ldif # LDIF Configuration File DS_DM_PASSWORD= # Admin Password ldapmodify -v -H <LDAP_PROTOCOL>://<LDAP_NODE_FQDN><LDAP_NODE_PROTOCOL> -D "<BIND_DN>" -f <LDIF_FILE> -w <DS_DM_PASSWORD>
To add a new user, create an LDIF file (new_user.ldif) like this:
dn: uid=USERID,ou=OU_NAME,dc=example,dc=org objectClass: person objectClass: inetOrgPerson objectClass: top uid: USERID userPassword: PASSWORD_HASH givenname: FIRST_NAME sn: SURNAME cn: FULL_NAME mail: E-MAIL_ADDRESS
USERID: User ID (UID) of the new user. This value must be a unique number.
OU_NAME: organizational unit name
PASSWORD_HASH: The user’s hashed password.SSHA_PASSWORD: The user’s new hashed password.
Use /usr/sbin/slappasswd to generate the SSHA hash.
/usr/sbin/slappasswd -h {SSHA} -s <USER_PASSWORD>Use /usr/bin/pwdhash to generate the SSHA hash.
/usr/bin/pwdhash -s SSHA <USER_PASSWORD>
FIRST_NAME: The user’s first name
SURNAME: The user’s last name
FULL_NAME: The user’s full name
E-MAIL_ADDRESS: The user’s e-mail address
Execute ldapadd to add the new user:
LDAP_PROTOCOL=ldap # ldap, ldaps LDAP_NODE_FQDN=localhost # FQDN of 389 Directory Server LDAP_NODE_PROTOCOL=:389 # Non-TLS (:389), TLS (:636) BIND_DN="cn=Directory Manager" # Admin User LDIF_FILE=./new_user.ldif # LDIF Configuration File DS_DM_PASSWORD= # Admin Password ldapadd -v -H <LDAP_PROTOCOL>://<LDAP_NODE_FQDN><LDAP_NODE_PROTOCOL> -D "<BIND_DN>" -f <LDIF_FILE> -w <DS_DM_PASSWORD>
To show the attributes of a user, use the ldapsearch command:
LDAP_PROTOCOL=ldap # ldap, ldaps LDAP_NODE_FQDN=localhost # FQDN of 389 Directory Server LDAP_NODE_PROTOCOL=:389 # Non-TLS (:389), TLS (:636) USERID=user1 BASE_DN="uid=<USERID>,dc=example,dc=org" BIND_DN="cn=Directory Manager" # Admin User DS_DM_PASSWORD= # Admin Password ldapsearch -v -x -H <LDAP_PROTOCOL>://<LDAP_NODE_FQDN><LDAP_NODE_PROTOCOL> -b "<BASE_DN>" -D "<BIND_DN>" -w <DS_DM_PASSWORD>
The following procedure shows how to modify a user in the LDAP server.
See the LDIF files for examples of how to change rootdn password, a user password and add a user to the
Administrators group.
To modify other fields, you can use the password example, replacing userPassword
with other field names you want to change.
Create an LDIF file (modify_rootdn.ldif), which contains the change to the LDAP server:
dn: cn=config changetype: modify replace: nsslapd-rootpw nsslapd-rootpw: NEW_PASSWORD
NEW_PASSWORD: The user’s new hashed password.
Use /usr/sbin/slappasswd to generate the SSHA hash.
/usr/sbin/slappasswd -h {SSHA} -s <USER_PASSWORD>Use /usr/bin/pwdhash to generate the SSHA hash.
/usr/bin/pwdhash -s SSHA <USER_PASSWORD>
Create an LDIF file (modify_user.ldif), which contains the change to the LDAP server:
dn: uid=USERID,ou=OU_NAME,dc=example,dc=org changetype: modify replace: userPassword userPassword: NEW_PASSWORD
USERID: The desired user’s ID
OU_NAME: organizational unit name
NEW_PASSWORD: The user’s new hashed password.
Use /usr/sbin/slappasswd to generate the SSHA hash.
/usr/sbin/slappasswd -h {SSHA} -s <USER_PASSWORD>Use /usr/bin/pwdhash to generate the SSHA hash.
/usr/bin/pwdhash -s SSHA <USER_PASSWORD>
Add the user to the Administrators group:
dn: cn=Administrators,ou=Groups,dc=example,dc=org changetype: modify add: uniqueMember uniqueMember: uid=USERID,ou=OU_NAME,dc=example,dc=org
USERID: Substitute with the user’s ID.
OU_NAME: organizational unit name
Execute ldapmodify to change user attributes:
LDAP_PROTOCOL=ldap # ldap, ldaps LDAP_NODE_FQDN=localhost # FQDN of 389 Directory Server LDAP_NODE_PROTOCOL=:389 # Non-TLS (:389), TLS (:636) BIND_DN="cn=Directory Manager" # Admin User LDIF_FILE=./modify_user.ldif # LDIF Configuration File DS_DM_PASSWORD= # Admin Password ldapmodify -v -H <LDAP_PROTOCOL>://<LDAP_NODE_FQDN><LDAP_NODE_PROTOCOL> -D "<BIND_DN>" -f <LDIF_FILE> -w <DS_DM_PASSWORD>
To delete a user from the LDAP server, follow these steps:
Create an LDIF file (delete_user.ldif) that specifies the name of the entry:
dn: uid=USER_ID,ou=OU_NAME,dc=example,dc=org changetype: delete
USERID: Substitute this with the user’s ID.
OU_NAME: organizational unit name
Run ldapmodify to delete the user:
LDAP_PROTOCOL=ldap # ldap, ldaps LDAP_NODE_FQDN=localhost # FQDN of 389 Directory Server LDAP_NODE_PROTOCOL=:389 # Non-TLS (:389), TLS (:636) BIND_DN="cn=Directory Manager" # Admin User LDIF_FILE=./delete_user.ldif # LDIF Configuration File DS_DM_PASSWORD= # Admin Password ldapmodify -v -H <LDAP_PROTOCOL>://<LDAP_NODE_FQDN><LDAP_NODE_PROTOCOL> -D "<BIND_DN>" -f <LDIF_FILE> -w <DS_DM_PASSWORD>
To perform a change to your own user password from CLI.
LDAP_PROTOCOL=ldap # ldap, ldaps LDAP_NODE_FQDN=localhost # FQDN of 389 Directory Server LDAP_NODE_PROTOCOL=:389 # Non-TLS (:389), TLS (:636) BIND_DN= # User's binding dn DS_DM_PASSWORD= # Old Password NEW_DS_DM_PASSWORD= # New Password ldappasswd -v -H <LDAP_PROTOCOL>://<LDAP_NODE_FQDN><LDAP_NODE_PROTOCOL> -x -D "<BIND_DN>" -w <DS_DM_PASSWORD> -a <DS_DM_PASSWORD> -s <NEW_DS_DM_PASSWORD>
Administrators can update the authentication connector settings before or after SUSE CaaS Platform deployment as follows:
Based on the manifest in <CLUSTER_NAME>/addons/dex/base/dex.yaml, provide a kustomize patch to <CLUSTER_NAME>/addons/dex/patches/custom.yaml of the form of strategic merge patch or a JSON 6902 patch.
Read https://github.com/kubernetes-sigs/kustomize/blob/master/docs/glossary.md#patchstrategicmerge and https://github.com/kubernetes-sigs/kustomize/blob/master/docs/glossary.md#patchjson6902 to get more information.
Adapt ConfigMap by adding LDAP configuration to the connector section. For detailed configuration of the LDAP connector, refer to the Dex documentation https://github.com/dexidp/dex/blob/v2.23.0/Documentation/connectors/ldap.md.
Besides the LDAP connector, you can also set up other connectors. For additional connectors, refer to the available connector configurations in the Dex repository: https://github.com/dexidp/dex/tree/v2.23.0/Documentation/connectors.
A base64 encoded PEM file can be generated by running:
cat <ROOT_CA_PEM_FILE> | base64 | awk '\{print\}' ORS='' && echoExamples of Usage (<CLUSTER_NAME>/addons/dex/patches/custom.yaml):
LDAP 389-DS TLS Connector:
apiVersion: v1
kind: ConfigMap
metadata:
name: oidc-dex-config
namespace: kube-system
data:
config.yaml: |
connectors:
- type: ldap
# Required field for connector id.
id: 389ds
# Required field for connector name.
name: 389ds
config:
# Host and optional port of the LDAP server in the form "host:port".
# If the port is not supplied, it will be guessed based on "insecureNoSSL",
# and "startTLS" flags. 389 for insecure or StartTLS connections, 636
# otherwise.
host: ldap.example.org:636
# The following field is required if the LDAP host is not using TLS (port 389).
# Because this option inherently leaks passwords to anyone on the same network
# as dex, THIS OPTION MAY BE REMOVED WITHOUT WARNING IN A FUTURE RELEASE.
#
# insecureNoSSL: true
# If a custom certificate isn't provided, this option can be used to turn on
# TLS certificate checks. As noted, it is insecure and shouldn't be used outside
# of explorative phases.
#
insecureSkipVerify: true
# When connecting to the server, connect using the ldap:// protocol then issue
# a StartTLS command. If unspecified, connections will use the ldaps:// protocol
#
# startTLS: true
# Path to a trusted root certificate file. Default: use the host's root CA.
# rootCA: /etc/dex/pki/ca.crt
# A raw certificate file can also be provided inline.
rootCAData: <BASE64_ENCODED_PEM_FILE>
# The DN and password for an application service account. The connector uses
# these credentials to search for users and groups. Not required if the LDAP
# server provides access for anonymous auth.
# Please note that if the bind password contains a `$`, it has to be saved in an
# environment variable which should be given as the value to `bindPW`.
bindDN: cn=Directory Manager
bindPW: <BIND_DN_PASSWORD>
# The attribute to display in the provided password prompt. If unset, will
# display "Username"
usernamePrompt: Email Address
# User search maps a username and password entered by a user to a LDAP entry.
userSearch:
# BaseDN to start the search from. It will translate to the query
# "(&(objectClass=person)(mail=<USERNAME>))".
baseDN: ou=Users,dc=example,dc=org
# Optional filter to apply when searching the directory.
filter: "(objectClass=person)"
# username attribute used for comparing user entries. This will be translated
# and combined with the other filter as "(<attr>=<USERNAME>)".
username: mail
# The following three fields are direct mappings of attributes on the user entry.
# String representation of the user.
idAttr: DN
# Required. Attribute to map to Email.
emailAttr: mail
# Maps to display the name of users. No default value.
nameAttr: cn
# Group search queries for groups given a user entry.
groupSearch:
# BaseDN to start the search from. It will translate to the query
# "(&(objectClass=group)(member=<USER_UID>))".
baseDN: ou=Groups,dc=example,dc=org
# Optional filter to apply when searching the directory.
filter: "(objectClass=groupOfNames)"
# Following two fields are used to match a user to a group. It adds an additional
# requirement to the filter that an attribute in the group must match the user's
# attribute value.
userAttr: uid
groupAttr: memberUid
# Represents group name.
nameAttr: cnActive Directory TLS Connector using email:
apiVersion: v1
kind: ConfigMap
metadata:
name: oidc-dex-config
namespace: kube-system
data:
config.yaml: |
connectors:
- type: ldap
# Required field for connector id.
id: AD
# Required field for connector name.
name: AD
config:
# Host and optional port of the LDAP server in the form "host:port".
# If the port is not supplied, it will be guessed based on "insecureNoSSL",
# and "startTLS" flags. 389 for insecure or StartTLS connections, 636
# otherwise.
host: ad.example.org:636
# Following field is required if the LDAP host is not using TLS (port 389).
# Because this option inherently leaks passwords to anyone on the same network
# as dex, THIS OPTION MAY BE REMOVED WITHOUT WARNING IN A FUTURE RELEASE.
#
# insecureNoSSL: true
# If a custom certificate isn't provided, this option can be used to turn on
# TLS certificate checks. As noted, it is insecure and shouldn't be used outside
# of explorative phases.
#
# insecureSkipVerify: true
# When connecting to the server, connect using the ldap:// protocol then issue
# a StartTLS command. If unspecified, connections will use the ldaps:// protocol
#
# startTLS: true
# Path to a trusted root certificate file. Default: use the host's root CA.
# rootCA: /etc/dex/ldap.ca
# A raw certificate file can also be provided inline.
rootCAData: <BASE_64_ENCODED_PEM_FILE>
# The DN and password for an application service account. The connector uses
# these credentials to search for users and groups. Not required if the LDAP
# server provides access for anonymous auth.
# Please note that if the bind password contains a `$`, it has to be saved in an
# environment variable which should be given as the value to `bindPW`.
bindDN: cn=user-admin,ou=Users,dc=example,dc=org
bindPW: <BIND_DN_PASSWORD>
# The attribute to display in the provided password prompt. If unset, will
# display "Username"
usernamePrompt: Email Address
# User search maps a username and password entered by a user to a LDAP entry.
userSearch:
# BaseDN to start the search from. It will translate to the query
# "(&(objectClass=person)(mail=<USERNAME>))".
baseDN: ou=Users,dc=example,dc=org
# Optional filter to apply when searching the directory.
filter: "(objectClass=person)"
# username attribute used for comparing user entries. This will be translated
# and combined with the other filter as "(<attr>=<USERNAME>)".
username: mail
# The following three fields are direct mappings of attributes on the user entry.
# String representation of the user.
idAttr: distinguishedName
# Required. Attribute to map to Email.
emailAttr: mail
# Maps to display the name of users. No default value.
nameAttr: sAMAccountName
# Group search queries for groups given a user entry.
groupSearch:
# BaseDN to start the search from. It will translate to the query
# "(&(objectClass=group)(member=<USER_UID>))".
baseDN: ou=Groups,dc=example,dc=org
# Optional filter to apply when searching the directory.
filter: "(objectClass=group)"
# Following two fields are used to match a user to a group. It adds an additional
# requirement to the filter that an attribute in the group must match the user's
# attribute value.
userAttr: distinguishedName
groupAttr: member
# Represents group name.
nameAttr: sAMAccountNameActive Directory TLS Connector using sAMAccountName:
apiVersion: v1
kind: ConfigMap
metadata:
name: oidc-dex-config
namespace: kube-system
data:
config.yaml: |
connectors:
- type: ldap
# Required field for connector id.
id: AD
# Required field for connector name.
name: AD
config:
# Host and optional port of the LDAP server in the form "host:port".
# If the port is not supplied, it will be guessed based on "insecureNoSSL",
# and "startTLS" flags. 389 for insecure or StartTLS connections, 636
# otherwise.
host: ad.example.org:636
# Following field is required if the LDAP host is not using TLS (port 389).
# Because this option inherently leaks passwords to anyone on the same network
# as dex, THIS OPTION MAY BE REMOVED WITHOUT WARNING IN A FUTURE RELEASE.
#
# insecureNoSSL: true
# If a custom certificate isn't provided, this option can be used to turn on
# TLS certificate checks. As noted, it is insecure and shouldn't be used outside
# of explorative phases.
#
# insecureSkipVerify: true
# When connecting to the server, connect using the ldap:// protocol then issue
# a StartTLS command. If unspecified, connections will use the ldaps:// protocol
#
# startTLS: true
# Path to a trusted root certificate file. Default: use the host's root CA.
# rootCA: /etc/dex/ldap.ca
# A raw certificate file can also be provided inline.
rootCAData: <BASE_64_ENCODED_PEM_FILE>
# The DN and password for an application service account. The connector uses
# these credentials to search for users and groups. Not required if the LDAP
# server provides access for anonymous auth.
# Please note that if the bind password contains a `$`, it has to be saved in an
# environment variable which should be given as the value to `bindPW`.
bindDN: cn=user-admin,ou=Users,dc=example,dc=org
bindPW: <BIND_DN_PASSWORD>
# The attribute to display in the provided password prompt. If unset, will
# display "Username"
usernamePrompt: sAMAccountName
# User search maps a username and password entered by a user to a LDAP entry.
userSearch:
# BaseDN to start the search from. It will translate to the query
# "(&(objectClass=person)(mail=<USERNAME>))".
baseDN: ou=Users,dc=example,dc=org
# Optional filter to apply when searching the directory.
filter: "(objectClass=person)"
# username attribute used for comparing user entries. This will be translated
# and combined with the other filter as "(<attr>=<USERNAME>)".
username: sAMAccountName
# The following three fields are direct mappings of attributes on the user entry.
# String representation of the user.
idAttr: sAMAccountName
# Required. Attribute to map to Email.
emailAttr: mail
# Maps to display the name of users. No default value.
nameAttr: sAMAccountName
# Group search queries for groups given a user entry.
groupSearch:
# BaseDN to start the search from. It will translate to the query
# "(&(objectClass=group)(member=<USER_UID>))".
baseDN: ou=Groups,dc=example,dc=org
# Optional filter to apply when searching the directory.
filter: "(objectClass=group)"
# Following two fields are used to match a user to a group. It adds an additional
# requirement to the filter that an attribute in the group must match the user's
# attribute value.
userAttr: distinguishedName
groupAttr: member
# Represents group name.
nameAttr: sAMAccountNameCreate a kustomization.yaml file in <CLUSTER_NAME>/addons/dex/kustomization.yaml
apiVersion: kustomize.config.k8s.io/v1beta1
kind: Kustomization
resources:
- base/dex.yaml
patches:
- patches/custom.yamlApply the changes with:
kubectl apply -k <CLUSTER_NAME>/addons/dex/Then, refer to Section 6.5.2, “User Access” to access through Web or CLI.
Kubernetes RBAC uses the rbac.authorization.k8s.io API group to drive authorization decisions,
allowing administrators to dynamically configure policies through the Kubernetes API.
The administrators can use Kubernetes RBAC to design user or group authorizations.
Roles define, which subjects (users or groups) can use which verbs (operations) on which resources. The following sections provide an overview of the verbs, resources, and how to create roles. Roles can then be assigned to users and groups.
This section provides an overview of the most common verbs (operations) used for defining roles.
Verbs correspond to sub-commands of kubectl.
Create a resource.
Delete resources.
Delete a collection of a resource (can only be invoked using the Kubernetes API).
Display individual resources.
Display collections.
Update an API object in place.
Allows running kubectl in a mode where it acts as a reverse proxy.
Update fields of a resource, for example, annotations or labels.
Watch resource.
This section provides an overview of the most common resources used for defining roles.
https://v1-18.docs.kubernetes.io/docs/tasks/run-application/horizontal-pod-autoscale/
https://v1-18.docs.kubernetes.io/docs/tasks/configure-pod-container/configure-pod-configmap/
https://v1-18.docs.kubernetes.io/docs/concepts/workloads/controllers/cron-jobs/
https://v1-18.docs.kubernetes.io/docs/concepts/workloads/controllers/daemonset/
https://v1-18.docs.kubernetes.io/docs/concepts/workloads/controllers/deployment/
https://v1-18.docs.kubernetes.io/docs/concepts/services-networking/ingress/
https://v1-18.docs.kubernetes.io/docs/concepts/workloads/controllers/jobs-run-to-completion/
https://v1-18.docs.kubernetes.io/docs/concepts/overview/working-with-objects/namespaces/
https://v1-18.docs.kubernetes.io/docs/concepts/architecture/nodes/
https://v1-18.docs.kubernetes.io/docs/concepts/workloads/pods/pod-overview/
https://v1-18.docs.kubernetes.io/docs/concepts/storage/persistent-volumes/
https://v1-18.docs.kubernetes.io/docs/concepts/configuration/secret/
https://v1-18.docs.kubernetes.io/docs/concepts/services-networking/service/
https://v1-18.docs.kubernetes.io/docs/concepts/workloads/controllers/replicaset/
Roles are defined in YAML files.
To apply role definitions to Kubernetes, use kubectl apply -f YAML_FILE.
The following examples provide an overview of different use cases of roles.
Simple Role for Core Resource:
This example allows us to get, watch, and list all pods in the namespace default.
kind: Role
apiVersion: rbac.authorization.k8s.io/v1
metadata:
name: view-pods 1
namespace: default 2
rules:
- apiGroups: [""] 3
resources: ["pods"] 4
verbs: ["get", "watch", "list"] 5Name of the role. This is required to associate the rule with a group or user. For details, refer to Section 6.5.1.4, “Create Role Bindings”. | |
Namespace the new group should be allowed to access. Use | |
Kubernetes API groups. Use | |
Kubernetes resources. For a list of available resources, refer to Section 6.5.1.2, “List of Resources”. | |
Kubernetes verbs. For a list of available verbs, refer to Section 6.5.1.1, “List of Verbs”. |
Cluster Role for Creation of Pods:
This example creates a cluster role to allow create pods cluster-wide.
Note the ClusterRole value for kind.
kind: ClusterRole
apiVersion: rbac.authorization.k8s.io/v1
metadata:
name: admin-create-pods 1
rules:
- apiGroups: [""] 2
resources: ["pods"] 3
verbs: ["create"] 4Name of the cluster role. This is required to associate the rule with a group or user. For details, refer to Section 6.5.1.4, “Create Role Bindings”. | |
Kubernetes API groups. Use | |
Kubernetes resources. For a list of available resources, refer to Section 6.5.1.2, “List of Resources”. | |
Kubernetes verbs. For a list of available verbs, refer to Section 6.5.1.1, “List of Verbs”. |
To bind a group or user to a role or cluster role, create a YAML file that contains the role or cluster role binding description.
Then apply the binding with kubectl apply -f YAML_FILE.
The following examples provide an overview of different use cases of role bindings.
Binding a User to a Role:
This example shows how to bind a user to a defined role.
kind: RoleBinding
apiVersion: rbac.authorization.k8s.io/v1
metadata:
name: <ROLE_BINDING_NAME> 1
namespace: <NAMESPACE> 2
subjects:
- kind: User
name: <LDAP_USER_NAME> 3
apiGroup: rbac.authorization.k8s.io
roleRef:
kind: Role
name: <ROLE_NAME> 4
apiGroup: rbac.authorization.k8s.ioDefines a name for this new role binding. | |
Name of the namespace to which the binding applies. | |
Name of the LDAP user to which this binding applies. | |
Name of the role used. For defining rules, refer to Section 6.5.1.3, “Creating Roles”. |
Binding a User to a Cluster Role:
This example shows how to bind a user to a defined cluster role.
kind: ClusterRoleBinding
apiVersion: rbac.authorization.k8s.io/v1
metadata:
name: <CLUSTER_ROLE_BINDING_NAME> 1
subjects:
- kind: User
name: <LDAP_USER_NAME> 2
apiGroup: rbac.authorization.k8s.io
roleRef:
kind: ClusterRole
name: <CLUSER_ROLE_NAME> 3
apiGroup: rbac.authorization.k8s.ioDefines a name for this new cluster role binding. | |
Name of the LDAP user to which this binding applies. | |
Name of the cluster role used. For defining rules, refer to Section 6.5.1.3, “Creating Roles”. |
Binding a Group to a Role:
This example shows how to bind a group to a defined role.
kind: RoleBinding
apiVersion: rbac.authorization.k8s.io/v1
metadata:
name: <ROLE_BINDING_NAME> 1
namespace: <NAMESPACE> 2
subjects:
- kind: Group
name: <LDAP_GROUP_NAME> 3
apiGroup: rbac.authorization.k8s.io
roleRef:
kind: Role
name: <ROLE_NAME> 4
apiGroup: rbac.authorization.k8s.ioDefines a name for this new role binding. | |
Name of the namespace to which the binding applies. | |
Name of the LDAP group to which this binding applies. | |
Name of the role used. For defining rules, refer to Section 6.5.1.3, “Creating Roles”. |
Binding a Group to a Cluster Role:
This example shows how to bind a group to a defined cluster role.
kind: ClusterRoleBinding
apiVersion: rbac.authorization.k8s.io/v1
metadata:
name: <CLUSTER_ROLE_BINDING_NAME> 1
subjects:
- kind: Group
name: <LDAP_GROUP_NAME> 2
apiGroup: rbac.authorization.k8s.io
roleRef:
kind: ClusterRole
name: <CLUSER_ROLE_NAME> 3
apiGroup: rbac.authorization.k8s.ioDefines a name for this new cluster role binding. | |
Name of the LDAP group to which this binding applies. | |
Name of the cluster role used. For defining rules, refer to Section 6.5.1.3, “Creating Roles”. |
When creating new Roles, ClusterRoles, RoleBindings, and ClusterRoleBindings, it is important to keep in mind the Principle of Least Privilege:
"define rules such that the account bound to the Role or ClusterRole has the minimum amount of permissions needed to fulfill its purpose and no more."
For instance, granting the admin ClusterRole to most accounts is most likely unnecessary,
when a reduced-scope role would be enough to fulfill the account’s purpose.
This helps reduce the attack surface if an account is compromised.
It is also recommended to periodically review your Roles and ClusterRoles to ensure they are still required and are not overly-permissive.
Using the web browser:
Go to the login page at https://<CONTROL_PLANE_IP/FQDN>:32001.
Click "Sign In".
Choose a login method.
Enter login credentials.
Download kubeconfig or self-configure kubectl with the provided setup instructions.
Using the CLI:
Run skuba auth login with Dex server URL https://<CONTROL_PLANE_IP/FQDN>:32000,
login username and password.
The kubeconfig kubeconf.txt is generated at your current directory.
The user can now access resources in the authorized <NAMESPACE>.
If the user has the proper permissions to access the resources, the output should look like this:
# kubectl -n <NAMESPACE> get pod NAMESPACE NAME READY STATUS RESTARTS AGE kube-system dex-844dc9b8bb-w2zkm 1/1 Running 0 19d kube-system gangway-944dc9b8cb-w2zkm 1/1 Running 0 19d kube-system cilium-76glw 1/1 Running 0 27d kube-system cilium-fvgcv 1/1 Running 0 27d kube-system cilium-j5lpx 1/1 Running 0 27d kube-system cilium-operator-5d9cc4fbb7-g5plc 1/1 Running 0 34d kube-system cilium-vjf6p 1/1 Running 8 27d kube-system coredns-559fbd6bb4-2r982 1/1 Running 9 46d kube-system coredns-559fbd6bb4-89k2j 1/1 Running 9 46d kube-system etcd-my-master 1/1 Running 5 46d kube-system kube-apiserver-<CLUSTER_NAME> 1/1 Running 0 19d kube-system kube-controller-manager-my-master 1/1 Running 14 46d kube-system kube-proxy-62hls 1/1 Running 4 46d kube-system kube-proxy-fhswj 1/1 Running 0 46d kube-system kube-proxy-r4h42 1/1 Running 1 39d kube-system kube-proxy-xsdf4 1/1 Running 0 39d kube-system kube-scheduler-my-master 1/1 Running 13 46d
If the user does not have the right permissions to access a resource,
they will receive a Forbidden message.
Error from server (Forbidden): pods is forbidden
The kubeconfig file (kubeconf.txt) contains the OIDC tokens necessary to perform authentication and authorization in the cluster.
OIDC tokens have an expiration date which means that they need to be refreshed after some time.
If you use the same user in multiple kubeconfig files distributed among multiple machines,
this can lead to issues. Due to the nature of access and refresh tokens (https://tools.ietf.org/html/rfc6749#page-10) only one of the machines will be fully able to refresh the token set at any given time.
The user will be able to download multiple 'kubeconfig' files. However, the file with the same user is likely to be valid only for single access until expiration.
Dex regards one session per user. The id-token and refresh-token are refreshed together.
If a second user is trying to login to get a new id-token, Dex will invalidate the previous id-token and refresh-token for the first user.
The first user is still able to continue using the old id-token until expiration. After expiration, the first user is not allowed to refresh the id-token due to the invalid refresh-token.
Only the second user will have a valid refresh-token now. The first user will encounter an error like: "msg="failed to rotate keys: keys already rotated by another server instance".
If sharing the same id-token in many places, all of them can be used until expiration.
The first user to refresh the id-token and refresh token will be able to continue accessing the cluster.
All other users will encounter an error Refresh token is invalid or has already been claimed by another client because the refresh-token got updated by the first user.
Please use separate users for each kubeconfig file to avoid this situation.
Find out how to add more users in Section 6.4.4.1, “Adding a New User”.
You can also check information about the user and the respective OIDC tokens in the kubeconfig file under the users section:
users:
- name: myuser
user:
auth-provider:
config:
client-id: oidc
client-secret: <SECRET>
id-token: <ID_TOKEN>
idp-issuer-url: https://<IP>:<PORT>
refresh-token: <REFRESH_TOKEN>
name: oidcAfter user authentication and authorization, admission takes place to complete the access control for the Kubernetes API. As the final step in the access control process, admission enhances the security layer by mandating a reasonable security baseline across a specific namespace or the entire cluster. The built-in PodSecurityPolicy admission controller is perhaps the most prominent example of it.
Apart from the security aspect, admission controllers can enforce custom policies to adhere to certain best-practices such as having good labels, annotation, resource limits, or other settings. It is worth noting that instead of only validating the request, admission controllers are also capable of "fixing" a request by mutating it, such as automatically adding resource limits if the user forgets to.
The admission is controlled by admission controllers which may only be configured by the cluster administrator. The admission control process happens in two phases:
In the first phase, mutating admission controllers are run. They are empowered to automatically change the requested object to comply with certain cluster policies by making modifications to it if needed.
In the second phase, validating admission controllers are run. Based on the results of the previous mutating phase, an admission controller can either allow the request to proceed and reach etcd or deny it.
If any of the controllers in either phase reject the request, the entire request is rejected immediately and an error is returned to the end-user.
Any modification of this list prior to the creation of the cluster will be overwritten by these default settings.
The ability to add or remove individual admission controllers will be provided with one of the upcoming releases of SUSE CaaS Platform.
The complete list of admission controllers can be found at https://v1-18.docs.kubernetes.io/docs/reference/access-authn-authz/admission-controllers/#what-does-each-admission-controller-do
The default admission controllers enabled in SUSE CaaS Platform are:
NodeRestriction
PodSecurityPolicy
Please note that criteria for designing PodSecurityPolicy are not part of this document.
"Pod Security Policy" (stylized as PodSecurityPolicy and abbreviated "PSP") is a security
measure implemented by Kubernetes to control which specifications a pod must meet
to be allowed to run in the cluster. They control various aspects of execution of
pods and interactions with other parts of the software infrastructure.
You can find more general information about PodSecurityPolicy in the Kubernetes Docs.
User access to the cluster is controlled via "Role Based Access Control (RBAC)". Each PodSecurityPolicy is associated with one or more users or service accounts so they are allowed to launch pods with the associated specifications. The policies are associated with users or service accounts via role bindings.
The default policies shipped with SUSE CaaS Platform are a good start, but depending on security requirements, adjustments should be made or additional policies should be created.
SUSE CaaS Platform 4 currently ships with two default policies:
Privileged (full access everywhere)
Unprivileged (only very basic access)
All pods running the containers for the basic SUSE CaaS Platform software are
deployed into the kube-system namespace and run with the "privileged" policy.
All authenticated system users (group system:authenticated) and service accounts in kube-system (system:serviceaccounts:kube-system)
have a RoleBinding (suse:caasp:psp:privileged) to run pods using the privileged policy in the kube-system namespace.
Any other pods launched in any other namespace are, by default, deployed in unprivileged mode.
You must configure RBAC rules and PodSecurityPolicy to provide proper functionality and security.
The policy definitions are embedded in the cluster bootstrap manifest (GitHub).
During the bootstrap with skuba, the policy files will be stored on your
workstation in the cluster definition folder under addons/psp/base. These policy files
will be installed automatically for all cluster nodes.
The file names of the files created are:
podsecuritypolicy-unprivileged.yaml
and
podsecuritypolicy-privileged.yaml.
This is the unprivileged policy as a configuration file. You can use this
as a basis to develop your own PodSecurityPolicy which should be saved as custom-psp.yaml
addons/psp/patches directory.
apiVersion: policy/v1beta1
kind: PodSecurityPolicy
metadata:
name: suse.caasp.psp.unprivileged
annotations:
apparmor.security.beta.kubernetes.io/allowedProfileNames: runtime/default
apparmor.security.beta.kubernetes.io/defaultProfileName: runtime/default
seccomp.security.alpha.kubernetes.io/allowedProfileNames: runtime/default
seccomp.security.alpha.kubernetes.io/defaultProfileName: runtime/default
spec:
# Privileged
privileged: false
# Volumes and File Systems
volumes:
# Kubernetes Pseudo Volume Types
- configMap
- secret
- emptyDir
- downwardAPI
- projected
- persistentVolumeClaim
# Networked Storage
- nfs
- rbd
- cephFS
- glusterfs
- fc
- iscsi
# Cloud Volumes
- cinder
- gcePersistentDisk
- awsElasticBlockStore
- azureDisk
- azureFile
- vsphereVolume
allowedHostPaths:
# Note: We don't allow hostPath volumes above, but set this to a path we
# control anyway as a belt+braces protection. /dev/null may be a better
# option, but the implications of pointing this towards a device are
# unclear.
- pathPrefix: /opt/kubernetes-hostpath-volumes
readOnlyRootFilesystem: false
# Users and groups
runAsUser:
rule: RunAsAny
supplementalGroups:
rule: RunAsAny
fsGroup:
rule: RunAsAny
# Privilege Escalation
allowPrivilegeEscalation: false
defaultAllowPrivilegeEscalation: false
# Capabilities
allowedCapabilities: []
defaultAddCapabilities: []
requiredDropCapabilities: []
# Host namespaces
hostPID: false
hostIPC: false
hostNetwork: false
hostPorts:
- min: 0
max: 65535
# SELinux
seLinux:
# SELinux is unused in CaaSP
rule: 'RunAsAny'
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
name: suse:caasp:psp:unprivileged
rules:
- apiGroups: ['extensions']
resources: ['podsecuritypolicies']
verbs: ['use']
resourceNames: ['suse.caasp.psp.unprivileged']
---
# Allow all users and serviceaccounts to use the unprivileged
# PodSecurityPolicy
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
name: suse:caasp:psp:default
roleRef:
kind: ClusterRole
name: suse:caasp:psp:unprivileged
apiGroup: rbac.authorization.k8s.io
subjects:
- kind: Group
apiGroup: rbac.authorization.k8s.io
name: system:serviceaccounts
- kind: Group
apiGroup: rbac.authorization.k8s.io
name: system:authenticatedIn order to properly secure and run your Kubernetes workloads you must configure RBAC rules for your desired users create a PodSecurityPolicy adequate for your respective workloads and then link the user accounts to the PodSecurityPolicy using (Cluster)RoleBinding.
https://v1-18.docs.kubernetes.io/docs/concepts/policy/pod-security-policy/
Kubernetes ingress exposes HTTP and HTTPS routes from the outside of a cluster to services created inside the cluster. An Ingress controller with an ingress controller service is responsible for supporting the Kubernetes ingress. In order to use Kubernetes ingress, you need to install the ingress controller with the ingress controller service exposed to the outside of the cluster. Traffic routing is controlled by rules defined on the Ingress resource from the backend services.
Choose which networking configuration the ingress controller should have.
Create a file nginx-ingress-config-values.yaml with one of the following examples as content:
# Enable the creation of pod security policy
podSecurityPolicy:
enabled: false
# Create a specific service account
serviceAccount:
create: true
name: nginx-ingress
controller:
# Number of controller pods
replicaCount: 3
[ADD CONTENT HERE] 1Add one of the following sections at this point to configure for a specific type of exposing the service.
|
Add the SUSE helm charts repository by running:
helm repo add suse https://kubernetes-charts.suse.com
Then you can deploy the ingress controller and use the previously created configuration file to configure the networking type.
kubectl create namespace nginx-ingress
helm install nginx-ingress suse/nginx-ingress \
--namespace nginx-ingress \
--values nginx-ingress-config-values.yamlThe result should be two running pods:
kubectl -n nginx-ingress get pod
NAME READY STATUS RESTARTS AGE
nginx-ingress-controller-74cffccfc-p8xbb 1/1 Running 0 4s
nginx-ingress-default-backend-6b9b546dc8-mfkjk 1/1 Running 0 4sDepending on the networking configuration you chose before, the result should be two services:
NodePort
kubectl get svc -n nginx-ingress
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
nginx-ingress-controller NodePort 10.100.108.7 <none> 443:32443/TCP 2d1h
nginx-ingress-default-backend ClusterIP 10.109.118.128 <none> 80/TCP 2d1hExternal IPs
kubectl get svc -n nginx-ingress
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
nginx-ingress-controller LoadBalancer 10.103.103.27 10.86.4.158 443:30275/TCP 12s
nginx-ingress-default-backend ClusterIP 10.100.48.17 <none> 80/TCP 12sLoadBalancer
kubectl get svc -n nginx-ingress
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
nginx-ingress-controller LoadBalancer 10.106.160.255 10.86.5.176 443:31868/TCP 3h58m
nginx-ingress-default-backend ClusterIP 10.111.140.50 <none> 80/TCP 3h58mYou should configure proper DNS names in any production environment. k8s-dashboard.com will be the domain name we will use in the ingress resource.
These values are only for example purposes.
NodePort
The services will be publicly exposed on each node of the cluster at port 32443 for HTTPS.
In this example, we will use a worker node with IP 10.86.14.58.
k8s-dashboard.com IN A 10.86.14.58
Or add this entry to /etc/hosts
10.86.14.58 k8s-dashboard.com
External IPs
The services will be exposed on a specific node of the cluster, at the assigned port for HTTPS.
In this example, we used the external IP 10.86.4.158.
k8s-dashboard.com IN A 10.86.4.158
Or add this entry to /etc/hosts
10.86.4.158 k8s-dashboard.com
LoadBalancer
The services will be exposed on an assigned node of the cluster, at the assigned port for HTTPS.
In this example, LoadBalancer provided the external IP 10.86.5.176.
k8s-dashboard.com IN A 10.86.5.176
Or add this entry to /etc/hosts
10.86.5.176 k8s-dashboard.com
This example uses the upstream chart for the Kubernetes dashboard. There is currently no officially supported version of the Kubernetes dashboard available from SUSE.
Deploy Kubernetes dashboard.
kubectl apply -f https://raw.githubusercontent.com/kubernetes/dashboard/v2.0.0/aio/deploy/recommended.yamlCreate the cluster-admin account to access the Kubernetes dashboard.
This will show how to create simple admin user using Service Account, grant it the admin permission then use the token to access the kubernetes dashboard.
kubectl create serviceaccount dashboard-admin -n kube-system
kubectl create clusterrolebinding dashboard-admin \
--clusterrole=cluster-admin \
--serviceaccount=kube-system:dashboard-adminCreate the TLS secret.
Please refer to Section 6.9.9.1.1, “Trusted Server Certificate” on how to sign the trusted certificate. In this example, crt and key are generated by a self-signed certificate.
openssl req -x509 -nodes -days 365 -newkey rsa:2048 \
-keyout /tmp/dashboard-tls.key -out /tmp/dashboard-tls.crt \
-subj "/CN=k8s-dashboard.com/O=k8s-dashboard"
kubectl create secret tls dashboard-tls \
--key /tmp/dashboard-tls.key --cert /tmp/dashboard-tls.crt \
-n kubernetes-dashboardCreate the ingress resource.
We will create an ingress to access the backend service using the ingress controller.
Create dashboard-ingress.yaml with the appropriate values
apiVersion: networking.k8s.io/v1beta1
kind: Ingress
metadata:
name: dashboard-ingress
namespace: kubernetes-dashboard
annotations:
kubernetes.io/ingress.class: nginx
ingress.kubernetes.io/ssl-passthrough: "true"
nginx.ingress.kubernetes.io/secure-backends: "true"
nginx.ingress.kubernetes.io/rewrite-target: /
spec:
tls:
- hosts:
- k8s-dashboard.com
secretName: dashboard-tls
rules:
- host: k8s-dashboard.com
http:
paths:
- path: /
backend:
serviceName: kubernetes-dashboard
servicePort: 443Deploy dashboard ingress.
kubectl apply -f dashboard-ingress.yamlThe result will look like this:
kubectl get ing -n kubernetes-dashboard
NAMESPACE NAME HOSTS ADDRESS PORTS AGE
kubernetes-dashboard dashboard-ingress k8s-dashboard.com 80, 443 2dAccess Kubernetes Dashboard Kubernetes dashboard will be accessible through ingress domain name with the configured ingress controller port.
Now we’re ready to get the token from dashboard-admin by following command.
kubectl describe secrets -n kube-system \
$(kubectl -n kube-system get secret | awk '/dashboard-admin/{print $1}')NodePort: https://k8s-dashboard.com:32443
External IPs: https://k8s-dashboard.com
LoadBalancer: https://k8s-dashboard.com
During the installation of SUSE CaaS Platform, a CA (Certificate Authority) certificate is generated, which is then used to authenticate and verify all communication. This process also creates and distributes client and server certificates for the components.
Communication is secured with TLS v1.2 using the AES 128 CBC cipher. All certificates are 2048 bit RSA encrypted.
The CA certificate is valid for 3650 days (10 years) by default. Client and server certificates are valid for 365 days (1 year) by default.
Required CAs for SUSE CaaS Platform are stored on all control plane nodes:
| Common Name | Path | Description |
|---|---|---|
kubernetes | /etc/kubernetes/pki/ca.crt,key | kubernetes general CA |
etcd-ca | /etc/kubernetes/pki/etcd/ca.crt,key | Etcd cluster |
kubelet-ca | /var/lib/kubelet/pki/kubelet-ca.crt,key | Kubelet components |
front-proxy-ca | /etc/kubernetes/pki/front-proxy-ca.crt,key | Front-proxy components |
The control plane certificates stored in the Kubernetes cluster on control plane nodes:
| Common Name | Parent CA | Path | Kind |
|---|---|---|---|
kubernetes | /etc/kubernetes/pki/ca.crt,key | CA | |
kube-apiserver | kubernetes | /etc/kubernetes/pki/apiserver.crt,key | Server |
kube-apiserver-etcd-client | etcd-ca | /etc/kubernetes/pki/apiserver-etcd-client.crt,key | Client |
kube-apiserver-kubelet-client | kubernetes | /etc/kubernetes/pki/apiserver-kubelet-client.crt,key | Client |
etcd-ca | /etc/kubernetes/pki/etcd/ca.crt,key | CA | |
kube-etcd-healthcheck-client | etcd-ca | /etc/kubernetes/pki/etcd/healthcheck-client.crt,key | Client |
kube-etcd-peer | etcd-ca | /etc/kubernetes/pki/etcd/peer.crt,key | Server,Client |
kube-etcd-server | etcd-ca | /etc/kubernetes/pki/etcd/server.crt,key | Server,Client |
kubelet-ca | /var/lib/kubeket/pki/kubelet-ca.crt,key | CA | |
system:node:<nodeName> | kubernetes | /var/lib/kubeket/pki/kubelet-client-current.pem | Client |
system:node:<nodeName> | kubelet-ca | /var/lib/kubelet/pki/kubelet-server-current.pem | Server |
front-proxy-ca | /etc/kubernetes/pki/front-proxy-ca.crt,key | CA | |
front-proxy-client | front-proxy-ca | /etc/kubernetes/pki/front-proxy-client.crt,key | Client |
kubernetes-admin | kubernetes | /etc/kubernetes/admin.conf | Client |
system:kube-controller-manager | kubernetes | /etc/kubernetes/controller-manager.conf | Client |
system:kube-scheduler | kubernetes | /etc/kubernetes/scheduler.conf | Client |
system:node:<nodeName> | kubernetes | /etc/kubernetes/kubelet.conf | Client |
If a node was bootstrapped/joined before Kubernetes version 1.17, you have to manually modify the contents of kubelet.conf to point to the automatically rotated kubelet client certificates by replacing client-certificate-data and client-key-data with:
client-certificate: /var/lib/kubelet/pki/kubelet-client-current.pem
client-key: /var/lib/kubelet/pki/kubelet-client-current.pemThe addon certificates stored in the Kubernetes cluster Secret resource:
| Common Name | Parent CA | Secret Resource Name | Kind |
|---|---|---|---|
oidc-dex | kubernetes | oidc-dex-cert | Server |
oidc-gangway | kubernetes | oidc-gangway-cert | Server |
metrics-server | kubernetes | metrics-server-cert | Server |
cilium-etcd-client | etcd-ca | cilium-secret | Client |
We use cert-exporter to monitor nodes' on-host certificates and addons' secret certificates. The cert-exporter collects the metrics of certificates expiration periodically (1 hour by default) and exposes them through the /metrics endpoint. Then, the Prometheus server can scrape these metrics from the endpoint periodically.
helm repo add suse https://kubernetes-charts.suse.com
helm install <RELEASE_NAME> suse/cert-exporterTo monitor certificates, we need to set up monitoring stack by following the Section 8.1, “Monitoring Stack” on how to deploy it.
Label the skuba addon certificates
kubectl label --overwrite secret oidc-dex-cert -n kube-system caasp.suse.com/skuba-addon=true
kubectl label --overwrite secret oidc-gangway-cert -n kube-system caasp.suse.com/skuba-addon=true
kubectl label --overwrite secret metrics-server-cert -n kube-system caasp.suse.com/skuba-addon=true
kubectl label --overwrite secret cilium-secret -n kube-system caasp.suse.com/skuba-addon=trueYou might see the following console output:
secret/oidc-dex-cert not labeled
secret/oidc-gangway-cert not labeled
secret/metrics-server-cert not labeled
secret/cilium-secret not labeledThis is because skuba has already added the labels for you.
Use Prometheus alerts to reactively receive the status of the certificates, follow the Section 8.1.3.2.3, “Alertmanager Configuration Example” on how to configure the Prometheus Alertmanager and Prometheus Server.
Use Grafana to proactively monitor the status of the certificates, follow the Section 8.1.3.2.6, “Adding Grafana Dashboards” to install the Grafana dashboard to monitors certificates.
You can monitor custom secret TLS certificates that you created manually or using cert-manager.
For example:
Monitor cert-manager issued certificates in the cert-managert-test namespace.
helm install <RELEASE_NAME> suse/cert-exporter \
--set customSecret.enabled=true \
--set customSecret.certs[0].name=cert-manager \
--set customSecret.certs[0].namespace=cert-manager-test \
--set customSecret.certs[0].includeKeys="{*.crt,*.pem}" \
--set customSecret.certs[0].annotationSelector="{cert-manager.io/certificate-name}"Monitor certificates in all namespaces filtered by label selector.
helm install <RELEASE_NAME> suse/cert-exporter \
--set customSecret.enabled=true \
--set customSecret.certs[0].name=self-signed-cert \
--set customSecret.certs[0].includeKeys="{*.crt,*.pem}" \
--set customSecret.certs[0].labelSelector="{key=value}"Deploy both 1. and 2. together.
helm install <RELEASE_NAME> suse/cert-exporter \
--set customSecret.enabled=true \
--set customSecret.certs[0].name=cert-manager \
--set customSecret.certs[0].namespace=cert-manager-test \
--set customSecret.certs[0].includeKeys="{*.crt,*.pem}" \
--set customSecret.certs[0].annotationSelector="{cert-manager.io/certificate-name}" \
--set customSecret.certs[1].name=self-signed-cert \
--set customSecret.certs[1].includeKeys="{*.crt,*.pem}" \
--set customSecret.certs[1].labelSelector="{key=value}"Monitor custom certificates only, disregarding node and addon certificates.
helm install <RELEASE_NAME> suse/cert-exporter \
--set node.enabled=false \
--set addon.enabled=false \
--set customSecret.enabled=true \
--set customSecret.certs[0].name=cert-manager \
--set customSecret.certs[0].namespace=cert-manager-test \
--set customSecret.certs[0].includeKeys="{*.crt,*.pem}" \
--set customSecret.certs[0].annotationSelector="{cert-manager.io/certificate-name}" \
--set customSecret.certs[1].name=self-signed-cert \
--set customSecret.certs[1].includeKeys="{*.crt,*.pem}" \
--set customSecret.certs[1].labelSelector="{key=value}"Please plan carefully when deploying with a custom CA certificate. This certificate can not be reconfigured once deployed and requires a full re-installation of the cluster to replace.
Administrators can provide custom CA certificates (root CAs or intermediate CAs) during cluster deployment and decide which CA components to replace (multiple CA certificates) or if to replace all with a single CA certificate.
After you have run skuba cluster init, go to the <CLUSTER_NAME> folder that has been generated,
Create a pki folder and put your custom CA certificate into the pki folder.
Some PKIs will issue certificates and keys in a combined .pem file.
In order to use the contained certificate, you must extract them into separate files using openssl.
Extract the certificate:
openssl x509 -in /path/to/file.pem -out /path/to/file.crtExtract the key:
openssl rsa -in /path/to/file.pem -out /path/to/file.keyReplacing the Kubernetes CA certificate:
mkdir -p <CLUSTER_NAME>/pki
cp <CUSTOM_APISERVER_CA_CERT_PATH> <CLUSTER_NAME>/pki/ca.crt
cp <CUSTOM_APISERVER_CA_KEY_PATH> <CLUSTER_NAME>/pki/ca.key
chmod 644 <CLUSTER_NAME>/pki/ca.crt
chmod 600 <CLUSTER_NAME>/pki/ca.keyReplacing the etcd CA certificate:
mkdir -p <CLUSTER_NAME>/pki/etcd
cp <CUSTOM_ETCD_CA_CERT_PATH> <CLUSTER_NAME>/pki/etcd/ca.crt
cp <CUSTOM_ETCD_CA_KEY_PATH> <CLUSTER_NAME>/pki/etcd/ca.key
chmod 644 <CLUSTER_NAME>/pki/etcd/ca.crt
chmod 600 <CLUSTER_NAME>/pki/etcd/ca.keyReplacing the kubelet CA certificate:
mkdir -p <CLUSTER_NAME>/pki
cp <CUSTOM_KUBELET_CA_CERT_PATH> <CLUSTER_NAME>/pki/kubelet-ca.crt
cp <CUSTOM_KUBELET_CA_KEY_PATH> <CLUSTER_NAME>/pki/kubelet-ca.key
chmod 644 <CLUSTER_NAME>/pki/kubelet-ca.crt
chmod 600 <CLUSTER_NAME>/pki/kubelet-ca.keyReplacing the front-end proxy CA certificate:
mkdir -p <CLUSTER_NAME>/pki
cp <CUSTOM_FRONTPROXY_CA_CERT_PATH> <CLUSTER_NAME>/pki/front-proxy-ca.crt
cp <CUSTOM_FRONTPROXY_CA_KEY_PATH> <CLUSTER_NAME>/pki/front-proxy-ca.key
chmod 644 <CLUSTER_NAME>/pki/front-proxy-ca.crt
chmod 600 <CLUSTER_NAME>/pki/front-proxy-ca.keyAfter this process, bootstrap the cluster with skuba node bootstrap.
During Cluster Deployment:
With a Trusted CA Key:
mkdir -p <CLUSTER_NAME>/pki
cp <CUSTOM_OIDC_CA_CERT_PATH> <CLUSTER_NAME>/pki/oidc-ca.crt
cp <CUSTOM_OIDC_CA_KEY_PATH> <CLUSTER_NAME>/pki/oidc-ca.key
chmod 644 <CLUSTER_NAME>/pki/oidc-ca.crt
chmod 600 <CLUSTER_NAME>/pki/oidc-ca.keyAfter this process, bootstrap the cluster with skuba node bootstrap.
skuba uploads the local OIDC CA certificate to the remote path specified in the local file kubeadm-init.conf key oidc-ca-file. When installing the add-on, skuba generates the OIDC server certificates and keys which are signed by the provided OIDC CA certificate and key pair and then stored to its Secret resource.
Without a Trusted CA Key:
Use command skuba cert generate-csr to generate the OIDC server CSRs and keys in <my-cluster>/pki folder.
After the CA signs the CSRs and issued the server certificates, put the OIDC CA certificate and the OIDC server certificates in <my-cluster>/pki folder.
After this process, bootstrap the cluster with skuba node bootstrap.
skuba uploads the local OIDC CA certificate to the remote path specified in the local file kubeadm-init.conf key oidc-ca-file. At the time installing the add-on, skuba uploads the OIDC CA certificate and OIDC server certificate and key pair to its Secret resource.
After Cluster Deployment:
With a Trusted CA Key:
Please refer to Section 6.9.7.3, “Addon Certificate Rotation” on how to use cert-manager and reloader to issue oidc-dex and oidc-gangway certificates signed by trusted CA certificate/key.
Without a Trusted CA Key:
Because the custom trusted CA certificate is not in the Kubernetes cluster, administrators must handle server certificate rotation manually before the certificate expires.
The oidc-dex and oidc-gangway server certificate and key is replaced when skuba addon upgrade apply contains a dex or gangway addon upgrade.
Make sure to reapply your changes after running skuba addon upgrade apply, had you modified the default settings of oidc-dex and oidc-gangway addons.
Replace the oidc-dex server certificate:
Backup the original oidc-dex server certificate and key from secret resource.
mkdir -p pki.bak
kubectl get secret oidc-dex-cert -n kube-system -o yaml | tee pki.bak/oidc-dex-cert.yaml > /dev/null
cat pki.bak/oidc-dex-cert.yaml | grep tls.crt | awk '{print $2}' | base64 --decode | tee pki.bak/oidc-dex.crt > /dev/null
cat pki.bak/oidc-dex-cert.yaml | grep tls.key | awk '{print $2}' | base64 --decode | tee pki.bak/oidc-dex.key > /dev/nullGet the original SAN IP address(es) and DNS(s), run:
openssl x509 -noout -text -in pki.bak/oidc-dex.crt | grep -oP '(?<=IP Address:)[^,]+'
openssl x509 -noout -text -in pki.bak/oidc-dex.crt | grep -oP '(?<=DNS:)[^,]+'Sign the oidc-dex server certificate with the trusted CA certificate.
Please refer to Section 6.9.9.1.1, “Trusted Server Certificate” on how to sign the trusted certificate. The server.conf for IP.1 is the original SAN IP address if present, DNS.1 is the original SAN DNS if present.
Then, import your trusted certificate into the Kubernetes cluster.
The trusted CA certificates is <TRUSTED_CA_CERT_PATH>, trusted server certificate and key are <SIGNED_OIDC_DEX_SERVER_CERT_PATH> and <SIGNED_OIDC_DEX_SERVER_KEY_PATH>.
Create a secret manifest file oidc-dex-cert.yaml and update the secret data ca.crt, tls.crt, and tls.key with base64; encoded with trusted CA certificate, signed oidc-dex server certificate and key respectively.
apiVersion: v1
kind: Secret
metadata:
name: oidc-dex-cert
namespace: kube-system
labels:
caasp.suse.com/skuba-addon: "true"
type: kubernetes.io/tls
data:
ca.crt: cat <TRUSTED_CA_CERT_PATH> | base64 | awk '\{print\}' ORS='' && echo
tls.crt: cat <SIGNED_OIDC_DEX_SERVER_CERT_PATH> | base64 | awk '\{print\}' ORS='' && echo
tls.key: cat <SIGNED_OIDC_DEX_SERVER_KEY_PATH> | base64 | awk '\{print\}' ORS='' && echoApply the secret manifest file and restart oidc-dex pods.
kubectl replace -f oidc-dex-cert.yaml
kubectl rollout restart deployment/oidc-dex -n kube-systemReplace the oidc-gangway server certificate:
Backup the original oidc-gangway server certificate and key from secret resource.
mkdir -p pki.bak
kubectl get secret oidc-gangway-cert -n kube-system -o yaml | tee pki.bak/oidc-gangway-cert.yaml > /dev/null
cat pki.bak/oidc-gangway-cert.yaml | grep tls.crt | awk '{print $2}' | base64 --decode | tee pki.bak/oidc-gangway.crt > /dev/null
cat pki.bak/oidc-gangway-cert.yaml | grep tls.key | awk '{print $2}' | base64 --decode | tee pki.bak/oidc-gangway.key > /dev/nullGet the original SAN IP address(es) and DNS(s), run:
openssl x509 -noout -text -in pki.bak/oidc-gangway.crt | grep -oP '(?<=IP Address:)[^,]+'
openssl x509 -noout -text -in pki.bak/oidc-gangway.crt | grep -oP '(?<=DNS:)[^,]+'Sign the oidc-gangway server certificate with the trusted CA certificate.
Please refer to Section 6.9.9.1.1, “Trusted Server Certificate” on how to sign the trusted certificate. The server.conf for IP.1 is the original SAN IP address if present, DNS.1 is the original SAN DNS if present.
Then, import your trusted certificate into the Kubernetes cluster.
The trusted CA certificates is <TRUSTED_CA_CERT_PATH>, trusted server certificate and key are <SIGNED_OIDC_GANGWAY_SERVER_CERT_PATH> and <SIGNED_OIDC_GANGWAY_SERVER_KEY_PATH>.
Create a secret manifest file oidc-gangway-cert.yaml and update the secret data ca.crt, tls.crt, and tls.key with base64; encoded with trusted CA certificate, signed oidc-gangway server certificate and key respectively.
apiVersion: v1
kind: Secret
metadata:
name: oidc-gangway-cert
namespace: kube-system
labels:
caasp.suse.com/skuba-addon: "true"
type: kubernetes.io/tls
data:
ca.crt: cat <TRUSTED_CA_CERT_PATH> | base64 | awk '\{print\}' ORS='' && echo
tls.crt: cat <SIGNED_OIDC_GANGWAY_SERVER_CERT_PATH> | base64 | awk '\{print\}' ORS='' && echo
tls.key: cat <SIGNED_OIDC_GANGWAY_SERVER_KEY_PATH> | base64 | awk '\{print\}' ORS='' && echoApply the secret manifest file and restart oidc-gangway pods.
kubectl replace -f oidc-gangway-cert.yaml
kubectl rollout restart deployment/oidc-gangway -n kube-systemReplace the OIDC CA for kube-apiserver:
Copy custom OIDC CA which was used for oidc-dex and oidc-gangway to /etc/kubernetes/pki/oidc-ca.crt on all SUSE CaaS Platform master nodes
ssh <USERNAME>@<MASTER_NODE_IP_ADDRESS/FQDN>
sudo mv oidc-ca.crt /etc/kubernetes/pki/oidc-ca.crtUpdate oidc-ca-file option in kubeadm configmap
kubectl get configmap -n kube-system kubeadm-config -o yaml > kubeadm-config.yaml
sed -i "s|oidc-ca-file: .*|oidc-ca-file: /etc/kubernetes/pki/oidc-ca.crt|" kubeadm-config.yaml
kubectl apply -f kubeadm-config.yamlUpdate oidc-ca-file in static pod manifest for kube-apiserver in /etc/kubernetes/manifests/kube-apiserver.yaml on all SUSE CaaS Platform master nodes
sed -i "s|oidc-ca-file=.*|oidc-ca-file=/etc/kubernetes/pki/oidc-ca.crt|" /etc/kubernetes/manifests/kube-apiserver.yamlSUSE CaaS Platform renews the control plane certificates and kubeconfigs automatically in two ways:
During node upgrade:
When the node is upgraded, all the kubeadm managed certificates and kubeconfigs get rotated.
The time to rotate the kubelet client and server certificate is controlled by kubelet daemon.
During node upgrade, neither the kubelet client certificate nor server certificate get rotated.
Via the kucero addon:
If the administrator is not able to upgrade the cluster, the kucero (KUbernetes control plane CErtificate ROtation) addon rotates all the kubeadm managed certificates and kubeconfigs and signs kubelet server CSR.
kucero is a kubeadm checker/renewer in the form of a DaemonSet. Its job is to periodically check and renew control plane kubeadm managed certificates/kubeconfigs, and check the kubelet client and server enables auto rotation, and also a signer to sign kubelet server CSR.
The kubelet client and server certificate renews automatically at approximately 70%-90% of the total lifetime of the certificate, the kubelet daemon would use new client and server certificates without downtime.
The configuration which controls the kubelet daemon to send out the CSR within the Kubernetes cluster is controlled by the configuration /var/lib/kubelet/config.yaml.
The key rotateCertificates controls the kubelet client certificate; the key serverTLSBootstrap controls the kubelet server certificate.
When the client or server certificate is going to expire, the kubelet daemon sends the kubelet client or server CSR within the Kubernetes cluster.
The kube-controller-manager signs the kubelet client CSR with the Kubernetes CA cert/key pair, kucero addon signs the kubelet server CSR with the kubelet CA cert/key pair.
Then, the kubelet daemon saves the signed certificate under the folder /var/lib/kubelet/pki and updates the client or server certificate symlink points to the latest signed certificate.
The path of kubelet client certificate is /var/lib/kubelet/pki/kubelet-client-current.pem.
The path of kubelet server certificate is /var/lib/kubelet/pki/kubelet-server-current.pem.
Control Plane Node Certificates are rotated in two ways:
During node upgrade:
when doing a control plane update, skuba node upgrade apply runs kubeadm upgrade commands behind the scenes. kubeadm upgrade apply and
kubeadm upgrade node renews and uses new kubeadm managed certificates on the node, including those stored in kubeconfig files, regardless of the remaining time for which the certificate was still valid.
Via the kucero addon:
kubeadm managed certificates/kubeconfigs:
a kubeadm checker/renewer to periodical checks (default interval is 1 hour) the kubeadm managed certificates/kubeconfigs, and rotates the certificates/kubeconfigs if the residual time is less than the total time (default 720 hours).
Administrators can change the default time to renew the certificates/kubeconfigs by adding --renew-before=<duration>` (duration format is XhYmZs) to the kucero daemonset or change the default polling period for checking the certificates/kubeconfigs by adding --polling-period=<duration> (duration format is XhYmZs).
kubelet client and server certificates:
A kubelet configuration checker/updater periodically checks (default interval is 1 hour) if the kubelet configuration enables the client and server auto rotation.
If not, kucero will help enable the client and server auto-rotation by configuring rotateCertificates: true and serverTLSBootstrap: true in /var/lib/kubelet/config.yaml.
After that, the kubelet daemon will send out the CSR within the Kubernetes cluster if the client or server is going to expire, the corresponding CSR signer and approver will sign and approve the CSR, then the kubelet daemon saves the signed certificate under the folder /var/lib/kubelet/pki and updates the symlink points to the latest signed certificate.
Worker Node Certificates are rotated in one way:
Via the kucero addon:
kubelet client and server certificates:
A kubelet configuration checker/updater periodically checks (default interval is 1 hour) if the kubelet configuration enables the client and server auto rotation.
If not, kucero will help enable the client and server auto-rotation by configuring rotateCertificates: true and serverTLSBootstrap: true in /var/lib/kubelet/config.yaml.
After that, the kubelet daemon will send out the CSR within the Kubernetes cluster if the client or server is going to expire, the corresponding CSR signer and approver will sign and approve the CSR, then the kubelet daemon saves the signed certificate under the folder /var/lib/kubelet/pki and updates the symlink points to the latest signed certificate.
The addon certificates can be automatically rotated by leveraging the functions of the open-source solutions cert-manager and reloader. cert-manager is for automatically rotating certificates stored in Secrets, and reloader is for watching and reconciling the updated Secrets to execute a rolling upgrade of the affected Deployments or DaemonSet.
Install reloader via helm chart:
helm install <RELEASE_NAME> \
--namespace cert-manager \
--create-namespace \
suse/reloaderInstall cert-manager via helm chart:
helm install <RELEASE_NAME> \
--namespace cert-manager \
--create-namespace \
--set global.leaderElection.namespace=cert-manager \
--set installCRDs=true \
suse/cert-managerCert-Manager CA Issuer Resource
The cert-manager CA issuer is a Kubernetes resource that represents a certificate authority (CA), which can generate signed certificates by honoring certificate signing requests (CSR). Each cert-manager certificate resource requires one referenced issuer in the ready state to be able to honor CSR requests.
An Issuer is a namespaced resource, and it can not issue certificates to the certificate resources in other namespaces.
If you want to create a single Issuer that can be consumed in multiple namespaces, you should consider creating a ClusterIssuer resource. This is almost identical to the Issuer resource, however, it is cluster-wide so it can be used to issue certificates in all namespaces.
Cert-Manager Certificate Resource
The cert-manager has a custom resource, Certificate, which can be used to define a requested x509 certificate which will be renewed and kept up to date by an Issuer or ClusterIssuer resource.
If you are running a cluster using cilium version before 1.6, the cilium data is stored in the ETCD cluster, not the custom resources (CR). `skuba` generates a client certificate to read/write the cilium date to the ETCD cluster and the client certificate will expire after 1 year. Please follow the below steps to use cert-manager to automatically renew the cilium client certificate.
Check the SUSE CaaS Platform cilium version before 1.6
CILIUM_OPERATOR=`kubectl get pod -l name=cilium-operator --namespace kube-system -o jsonpath='{.items[0].metadata.name}'`
kubectl exec -it ${CILIUM_OPERATOR} --namespace kube-system -- cilium-operator --versionTo let reloader do an automatic rolling upgrade of the cilium addon DaemonSet, we need to label the addons:
kubectl annotate --overwrite daemonset/cilium -n kube-system secret.reloader.stakater.com/reload=cilium-secretUpload the ETCD CA cert/key pair to Secret in the kube-system namespace
kubectl create secret tls etcd-ca --cert=pki/etcd/ca.crt --key=pki/etcd/ca.key -n kube-systemCreate a Cert-Manager CA Issuer Resource
Create a CA issuer called etcd-ca that will sign incoming certificate requests based on the CA certificate and private key stored in the secret etcd-ca used to trust newly signed certificates.
cat << EOF > issuer-etcd-ca.yaml
apiVersion: cert-manager.io/v1alpha3
kind: Issuer
metadata:
name: etcd-ca
namespace: kube-system
spec:
ca:
secretName: etcd-ca
EOF
kubectl create -f issuer-etcd-ca.yamlCreate a Cert-Manager Certificate Resource
Create a certificate resource cilium-etcd-client that will watch and auto-renews the secret cilium-secret if the certificate residual time is less than the renewBefore value.
cat << EOF > cilium-etcd-client-certificate.yaml
apiVersion: cert-manager.io/v1alpha3
kind: Certificate
metadata:
name: cilium-etcd-client-cert
namespace: kube-system
spec:
subject:
organizations:
- system:masters
commonName: cilium-etcd-client
duration: 8760h # 1 year
renewBefore: 720h # 1 month
secretName: cilium-secret
issuerRef:
name: etcd-ca
kind: Issuer
group: cert-manager.io
isCA: false
usages:
- digital signature
- key encipherment
- client auth
keySize: 2048
keyAlgorithm: rsa
keyEncoding: pkcs1
EOF
kubectl create -f cilium-etcd-client-certificate.yamlPrerequisites
To let reloader do an automatic rolling upgrade of the addon Deployments or DaemonSet, we need to label the addons:
kubectl annotate --overwrite deployment/oidc-dex -n kube-system secret.reloader.stakater.com/reload=oidc-dex-cert
kubectl annotate --overwrite deployment/oidc-gangway -n kube-system secret.reloader.stakater.com/reload=oidc-gangway-cert
kubectl annotate --overwrite deployment/metrics-server -n kube-system secret.reloader.stakater.com/reload=metrics-server-certUpload the Kubernetes CA cert/key pair to Secret in the kube-system namespace:
kubectl create secret tls kubernetes-ca --cert=pki/ca.crt --key=pki/ca.key -n kube-systemIf you want to use a custom trusted CA certificate/key to sign the certificate, upload to the secret resource.
kubectl create secret tls custom-trusted-ca --cert=<CUSTOM_TRUSTED_CA_CERT> --key=<CUSTOM_TRUSTED_CA_KEY> -n kube-systemCreate a Cert-Manager CA Issuer Resource
Create a CA issuer called kubernetes-ca that will sign incoming certificate requests based on the CA certificate and private key stored in the secret kubernetes-ca used to trust newly signed certificates.
cat << EOF > issuer-kubernetes-ca.yaml
apiVersion: cert-manager.io/v1alpha3
kind: Issuer
metadata:
name: kubernetes-ca 1
namespace: kube-system
spec:
ca:
secretName: kubernetes-ca 2
EOF
kubectl create -f issuer-kubernetes-ca.yamlIf you want to use custom trusted CA certificate/key to sign the certificate, create a custom trusted CA issuer.
cat << EOF > custom-trusted-kubernetes-ca-issuer.yaml
apiVersion: cert-manager.io/v1alpha3
kind: Issuer 1
metadata:
name: custom-trusted-kubernetes-ca
namespace: kube-system
spec:
ca:
secretName: custom-trusted-kubernetes-ca
EOF
kubectl create -f custom-trusted-kubernetes-ca-issuer.yamlIssuer or ClusterIssuer. |
Create a Cert-Manager Certificate Resource
Create a certificate resource that will watch and auto-renews the secret if the certificate residual time is less than the renewBefore value.
oidc-dex certificate
cat << EOF > oidc-dex-certificate.yaml
apiVersion: cert-manager.io/v1alpha3
kind: Certificate
metadata:
name: oidc-dex-cert
namespace: kube-system
spec:
subject:
organizations:
- system:masters
commonName: oidc-dex
duration: 8760h # 1 year 1
renewBefore: 720h # 1 month 2
# At least one of a DNS Name or IP address is required.
dnsNames:
- $(cat admin.conf | grep server | awk '{print $2}' | sed 's/https:\/\///g' | sed 's/:6443//g') 3
ipAddresses:
- $(cat admin.conf | grep server | awk '{print $2}' | sed 's/https:\/\///g' | sed 's/:6443//g') 4
secretName: oidc-dex-cert
issuerRef:
name: kubernetes-ca 5
kind: Issuer 6
group: cert-manager.io
isCA: false
usages:
- digital signature
- key encipherment
- server auth
keySize: 2048
keyAlgorithm: rsa
keyEncoding: pkcs1
EOF
kubectl create -f oidc-dex-certificate.yamlDefault length of certificate validity, in the format (XhYmZs). | |
Certificate renewal time before validity expires, in the format (XhYmZs). | |
DNSNames is a list of subject alt names to be used on the Certificate. | |
IPAddresses is a list of IP addresses to be used on the Certificate. | |
The cert-manager issuer name. | |
Issuer or ClusterIssuer. |
This certificate will tell cert-manager to attempt to use the Issuer named kubernetes-ca to obtain a certificate key pair for the domain list in dnsNames and ipAddresses. If successful, the resulting key and certificate will be stored in a secret named oidc-dex-cert with keys of tls.key and tls.crt respectively.
The dnsNames and ipAddresses fields specify a list of Subject Alternative Names to be associated with the certificate.
The referenced Issuer must exist in the same namespace as the Certificate. A Certificate can alternatively reference a ClusterIssuer which is cluster-wide so it can be referenced from any namespace.
If you want to use a custom trusted CA Issuer/ClusterIssuer, change the value of name under issuerRef to custom-trusted-ca and the value of kind under issuerRef to Issuer/ClusterIssuer.
oidc-gangway certificate
cat << EOF > oidc-gangway-certificate.yaml
apiVersion: cert-manager.io/v1alpha3
kind: Certificate
metadata:
name: oidc-gangway-cert
namespace: kube-system
spec:
subject:
organizations:
- system:masters
commonName: oidc-gangway
duration: 8760h # 1 year 1
renewBefore: 720h # 1 month 2
# At least one of a DNS Name or IP address is required.
dnsNames:
- $(cat admin.conf | grep server | awk '{print $2}' | sed 's/https:\/\///g' | sed 's/:6443//g') 3
ipAddresses:
- $(cat admin.conf | grep server | awk '{print $2}' | sed 's/https:\/\///g' | sed 's/:6443//g') 4
secretName: oidc-gangway-cert
issuerRef:
name: kubernetes-ca 5
kind: Issuer 6
group: cert-manager.io
isCA: false
usages:
- digital signature
- key encipherment
- server auth
keySize: 2048
keyAlgorithm: rsa
keyEncoding: pkcs1
EOF
kubectl create -f oidc-gangway-certificate.yamlDefault length of certificate validity, in the format (XhYmZs). | |
Certificate renewal time before validity expires, in the format (XhYmZs). | |
DNSNames is a list of subject alt names to be used on the Certificate. | |
IPAddresses is a list of IP addresses to be used on the Certificate. | |
The cert-manager issuer name. | |
Issuer or ClusterIssuer. |
If you want to use a custom trusted CA Issuer/ClusterIssuer, change the value of name under issuerRef to custom-trusted-ca and the value of kind under issuerRef to Issuer/ClusterIssuer.
metrics-server certificate
cat << EOF > metrics-server-certificate.yaml
apiVersion: cert-manager.io/v1alpha3
kind: Certificate
metadata:
name: metrics-server-cert
namespace: kube-system
spec:
subject:
organizations:
- system:masters
commonName: metrics-server.kube-system.svc
duration: 8760h # 1 year 1
renewBefore: 720h # 1 month 2
# At least one of a DNS Name or IP address is required.
dnsNames:
- $(cat admin.conf | grep server | awk '{print $2}' | sed 's/https:\/\///g' | sed 's/:6443//g') 3
ipAddresses:
- $(cat admin.conf | grep server | awk '{print $2}' | sed 's/https:\/\///g' | sed 's/:6443//g') 4
secretName: metrics-server-cert
issuerRef:
name: kubernetes-ca 5
kind: Issuer 6
group: cert-manager.io
isCA: false
usages:
- digital signature
- key encipherment
- server auth
keySize: 2048
keyAlgorithm: rsa
keyEncoding: pkcs1
EOF
kubectl create -f metrics-server-certificate.yamlDefault length of certificate validity, in the format (XhYmZs). | |
Certificate renewal time before validity expires, in the format (XhYmZs). | |
DNSNames is a list of subject alt names to be used on the Certificate. | |
IPAddresses is a list of IP addresses to be used on the Certificate. | |
The cert-manager issuer name. | |
Issuer or ClusterIssuer. |
Once the cert-manager has issued a certificate to the secret, if you change the certificate inside the secret manually, or you manually change the current certificate duration to a value lower than the value renewBefore, the certificate won’t be renewed immediately but will be scheduled to renew near the certificate expiry date.
This is because the cert-manager is not designed to pick up changes you make to the certificate in the secret.
If you are running multiple control plane nodes, you need to run the followings commands sequentially on all control plane nodes.
Replace kubeadm-managed certificates:
To SSH into the control plane node, renew all kubeadm certificates and reboot,
run the following:
ssh <USERNAME>@<MASTER_NODE_IP_ADDRESS/FQDN>
sudo cp -r /etc/kubernetes/pki /etc/kubernetes/pki.bak
sudo kubeadm alpha certs renew all
sudo systemctl restart kubeletCopy the renewed admin.conf from one of the control plane nodes to your local environment:
ssh <USERNAME>@<MASTER_NODE_IP_ADDRESS/FQDN>
sudo cat /etc/kubernetes/admin.confReplace the kubelet server certificate:
You need to generate kubelet server certificate for all the nodes on one of control plane nodes.
The kubelet CA certificate key only exists on the control plane nodes.
Therefore, after generating re-signed kubelet server certificate/key for worker nodes, you have to copy each kubelet server certificate/key from the control plane node to the corresponding worker node.
Backup the original kubelet certificates and keys on it’s node.
sudo cp -r /var/lib/kubelet/pki /var/lib/kubelet/pki.bakGet the O/OU/CN, run the command on it’s node:
openssl x509 -noout -subject -in /var/lib/kubelet/pki.bak/kubelet.crtGet the original SAN IP address(es) and DNS(s), run the command on it’s node:
openssl x509 -noout -text -in /var/lib/kubelet/pki.bak/kubelet.crt | grep -oP '(?<=IP Address:)[^,]+'
openssl x509 -noout -text -in /var/lib/kubelet/pki.bak/kubelet.crt | grep -oP '(?<=DNS:)[^,]+'At one of the control plane node, sign the corresponding node kubelet server certificate with the CA certificate/key /var/lib/kubelt/pki/kubelet-ca.crt and /var/lib/kubelet/pki/kubelet-ca.key, please refer to Section 6.9.9.1.1, “Trusted Server Certificate” on how to sign the trusted server certificate. The server.conf for O/OU/CN recommends be the same as original one, for IP.1 is the original SAN IP address if present, DNS.1 is the original SAN DNS if present.
Copy the signed certificate/key from one ofthe control plane node to the corresponding node.
Finally, update the kubelet server certificate and key file /var/lib/kubelet/kubelet.crt and /var/lib/kubelet/kubelet.key respectively, and restart kubelet service on it’s node.
sudo cp <CUSTOM_KUBELET_SERVER_CERT_PATH> /var/lib/kubelet/pki/kubelet.crt
sudo cp <CUSTOM_KUBELET_SERVER_KEY_PATH> /var/lib/kubelet/pki/kubelet.key
chmod 644 /var/lib/kubelet/pki/kubelet.crt
chmod 600 /var/lib/kubelet/pki/kubelet.key
sudo systemctl restart kubeletIn the admin node, regenerate the certificates:
Replace the oidc-dex server certificate:
Backup the original oidc-dex server certificate and key from secret resource.
mkdir -p <CLUSTER_NAME>/pki.bak
kubectl get secret oidc-dex-cert -n kube-system -o "jsonpath={.data['tls\.crt']}" | base64 --decode | tee <CLUSTER_NAME>/pki.bak/oidc-dex.crt > /dev/null
kubectl get secret oidc-dex-cert -n kube-system -o "jsonpath={.data['tls\.key']}" | base64 --decode | tee <CLUSTER_NAME>/pki.bak/oidc-dex.key > /dev/nullGet the original SAN IP address(es) and DNS(s), run:
openssl x509 -noout -text -in <CLUSTER_NAME>/pki.bak/oidc-dex.crt | grep -oP '(?<=IP Address:)[^,]+'
openssl x509 -noout -text -in <CLUSTER_NAME>/pki.bak/oidc-dex.crt | grep -oP '(?<=DNS:)[^,]+'Sign the oidc-dex server certificate with the default kubernetes CA certificate or trusted CA certificate.
Default kubernetes CA certificate
Please refer to Section 6.9.9.2.2, “Self-signed Server Certificate” on how to sign the self signed server certificate. The default kubernetes CA certificate and key are located at /etc/kubernetes/pki/ca.crt and /etc/kubernetes/pki/ca.key. The server.conf for IP.1 is the original SAN IP address if present, DNS.1 is the original SAN DNS if present.
Trusted CA certificate
Please refer to Section 6.9.9.1.1, “Trusted Server Certificate” on how to sign the trusted server certificate. The server.conf for IP.1 is the original SAN IP address if present, DNS.1 is the original SAN DNS if present.
Import your certificate into the Kubernetes cluster.
The CA certificate is <CA_CERT_PATH>, server certificate and key are <SIGNED_OIDC_DEX_SERVER_CERT_PATH> and <SIGNED_OIDC_DEX_SERVER_KEY_PATH>.
Create a secret manifest file oidc-dex-cert.yaml and update the secret data ca.crt, tls.crt, and tls.key with base64; encoded with CA certificate, signed oidc-dex server certificate and key respectively.
apiVersion: v1
kind: Secret
metadata:
name: oidc-dex-cert
namespace: kube-system
labels:
caasp.suse.com/skuba-addon: "true"
type: kubernetes.io/tls
data:
ca.crt: cat <CA_CERT_PATH> | base64 | awk '\{print\}' ORS='' && echo
tls.crt: cat <SIGNED_OIDC_DEX_SERVER_CERT_PATH> | base64 | awk '\{print\}' ORS='' && echo
tls.key: cat <SIGNED_OIDC_DEX_SERVER_KEY_PATH> | base64 | awk '\{print\}' ORS='' && echoApply the secret manifest file and restart oidc-dex pods.
kubectl replace -f oidc-dex-cert.yaml
kubectl rollout restart deployment/oidc-dex -n kube-systemReplace the oidc-gangway server certificate:
Backup the original oidc-gangway server certificate and key from secret resource.
mkdir -p <CLUSTER_NAME>/pki.bak
kubectl get secret oidc-gangway-cert -n kube-system -o "jsonpath={.data['tls\.crt']}" | base64 --decode | tee <CLUSTER_NAME>/pki.bak/oidc-gangway.crt > /dev/null
kubectl get secret oidc-gangway-cert -n kube-system -o "jsonpath={.data['tls\.key']}" | base64 --decode | tee <CLUSTER_NAME>/pki.bak/oidc-gangway.key > /dev/nullGet the original SAN IP address(es) and DNS(s), run:
openssl x509 -noout -text -in <CLUSTER_NAME>/pki.bak/oidc-gangway.crt | grep -oP '(?<=IP Address:)[^,]+'
openssl x509 -noout -text -in <CLUSTER_NAME>/pki.bak/oidc-gangway.crt | grep -oP '(?<=DNS:)[^,]+'Sign the oidc-gangway server certificate with the default kubernetes CA certificate or trusted CA certificate.
Default kubernetes CA certificate
Please refer to Section 6.9.9.2.2, “Self-signed Server Certificate” on how to sign the self signed server certificate. The default kubernetes CA certificate and key are located at /etc/kubernetes/pki/ca.crt and /etc/kubernetes/pki/ca.key. The server.conf for IP.1 is the original SAN IP address if present, DNS.1 is the original SAN DNS if present.
Trusted CA certificate
Please refer to Section 6.9.9.1.1, “Trusted Server Certificate” on how to sign the trusted server certificate. The server.conf for IP.1 is the original SAN IP address if present, DNS.1 is the original SAN DNS if present.
Import your certificate into the Kubernetes cluster.
The CA certificates is <CA_CERT_PATH>, server certificate and key are <SIGNED_OIDC_GANGWAY_SERVER_CERT_PATH> and <SIGNED_OIDC_GANGWAY_SERVER_KEY_PATH>.
Create a secret manifest file oidc-gangway-cert.yaml and update the secret data ca.crt, tls.crt, and tls.key with base64; encoded with CA certificate, signed oidc-gangway server certificate and key respectively.
apiVersion: v1
kind: Secret
metadata:
name: oidc-gangway-cert
namespace: kube-system
labels:
caasp.suse.com/skuba-addon: "true"
type: kubernetes.io/tls
data:
ca.crt: cat <CA_CERT_PATH> | base64 | awk '\{print\}' ORS='' && echo
tls.crt: cat <SIGNED_OIDC_GANGWAY_SERVER_CERT_PATH> | base64 | awk '\{print\}' ORS='' && echo
tls.key: cat <SIGNED_OIDC_GANGWAY_SERVER_KEY_PATH> | base64 | awk '\{print\}' ORS='' && echoApply the secret manifest file and restart oidc-gangway pods.
kubectl replace -f oidc-gangway-cert.yaml
kubectl rollout restart deployment/oidc-gangway -n kube-systemReplace the metrics-server server certificate:
Backup the original metrics-server server certificate and key from secret resource.
mkdir -p <CLUSTER_NAME>/pki.bak
kubectl get secret metrics-server-cert -n kube-system -o "jsonpath={.data['tls\.crt']}" | base64 --decode | tee <CLUSTER_NAME>/pki.bak/metrics-server.crt > /dev/null
kubectl get secret metrics-server-cert -n kube-system -o "jsonpath={.data['tls\.key']}" | base64 --decode | tee <CLUSTER_NAME>/pki.bak/metrics-server.key > /dev/nullGet the O/OU/CN, run:
openssl x509 -noout -subject -in <CLUSTER_NAME>/pki.bak/metrics-server.crtGet the original SAN IP address(es) and DNS(s), run:
openssl x509 -noout -text -in <CLUSTER_NAME>/pki.bak/metrics-server.crt | grep -oP '(?<=IP Address:)[^,]+'
openssl x509 -noout -text -in <CLUSTER_NAME>/pki.bak/metrics-server.crt | grep -oP '(?<=DNS:)[^,]+'Sign the metrics-server-cert server certificate with the default Kubernetes CA certificate
Please refer to Section 6.9.9.2.2, “Self-signed Server Certificate” on how to sign the self signed server certificate. The default Kubernetes CA certificate and key are located at /etc/kubernetes/pki/ca.crt and /etc/kubernetes/pki/ca.key. The server.conf for O/OU/CN must be the same as original one, IP.1 is the original SAN IP address if present, DNS.1 is the original SAN DNS if present.
Import your certificate into the Kubernetes cluster.
The CA certificates is <CA_CERT_PATH>, server certificate and key are <SIGNED_METRICS_SERVER_CERT_PATH> and <SIGNED_METRICS_SERVER_KEY_PATH>.
Create a secret manifest file oidc-metrics-server-cert.yaml and update the secret data ca.crt, tls.crt, and tls.key with base64; encoded with CA certificate, signed metrics-server server certificate and key respectively.
apiVersion: v1
kind: Secret
metadata:
name: metrics-server-cert
namespace: kube-system
labels:
caasp.suse.com/skuba-addon: "true"
type: kubernetes.io/tls
data:
ca.crt: cat <CA_CERT_PATH> | base64 | awk '\{print\}' ORS='' && echo
tls.crt: cat <SIGNED_METRICS_SERVER_CERT_PATH> | base64 | awk '\{print\}' ORS='' && echo
tls.key: cat <SIGNED_METRICS_SERVER_KEY_PATH> | base64 | awk '\{print\}' ORS='' && echoApply the secret manifest file and restart metrics-server pods.
kubectl replace -f metrics-server-cert.yaml
kubectl rollout restart deployment/metrics-server -n kube-systemGenerate a private key by following the steps below from a terminal window:
openssl genrsa -aes256 -out server.key 2048Type the pass phrase to protect the key and press [Enter]
Re-enter the pass phrase.
Create a file server.conf with the appropriate values
[req] distinguished_name = req_distinguished_name req_extensions = v3_req prompt = no [req_distinguished_name] C = CZ 1 ST = CZ 2 L = Prague 3 O = example 4 OU = com 5 CN = server.example.com 6 emailAddress = admin@example.com 7 [v3_req] basicConstraints = critical,CA:FALSE keyUsage = critical,digitalSignature,keyEncipherment extendedKeyUsage = serverAuth subjectAltName = @alt_names [alt_names] IP.1 = <SERVER-IP-ADDRESS> 8 DNS.1 = <SERVER-FQDN> 9
Country Name (2 letter code). | |
State or Province Name (full name). | |
Locality Name (eg, city). | |
Organization Name (eg, company). | |
Organizational Unit Name (eg, section). | |
Common Name (e.g. server FQDN or YOUR name) | |
Email Address | |
Server IP address if present. Add more IP.X below if the server has more than one IP address. Remove IP.1 if the server uses FQDN. | |
Server FQDN if present. Add more DNS.X below if the server has more than one domain name. Remove DNS.1 if the server uses an IP address. |
Generate a certificate signing request (CSR)
openssl req -new -key server.key -config server.conf -out server.csrEnter the pass phrase of the private key created in Step 1.
Check the certificate signing request (CSR)
openssl req -text -noout -verify -in server.csrSign the certificate
Send the certificate signing request (CSR) to the 3rd party for signing. You should receive the following files in return:
Server certificate (public key)
Intermediate CA and/or bundles that chain to the Trusted Root CA
Generate a private key by following the steps below from a terminal window:
openssl genrsa -aes256 -out client.key 2048Type the pass phrase to protect the key and press [Enter]
Re-enter the pass phrase.
Create a file client.conf with the appropriate values
[req] distinguished_name = req_distinguished_name req_extensions = v3_req prompt = no [req_distinguished_name] C = CZ 1 ST = CZ 2 L = Prague 3 O = example 4 OU = com 5 CN = client.example.com 6 emailAddress = admin@example.com 7 [v3_req] basicConstraints = critical,CA:FALSE keyUsage = critical,digitalSignature,keyEncipherment extendedKeyUsage = clientAuth
Generate a certificate signing request (CSR)
openssl req -new -key client.key -config client.conf -out client.csrEnter the pass phrase of the private key created in Step 1.
Check the certificate signing request (CSR)
openssl req -text -noout -verify -in client.csrSign the certificate
Send the certificate signing request (CSR) to the 3rd party for signing. You should receive the following files in return:
Client certificate (public key)
Intermediate CA and/or bundles that chain to the Trusted Root CA
In the case that you decide to use self-signed certificates, make sure that the Certificate Authority used for signing is configured securely as a trusted Certificate Authority on the clients.
In some cases you want to create self-signed certificates for testing. If you are using proper trusted 3rd-party CA signed certificates, skip the following steps and refer to Section 6.9.9.1.1, “Trusted Server Certificate”.
Create a file ca.conf with the appropriate values
[req] distinguished_name = req_distinguished_name x509_extensions = v3_ca prompt = no [req_distinguished_name] C = CZ 1 ST = CZ 2 L = Prague 3 O = example 4 OU = com 5 CN = Root CA 6 emailAddress = admin@example.com 7 [v3_ca] basicConstraints = critical,CA:TRUE keyUsage = critical,digitalSignature,keyEncipherment,keyCertSign
Sign the CA certificate
openssl genrsa -out ca.key 2048
openssl req -key ca.key -new -x509 -days 3650 -sha256 -config ca.conf -out ca.crtCreate a file server.conf with the appropriate values
[req] distinguished_name = req_distinguished_name req_extensions = v3_req prompt = no [req_distinguished_name] C = CZ 1 ST = CZ 2 L = Prague 3 O = example 4 OU = com 5 CN = example.com 6 emailAddress = admin@example.com 7 [v3_req] basicConstraints = critical,CA:FALSE keyUsage = critical,digitalSignature,keyEncipherment extendedKeyUsage = serverAuth subjectAltName = @alt_names [alt_names] IP.1 = <SERVER-IP-ADDRESS> 8 DNS.1 = <SERVER-FQDN> 9
Country Name (2 letter code). | |
State or Province Name (full name). | |
Locality Name (eg, city). | |
Organization Name (eg, company). | |
Organizational Unit Name (eg, section). | |
Common Name (e.g. server FQDN or YOUR name) | |
Email Address | |
Server IP address if present. Add more IP.X below if the server has more than one IP address. Remove IP.1 if the server uses FQDN. | |
Server FQDN if present. Add more DNS.X below if the server has more than one domain name. Remove DNS.1 if the server uses an IP address. |
Generate the certificate
openssl genrsa -out server.key 2048
openssl req -key server.key -new -sha256 -out server.csr -config server.conf
openssl x509 -req -CA ca.crt -CAkey ca.key -CAcreateserial -in server.csr -out server.crt -days 365 -extensions v3_req -extfile server.confCheck the signed certificate
openssl x509 -text -noout -in server.crtCreate a file client.conf with the appropriate values
[req] distinguished_name = req_distinguished_name req_extensions = v3_req prompt = no [req_distinguished_name] C = CZ 1 ST = CZ 2 L = Prague 3 O = example 4 OU = com 5 CN = client.example.com 6 emailAddress = admin@example.com 7 [v3_req] basicConstraints = critical,CA:FALSE keyUsage = critical,digitalSignature,keyEncipherment extendedKeyUsage = clientAuth
Generate the certificate
openssl genrsa -out client.key 2048
openssl req -key client.key -new -sha256 -out client.csr -config client.conf
openssl x509 -req -CA ca.crt -CAkey ca.key -CAcreateserial -in client.csr -out client.crt -days 365 -extensions v3_req -extfile client.confCheck the signed certificate
openssl x509 -text -noout -in client.crtLogging is ubiquitous throughout SUSE CaaS Platform. Some tools will only print their outputs to the currently running session shell and not create a "log file".
If you need to retain the output of these files you can tee them into a separate file (refer to Section 7.2, “Logging in skuba”).
Many other service components will produce log files or other log info streams. You can collect, store and evaluate these logs via Section 7.4, “Centralized Logging” for use with the Section 8.1, “Monitoring Stack”.
One important part of deploying and maintaining a product is to have reliable
logs. Tools like skuba take the approach of printing the output to the
standard output directly. This is not just common practice, but it also has the
advantage that then the user has more flexibility on how to manage said output.
Thus, whenever throughout this guide we write a skuba command, take into
account that the output will be printed into the standard output. If you would
also like to have the logs stored somewhere else for later inspection, you can
use tools like tee. For example:
skuba node bootstrap --user sles --sudo --target <IP/FQDN> <NODE_NAME> | tee <NODE_NAME>-skuba-node-bootstrap.logOtherwise, you might want to use other tools to manage the logs for later
inspection. The point being that this guide will never consider how to manage
these logs because skuba itself does not. It’s up to you to manage these logs
in any way you find desirable.
Moreover, skuba has also various levels of log verbosity. This is managed by
the -v, --verbosity flag. This flag accepts an integer argument, ranging from
0 to 5, where a higher number means a higher level of verbosity. If you don’t
pass any arguments, then 0 is assumed. We recommend using the default argument,
since it will already log warnings and errors, among other relevant output,
whereas 5 can be a bit overwhelming. Thus, for the above example, we would
recommend something like:
skuba node bootstrap -v --user sles --sudo --target <IP/FQDN> <NODE_NAME> | tee <NODE_NAME>-skuba-node-bootstrap.logNow the <NODE_NAME>-skuba-node-bootstrap.log will have more useful information
than without the -v flag. We strongly recommend using this flag in order to
get as much useful information as possible from a single run.
To track actions that have been performed on the cluster, you can enable the Kubernetes audit log during cluster bootstrap or on a running cluster.
This allows the audit logs to be written on the Kubernetes master nodes at /var/log/kube-apiserver/audit.log or the given path.
For more information on the audit log and its contents, see: https://kubernetes.io/docs/tasks/debug-application-cluster/audit/
The Kubernetes audit log only collects and stores actions performed on the level of the cluster. This does not include any resulting actions of application services.
Create audit policy file - audit.yaml. Here uses a simple policy for demonstration.
apiVersion: audit.k8s.io/v1beta1
kind: Policy
rules:
- level: Metadata 1The audit level of the event. This sample will log all requests at the Metadata level. For detailed information, refer to: https://kubernetes.io/docs/tasks/debug-application-cluster/audit/#audit-policy |
Create audit policy file directory on all master nodes.
sudo mkdir -p /etc/kubernetes/policies
Copy audit policy file - audit.yaml to /etc/kubernetes/policies/audit.yaml on all master nodes.
Edit kubeadm-init.conf file in skuba init folder to add audit related configurations.
vi <my_cluster>/kubeadm-init.conf
...
apiServer:
extraArgs:
audit-log-path: /var/log/kube-apiserver/audit.log
audit-policy-file: /etc/kubernetes/policies/audit.yaml 1
audit-log-maxage: "30" 2
audit-log-maxsize: "100" 3
audit-log-maxbackup: "5" 4
audit-log-format: json 5
extraVolumes:
- name: audit-policy
hostPath: /etc/kubernetes/policies/audit.yaml 6
mountPath: /etc/kubernetes/policies/audit.yaml 7
readOnly: true
pathType: File
- name: audit-logs
hostPath: /var/log/kube-apiserver 8
mountPath: /var/log/kube-apiserver 9
pathType: DirectoryOrCreate
...Path to the YAML file that defines the audit policy configuration. | |
The maximum number of days to retain old audit log files based on the timestamp encoded in their filename. (Default: 15) | |
The maximum size in megabytes of the audit log file before it gets rotated. (Default: 10) | |
The maximum number of old audit log files to retain. (Default: 20) | |
Format of saved audits. Known formats are "legacy", "json". "legacy" indicates 1-line text format for each event. "json" indicates structured json format. | |
The audit policy configuration file path from the host node’s filesystem. | |
The audit policy configuration file path on the api-server pod. | |
The audit log file directory from the host node’s filesystem. | |
The audit log file directory on the api-server pod. |
Proceed with Cluster Bootstrap.
If everything is setup correctly, you should be able to see audit logs are written to /var/log/kube-apiserver/audit.log.
The following steps take effect only on the updated master nodes. You need to repeat the following steps on every master node in the cluster.
Create audit policy file - audit.yaml. Here uses a simple policy for demonstration.
apiVersion: audit.k8s.io/v1beta1
kind: Policy
rules:
- level: Metadata 1The audit level of the event. This sample will log all requests at the Metadata level. For detailed information, refer to: https://kubernetes.io/docs/tasks/debug-application-cluster/audit/#audit-policy |
Create audit policy file directory on master node.
sudo mkdir -p /etc/kubernetes/policies
Copy audit policy file - audit.yaml to /etc/kubernetes/policies/audit.yaml on master node.
Edit /etc/kubernetes/manifests/kube-apiserver.yaml.
...
spec:
containers:
- command:
- kube-apiserver
- --audit-log-path=/var/log/kube-apiserver/audit.log
- --audit-policy-file=/etc/kubernetes/policies/audit.yaml 1
- --audit-log-maxage=30 2
- --audit-log-maxsize=100 3
- --audit-log-maxbackup=5 4
- --audit-log-format=json 5
...
volumeMounts:
- mountPath: /etc/kubernetes/policies/audit.yaml 6
name: audit-policy
readOnly: true
- mountPath: /var/log/kube-apiserver 7
name: audit-logs
...
volumes:
- hostPath:
path: /etc/kubernetes/policies/audit.yaml 8
type: File
name: audit-policy
- hostPath:
path: /var/log/kube-apiserver 9
type: DirectoryOrCreate
name: audit-logs
...Path to the YAML file that defines the audit policy configuration. | |
The maximum number of days to retain old audit log files based on the timestamp encoded in their filename. (Default: 15) | |
The maximum size in megabytes of the audit log file before it gets rotated. (Default: 10) | |
The maximum number of old audit log files to retain. (Default: 20) | |
Format of saved audits. Known formats are "legacy", "json". "legacy" indicates 1-line text format for each event. "json" indicates structured json format. | |
The audit policy configuration file path on the api-server pod. | |
The audit log file directory on the api-server pod. | |
The audit policy configuration file path from the host node’s filesystem. | |
The audit log file directory from the host node’s filesystem. |
Restart kubelet.
sudo systemctl restart kubelet
If everything is set up correctly, you should be able to see audit logs being written to /var/log/kube-apiserver/audit.log.
The following steps take effect only on the updated master nodes. You need to repeat the following steps on every master node in the cluster.
Remote access to the master node.
ssh sles@<master_node>
Edit /etc/kubernetes/manifests/kube-apiserver.yaml and remove the following lines.
...
- --audit-log-path=/var/log/kube-apiserver/audit.log
- --audit-policy-file=/etc/kubernetes/policies/audit.yaml
- --audit-log-maxage=30
- --audit-log-maxsize=100
- --audit-log-maxbackup=5
- --audit-log-format=json
...
- mountPath: /etc/kubernetes/policies/audit.yaml
name: audit-policy
readOnly: true
- mountPath: /var/log/kube-apiserver
name: audit-logs
...
- hostPath:
path: /etc/kubernetes/policies/audit.yaml
type: File
name: audit-policy
- hostPath:
path: /var/log/kube-apiserver
type: DirectoryOrCreate
name: audit-logsRestart kubelet.
sudo systemctl restart kubelet
Centralized Logging is a means of collecting logs from the SUSE CaaS Platform for centralized management. It forwards system and Kubernetes cluster logs to a specified external logging service, for example, Rsyslog server.
Collecting logs in a central location can be useful for audit or debug purposes or to analyze and visually present data.
In order to successfully use Centralized Logging, you first need to install Helm.
Helm is used to install the log agents and provide custom logging settings.
Refer to Section 3.1.2.1, “Installing Helm”.
You can log the following groups of services. See Section 7.4.4, “Deployment” for more information on how to select and customize the logs.
Kubelet
Cri-o
API Server
Controller Manager
Scheduler
Cilium
Kube-proxy
All resources in the kube-system namespaces
All namespaces in cluster except kube-system
Kernel
Audit
Zypper
Network (wicked)
Centralized Logging is also restricted to the following protocols: UDP, TCP, TCP + TLS, TCP + mTLS.
The two supported syslog message formats are RFC 5424 and RFC 3164.
The Kubernetes cluster metadata is included in the RFC 5424 message.
Example RFC 3164
2019-05-30T09:11:21.968458+00:00 worker1 k8s.system/crio[12080] level=debug msg="Endpoint successfully created" containerID=caa46f14a68e766b877af01442e58731845bb45d8ce1f856553440a02c958b2f eventUUID=e2405f2a-82ba-11e9-9a06-fa163eebdfd6 subsys=cilium-cni
Example RFC 5424
<133>1 2019-05-30T08:28:38.784214+00:00 master0 k8s.pod/kube-system/kube-apiserver-master0/kube-apiserver - - [kube_meta namespace_id="1e030def-81db-11e9-a62b-fa163e1876c9" container_name="kube-apiserver" creation_timestamp="2019-05-29T06:29:31Z" host="master0" namespace_name="kube-system" master_url="https://kubernetes.default.svc.cluster.local:443" pod_id="4aaf10f9-81db-11e9-a62b-fa163e1876c9" pod_name="kube-apiserver-master0"] 2019-05-30T08:28:38.783780355+00:00 stderr F I0530 08:28:38.783710 1 log.go:172] http: TLS handshake error from 172.28.0.19:45888: tls: client offered only unsupported versions: [300]
After you have successfully installed it, use Helm CLI to install log agents on each node, and provide customized settings via specific command options.
The only three mandatory parameters for a successful deployment of Centralized Logging are:
server.host, default value = rsyslog-server.default.svc.cluster.local
server.port, default value = 514
server.protocol, default value = TCP
See Section 7.4.6, “Optional settings” for the optional parameters and their default values.
Running the following will create the minimal working setup:
helm repo add suse https://kubernetes-charts.suse.com
helm install <RELEASE_NAME> suse/log-agent-rsyslog --namespace kube-system --set server.host=${SERVER_HOST} --set server.port=${SERVER_PORT}If not specified otherwise, Helm will install log agents with TCP as the default value for server.protocol.
Currently, Rsyslog can cause a segfault (as described in https://github.com/rsyslog/rsyslog/issues/4200) as result of a conflict when both imjournal and imfile input modules are enabled. To avoid crashing Rsyslog, imfile and imjournal need to be mutually exclusive, which means they need to be configured in the Rsyslog helm chart to one of these:
--set logs.osSystem.enabled=true \ 1
--set logs.kubernetesSystem.enabled=false \ 2
--set logs.kubernetesControlPlane.enabled=false \ 3
--set logs.kubernetesUserNamespaces.enabled=false \ 4--set logs.osSystem.enabled=false \ 1
--set logs.kubernetesSystem.enabled=true \ 2
--set logs.kubernetesControlPlane.enabled=true \ 3
--set logs.kubernetesUserNamespaces.enabled=true \ 4If it is required to send both imjournal and imfile, Rsyslog needs to be installed directly on the host nodes to send the imjournal log and again deployed via the helm chart on the Kubernetes cluster to send imfile logs.
After this step, all of the log agents will initialize then start to forward logs from each node to the configured remote Rsyslog server.
To check the installation progress, use the helm status command:
helm status <RELEASE_NAME> --namespace kube-system
To uninstall log agents, use the helm delete command:
helm uninstall <RELEASE_NAME> --namespace kube-system
Centralized Logging supports a configurable buffered queue.
This can be used to improve log processing throughput and eliminate possible data loss,
for instance after log agents shutdown, restart or in case of an unresponsive remote server.
The queue files are located under /var/log/containers/{RELEASE_NAME}-log-agent-rsyslog on every node in the cluster.
Queue files remain even after the log agents are deleted.
The buffered queue can be enabled/disabled with the following parameter:
queue.enabled, default value = false
Setting queue.enabled to false means that data will be stored in-memory only.
Setting the parameter to true will set the data store to a mixture of in-memory and in-disk.
Data will then be stored in memory until the queue is filled up, after which storing is switched to disk.
Enabling the queue also automatically saves the queue to disk at service shutdown.
Additional parameters to define queue size and its disk usage are:
queue.size, default value = 50000
This option sets the number of messages allowed for the in-memory queue.
This setting affects the Kubernetes cluster logs (kubernetes-control-plane and kubernetes-USER_NAME-space).
queue.maxDiskSpace, default value = 2147483648
This option sets the maximum size allowed for disk storage (in bytes). The storage is divided so that 20 percent of it is for journal logs and 80 percent for the remaining logs.
Options with empty default values are set as not specified.
| Parameter | Function | Default value |
|---|---|---|
image.repository | specifies image repository to pull from | registry.suse.com/caasp/v4.5/rsyslog |
image.tag | specifies image tag to pull | 8.39.0 |
kubernetesPodAnnotationsEnabled | enables kubernetes meta annotations in pod logs | false |
kubernetesPodLabelsEnabled | enables kubernetes meta labels in pod logs | false |
logs.kubernetesAudit.enabled | enables Kubernetes audit logs | true |
logs.kubernetesAudit.logDir | Kubernetes audit log directory | /var/log/kube-apiserver |
logs.kubernetesAudit.logFile | Kubernetes audit log filename | audit.log |
logs.kubernetesControlPlane.enabled | enables Kubernetes control plane logs | true |
logs.kubernetesSystem.enabled | enables Kubernetes system logs (kubelet, crio) | true |
logs.kubernetesUserNamespaces.enabled | enables Kubernetes user namespaces logs | false |
logs.kubernetesUserNamespaces.exclude | excludes Kubernetes logs for specific namespaces | - "" |
logs.osSystem.enabled | enables OS logs (auditd, kernel, wicked, zypper) | true |
persistStateInterval | sets interval (number-of-messages) for data state persistency | 100 |
queue.enabled | enables Rsyslog queue | false |
queue.maxDiskSpace | sets maximum Rsyslog queue disk space in bytes | 2147483648 |
queue.size | sets Rsyslog queue size in bytes | 50000 |
resources.limits.cpu | sets CPU limits | |
resources.limits.memory | sets memory limits | 512 Mi |
resources.requests.cpu | sets CPU for requests | 100m |
resources.requests.memory | sets memory for requests | 512 Mi |
resumeInterval | specifies time (seconds) after failure before retry is attempted | 30 |
resumeRetryCount | sets number of retries after first failure before the log is discarded. -1 is unlimited | -1 |
server.tls.clientCert | sets TLS client certificate | |
server.tls.clientKey | sets TLS client key | |
server.tls.enabled | enables TLS | false |
server.tls.permittedPeer | sets a list of TLS/fingerprints or TLS/names with permission to access the server | |
server.tls.rootCa | specifies TLS root certificate authority |
The described monitoring approach in this document is a generalized example of one way of monitoring a SUSE CaaS Platform cluster.
Please apply best practices to develop your own monitoring approach using the described examples and available health checking endpoints.
This document aims to describe monitoring in a Kubernetes cluster.
The monitoring stack consists of a monitoring/trending system and a visualization platform. Additionally you can use the in-memory metrics-server to perform automatic scaling (Refer to: Section 8.3, “Horizontal Pod Autoscaler”).
Prometheus
Prometheus is an open-source monitoring and trending system with a dimensional data model, flexible query language, efficient time series database and modern alerting approach. The time series collection happens via a pull mode over HTTP.
Prometheus consists of multiple components:
Prometheus server: scrapes and stores data to time series database
Alertmanager handles client alerts, sanitizes duplicates and noise and routes them to configurable receivers.
Pushgateway is an intermediate service which allows you to push metrics from jobs which cannot be scraped.
Exporters are libraries which help to exports existing metrics from 3rd-party system as Prometheus metric.
Grafana
Grafana is an open-source system for querying, analysing and visualizing metrics.
NGINX Ingress Controller
Please refer to Section 6.8, “NGINX Ingress Controller” on how to configure ingress in your cluster. Deploying NGINX Ingress Controller also allows us to provide TLS termination to our services and to provide basic authentication to the Prometheus Expression browser/API.
Monitoring namespace
We will deploy our monitoring stack in its own namespace and therefore create one.
kubectl create namespace monitoringConfigure Authentication
We need to create a basic-auth secret so the NGINX Ingress Controller can perform authentication.
Install apache2-utils, which contains htpasswd, on your local workstation.
zypper in apache2-utilsCreate the secret file auth
htpasswd -c auth admin
New password:
Re-type new password:
Adding password for user adminIt is very important that the filename is auth.
During creation, a key in the configuration containing the secret is created that is named after the used filename.
The ingress controller will expect a key named auth. And when you access the monitoring WebUI, you need to enter the username and password.
Create secret in Kubernetes cluster
kubectl create secret generic -n monitoring prometheus-basic-auth --from-file=authThere will be two different ways of using ingress for accessing the monitoring system.
Section 8.1.3.1, “Installation For Subdomains”: Using subdomains for accessing monitoring system such as prometheus.example.com, prometheus-alertmanager.example.com, and grafana.example.com.
Section 8.1.3.3, “Installation For Subpaths”: Using subpaths for accessing monitoring system such as example.com/prometheus, example.com/alertmanager, and example.com/grafana.
This installation example shows how to install and configure Prometheus and Grafana using subdomains such as prometheus.example.com, prometheus-alertmanager.example.com, and grafana.example.com.
In order to provide additional security by using TLS certificates, please make sure you have the Section 6.8, “NGINX Ingress Controller” installed and configured.
If you don’t need TLS, you may use other methods for exposing these web services as native LBaaS in OpenStack, haproxy service or k8s native methods as port-forwarding or NodePort but this is out of scope of this document.
In this example, we will use a master node with IP 10.86.4.158 in the case of NodePort service of the Ingress Controller.
You should configure proper DNS names in any production environment. These values are only for example purposes.
Configure the DNS server
monitoring.example.com IN A 10.86.4.158 prometheus.example.com IN CNAME monitoring.example.com prometheus-alertmanager.example.com IN CNAME monitoring.example.com grafana.example.com IN CNAME monitoring.example.com
Configure the management workstation /etc/hosts (optional)
10.86.4.158 prometheus.example.com prometheus-alertmanager.example.com grafana.example.com
You must configure your certificates for the components as secrets in the Kubernetes cluster. Get certificates from your certificate authority.
Individual certificate
Single-name TLS certificate protects a single sub-domain, and it means each sub-domain owns its private key. From the security perspective, it is recommended to use individual certificates. However, you have to manage the private key and the certificate rotation separately.
When you choose to secure each service with an individual certificate, you must repeat the step below for each component and adjust the name for the individual secret each time. Please note down the names of the secrets you have created.
In this example, the secret name is monitoring-tls.
Wildcard certificate
Wildcard TLS allows you to secure multiple sub-domains with one certificate and it means multiple sub-domains share the same private key. You can then add more sub-domains without having to redeploy the certificate and moreover, save the additional certificate costs.
Refer to Section 6.9.9.1.1, “Trusted Server Certificate” on how to sign the trusted certificate or refer to Section 6.9.9.2.2, “Self-signed Server Certificate” on how to sign the self-signed certificate. The server.conf for DNS.1 is prometheus.example.com and prometheus-alertmanager.example.com grafana.example.com for individual certificates separately. The server.conf for DNS.1 is *.example.com for a wildcard certificate.
Then, import your certificate and key pair into the Kubernetes cluster secret name monitoring-tls. In this example, the certificate and key are monitoring.crt and monitoring.key.
kubectl create -n monitoring secret tls monitoring-tls \
--key ./monitoring.key \
--cert ./monitoring.crtCreate a configuration file prometheus-config-values.yaml
We need to configure the storage for our deployment. Choose among the options and uncomment the line in the config file. In production environments you must configure persistent storage.
Use an existing PersistentVolumeClaim
Use a StorageClass (preferred)
# Alertmanager configuration
alertmanager:
enabled: true
ingress:
enabled: true
hosts:
- prometheus-alertmanager.example.com
annotations:
kubernetes.io/ingress.class: nginx
nginx.ingress.kubernetes.io/auth-type: basic
nginx.ingress.kubernetes.io/auth-secret: prometheus-basic-auth
nginx.ingress.kubernetes.io/auth-realm: "Authentication Required"
tls:
- hosts:
- prometheus-alertmanager.example.com
secretName: monitoring-tls
persistentVolume:
enabled: true
## Use a StorageClass
storageClass: my-storage-class
## Create a PersistentVolumeClaim of 2Gi
size: 2Gi
## Use an existing PersistentVolumeClaim (my-pvc)
#existingClaim: my-pvc
## Alertmanager is configured through alertmanager.yml. This file and any others
## listed in alertmanagerFiles will be mounted into the alertmanager pod.
## See configuration options https://prometheus.io/docs/alerting/configuration/
#alertmanagerFiles:
# alertmanager.yml:
# Create a specific service account
serviceAccounts:
nodeExporter:
name: prometheus-node-exporter
# Node tolerations for node-exporter scheduling to nodes with taints
# Allow scheduling of node-exporter on master nodes
nodeExporter:
hostNetwork: false
hostPID: false
podSecurityPolicy:
enabled: true
annotations:
apparmor.security.beta.kubernetes.io/allowedProfileNames: runtime/default
apparmor.security.beta.kubernetes.io/defaultProfileName: runtime/default
seccomp.security.alpha.kubernetes.io/allowedProfileNames: runtime/default
seccomp.security.alpha.kubernetes.io/defaultProfileName: runtime/default
tolerations:
- key: node-role.kubernetes.io/master
operator: Exists
effect: NoSchedule
# Disable Pushgateway
pushgateway:
enabled: false
# Prometheus configuration
server:
ingress:
enabled: true
hosts:
- prometheus.example.com
annotations:
kubernetes.io/ingress.class: nginx
nginx.ingress.kubernetes.io/auth-type: basic
nginx.ingress.kubernetes.io/auth-secret: prometheus-basic-auth
nginx.ingress.kubernetes.io/auth-realm: "Authentication Required"
tls:
- hosts:
- prometheus.example.com
secretName: monitoring-tls
persistentVolume:
enabled: true
## Use a StorageClass
storageClass: my-storage-class
## Create a PersistentVolumeClaim of 8Gi
size: 8Gi
## Use an existing PersistentVolumeClaim (my-pvc)
#existingClaim: my-pvc
## Prometheus is configured through prometheus.yml. This file and any others
## listed in serverFiles will be mounted into the server pod.
## See configuration options
## https://prometheus.io/docs/prometheus/latest/configuration/configuration/
#serverFiles:
# prometheus.yml:Add SUSE helm charts repository
helm repo add suse https://kubernetes-charts.suse.comDeploy SUSE prometheus helm chart and pass our configuration values file.
helm install prometheus suse/prometheus \
--namespace monitoring \
--values prometheus-config-values.yamlThere need to be 3 pods running (3 node-exporter pods because we have 3 nodes).
kubectl -n monitoring get pod | grep prometheus
NAME READY STATUS RESTARTS AGE
prometheus-alertmanager-5487596d54-kcdd6 2/2 Running 0 2m
prometheus-kube-state-metrics-566669df8c-krblx 1/1 Running 0 2m
prometheus-node-exporter-jnc5w 1/1 Running 0 2m
prometheus-node-exporter-qfwp9 1/1 Running 0 2m
prometheus-node-exporter-sc4ls 1/1 Running 0 2m
prometheus-server-6488f6c4cd-5n9w8 2/2 Running 0 2mThere need to be be 2 ingresses configured
kubectl get ingress -n monitoring
NAME HOSTS ADDRESS PORTS AGE
prometheus-alertmanager prometheus-alertmanager.example.com 80, 443 87s
prometheus-server prometheus.example.com 80, 443 87sAt this stage, the Prometheus Expression browser/API should be accessible, depending on your network configuration
NodePort: https://prometheus.example.com:32443
External IPs: https://prometheus.example.com
LoadBalancer: https://prometheus.example.com
The configuration example sets one "receiver" to get notified by email when one of below conditions is met:
Node is unschedulable: severity is critical because the node cannot accept new pods
Node runs out of disk space: severity is critical because the node cannot accept new pods
Node has memory pressure: severity is warning
Node has disk pressure: severity is warning
Certificates is going to expire in 7 days: severity is critical
Certificates is going to expire in 30 days: severity is warning
Certificates is going to expire in 3 months: severity is info
Configure alerting receiver in Alertmanager
The Alertmanager handles alerts sent by Prometheus server, it takes care of deduplicating, grouping, and routing them to the correct receiver integration such as email. It also takes care of silencing and inhibition of alerts.
Add the alertmanagerFiles section to your Prometheus configuration file prometheus-config-values.yaml.
For more information on how to configure Alertmanager, refer to Prometheus: Alerting - Configuration.
alertmanagerFiles:
alertmanager.yml:
global:
# The smarthost and SMTP sender used for mail notifications.
smtp_from: alertmanager@example.com
smtp_smarthost: smtp.example.com:587
smtp_auth_username: admin@example.com
smtp_auth_password: <PASSWORD>
smtp_require_tls: true
route:
# The labels by which incoming alerts are grouped together.
group_by: ['node']
# When a new group of alerts is created by an incoming alert, wait at
# least 'group_wait' to send the initial notification.
# This way ensures that you get multiple alerts for the same group that start
# firing shortly after another are batched together on the first
# notification.
group_wait: 30s
# When the first notification was sent, wait 'group_interval' to send a batch
# of new alerts that started firing for that group.
group_interval: 5m
# If an alert has successfully been sent, wait 'repeat_interval' to
# resend them.
repeat_interval: 3h
# A default receiver
receiver: admin-example
receivers:
- name: 'admin-example'
email_configs:
- to: 'admin@example.com'Configures alerting rules in Prometheus server
Replace the serverFiles section of the Prometheus configuration file prometheus-config-values.yaml.
For more information on how to configure alerts, refer to: Prometheus: Alerting - Notification Template Examples
serverFiles:
alerts: {}
rules:
groups:
- name: caasp.node.rules
rules:
- alert: NodeIsNotReady
expr: kube_node_status_condition{condition="Ready",status="false"} == 1 or kube_node_status_condition{condition="Ready",status="unknown"} == 1
for: 1m
labels:
severity: critical
annotations:
description: '{{ $labels.node }} is not ready'
- alert: NodeIsOutOfDisk
expr: kube_node_status_condition{condition="OutOfDisk",status="true"} == 1
labels:
severity: critical
annotations:
description: '{{ $labels.node }} has insufficient free disk space'
- alert: NodeHasDiskPressure
expr: kube_node_status_condition{condition="DiskPressure",status="true"} == 1
labels:
severity: warning
annotations:
description: '{{ $labels.node }} has insufficient available disk space'
- alert: NodeHasInsufficientMemory
expr: kube_node_status_condition{condition="MemoryPressure",status="true"} == 1
labels:
severity: warning
annotations:
description: '{{ $labels.node }} has insufficient available memory'
- name: caasp.certs.rules
rules:
- alert: KubernetesCertificateExpiry3Months
expr: (cert_exporter_cert_expires_in_seconds / 86400) < 90
labels:
severity: info
annotations:
description: 'The cert for {{ $labels.filename }} on {{ $labels.nodename }} node is going to expire in 3 months'
- alert: KubernetesCertificateExpiry30Days
expr: (cert_exporter_cert_expires_in_seconds / 86400) < 30
labels:
severity: warning
annotations:
description: 'The cert for {{ $labels.filename }} on {{ $labels.nodename }} node is going to expire in 30 days'
- alert: KubernetesCertificateExpiry7Days
expr: (cert_exporter_cert_expires_in_seconds / 86400) < 7
labels:
severity: critical
annotations:
description: 'The cert for {{ $labels.filename }} on {{ $labels.nodename }} node is going to expire in 7 days'
- alert: KubeconfigCertificateExpiry3Months
expr: (cert_exporter_kubeconfig_expires_in_seconds / 86400) < 90
labels:
severity: info
annotations:
description: 'The cert for {{ $labels.filename }} on {{ $labels.nodename }} node is going to expire in 3 months'
- alert: KubeconfigCertificateExpiry30Days
expr: (cert_exporter_kubeconfig_expires_in_seconds / 86400) < 30
labels:
severity: warning
annotations:
description: 'The cert for {{ $labels.filename }} on {{ $labels.nodename }} node is going to expire in 30 days'
- alert: KubeconfigCertificateExpiry7Days
expr: (cert_exporter_kubeconfig_expires_in_seconds / 86400) < 7
labels:
severity: critical
annotations:
description: 'The cert for {{ $labels.filename }} on {{ $labels.nodename }} node is going to expire in 7 days'
- alert: AddonCertificateExpiry3Months
expr: (cert_exporter_secret_expires_in_seconds / 86400) < 90
labels:
severity: info
annotations:
description: 'The cert for {{ $labels.secret_name }} is going to expire in 3 months'
- alert: AddonCertificateExpiry30Days
expr: (cert_exporter_secret_expires_in_seconds / 86400) < 30
labels:
severity: warning
annotations:
description: 'The cert for {{ $labels.secret_name }} is going to expire in 30 days'
- alert: AddonCertificateExpiry7Days
expr: (cert_exporter_secret_expires_in_seconds / 86400) < 7
labels:
severity: critical
annotations:
description: 'The cert for {{ $labels.secret_name }} is going to expire in 7 days'To apply the changed configuration, run:
helm upgrade prometheus suse/prometheus --namespace monitoring --values prometheus-config-values.yaml
You should now be able to see your Alertmanager, depending on your network configuration
NodePort: https://prometheus-alertmanager.example.com:32443
External IPs: https://prometheus-alertmanager.example.com
LoadBalancer: https://prometheus-alertmanager.example.com
Recording rules allow you to precompute frequently needed or computationally expensive expressions and save their result as a new set of time series. Querying the precomputed result will then often be much faster than executing the original expression every time it is needed. This is especially useful for dashboards, which need to query the same expression repeatedly every time they refresh. Another common use case is federation where precomputed metrics are scraped from one Prometheus instance by another.
For more information on how to configure recording rules, refer to Prometheus:Recording Rules - Configuration.
Configuring recording rules
Add the following group of rules in the serverFiles section of the prometheus-config-values.yaml configuration file.
serverFiles:
alerts: {}
rules:
groups:
- name: node-exporter.rules
rules:
- expr: count by (instance) (count without (mode) (node_cpu_seconds_total{component="node-exporter"}))
record: instance:node_num_cpu:sum
- expr: 1 - avg by (instance) (rate(node_cpu_seconds_total{component="node-exporter",mode="idle"}[5m]))
record: instance:node_cpu_utilisation:rate5m
- expr: node_load1{component="node-exporter"} / on (instance) instance:node_num_cpu:sum
record: instance:node_load1_per_cpu:ratio
- expr: node_memory_MemAvailable_bytes / on (instance) node_memory_MemTotal_bytes
record: instance:node_memory_utilisation:ratio
- expr: rate(node_vmstat_pgmajfault{component="node-exporter"}[5m])
record: instance:node_vmstat_pgmajfault:rate5m
- expr: rate(node_disk_io_time_seconds_total{component="node-exporter", device=~"nvme.+|rbd.+|sd.+|vd.+|xvd.+|dm-.+|dasd.+"}[5m])
record: instance_device:node_disk_io_time_seconds:rate5m
- expr: rate(node_disk_io_time_weighted_seconds_total{component="node-exporter", device=~"nvme.+|rbd.+|sd.+|vd.+|xvd.+|dm-.+|dasd.+"}[5m])
record: instance_device:node_disk_io_time_weighted_seconds:rate5m
- expr: sum by (instance) (rate(node_network_receive_bytes_total{component="node-exporter", device!="lo"}[5m]))
record: instance:node_network_receive_bytes_excluding_lo:rate5m
- expr: sum by (instance) (rate(node_network_transmit_bytes_total{component="node-exporter", device!="lo"}[5m]))
record: instance:node_network_transmit_bytes_excluding_lo:rate5m
- expr: sum by (instance) (rate(node_network_receive_drop_total{component="node-exporter", device!="lo"}[5m]))
record: instance:node_network_receive_drop_excluding_lo:rate5m
- expr: sum by (instance) (rate(node_network_transmit_drop_total{component="node-exporter", device!="lo"}[5m]))
record: instance:node_network_transmit_drop_excluding_lo:rate5mTo apply the changed configuration, run:
helm upgrade prometheus suse/prometheus --namespace monitoring --values prometheus-config-values.yaml
You should now be able to see your configured rules, depending on your network configuration
NodePort: https://prometheus.example.com:32443/rules
External IPs: https://prometheus.example.com/rules
LoadBalancer: https://prometheus.example.com/rules
Starting from Grafana 5.0, it is possible to dynamically provision the data sources and dashboards via files.
In a Kubernetes cluster, these files are provided via the utilization of ConfigMap, editing a ConfigMap will result by the modification of the configuration without having to delete/recreate the pod.
Configure Grafana provisioning
Create the default datasource configuration file grafana-datasources.yaml which point to our Prometheus server
kind: ConfigMap
apiVersion: v1
metadata:
name: grafana-datasources
namespace: monitoring
labels:
grafana_datasource: "1"
data:
datasource.yaml: |-
apiVersion: 1
deleteDatasources:
- name: Prometheus
orgId: 1
datasources:
- name: Prometheus
type: prometheus
url: http://prometheus-server.monitoring.svc.cluster.local:80
access: proxy
orgId: 1
isDefault: trueCreate the ConfigMap in Kubernetes cluster
kubectl create -f grafana-datasources.yamlConfigure storage for the deployment
Choose among the options and uncomment the line in the config file. In production environments you must configure persistent storage.
Use an existing PersistentVolumeClaim
Use a StorageClass (preferred)
Create a file grafana-config-values.yaml with the appropriate values
# Configure admin password
adminPassword: <PASSWORD>
# Ingress configuration
ingress:
enabled: true
annotations:
kubernetes.io/ingress.class: nginx
hosts:
- grafana.example.com
tls:
- hosts:
- grafana.example.com
secretName: monitoring-tls
# Configure persistent storage
persistence:
enabled: true
accessModes:
- ReadWriteOnce
## Use a StorageClass
storageClassName: my-storage-class
## Create a PersistentVolumeClaim of 10Gi
size: 10Gi
## Use an existing PersistentVolumeClaim (my-pvc)
#existingClaim: my-pvc
# Enable sidecar for provisioning
sidecar:
datasources:
enabled: true
label: grafana_datasource
dashboards:
enabled: true
label: grafana_dashboardAdd SUSE helm charts repository
helm repo add suse https://kubernetes-charts.suse.comDeploy SUSE grafana helm chart and pass our configuration values file
helm install grafana suse/grafana \
--namespace monitoring \
--values grafana-config-values.yamlThe result should be a running Grafana pod
kubectl -n monitoring get pod | grep grafana
NAME READY STATUS RESTARTS AGE
grafana-dbf7ddb7d-fxg6d 3/3 Running 0 2mAt this stage, Grafana should be accessible, depending on your network configuration
NodePort: https://grafana.example.com:32443
External IPs: https://grafana.example.com
LoadBalancer: https://grafana.example.com
Now you can add Grafana dashboards.
There are three ways to add dashboards to Grafana:
Deploy an existing dashboard from Grafana dashboards
Open the deployed Grafana in your browser and log in.
On the home page of Grafana, hover your mousecursor over the + button on the left sidebar and click on the import menuitem.
Select an existing dashboard for your purpose from Grafana dashboards. Copy the URL to the clipboard.
Paste the URL (for example) https://grafana.com/dashboards/3131 into the first input field to import the "Kubernetes All Nodes" Grafana Dashboard.
After pasting in the url, the view will change to another form.
Now select the "Prometheus" datasource in the prometheus field and click on the import button.
The browser will redirect you to your newly created dashboard.
Use our pre-built dashboards to monitor the SUSE CaaS Platform system
# monitor SUSE CaaS Platform cluster
kubectl apply -f https://raw.githubusercontent.com/SUSE/caasp-monitoring/master/grafana-dashboards-caasp-cluster.yaml
# monitor SUSE CaaS Platform etcd cluster
kubectl apply -f https://raw.githubusercontent.com/SUSE/caasp-monitoring/master/grafana-dashboards-caasp-etcd-cluster.yaml
# monitor SUSE CaaS Platform nodes
kubectl apply -f https://raw.githubusercontent.com/SUSE/caasp-monitoring/master/grafana-dashboards-caasp-nodes.yaml
# monitor SUSE CaaS Platform namespaces
kubectl apply -f https://raw.githubusercontent.com/SUSE/caasp-monitoring/master/grafana-dashboards-caasp-namespaces.yaml
# monitor SUSE CaaS Platform pods
kubectl apply -f https://raw.githubusercontent.com/SUSE/caasp-monitoring/master/grafana-dashboards-caasp-pods.yaml
# monitor SUSE CaaS Platform certificates
kubectl apply -f https://raw.githubusercontent.com/SUSE/caasp-monitoring/master/grafana-dashboards-caasp-certificates.yamlBuild your own dashboard Deploy your own dashboard by configuration file containing the dashboard definition.
Create your dashboard definition file as a ConfigMap, for example grafana-dashboards-caasp-cluster.yaml.
---
apiVersion: v1
kind: ConfigMap
metadata:
name: grafana-dashboards-caasp-cluster
namespace: monitoring
labels:
grafana_dashboard: "1"
data:
caasp-cluster.json: |-
{
"__inputs": [
{
"name": "DS_PROMETHEUS",
"label": "Prometheus",
"description": "",
"type": "datasource",
"pluginId": "prometheus",
"pluginName": "Prometheus"
}
],
"__requires": [
{
"type": "grafana",
[...]
continues with definition of dashboard JSON
[...]Apply the ConfigMap to the cluster.
kubectl apply -f grafana-dashboards-caasp-cluster.yamlThis installation example shows how to install and configure Prometheus and Grafana using subpaths such as example.com/prometheus, example.com/alertmanager, and example.com/grafana.
Overlapped instructions from subdomains will be omitted. Refer to the instruction from subdomains.
In this example, we will use a master node with IP 10.86.4.158 in the case of NodePort service of the Ingress Controller.
You should configure proper DNS names in any production environment. These values are only for example purposes.
Configure the DNS server
example.com IN A 10.86.4.158
Configure the management workstation /etc/hosts (optional)
10.86.4.158 example.com
You must configure your certificates for the components as secrets in the Kubernetes cluster. Get certificates from your certificate authority.
Refer to Section 6.9.9.1.1, “Trusted Server Certificate” on how to sign the trusted certificate or refer to Section 6.9.9.2.2, “Self-signed Server Certificate” on how to sign the self-signed certificate. The server.conf for DNS.1 is example.com.
Then, import your certificate and key pair into the Kubernetes cluster secret name monitoring-tls. In this example, the certificate and key are monitoring.crt and monitoring.key.
kubectl create -n monitoring secret tls monitoring-tls \
--key ./monitoring.key \
--cert ./monitoring.crtCreate a configuration file prometheus-config-values.yaml
We need to configure the storage for our deployment. Choose among the options and uncomment the line in the config file. In production environments you must configure persistent storage.
Use an existing PersistentVolumeClaim
Use a StorageClass (preferred)
Add the external URL to baseURL at which the server can be accessed. The baseURL depends on your network configuration.
NodePort: https://example.com:32443/prometheus and https://example.com:32443/alertmanager
External IPs: https://example.com/prometheus and https://example.com/alertmanager
LoadBalancer: https://example.com/prometheus and https://example.com/alertmanager
# Alertmanager configuration
alertmanager:
enabled: true
baseURL: https://example.com:32443/alertmanager
prefixURL: /alertmanager
ingress:
enabled: true
annotations:
kubernetes.io/ingress.class: nginx
nginx.ingress.kubernetes.io/auth-type: basic
nginx.ingress.kubernetes.io/auth-secret: prometheus-basic-auth
nginx.ingress.kubernetes.io/auth-realm: "Authentication Required"
hosts:
- example.com/alertmanager
tls:
- secretName: monitoring-tls
hosts:
- example.com
persistentVolume:
enabled: true
## Use a StorageClass
storageClass: my-storage-class
## Create a PersistentVolumeClaim of 2Gi
size: 2Gi
## Use an existing PersistentVolumeClaim (my-pvc)
#existingClaim: my-pvc
## Alertmanager is configured through alertmanager.yml. This file and any others
## listed in alertmanagerFiles will be mounted into the alertmanager pod.
## See configuration options https://prometheus.io/docs/alerting/configuration/
#alertmanagerFiles:
# alertmanager.yml:
# Create a specific service account
serviceAccounts:
nodeExporter:
name: prometheus-node-exporter
# Node tolerations for node-exporter scheduling to nodes with taints
# Allow scheduling of node-exporter on master nodes
nodeExporter:
hostNetwork: false
hostPID: false
podSecurityPolicy:
enabled: true
annotations:
apparmor.security.beta.kubernetes.io/allowedProfileNames: runtime/default
apparmor.security.beta.kubernetes.io/defaultProfileName: runtime/default
seccomp.security.alpha.kubernetes.io/allowedProfileNames: runtime/default
seccomp.security.alpha.kubernetes.io/defaultProfileName: runtime/default
tolerations:
- key: node-role.kubernetes.io/master
operator: Exists
effect: NoSchedule
# Disable Pushgateway
pushgateway:
enabled: false
# Prometheus configuration
server:
baseURL: https://example.com:32443/prometheus
prefixURL: /prometheus
ingress:
enabled: true
annotations:
kubernetes.io/ingress.class: nginx
nginx.ingress.kubernetes.io/auth-type: basic
nginx.ingress.kubernetes.io/auth-secret: prometheus-basic-auth
nginx.ingress.kubernetes.io/auth-realm: "Authentication Required"
hosts:
- example.com/prometheus
tls:
- secretName: monitoring-tls
hosts:
- example.com
persistentVolume:
enabled: true
## Use a StorageClass
storageClass: my-storage-class
## Create a PersistentVolumeClaim of 8Gi
size: 8Gi
## Use an existing PersistentVolumeClaim (my-pvc)
#existingClaim: my-pvc
## Prometheus is configured through prometheus.yml. This file and any others
## listed in serverFiles will be mounted into the server pod.
## See configuration options
## https://prometheus.io/docs/prometheus/latest/configuration/configuration/
#serverFiles:
# prometheus.yml:Add SUSE helm charts repository
helm repo add suse https://kubernetes-charts.suse.comDeploy SUSE prometheus helm chart and pass our configuration values file.
helm install prometheus suse/prometheus \
--namespace monitoring \
--values prometheus-config-values.yamlThere need to be 3 pods running (3 node-exporter pods because we have 3 nodes).
kubectl -n monitoring get pod | grep prometheus
NAME READY STATUS RESTARTS AGE
prometheus-alertmanager-5487596d54-kcdd6 2/2 Running 0 2m
prometheus-kube-state-metrics-566669df8c-krblx 1/1 Running 0 2m
prometheus-node-exporter-jnc5w 1/1 Running 0 2m
prometheus-node-exporter-qfwp9 1/1 Running 0 2m
prometheus-node-exporter-sc4ls 1/1 Running 0 2m
prometheus-server-6488f6c4cd-5n9w8 2/2 Running 0 2mRefer to Section 8.1.3.2.3, “Alertmanager Configuration Example”
Refer to Section 8.1.3.2.4, “Recording Rules Configuration Example”
Starting from Grafana 5.0, it is possible to dynamically provision the data sources and dashboards via files.
In Kubernetes cluster, these files are provided via the utilization of ConfigMap, editing a ConfigMap will result by the modification of the configuration without having to delete/recreate the pod.
Configure Grafana provisioning
Create the default datasource configuration file grafana-datasources.yaml which point to our Prometheus server
---
kind: ConfigMap
apiVersion: v1
metadata:
name: grafana-datasources
namespace: monitoring
labels:
grafana_datasource: "1"
data:
datasource.yaml: |-
apiVersion: 1
deleteDatasources:
- name: Prometheus
orgId: 1
datasources:
- name: Prometheus
type: prometheus
url: http://prometheus-server.monitoring.svc.cluster.local:80
access: proxy
orgId: 1
isDefault: trueCreate the ConfigMap in Kubernetes cluster
kubectl create -f grafana-datasources.yamlConfigure storage for the deployment
Choose among the options and uncomment the line in the config file. In production environments you must configure persistent storage.
Use an existing PersistentVolumeClaim
Use a StorageClass (preferred)
Add the external URL to root_url at which the server can be accessed. The root_url depends on your network configuration.
NodePort: https://example.com:32443/grafana
External IPs: https://example.com/grafana
LoadBalancer: https://example.com/grafana
Create a file grafana-config-values.yaml with the appropriate values
+
# Configure admin password
adminPassword: <PASSWORD>
# Ingress configuration
ingress:
enabled: true
annotations:
kubernetes.io/ingress.class: nginx
nginx.ingress.kubernetes.io/rewrite-target: /
hosts:
- example.com
path: /grafana
tls:
- secretName: monitoring-tls
hosts:
- example.com
# subpath for grafana
grafana.ini:
server:
root_url: https://example.com:32443/grafana
# Configure persistent storage
persistence:
enabled: true
accessModes:
- ReadWriteOnce
## Use a StorageClass
storageClassName: my-storage-class
## Create a PersistentVolumeClaim of 10Gi
size: 10Gi
## Use an existing PersistentVolumeClaim (my-pvc)
#existingClaim: my-pvc
# Enable sidecar for provisioning
sidecar:
datasources:
enabled: true
label: grafana_datasource
dashboards:
enabled: true
label: grafana_dashboardAdd SUSE helm charts repository
helm repo add suse https://kubernetes-charts.suse.comDeploy SUSE grafana helm chart and pass our configuration values file
helm install grafana suse/grafana \
--namespace monitoring \
--values grafana-config-values.yamlThe result should be a running Grafana pod
kubectl -n monitoring get pod | grep grafana
NAME READY STATUS RESTARTS AGE
grafana-dbf7ddb7d-fxg6d 3/3 Running 0 2mAccess Prometheus, Alertmanager, and Grafana
At this stage, the Prometheus Expression browser/API, Alertmanager, and Grafana should be accessible, depending on your network configuration
Prometheus Expression browser/API
NodePort: https://example.com:32443/prometheus
External IPs: https://example.com/prometheus
LoadBalancer: https://example.com/prometheus
Alertmanager
NodePort: https://example.com:32443/alertmanager
External IPs: https://example.com/alertmanager
LoadBalancer: https://example.com/alertmanager
Grafana
NodePort: https://example.com:32443/grafana
External IPs: https://example.com/grafana
LoadBalancer: https://example.com/grafana
Now you can add the Grafana dashboards.
The Prometheus SUSE helm chart includes the following predefined jobs that will scrape metrics from these jobs using service discovery.
prometheus: Get metrics from prometheus server
kubernetes-apiservers: Get metrics from Kubernetes apiserver
kubernetes-nodes: Get metrics from Kubernetes nodes
kubernetes-service-endpoints: Get metrics from Services which have annotation prometheus.io/scrape=true in the metadata
kubernetes-pods: Get metrics from Pods which have annotation prometheus.io/scrape=true in the metadata
If you want to monitor new pods and services, you don’t need to change prometheus.yaml but add annotation prometheus.io/scrape=true, prometheus.io/port=<TARGET_PORT> and prometheus.io/path=<METRIC_ENDPOINT> to your pods and services metadata. Prometheus will automatically scrape the target.
ETCD server exposes metrics on the /metrics endpoint. Prometheus jobs do not scrape it by default. Edit the prometheus.yaml file if you want to monitor the etcd cluster. Since the etcd cluster runs on https, we need to create a certificate to access the endpoint.
Create a new etcd client certificate signed by etcd CA cert/key pair:
cat << EOF > <CLUSTER_NAME>/pki/etcd/openssl-monitoring-client.conf
[req]
distinguished_name = req_distinguished_name
req_extensions = v3_req
prompt = no
[v3_req]
keyUsage = digitalSignature,keyEncipherment
extendedKeyUsage = clientAuth
[req_distinguished_name]
O = system:masters
CN = kube-etcd-monitoring-client
EOF
openssl req -nodes -new -newkey rsa:2048 -config <CLUSTER_NAME>/pki/etcd/openssl-monitoring-client.conf -out <CLUSTER_NAME>/pki/etcd/monitoring-client.csr -keyout <CLUSTER_NAME>/pki/etcd/monitoring-client.key
openssl x509 -req -days 365 -CA <CLUSTER_NAME>/pki/etcd/ca.crt -CAkey <CLUSTER_NAME>/pki/etcd/ca.key -CAcreateserial -in <CLUSTER_NAME>/pki/etcd/monitoring-client.csr -out <CLUSTER_NAME>/pki/etcd/monitoring-client.crt -sha256 -extfile <CLUSTER_NAME>/pki/etcd/openssl-monitoring-client.conf -extensions v3_reqCreate the etcd client certificate to secret in monitoring namespace:
kubectl -n monitoring create secret generic etcd-certs --from-file=<CLUSTER_NAME>/pki/etcd/ca.crt --from-file=<CLUSTER_NAME>/pki/etcd/monitoring-client.crt --from-file=<CLUSTER_NAME>/pki/etcd/monitoring-client.keyGet all etcd cluster private IP address:
kubectl get pods -n kube-system -l component=etcd -o wide
NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
etcd-master0 1/1 Running 2 21h 192.168.0.6 master0 <none> <none>
etcd-master1 1/1 Running 2 21h 192.168.0.20 master1 <none> <none>Edit the configuration file prometheus-config-values.yaml, add extraSecretMounts and extraScrapeConfigs parts, change the extraScrapeConfigs targets IP address(es) as your environment and change the target numbers if you have different etcd cluster members:
# Prometheus configuration
server:
...
extraSecretMounts:
- name: etcd-certs
mountPath: /etc/secrets
secretName: etcd-certs
readOnly: true
extraScrapeConfigs: |
- job_name: etcd
static_configs:
- targets: ['192.168.0.32:2379','192.168.0.17:2379','192.168.0.5:2379']
scheme: https
tls_config:
ca_file: /etc/secrets/ca.crt
cert_file: /etc/secrets/monitoring-client.crt
key_file: /etc/secrets/monitoring-client.keyUpgrade prometheus helm deployment:
helm upgrade prometheus suse/prometheus \
--namespace monitoring \
--values prometheus-config-values.yamlAlthough Kubernetes cluster takes care of a lot of the traditional deployment problems on its own, it is good practice to monitor the availability and health of your services and applications in order to react to problems should they go beyond the automated measures.
There are three levels of health checks.
Cluster
Node
Service / Application
The basic check if a cluster is working correctly is based on a few criteria:
Are all services running as expected?
Is there at least one Kubernetes master fully working? Even if the deployment is
configured to be highly available, it’s useful to know if
kube-controller-manager is down on one of the machines.
For further understanding cluster health information, consider reading https://v1-18.docs.kubernetes.io/docs/tasks/debug-application-cluster/debug-cluster/
All components in Kubernetes cluster expose a /healthz endpoint. The expected
(healthy) HTTP response status code is 200.
The minimal services for the master to work properly are:
kube-apiserver:
The component that receives your requests from kubectl and from the rest of
the Kubernetes components. The URL is https://<CONTROL_PLANE_IP/FQDN>:6443/healthz
Local Check
curl -k -i https://localhost:6443/healthzRemote Check
curl -k -i https://<CONTROL_PLANE_IP/FQDN>:6443/healthzkube-controller-manager:
The component that contains the control loop, driving current state to the desired state. The URL is http://<CONTROL_PLANE_IP/FQDN>:10252/healthz
Local Check
curl -i http://localhost:10252/healthzRemote Check
Make sure firewall allows port 10252.
curl -i http://<CONTROL_PLANE_IP/FQDN>:10252/healthzkube-scheduler:
The component that schedules workloads to nodes. The URL is http://<CONTROL_PLANE_IP/FQDN>:10251/healthz
Local Check
curl -i http://localhost:10251/healthzRemote Check
Make sure firewall allows port 10251.
curl -i http://<CONTROL_PLANE_IP/FQDN>:10251/healthzIn a HA environment you can monitor kube-apiserver on
https://<LOAD_BALANCER_IP/FQDN>:6443/healthz.
If any one of the master nodes is running correctly, you will receive a valid response.
This does, however, not mean that all master nodes necessarily work correctly. To ensure that all master nodes work properly, the health checks must be repeated individually for each deployed master node.
This endpoint will return a successful HTTP response if the cluster is
operational; otherwise it will fail.
It will for example check that it can access etcd.
This should not be used to infer that the overall cluster health is ideal.
It will return a successful response even when only minimal operational
cluster health exists.
To probe for full cluster health, you must perform individual health checking for all machines.
The etcd cluster exposes an endpoint /health. The expected (healthy)
HTTP response body is {"health":"true"}. The etcd cluster is accessed through
HTTPS only, so be sure to have etcd certificates.
Local Check
curl --cacert /etc/kubernetes/pki/etcd/ca.crt
--cert /etc/kubernetes/pki/etcd/healthcheck-client.crt
--key /etc/kubernetes/pki/etcd/healthcheck-client.key https://localhost:2379/healthRemote Check
Make sure firewall allows port 2379.
curl --cacert <ETCD_ROOT_CA_CERT> --cert <ETCD_CLIENT_CERT>
--key <ETCD_CLIENT_KEY> https://<CONTROL_PLANE_IP/FQDN>:2379/healthThis basic node health check consists of two parts. It checks:
The kubelet endpoint
CNI (Container Networking Interface) pod state
First, determine if kubelet is up and working on the node.
Kubelet has two ports exposed on all machines:
Port https/10250: exposes kubelet services to the entire cluster and is available from all nodes through authentication.
Port http/10248: is only available on local host.
You can send an HTTP request to the endpoint to find out if
kubelet is healthy on that machine. The expected (healthy) HTTP response
status code is 200.
If there is an agent running on each node, this agent can simply fetch the local healthz port:
curl -i http://localhost:10248/healthzThere are two ways to fetch endpoints remotely (metrics, healthz, etc.). Both methods use HTTPS and a token.
The first method is executed against the APIServer and mostly used with Prometheus
and Kubernetes discovery kubernetes_sd_config.
It allows automatic discovery of the nodes and avoids the task of defining monitoring
for each node. For more information see the Kubernetes documentation:
https://prometheus.io/docs/prometheus/latest/configuration/configuration/#kubernetes_sd_config
The second method directly talks to kubelet and can be used in more traditional monitoring where one must configure each node to be checked.
Configuration and Token retrieval:
Create a Service Account (monitoring) with an associated secondary Token
(monitoring-secret-token). The token will be used in HTTP requests to authenticate
against the API server.
This Service Account can only fetch information about nodes and pods.
Best practice is not to use the token that has been created default. Using a secondary
token is also easier for management. Create a file kubelet.yaml with
the following as content.
---
apiVersion: v1
kind: ServiceAccount
metadata:
name: monitoring
namespace: kube-system
secrets:
- name: monitoring-secret-token
---
apiVersion: v1
kind: Secret
metadata:
name: monitoring-secret-token
namespace: kube-system
annotations:
kubernetes.io/service-account.name: monitoring
type: kubernetes.io/service-account-token
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
name: monitoring-clusterrole
namespace: kube-system
rules:
- apiGroups: [""]
resources:
- nodes/metrics
- nodes/proxy
- pods
verbs: ["get", "list"]
- nonResourceURLs: ["/metrics", "/healthz", "/healthz/*"]
verbs: ["get"]
---
apiVersion: rbac.authorization.k8s.io/v1beta1
kind: ClusterRoleBinding
metadata:
name: monitoring-clusterrole-binding
namespace: kube-system
roleRef:
kind: ClusterRole
name: monitoring-clusterrole
apiGroup: rbac.authorization.k8s.io
subjects:
- kind: ServiceAccount
name: monitoring
namespace: kube-systemApply the yaml file:
kubectl apply -f kubelet.yamlExport the token to an environment variable:
TOKEN=$(kubectl -n kube-system get secrets monitoring-secret-token
-o jsonpath='{.data.token}' | base64 -d)This token can now be passed through the --header argument as: "Authorization: Bearer $TOKEN".
Now export important values as environment variables:
Environment Variables Setup
Choose a Kubernetes master node or worker node. The NODE_IP_FQDN here must
be a node’s IP address or FQDN. The NODE_NAME here must be a node name in
your Kubernetes cluster. Export the variables NODE_IP_FQDN and NODE_NAME
so it can be reused.
NODE_IP_FQDN="10.86.4.158"
NODE_NAME=worker0Retrieve the TOKEN with kubectl.
TOKEN=$(kubectl -n kube-system get secrets monitoring-secret-token
-o jsonpath='{.data.token}' | base64 -d)Get the control plane <IP/FQDN> from the configuration file. You can skip this step if you only want to use the kubelet endpoint.
CONTROL_PLANE=$(kubectl config view | grep server | cut -f 2- -d ":" | tr -d " ")Now the key information to retrieve data from the endpoints should be available in the environment and you can poll the endpoints.
Fetching Information from kubelet Endpoint
Make sure firewall allows port 10250.
Fetching metrics
curl -k https://$NODE_IP_FQDN:10250/metrics --header "Authorization: Bearer $TOKEN"Fetching healthz
curl -k https://$NODE_IP_FQDN:10250/healthz --header "Authorization: Bearer $TOKEN"Fetching Information from APISERVER Endpoint
Fetching metrics
curl -k $CONTROL_PLANE/api/v1/nodes/$NODE_NAME/proxy/metrics --header
"Authorization: Bearer $TOKEN"Fetching healthz
curl -k $CONTROL_PLANE/api/v1/nodes/$NODE_NAME/proxy/healthz --header
"Authorization: Bearer $TOKEN"You can check if the CNI (Container Networking Interface) is working as expected
by check if the coredns service is running. If CNI has some kind of trouble
coredns will not be able to start:
kubectl get deployments -n kube-system
NAME READY UP-TO-DATE AVAILABLE AGE
cilium-operator 1/1 1 1 8d
coredns 2/2 2 2 8d
oidc-dex 1/1 1 1 8d
oidc-gangway 1/1 1 1 8dIf coredns is running and you are able to create pods then you can be certain
that CNI and your CNI plugin are working correctly.
There’s also the Monitor Node Health check.
This is a DaemonSet that runs on every node, and reports to the apiserver back as
NodeCondition and Events.
If the deployed services contain a health endpoint, or if they contain an endpoint
that can be used to determine if the service is up, you can use livenessProbes
and/or readinessProbes.
A proper health check is always preferred if designed correctly.
Despite the fact that any endpoint could potentially be used to infer if your application is up, it is better to have an endpoint specifically for health in your application. Such an endpoint will only respond affirmatively when all your setup code on the server has finished and the application is running in a desired state.
The livenessProbes and readinessProbes share configuration options and probe types.
Number of seconds to wait before performing the very first liveness probe.
Number of seconds that the kubelet should wait between liveness probes.
Number of minimum consecutive successes for the probe to be considered successful (Default: 1).
Number of times this probe is allowed to fail in order to assume that the service is not responding (Default: 3).
Number of seconds after which the probe times out (Default: 1).
There are different options for the livenessProbes to check:
A command executed within a container; a return code of 0 means success. All other return codes mean failure.
If a TCP connection can be established is considered success.
Any HTTP response between 200 and 400 indicates success.
livenessProbes are used to detect running but misbehaving pods/a service that might be running (the process didn’t die), but that is not responding as expected. You can find out more about livenessProbes here: https://v1-18.docs.kubernetes.io/docs/tasks/configure-pod-container/configure-liveness-readiness-probes/
Probes are executed by each kubelet against the pods that define them and that
are running in that specific node. When a livenessProbe fails, Kubernetes will automatically
restart the pod and increase the RESTARTS count for that pod. These probes will be
executed every periodSeconds starting from initialDelaySeconds.
readinessProbes are used to wait for processes that take some time to start. Find out more about readinessProbes here: https://v1-18.docs.kubernetes.io/docs/tasks/configure-pod-container/configure-liveness-readiness-probes/#define-readiness-probes Despite the container running, it might be performing some time consuming initialization operations. During this time, you don’t want Kubernetes to route traffic to that specific pod. You also don’t want that container to be restarted because it will appear unresponsive.
These probes will be executed every periodSeconds starting from initialDelaySeconds
until the service is ready.
Both probe types can be used at the same time. If a service is running, but misbehaving,
the livenessProbe will ensure that it’s restarted, and the readinessProbe
will ensure that Kubernetes won’t route traffic to that specific pod until it’s considered
to be fully functional and running again.
We recommend to apply other best practices from system administration to your monitoring and health checking approach. These steps are not specific to SUSE CaaS Platform and are beyond the scope of this document.
Horizontal Pod Autoscaler (HPA) is a tool that automatically increases or decreases the number of pods in a replication controller, deployment, replica set or stateful set, based on metrics collected from pods.
In order to leverage HPA, skuba now supports an addon metrics-server.
The metrics-server addon is first installed into the Kubernetes cluster. After that, HPA fetches metrics from the aggregated API metrics.k8s.io and according to the user configuration determines whether to increase or decrease the scale of a replication controller, deployment, replica set or stateful set.
The HPA metrics.target.type can be one of the following:
Utilization: the value returned from the metrics server API is calculated as the average resource utilization across all relevant pods and subsequently compared with the metrics.target.averageUtilization.
AverageValue: the value returned from the metrics server API is divided by the number of all relevant pods, then compared to the metrics.target.averageValue.
Value: the value returned from the metrics server API is directly compared to the metrics.target.value.
The metrics supported by metrics-server are the CPU and memory of a pod or node.
API versions supported by the HPA:
CPU metric: autoscaling/v1,autoscaling/v2beta2
Memory metric: autoscaling/v2beta2.
It is useful to first find out about the available resources of your cluster.
To display resource (CPU/Memory) usage for nodes, run:
$ kubectl top nodethe expected output should look like the following:
NAME CPU(cores) CPU% MEMORY(bytes) MEMORY%
master000 207m 10% 1756Mi 45%
worker000 100m 10% 602Mi 31%To display resource (CPU/Memory) usage for pods, run:
$ kubectl top podthe expected output should look like the following:
NAME CPU(cores) MEMORY(bytes)
cilium-9fjw2 32m 216Mi
cilium-cqnq5 43m 227Mi
cilium-operator-7d6ddddbf5-2jwgr 1m 46Mi
coredns-69c4947958-2br4b 2m 11Mi
coredns-69c4947958-kb6dq 3m 11Mi
etcd-master000 21m 584Mi
kube-apiserver-master000 20m 325Mi
kube-controller-manager-master000 6m 105Mi
kube-proxy-x2965 0m 24Mi
kube-proxy-x9zlv 0m 19Mi
kube-scheduler-master000 2m 46Mi
kured-45rc2 1m 25Mi
kured-cptk4 0m 25Mi
metrics-server-79b8658cd7-gjvhs 1m 21Mi
oidc-dex-55fc689dc-f6cfg 1m 20Mi
oidc-gangway-7b7fbbdbdf-85p6t 1m 18MiThe option flag --sort-by=cpu/--sort-by=memory has an sorting issue at the moment. It will be fixed in the future.
You can set the HPA to scale according to various metrics. These include average CPU utilization, average CPU value, average memory utilization and average memory value. The following sections show the recommended configuration for each of the aforementioned options.
The following code is an example of what this type of HPA can look like. You will have to run the code on your admin node or user local machine. Note that you need a kubeconfig file with RBAC permission that allow setting up autoscale rules into your Kubernetes cluster.
# deployment
kubectl autoscale deployment <DEPLOYMENT_NAME> \
--min=<MIN_REPLICAS_NUMBER> \
--max=<MAX_REPLICAS_NUMBER> \
--cpu-percent=<PERCENT>
# replication controller
kubectl autoscale replicationcontrollers <REPLICATIONCONTROLLERS_NAME> \
--min=<MIN_REPLICAS_NUMBER> \
--max=<MAX_REPLICAS_NUMBER> \
--cpu-percent=<PERCENT>You could for example use the following values:
kubectl autoscale deployment oidc-dex \
--name=avg-cpu-util \
--min=1 \
--max=10 \
--cpu-percent=50The example output below shows autoscaling works in case of the oidc-dex deployment. The HPA increases the minimum number of pods to 1 and will increase the pods up to 10, if the average CPU utilization of the pods reaches 50%. For more details about the inner workings of the scaling, refer to The Kubernetes documentation on the horizontal pod autoscale algorithm.
To check the current status of the HPA run:
kubectl get hpa
Example output:
NAME REFERENCE TARGETS MINPODS MAXPODS REPLICAS AGE oidc-dex Deployment/oidc-dex 0%/50% 1 10 3 115s
To calculate pod CPU utilization HPA divides the total CPU usage of all containers by the total number of CPU requests:
POD CPU UTILIZATION = TOTAL CPU USAGE OF ALL CONTAINERS / NUMBER OF CPU REQUESTS
For example:
Container1 requests 0.5 CPU and uses 0 CPU.
Container2 requests 1 CPU and uses 2 CPU.
The CPU utilization will be (0+2)/(0.5+1)*100 (%)=133 (%)
If a replication controller, deployment, replica set or stateful set does not specify the CPU request, the output of kubectl get hpa TARGETS will be unknown.
Create a yaml manifest file hpa-avg-cpu-value.yaml with the following content:
apiVersion: autoscaling/v2beta2 kind: HorizontalPodAutoscaler metadata: name: avg-cpu-value 1 namespace: kube-system 2 spec: scaleTargetRef: apiVersion: apps/v1 kind: Deployment 3 name: example 4 minReplicas: 1 5 maxReplicas: 10 6 metrics: - type: Resource resource: name: cpu target: type: AverageValue averageValue: 500Mi 7
Name of the HPA. | |
Namespace of the HPA. | |
Specifies the kind of object to scale (a replication controller, deployment, replica set or stateful set). | |
Specifies the name of the object to scale. | |
Specifies the minimum number of replicas. | |
Specifies the maximum number of replicas. | |
The average value of the requested CPU that each pod uses. |
Apply the yaml manifest by running:
kubectl apply -f hpa-avg-cpu-value.yaml
Check the current status of the HPA:
kubectl get hpa NAME REFERENCE TARGETS MINPODS MAXPODS REPLICAS AGE avg-cpu-value Deployment/php-apache 1m/500Mi 1 10 1 39s
Create a yaml manifest file hpa-avg-memory-util.yaml with the following content:
apiVersion: autoscaling/v2beta2 kind: HorizontalPodAutoscaler metadata: name: avg-memory-util 1 namespace: kube-system 2 spec: scaleTargetRef: apiVersion: apps/v1 kind: Deployment 3 name: example 4 minReplicas: 1 5 maxReplicas: 10 6 metrics: - type: Resource resource: name: memory target: type: Utilization averageUtilization: 50 7
Name of the HPA. | |
Namespace of the HPA. | |
Specifies the kind of object to scale (a replication controller, deployment, replica set or stateful set). | |
Specifies the name of the object to scale. | |
Specifies the minimum number of replicas. | |
Specifies the maximum number of replicas. | |
The average utilization of the requested memory that each pod uses. |
Apply the yaml manifest by running:
kubectl apply -f hpa-avg-memory-util.yaml
Check the current status of the HPA:
kubectl get hpa NAME REFERENCE TARGETS MINPODS MAXPODS REPLICAS AGE avg-memory-util Deployment/example 5%/50% 1 10 1 4m54s
HPA calculates pod memory utilization as: total memory usage of all containers / total memory requests.
If a deployment or replication controller does not specify the memory request, the ouput of kubectl get hpa TARGETS is <unknown>.
Create a yaml manifest file hpa-avg-memory-value.yaml with the following content:
apiVersion: autoscaling/v2beta2 kind: HorizontalPodAutoscaler metadata: name: avg-memory-value 1 namespace: kube-system 2 spec: scaleTargetRef: apiVersion: apps/v1 kind: Deployment 3 name: example 4 minReplicas: 1 5 maxReplicas: 10 6 metrics: - type: Resource resource: name: memory target: type: AverageValue averageValue: 500Mi 7
Name of the HPA. | |
Namespace of the HPA. | |
Specifies the kind of object to scale (a replication controller, deployment, replica set or stateful set). | |
Specifies the name of the object to scale. | |
Specifies the minimum number of replicas. | |
Specifies the maximum number of replicas. | |
The average value of the requested memory that each pod uses. |
Apply the yaml manifest by running:
kubectl apply -f hpa-avg-memory-value.yaml
Check the current status of the HPA:
kubectl get hpa NAME REFERENCE TARGETS MINPODS MAXPODS REPLICAS AGE avg-memory-value Deployment/example 11603968/500Mi 1 10 1 6m24s
This feature is offered as a "tech preview".
We release this as a tech-preview in order to get early feedback from our customers. Tech previews are largely untested, unsupported, and thus not ready for production use.
That said, we strongly believe this technology is useful at this stage in order to make the right improvements based on your feedback. A fully supported, production-ready release is planned for a later point in time.
If you plan to deploy SUSE Cloud Application Platform on your SUSE CaaS Platform cluster please skip this section of the documentation and refer to the official SUSE Cloud Application Platform instructions. This will include Stratos.
https://documentation.suse.com/suse-cap/1.5.2/single-html/cap-guides/#cha-cap-depl-caasp
The Stratos user interface (UI) is a modern web-based management application for Kubernetes and for Cloud Foundry distributions based on Kubernetes like SUSE Cloud Application Platform.
Stratos provides a graphical management console for both developers and system administrators.
A single Stratos instance can be used to monitor multiple Kubernetes clusters as long as it is granted access to their Kubernetes API endpoint.
This document aims to describe how to install Stratos in a SUSE CaaS Platform cluster that doesn’t plan to run any SUSE Cloud Application Platform components.
The Stratos stack is deployed using helm charts and consists of its web UI POD and a MariaDB one that is used to store configuration values.
The deployment of Stratos is performed using a helm chart. Your remote administration machine must have Helm installed.
The MariaDB instance used by Stratos requires a persistent storage to store its data.
The cluster must have a Kubernetes Storage Class defined.
Add SUSE helm charts repository
helm repo add suse https://kubernetes-charts.suse.comObtain the default values.yaml file of the helm chart
helm inspect values suse/console > stratos-values.yamlCreate the stratos namespace
kubectl create namespace stratosadmin user password #Create a secure password for your admin user and write that into the
stratos-values.yaml as value of the console.localAdminPassword key.
This step is required to allow the installation of Stratos without having any SUSE Cloud Application Platform components deployed on the cluster.
If your cluster does not have a default storage class configured, or you want to use a different one, follow these instructions.
Open the stratos-values.yaml file and look for the storageClass entry
defined at the global level, uncomment the line and provide the name of your
Storage Class.
The values file will have something like that:
# Specify which storage class should be used for PVCs
storageClass: defaultThe file has other storageClass keys defined inside of some of
its resources. These can be left empty to rely on the global Storage Class that
has just been defined.
The web interface of Stratos can be exposed either via a Ingress resource or
by using a Service of type LoadBalancer or even both at the same time.
An Ingress controller must be deployed on the cluster to be able to expose the service using an Ingress resource.
The cluster must be deployed on a platform that can handle LoadBalancer
objects and must have the Cloud Provider Integration (CPI) enabled. This
can be achieved, for example, when deploying SUSE CaaS Platform on top of OpenStack.
The behavior is defined inside of the console.service stanza of the yaml file:
console:
service:
annotations: []
externalIPs: []
loadBalancerIP:
loadBalancerSourceRanges: []
servicePort: 443
# nodePort: 30000
type: ClusterIP
externalName:
ingress:
## If true, Ingress will be created
enabled: false
## Additional annotations
annotations: {}
## Additional labels
extraLabels: {}
## Host for the ingress
# Defaults to console.[env.Domain] if env.Domain is set and host is not
host:
# Name of secret containing TLS certificate
secretName:
# crt and key for TLS Certificate (this chart will create the secret based on these)
tls:
crt:
key:The service can be exposes as a LoadBalancer one by setting the value of
console.service.type to be LoadBalancer.
The LoadBalancer resource can be tuned by changing the values of the other
loadBalancer* params specified inside of the console.service stanza.
The Ingress resource can be created by setting
console.service.ingress.enabled to be true.
Stratos is exposed by the Ingress using a dedicated host rule. Hence
you must specify the FQDN of the host as a value of the
console.service.ingress.host key.
The behavior of the Ingress object can be fine tuned by using the
other keys inside of the console.service.ingress stanza.
It’s highly recommended to secure Stratos' web interface using TLS encryption.
This can be done by creating a TLS certificate for Stratos.
It’s highly recommended to secure the web interface of Stratos by using TLS encryption. This can be easily done when exposing the web interface using an Ingress resource.
Inside of the console.service.ingress stanza ensure the Ingress resource is
enabled and then specify values for console.service.ingress.tls.crt and
console.service.ingress.tls.key. These keys hold the base64 encoded TLS
certificate and key.
The TLS certificate and key can be base64 encoded by using the following command:
base64 tls.crt
base64 tls.keyThe output produced by the two commands has to be copied into the
stratos-values.yaml file, resulting in something like that:
console:
service:
ingress:
enabled: true
tls: |
<output of base64 tls.crt>
key: |
<output of base64 tls.key>The helm chart provisions the MariaDB database with a default weak password.
A stronger password can be specified by altering the value of mariadb.mariadbPassword.
You can enable tech preview features of Stratos by changing the value of
console.techPreview from false to true.
Now Stratos can be deployed using helm and the values specified inside of the
stratos-values.yaml file:
helm install stratos-console suse/console \
--namespace stratos \
--values stratos-values.yamlYou can monitor the status of your Stratos deployment with the watch command:
watch --color 'kubectl get pods --namespace stratos'When Stratos is successfully deployed, the following is observed:
For the volume-migration pod, the STATUS is Completed and the READY column is at 0/1.
All other pods have a Running STATUS and a READY value of n/n.
Press Ctrl–C to exit the watch command.
At this stage Stratos web UI should be accessible. You can log into that using
the admin user and the password you specified inside of your stratos-values.yaml
file.
Now that Stratos is up and running you can log into it and configure it to connect to your Kubernetes cluster(s).
Please refer to the SUSE Cloud Application Platform documentation for more information.
The vSphere cloud provider can be enabled with SUSE CaaS Platform to allow Kubernetes pods to use VMWare vSphere Virtual Machine Disk (VMDK) volumes as persistent storage.
This chapter provides the two types of persistent volume usage and description.
Please refer to Cluster Bootstrap on how to setup vSphere cloud provider enabled cluster.
Extra node meta could be found when region and zone was added to vsphere.conf before bootstrap cluster node.
[Labels] region = "<VC_DATACENTER_TAG>" zone = "<VC_CLUSTER_TAG>"
Region refers to the datacenter and zones refers to the cluster grouping of hosts within the datacenter.
Adding region and zone makes Kubernetes persistent volume created with zone and region labels.
With such an environment, Kubernetes pod scheduler is set to be locational aware for the persistent volume.
For more information refer to: https://vmware.github.io/vsphere-storage-for-kubernetes/documentation/zones.html.
You can view the cloudprovider associated node meta with command.
kubectl get nodes -o jsonpath='{range .items[*]}{.metadata.name}{"\tregion: "}{.metadata.labels.failure-domain\.beta\.kubernetes\.io/region}{"\tzone: "}{.metadata.labels.failure-domain\.beta\.kubernetes\.io/zone}{"\n"}{end}'
...
010084072206 region: vcp-provo zone: vcp-cluster-jazz
010084073045 region: vcp-provo zone: vcp-cluster-jazzCreate new VMDK volume in datastore. The VMDK volume used in persistent volume must exist before the resource is created.
You can use govc to automate the task.
For installation instructions, refer to: https://github.com/vmware/govmomi/tree/master/govc.
govc datastore.disk.create -dc <DATA_CENTER> -ds <DATA_STORE> -size <DISK_SIZE> <DISK_NAME>
<DATA_CENTER> The datacenter name in vCenter where Kubernetes nodes reside.
<DATA_STORE> The datastore in vCenter where volume should be created.
<DISK_SIZE> The volume size to create, for example 1G.
<DISK_NAME> The VMDK volume name. for example my-disk.vmdk, or <CLUSTER_NAME>-folder/my-disk.vmdk.
Create persistent volume - sample-static-pv.yaml.
kubectl create -f sample-static-pv.yaml
apiVersion: v1 kind: PersistentVolume metadata: name: sample-static-pv 1 spec: capacity: storage: 1Gi 2 accessModes: - ReadWriteOnce persistentVolumeReclaimPolicy: Delete 3 vsphereVolume: volumePath: "[datastore] volume/path" 4 fsType: ext4 5
Create persistent volume claim - sample-static-pvc.yaml.
kubectl create -f sample-static-pvc.yaml
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
name: sample-static-pvc
labels:
app: sample
spec:
accessModes:
- ReadWriteOnce
resources:
requests:
storage: 1Gi 1The required volume size. |
Create deployement - sample-static-deployment.yaml.
kubectl create -f sample-static-deployment.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
name: sample-static-deployment
labels:
app: sample
tier: sample
spec:
selector:
matchLabels:
app: sample
tier: sample
strategy:
type: Recreate
template:
metadata:
labels:
app: sample
tier: sample
spec:
containers:
- image: busybox
name: sample
volumeMounts:
- name: sample-volume
mountPath: /data 1
command: [ "sleep", "infinity" ]
volumes:
- name: sample-volume
persistentVolumeClaim:
claimName: sample-static-pvc 2Check persistent volume claim is bonded and pod is running.
kubectl get pvc ... NAME STATUS VOLUME CAPACITY ACCESS MODES STORAGECLASS AGE sample-static-pvc Bound sample-static-pv 1Gi RWO 55s kubectl get pod ... NAME READY STATUS RESTARTS AGE sample-static-deployment-549dc77d76-pwdqw 1/1 Running 0 3m42s
Create storage class - sample-sc.yaml.
kubectl create -f sample-sc.yaml
kind: StorageClass
apiVersion: storage.k8s.io/v1
metadata:
name: sample-sc
annotations:
storageclass.kubernetes.io/is-default-class: "true" 1
provisioner: kubernetes.io/vsphere-volume
parameters:
datastore: "datastore" 2Create persistent volume claim - sample-dynamic-pvc.yaml.
kubectl create -f sample-dynamic-pvc.yaml
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
name: sample-dynamic-pvc
annotations:
volume.beta.kubernetes.io/storage-class: sample-sc 1
labels:
app: sample
spec:
accessModes:
- ReadWriteOnce
resources:
requests:
storage: 1Gi 2Create deployment - sample-deployment.yaml
kubectl create -f sample-deployment.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
name: sample-dynamic-deployment
labels:
app: sample
tier: sample
spec:
selector:
matchLabels:
app: sample
tier: sample
strategy:
type: Recreate
template:
metadata:
labels:
app: sample
tier: sample
spec:
containers:
- image: busybox
name: sample
volumeMounts:
- name: sample-volume
mountPath: /data 1
command: [ "sleep", "infinity" ]
volumes:
- name: sample-volume
persistentVolumeClaim:
claimName: sample-dynamic-pvc 2Check persistent volume claim is bonded and pod is running.
kubectl get pvc ... NAME STATUS VOLUME CAPACITY ACCESS MODES STORAGECLASS AGE sample-dynamic-pvc Bound pvc-0ca694b5-0084-4e36-bef1-5b2354158d79 1Gi RWO sample-sc 70s kubectl get pod ... NAME READY STATUS RESTARTS AGE sample-dynamic-deployment-687765d5b5-67vnh 1/1 Running 0 20s
Integration with external systems might require you to install additional packages to the base OS. Please refer to Section 3.1, “Software Installation”.
SUSE CaaS Platform offers SUSE Enterprise Storage as a storage solution for its containers. This chapter describes the steps required for successful integration.
Before you start with integrating SUSE Enterprise Storage, you need to ensure the following:
The SUSE CaaS Platform cluster must have ceph-common and xfsprogs installed on all nodes.
You can check this by running rpm -q ceph-common and rpm -q xfsprogs.
The SUSE CaaS Platform cluster can communicate with all of the following SUSE Enterprise Storage nodes: master, monitoring nodes, OSD nodes and the metadata server (in case you need a shared file system). For more details refer to the SUSE Enterprise Storage documentation: https://documentation.suse.com/ses/6/.
The steps will differ in small details depending on whether you are using RBD or CephFS.
RBD, also known as the Ceph Block Device or RADOS Block Device, facilitates the storage of block-based data in the Ceph distributed storage system. The procedure below describes steps to take when you need to use a RADOS Block Device in a Kubernetes Pod.
ceph osd pool create myPool 64 64
rbd pool init myPool
rbd create -s 2G myPool/image
Create a Block Device User, and record the key:
ceph auth get-or-create-key client.myPoolUser mon "allow r" osd "allow class-read object_prefix rbd_children, allow rwx pool=myPool" | tr -d '\n' | base64
Create the Secret containing client.myPoolUser key:
apiVersion: v1
kind: Secret
metadata:
name: ceph-user
namespace: default
type: kubernetes.io/rbd
data:
key: QVFESE1rbGRBQUFBQUJBQWxnSmpZalBEeGlXYS9Qb1Jreplace== 1The block device user key from the Ceph cluster. |
Create the Pod:
apiVersion: v1
kind: Pod
metadata:
name: ceph-rbd-inline
spec:
containers:
- name: ceph-rbd-inline
image: opensuse/leap
command: ["sleep", "infinity"]
volumeMounts:
- mountPath: /mnt/ceph_rbd 1
name: volume
volumes:
- name: volume
rbd:
monitors:
- 10.244.2.136:6789 2
- 10.244.3.123:6789
- 10.244.4.7:6789
pool: myPool 3
image: image 4
user: myPoolUser 5
secretRef:
name: ceph-user 6
fsType: ext4
readOnly: falseOnce the pod is running, check the volume is mounted:
kubectl exec -it pod/ceph-rbd-inline -- df -k | grep rbd Filesystem 1K-blocks Used Available Use% Mounted on /dev/rbd0 1998672 6144 1976144 1% /mnt/ceph_rbd
The following procedure describes how to use RBD in a Persistent Volume:
ceph osd pool create myPool 64 64
rbd pool init myPool
rbd create -s 2G myPool/image
Create a Block Device User, and record the key:
ceph auth get-or-create-key client.myPoolUser mon "allow r" osd "allow class-read object_prefix rbd_children, allow rwx pool=myPool" | tr -d '\n' | base64
Create the Secret containing client.myPoolUser key:
apiVersion: v1
kind: Secret
metadata:
name: ceph-user
namespace: default
type: kubernetes.io/rbd
data:
key: QVFESE1rbGRBQUFBQUJBQWxnSmpZalBEeGlXYS9Qb1Jreplace== 1The block device user key from the Ceph cluster. |
Create the Persistent Volume:
apiVersion: v1
kind: PersistentVolume
metadata:
name: ceph-rbd-pv
spec:
capacity:
storage: 2Gi 1
accessModes:
- ReadWriteOnce
rbd:
monitors:
- 172.28.0.25:6789 2
- 172.28.0.21:6789
- 172.28.0.6:6789
pool: myPool 3
image: image 4
user: myPoolUser 5
secretRef:
name: ceph-user 6
fsType: ext4
readOnly: falseThe size of the volume image. Reference to Setting requests and limits for local ephemeral storage to see supported suffixes. | |
A list of Ceph monitor nodes IP and port. The default port is 6789. | |
The Ceph pool name. | |
The Ceph volume image name. | |
The Ceph pool user. | |
The Kubernetes Secret name contains the Ceph pool user key. |
Create the Persistent Volume Claim:
kind: PersistentVolumeClaim
apiVersion: v1
metadata:
name: ceph-rbd-pv
spec:
accessModes:
- ReadWriteOnce
resources:
requests:
storage: 2Gi
volumeName: ceph-rbd-pvDeleting Persistent Volume Claim does not remove RBD volume in the Ceph cluster.
Create the Pod:
apiVersion: v1
kind: Pod
metadata:
name: ceph-rbd-pv
spec:
containers:
- name: ceph-rbd-pv
image: busybox
command: ["sleep", "infinity"]
volumeMounts:
- mountPath: /mnt/ceph_rbd 1
name: volume
volumes:
- name: volume
persistentVolumeClaim:
claimName: ceph-rbd-pv 2Once the pod is running, check the volume is mounted:
kubectl exec -it pod/ceph-rbd-pv -- df -k | grep rbd Filesystem 1K-blocks Used Available Use% Mounted on /dev/rbd0 1998672 6144 1976144 1% /mnt/ceph_rbd
The following procedure describes how use RBD in Storage Class:
ceph osd pool create myPool 64 64
Create a Block Device User to use as pool admin and record the key:
ceph auth get-or-create-key client.myPoolAdmin mds 'allow *' mgr 'allow *' mon 'allow *' osd 'allow * pool=myPool' | tr -d '\n' | base64
Create a Block Device User to use as pool user and record the key:
ceph auth get-or-create-key client.myPoolUser mon "allow r" osd "allow class-read object_prefix rbd_children, allow rwx pool=myPool" | tr -d '\n' | base64
Create the Secret containing the block device pool admin key:
apiVersion: v1
kind: Secret
metadata:
name: ceph-admin
type: kubernetes.io/rbd
data:
key: QVFCa0ZJVmZBQUFBQUJBQUp2VzdLbnNIOU1yYll1R0p6T2Zreplace== 1The block device pool admin key from the Ceph cluster. |
Create the Secret containing the block device pool user key:
apiVersion: v1
kind: Secret
metadata:
name: ceph-user
type: kubernetes.io/rbd
data:
key: QVFCa0ZJVmZBQUFBQUJBQUp2VzdLbnNIOU1yYll1R0p6T2Zreplace== 1The block device pool user key from the Ceph cluster. |
Create the Storage Class:
apiVersion: storage.k8s.io/v1beta1
kind: StorageClass
metadata:
name: ceph-rbd-sc
annotations:
storageclass.beta.kubernetes.io/is-default-class: "true"
provisioner: kubernetes.io/rbd
parameters:
monitors: 172.28.0.19:6789, 172.28.0.5:6789, 172.218:6789 1
adminId: myPoolAdmin 2
adminSecretName: ceph-admin 3
adminSecretNamespace: default
pool: myPool 4
userId: myPoolUser 5
userSecretName: ceph-user 6Create the Persistent Volume Claim:
kind: PersistentVolumeClaim
apiVersion: v1
metadata:
name: ceph-rbd-sc
spec:
accessModes:
- ReadWriteOnce
resources:
requests:
storage: 2Gi 1The request volume size. Reference to Setting requests and limits for local ephemeral storage to see supported suffixes. |
Deleting Persistent Volume Claim does not remove RBD volume in the Ceph cluster.
Create the Pod:
apiVersion: v1
kind: Pod
metadata:
name: ceph-rbd-sc
spec:
containers:
- name: ceph-rbd-sc
image: busybox
command: ["sleep", "infinity"]
volumeMounts:
- mountPath: /mnt/ceph_rbd 1
name: volume
volumes:
- name: volume
persistentVolumeClaim:
claimName: ceph-rbd-sc 2Once the pod is running, check the volume is mounted:
kubectl exec -it pod/ceph-rbd-sc -- df -k | grep rbd Filesystem 1K-blocks Used Available Use% Mounted on /dev/rbd0 1998672 6144 1976144 1% /mnt/ceph_rbd
The procedure below describes how to use CephFS in Pod.
Create a Block Device User to use as CephFS user and record the key:
ceph auth get-or-create-key client.myCephFSUser mds 'allow *' mgr 'allow *' mon 'allow r' osd 'allow rw pool=cephfs_metadata,allow rwx pool=cephfs_data' | tr -d '\n' | base64
The cephfs_data pool should be pre-existed with SES deployment, if not you can create and initialize with:
ceph osd pool create cephfs_data 256 256 ceph osd pool create cephfs_metadata 64 64 ceph fs new cephfs cephfs_metadata cephfs_data
Multiple Filesystems Within a Ceph Cluster is still an experimental feature, and disabled by default, to setup more than one filesystem requires to have this feature enabled. See Create a Ceph File System on how to create more filesystems.
Create the Secret containing the CephFS admin key:
apiVersion: v1
kind: Secret
metadata:
name: ceph-user
data:
key: QVFESE1rbGRBQUFBQUJBQWxnSmpZalBEeGlXYS9Qb1J4ZStreplace== 1The CephFS user key from the Ceph cluster. |
Create the Pod:
apiVersion: v1
kind: Pod
metadata:
name: cephfs-inline
spec:
containers:
- name: cephfs-inline
image: busybox
command: ["sleep", "infinity"]
volumeMounts:
- mountPath: /mnt/cephfs 1
name: volume
volumes:
- name: volume
cephfs:
monitors:
- 172.28.0.19:6789 2
- 172.28.0.5:6789
- 172.28.0.18:6789
user: myCephFSUser 3
secretRef:
name: ceph-user 4
readOnly: falseOnce the pod is running, check the volume is mounted:
kubectl exec -it pod/cephfs-inline -- df -k | grep cephfs
Filesystem 1K-blocks Used Available Use% Mounted on
172.28.0.19:6789,172.28.0.5:6789,172.28.0.18:6789:/
79245312 0 79245312 0% /mnt/cephfsThe following procedure describes how to attach a CephFS static persistent volume to a pod:
Create a Block Device User to use as CephFS user and record the key:
ceph auth get-or-create-key client.myCephFSUser mds 'allow *' mgr 'allow *' mon 'allow r' osd 'allow rw pool=cephfs_metadata,allow rwx pool=cephfs_data' | tr -d '\n' | base64
The cephfs_data pool should be pre-existed with SES deployment, if not you can create and initialize with:
ceph osd pool create cephfs_data 256 256 ceph osd pool create cephfs_metadata 64 64 ceph fs new cephfs cephfs_metadata cephfs_data
Multiple Filesystems Within a Ceph Cluster is still an experimental feature, and disabled by default, to setup more than one filesystem requires to have this feature enabled. See Create a Ceph File System on how to create more filesystem.
Create the Secret that contains the created CephFS admin key:
apiVersion: v1
kind: Secret
metadata:
name: ceph-user
data:
key: QVFESE1rbGRBQUFBQUJBQWxnSmpZalBEeGlXYS9Qb1J4ZStreplace== 1The CephFS user key from the Ceph cluster. |
Create the Persistent Volume:
apiVersion: v1
kind: PersistentVolume
metadata:
name: cephfs-pv
spec:
capacity:
storage: 2Gi 1
accessModes:
- ReadWriteOnce
cephfs:
monitors:
- 172.28.0.19:6789 2
- 172.28.0.5:6789
- 172.28.0.18:6789
user: myCephFSUser 3
secretRef:
name: ceph-user 4
readOnly: falseThe desired volume size. Reference to Setting requests and limits for local ephemeral storage to see supported suffixes. | |
A list of Ceph monitor nodes IP and port. The default port is 6789. | |
The CephFS user name. | |
The Kubernetes Secret name contains the CephFS user key. |
Create the Persistent Volume Claim:
kind: PersistentVolumeClaim
apiVersion: v1
metadata:
name: cephfs-pv
spec:
accessModes:
- ReadWriteOnce
resources:
requests:
storage: 2Gi 1The request volume size. |
Deleting Persistent Volume Claim does not remove CephFS volume in the Ceph cluster.
Create the Pod:
apiVersion: v1
kind: Pod
metadata:
name: cephfs-pv
spec:
containers:
- name: cephfs-pv
image: busybox
command: ["sleep", "infinity"]
volumeMounts:
- mountPath: /mnt/cephfs 1
name: volume
volumes:
- name: volume
persistentVolumeClaim:
claimName: cephfs-pv 2Once the pod is running, check the CephFS is mounted:
kubectl exec -it pod/cephfs-pv -- df -k | grep cephfs
Filesystem 1K-blocks Used Available Use% Mounted on
172.28.0.19:6789,172.28.0.5:6789,172.28.0.18:6789:/
79245312 0 79245312 0% /mnt/cephfsFor integration with SUSE Cloud Application Platform, refer to: Deploying SUSE Cloud Application Platform on SUSE CaaS Platform.
This feature is offered as a "tech preview".
We release this as a tech-preview in order to get early feedback from our customers. Tech previews are largely untested, unsupported, and thus not ready for production use.
That said, we strongly believe this technology is useful at this stage in order to make the right improvements based on your feedback. A fully supported, production-ready release is planned for a later point in time.
Graphics Processing Units (GPUs) provide a powerful way to run compute-intensive workloads such as machine learning pipelines. SUSE’s CaaS Platform supports scheduling GPU-dependent workloads on NVIDIA GPUs as a technical preview. This section illustrates how to prepare your host machine to expose GPU devices to your containers, and how to configure Kubernetes to schedule GPU-dependent workloads.
Not every worker node in the cluster need have a GPU device present. On the nodes that do have one or more NVIDIA GPUs, install the drivers from NVIDIA’s repository.
# zypper addrepo --refresh https://download.nvidia.com/suse/sle15sp2/ nvidia
# zypper refresh
# zypper install nvidia-glG05 nvidia-computeG05For most modern NVIDIA GPUs, the G05 driver will support your device. Check NVIDIA’s documentation for your GPU device model.
OCI hooks are a way for vendors or projects to inject executable actions into the lifecycle of a container managed by the container runtime (runc). SUSE provides an OCI hook for NVIDIA that enable the container runtime and therefor the kubelet and the Kubernetes scheduler to query the host system for the presence of a GPU device and access it directly. Install the hook on the worker nodes with GPUs:
# zypper install nvidia-container-toolkitAt this point, you should be able to run a container image that requires a GPU and directly access the device from the running container, for example using Podman:
# podman run docker.io/nvidia/cuda nvidia-smiAt this point, you should be able to run a container image using a GPU. If that is not working, check the following:
Ensure your GPU is visible from the host system:
# lspci | grep -i nvidia
# nvidia-smiEnsure the kernel modules are loaded:
# lsmod | grep nvidiaIf they are not, try loading them explicitly and check dmesg for an error indicating why they are missing:
# nvidia-modprobe
# dmesg | tailThe Kubernetes device plugin framework allows the kubelet to advertise system hardware resources that the Kubernetes scheduler can then use as hints to schedule workloads that require such devices. The Kubernetesdevice plugin from NVIDIA allows the kubelet to advertise NVIDIA GPUs it finds present on the worker node. Install the device plugin using kubectl:
$ kubectl create -f https://raw.githubusercontent.com/NVIDIA/k8s-device-plugin/1.0.0-beta6/nvidia-device-plugin.ymlIn a heterogeneous cluster, it may be preferable to prevent scheduling pods that do not require a GPU on nodes with a GPU in order to ensure that GPU workloads are not competing for time on the hardware they need to run. To accomplish this, add a taint to the worker nodes that have GPUs:
$ kubectl taint nodes worker0 nvidia.com/gpu=:PreferNoScheduleor
$ kubectl taint nodes worker0 nvidia.com/gpu=:NoScheduleSee the Kubernetes documentation on taints and tolerations for a discussion on the considerations for using the NoSchedule or PreferNoSchedule effects. If you use the NoSchedule effect, you must also add the appropriate toleration to infrastructure-critical Daemonsets that must run on all nodes, such as the kured, kube-proxy, and cilium Daemonsets.
The ExtendedResourceToleration admission controller is enabled on SUSE CaaS Platform v5 by default. This is a mutating admission controller that reviews all pod requests and adds tolerations to any pod that requests an extended resource advertised by a device plugin. For the NVIDIA GPU device plugin, it will automatically add the nvidia.com/gpu toleration to pods that request the nvidia.com/gpu resource, so you will not need to add this toleration explicitly for every GPU workload.
To test your installation you can create a pod that requests GPU devices:
$ kubectl apply -f - <<EOF
apiVersion: v1
kind: Pod
metadata:
name: gpu-pod
spec:
containers:
- name: cuda-container
image: nvidia/cuda:9.0-devel
resources:
limits:
nvidia.com/gpu: 1 # requesting 1 GPU
- name: digits-container
image: nvidia/digits:6.0
resources:
limits:
nvidia.com/gpu: 1 # requesting 1 GPU
EOFThis example requests a total of two GPUs for two containers. If two GPUs are available on a worker in your cluster, this pod will be scheduled to that worker.
At this point, after a few moments your pod should transition to state "running". If it is not, check the following:
Examine the pod events for an indication of why it is not being scheduled:
$ kubectl describe pod gpu-podExamine the events for the device plugin daemonset for any issues:
$ kubectl describe daemonset nvidia-device-plugin-daemonset --namespace kube-systemCheck the logs of each pod in the daemonset running on a worker that has a GPU:
$ kubectl logs -l name=nvidia-device-plugin-ds --namespace kube-systemCheck the kubelet log on the worker node that has a GPU. This may indicate errors the container runtime had executing the OCI hook command:
# journalctl -u kubeletIf you have configured Monitoring for your cluster, you may want to use NVIDIA’s Data Center GPU Manager (DCGM) to monitor your GPUs. DCGM integrates with the Prometheus and Grafana services configured for your cluster. Follow the steps below to configure the Prometheus exporter and Grafana dashboard for your NVIDIA GPUs.
The DCGM requires use of the hostPath volume type to access the kubelet socket on the host worker node. Create an appropriate Pod Security Policy and RBAC configuration to allow this:
$ kubectl apply -f - <<EOF
---
apiVersion: policy/v1beta1
kind: PodSecurityPolicy
metadata:
name: nvidia.dcgm
spec:
privileged: false
seLinux:
rule: RunAsAny
supplementalGroups:
rule: RunAsAny
runAsUser:
rule: RunAsAny
fsGroup:
rule: RunAsAny
allowedHostPaths:
- pathPrefix: /var/lib/kubelet/pod-resources
volumes:
- hostPath
- configMap
- secret
- emptyDir
- downwardAPI
- projected
- persistentVolumeClaim
- nfs
- rbd
- cephFS
- glusterfs
- fc
- iscsi
- cinder
- gcePersistentDisk
- awsElasticBlockStore
- azureDisk
- azureFile
- vsphereVolume
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
name: nvidia:dcgm
rules:
- apiGroups:
- policy
resources:
- podsecuritypolicies
verbs:
- use
resourceNames:
- nvidia.dcgm
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
name: nvidia:dcgm
roleRef:
kind: ClusterRole
name: nvidia:dcgm
apiGroup: rbac.authorization.k8s.io
subjects:
- kind: Group
name: system:serviceaccounts:dcgm
EOFThe DCGM exporter monitors GPUs on each worker node and exposes metrics that can be queried.
$ kubectl create namespace dcgm
$ kubectl create --namespace dcgm -f https://raw.githubusercontent.com/NVIDIA/gpu-monitoring-tools/master/dcgm-exporter.yamlCheck that the metrics are being collected:
$ NAME=$(kubectl get pods --namespace dcgm -l "app.kubernetes.io/name=dcgm-exporter" -o "jsonpath={ .items[0].metadata.name}")
$ kubectl port-forward $NAME 8080:9400
$ # in another terminal
$ curl http://127.0.0.1:8080/metricsAfter deploying Prometheus as explained in Monitoring, configure Prometheus to monitor the DCGM pods. Gather the cluster IPs of the pods to monitor:
$ kubectl get pods --namespace dcgm -l "app.kubernetes.io/name=dcgm-exporter" -o "jsonpath={ .items[*].status.podIP}"
10.244.1.10 10.244.2.68Add the DCGM pods to Prometheus’s scrape configuration. Edit the Prometheus configmap:
$ kubectl edit --namespace monitoring configmap prometheus-serverUnder the scrape_configs section add a new job, using the pod IPs found above:
scrape_configs:
...
- job_name: dcgm
static_configs:
- targets: ['10.244.1.10:9400', '10.244.2.68:9400']
...Prometheus will automatically reload the new configuration.
Import the DCGM Exporter dashboard into Grafana.
In the Grafana web interface, navigate to › . In the field _Import via grafana.com, enter the dashboard ID 12219, and click .
Alternatively, download the dashboard JSON definition, and upload it with the button.
On the next page, in the dropdown menu › › .
The new dashboard will appear in the Grafana web interface.
Etcd is a crucial component of Kubernetes - the etcd cluster stores the entire Kubernetes cluster state, which means critical configuration data, specifications, as well as the statuses of the running workloads. It also serves as the backend for service discovery. Chapter 13, Backup and Restore with Velero explains how to use Velero to backup, restore and migrate data. However, the Kubernetes cluster needs to be accessible for Velero to operate. And since the Kubernetes cluster can become inaccessible for many reasons, for example when all of its master nodes are lost, it is important to periodically backup etcd cluster data.
This chapter describes the backup of etcd cluster data running on master nodes of SUSE CaaS Platform.
Create backup directories on external storage.
BACKUP_DIR=CaaSP_Backup_`date +%Y%m%d%H%M%S`
mkdir /${BACKUP_DIR}Copy the following files/folders into the backup directory:
The skuba command-line binary: for the running cluster. Used to replace nodes from cluster.
The cluster definition folder: Directory created during bootstrap holding the cluster certificates and configuration.
The etcd cluster database: Holds all non-persistent cluster data.
Can be used to recover master nodes. Please refer to the next section for steps to create an etcd cluster database backup.
(Optional) Make backup directory into a compressed file, and remove the original backup directory.
tar cfv ${BACKUP_DIR}.tgz /${BACKUP_DIR}
rm -rf /${BACKUP_DIR}Mount external storage device to all master nodes. This is only required if the following step is using local hostpath as volume storage.
Create backup.
Find the size of the database to be backed up
ls -sh /var/lib/etcd/member/snap/dbThe backup size depends on the cluster. Ensure each of the backups has sufficient space. The available size should be more than the database snapshot file.
You should also have a rotation method to clean up the unneeded snapshots over time.
When there is insufficient space available during backup, pods will fail to be in Running state and no space left on device errors will show in pod logs.
The below example manifest shows a binding to a local hostPath.
We strongly recommend using other storage methods instead.
Modify the script example
Replace <STORAGE_MOUNT_POINT> with the directory in which to store the backup.
The directory must exist on every node in cluster.
Replace <IN_CLUSTER_ETCD_IMAGE> with the etcd image used in the cluster.
This can be retrieved by accessing any one of the nodes in the cluster and running:
grep image: /etc/kubernetes/manifests/etcd.yaml | awk '{print $2}'Create a backup deployment
Run the following script:
ETCD_SNAPSHOT="<STORAGE_MOUNT_POINT>/etcd_snapshot"
ETCD_IMAGE="<IN_CLUSTER_ETCD_IMAGE>"
MANIFEST="etcd-backup.yaml"
cat << *EOF* > ${MANIFEST}
apiVersion: batch/v1
kind: Job
metadata:
name: etcd-backup
namespace: kube-system
labels:
jobgroup: backup
spec:
template:
metadata:
name: etcd-backup
labels:
jobgroup: backup
spec:
containers:
- name: etcd-backup
image: ${ETCD_IMAGE}
env:
- name: ETCDCTL_API
value: "3"
command: ["/bin/sh"]
args: ["-c", "etcdctl --endpoints=https://127.0.0.1:2379 --cacert=/etc/kubernetes/pki/etcd/ca.crt --cert=/etc/kubernetes/pki/etcd/healthcheck-client.crt --key=/etc/kubernetes/pki/etcd/healthcheck-client.key snapshot save /backup/etcd-snapshot-\$(date +%Y-%m-%d_%H:%M:%S_%Z).db"]
volumeMounts:
- mountPath: /etc/kubernetes/pki/etcd
name: etcd-certs
readOnly: true
- mountPath: /backup
name: etcd-backup
restartPolicy: OnFailure
nodeSelector:
node-role.kubernetes.io/master: ""
tolerations:
- effect: NoSchedule
operator: Exists
hostNetwork: true
volumes:
- name: etcd-certs
hostPath:
path: /etc/kubernetes/pki/etcd
type: DirectoryOrCreate
- name: etcd-backup
hostPath:
path: ${ETCD_SNAPSHOT}
type: Directory
*EOF*
kubectl create -f ${MANIFEST}If you are using local hostPath and not using a shared storage device, the etcd backup will be created to any one of the master nodes.
To find the node associated with each etcd backup run:
kubectl get pods --namespace kube-system --selector=job-name=etcd-backup -o wideMount external storage device to all master nodes.
This is only required if the following step is using local hostPath as volume storage.
Create Cronjob.
Find the size of the database to be backed up
The backup size depends on the cluster. Ensure each of the backups has sufficient space. The available size should be more than the database snapshot file.
You should also have a rotation method to clean up the unneeded snapshots over time.
When there is insufficient space available during backup, pods will fail to be in Running state and no space left on device errors will show in pod logs.
The below example manifest shows a binding to a local hostPath.
We strongly recommend using other storage methods instead.
ls -sh /var/lib/etcd/member/snap/dbModify the script example
Replace <STORAGE_MOUNT_POINT> with directory to store for backup. The directory must exist on every node in cluster.
Replace <IN_CLUSTER_ETCD_IMAGE> with etcd image used in cluster.
This can be retrieved by accessing any one of the nodes in the cluster and running:
grep image: /etc/kubernetes/manifests/etcd.yaml | awk '{print $2}'Create a backup schedule deployment
Run the following script:
ETCD_SNAPSHOT="<STORAGE_MOUNT_POINT>/etcd_snapshot"
ETCD_IMAGE="<IN_CLUSTER_ETCD_IMAGE>"
# SCHEDULE in Cron format. https://crontab.guru/
SCHEDULE="0 1 * * *"
# *_HISTORY_LIMIT is the number of maximum history keep in the cluster.
SUCCESS_HISTORY_LIMIT="3"
FAILED_HISTORY_LIMIT="3"
MANIFEST="etcd-backup.yaml"
cat << *EOF* > ${MANIFEST}
apiVersion: batch/v1beta1
kind: CronJob
metadata:
name: etcd-backup
namespace: kube-system
spec:
startingDeadlineSeconds: 100
schedule: "${SCHEDULE}"
successfulJobsHistoryLimit: ${SUCCESS_HISTORY_LIMIT}
failedJobsHistoryLimit: ${FAILED_HISTORY_LIMIT}
jobTemplate:
spec:
template:
spec:
containers:
- name: etcd-backup
image: ${ETCD_IMAGE}
env:
- name: ETCDCTL_API
value: "3"
command: ["/bin/sh"]
args: ["-c", "etcdctl --endpoints=https://127.0.0.1:2379 --cacert=/etc/kubernetes/pki/etcd/ca.crt --cert=/etc/kubernetes/pki/etcd/healthcheck-client.crt --key=/etc/kubernetes/pki/etcd/healthcheck-client.key snapshot save /backup/etcd-snapshot-\$(date +%Y-%m-%d_%H:%M:%S_%Z).db"]
volumeMounts:
- mountPath: /etc/kubernetes/pki/etcd
name: etcd-certs
readOnly: true
- mountPath: /backup
name: etcd-backup
restartPolicy: OnFailure
nodeSelector:
node-role.kubernetes.io/master: ""
tolerations:
- effect: NoSchedule
operator: Exists
hostNetwork: true
volumes:
- name: etcd-certs
hostPath:
path: /etc/kubernetes/pki/etcd
type: DirectoryOrCreate
- name: etcd-backup
# hostPath is only one of the types of persistent volume. Suggest to setup external storage instead.
hostPath:
path: ${ETCD_SNAPSHOT}
type: Directory
*EOF*
kubectl create -f ${MANIFEST}This chapter describes how to recover SUSE CaaS Platform master nodes.
Remove the failed master node with skuba.
Replace <NODE_NAME> with failed cluster master node name.
skuba node remove <NODE_NAME>
Delete failed master node from known_hosts.
Replace` <NODE_IP>` with failed master node IP address.
sed -i "/<NODE_IP>/d" known_hosts
Prepare a new instance.
Use skuba to join master node from step 3.
Replace <NODE_IP> with the new master node ip address.
Replace <NODE_NAME> with the new master node name.
Replace <USER_NAME> with user name.
skuba node join --role=master --user=<USER_NAME> --sudo --target <NODE_IP> <NODE_NAME>
Ensure cluster version for backup/restore should be the same. Cross-version restoration in any domain is likely to encounter data/API compatibility issues.
You will only need to restore database on one of the master node (master-0) to regain control-plane access.
etcd will sync the database to all master nodes in the cluster once restored.
This does not mean, however, that the nodes will automatically be added back to the cluster.
You must join one master node to the cluster, restore the database and then continue adding your remaining master nodes (which then will sync automatically).
Do the following on master-0. Remote restore is not supported.
Install one of the required software packages (etcdctl, Docker or Podman).
Etcdctl:
sudo zypper install etcdctl
Docker:
sudo zypper install docker
sudo systemctl start docker
ETCD_IMAGE=`grep image: /etc/kubernetes/manifests/etcd.yaml | awk '{print $2}'`
sudo docker pull ${ETCD_IMAGE}Podman:
sudo zypper install podman
ETCD_IMAGE=`grep image: /etc/kubernetes/manifests/etcd.yaml | awk '{print $2}'`
sudo podman pull ${ETCD_IMAGE}Have access to etcd snapshot from backup device.
Stop etcd on all master nodes.
mv /etc/kubernetes/manifests/etcd.yaml /tmp/
You can check etcd container does not exist with crictl ps | grep etcd
Purge etcd data on all master nodes.
sudo rm -rf /var/lib/etcd
Login to master-0 via SSH.
Restore etcd data.
Replace <SNAPSHOT_DIR> with directory to the etcd snapshot,
for example: /share/backup/etcd_snapshot
Replace <SNAPSHOT> with the name of the etcd snapshot,
for example: etcd-snapshot-2019-11-08_05:19:20_GMT.db
Replace <NODE_NAME> with master-0 cluster node name,
for example: skuba-master-1
Replace <NODE_IP> with master-0 cluster node IP address.
The <NODE_IP> must be visible from inside the node.
ip addr | grep <NODE_IP>The <NODE_NAME> and <NODE_IP> must exist after --initial-cluster in /etc/kubernetes/manifests/etcd.yaml
Etcdctl:
SNAPSHOT="<SNAPSHOT_DIR>/<SNAPSHOT>"
NODE_NAME="<NODE_NAME>"
NODE_IP="<NODE_IP>"
sudo ETCDCTL_API=3 etcdctl snapshot restore ${SNAPSHOT}\
--data-dir /var/lib/etcd\
--name ${NODE_NAME}\
--initial-cluster ${NODE_NAME}=https://${NODE_IP}:2380\
--initial-advertise-peer-urls https://${NODE_IP}:2380Docker:
SNAPSHOT="<SNAPSHOT>"
SNAPSHOT_DIR="<SNAPSHOT_DIR>"
NODE_NAME="<NODE_NAME>"
NODE_IP="<NODE_IP>"
sudo docker run\
-v ${SNAPSHOT_DIR}:/etcd_snapshot\
-v /var/lib:/var/lib\
--entrypoint "" ${ETCD_IMAGE} /bin/bash -c "\
ETCDCTL_API=3 etcdctl snapshot restore /etcd_snapshot/${SNAPSHOT}\
--data-dir /var/lib/etcd\
--name ${NODE_NAME}\
--initial-cluster ${NODE_NAME}=https://${NODE_IP}:2380\
--initial-advertise-peer-urls https://${NODE_IP}:2380"Podman:
SNAPSHOT="<SNAPSHOT>"
SNAPSHOT_DIR="<SNAPSHOT_DIR>"
NODE_NAME="<NODE_NAME>"
NODE_IP="<NODE_IP>"
sudo podman run\
-v ${SNAPSHOT_DIR}:/etcd_snapshot\
-v /var/lib:/var/lib\
--network host\
--entrypoint "" ${ETCD_IMAGE} /bin/bash -c "\
ETCDCTL_API=3 etcdctl snapshot restore /etcd_snapshot/${SNAPSHOT}\
--data-dir /var/lib/etcd\
--name ${NODE_NAME}\
--initial-cluster ${NODE_NAME}=https://${NODE_IP}:2380\
--initial-advertise-peer-urls https://${NODE_IP}:2380"Start etcd on master-0.
mv /tmp/etcd.yaml /etc/kubernetes/manifests/
You should be able to see master-0 joined to the etcd cluster member list.
Replace <ENDPOINT_IP> with master-0 cluster node IP address.
Etcdctl:
sudo ETCDCTL_API=3 etcdctl\ --endpoints=https://127.0.0.1:2379\ --cacert=/etc/kubernetes/pki/etcd/ca.crt\ --cert=/etc/kubernetes/pki/etcd/healthcheck-client.crt\ --key=/etc/kubernetes/pki/etcd/healthcheck-client.key member list
Docker:
ETCD_IMAGE=`grep image: /etc/kubernetes/manifests/etcd.yaml | awk '{print $2}'`
ENDPOINT=<ENDPOINT_IP>
sudo docker run\
-v /etc/kubernetes/pki/etcd:/etc/kubernetes/pki/etcd\
--entrypoint "" ${ETCD_IMAGE} /bin/bash -c "\
ETCDCTL_API=3 etcdctl\
--endpoints=https://${ENDPOINT}:2379\
--cacert=/etc/kubernetes/pki/etcd/ca.crt\
--cert=/etc/kubernetes/pki/etcd/healthcheck-client.crt\
--key=/etc/kubernetes/pki/etcd/healthcheck-client.key member list"Podman:
ETCD_IMAGE=`grep image: /etc/kubernetes/manifests/etcd.yaml | awk '{print $2}'`
ENDPOINT=<ENDPOINT_IP>
sudo podman run\
-v /etc/kubernetes/pki/etcd:/etc/kubernetes/pki/etcd\
--network host\
--entrypoint "" ${ETCD_IMAGE} /bin/bash -c "\
ETCDCTL_API=3 etcdctl\
--endpoints=https://${ENDPOINT}:2379\
--cacert=/etc/kubernetes/pki/etcd/ca.crt\
--cert=/etc/kubernetes/pki/etcd/healthcheck-client.crt\
--key=/etc/kubernetes/pki/etcd/healthcheck-client.key member list"Add another master node to the etcd cluster member list.
Replace <NODE_NAME> with cluster node name,
for example: skuba-master-1
Replace <ENDPOINT_IP> with master-0 cluster node IP address.
Replace <NODE_IP> with cluster node IP address.
The <NODE_IP> must be visible from inside the node.
ip addr | grep <NODE_IP>The <NODE_NAME> and <NODE_IP> must exist after --initial-cluster in /etc/kubernetes/manifests/etcd.yaml
Nodes must be restored in sequence.
Etcdctl:
NODE_NAME="<NODE_NAME>"
NODE_IP="<NODE_IP>"
sudo ETCDCTL_API=3 etcdctl\
--endpoints=https://127.0.0.1:2379\
--cacert=/etc/kubernetes/pki/etcd/ca.crt\
--cert=/etc/kubernetes/pki/etcd/healthcheck-client.crt\
--key=/etc/kubernetes/pki/etcd/healthcheck-client.key\
member add ${NODE_NAME} --peer-urls=https://${NODE_IP}:2380Docker:
ETCD_IMAGE=`grep image: /etc/kubernetes/manifests/etcd.yaml | awk '{print $2}'`
ENDPOINT=<ENDPOINT_IP>
NODE_NAME="<NODE_NAME>"
NODE_IP="<NODE_IP>"
sudo docker run\
-v /etc/kubernetes/pki/etcd:/etc/kubernetes/pki/etcd\
--entrypoint "" ${ETCD_IMAGE} /bin/bash -c "\
ETCDCTL_API=3 etcdctl\
--endpoints=https://${ENDPOINT}:2379\
--cacert=/etc/kubernetes/pki/etcd/ca.crt\
--cert=/etc/kubernetes/pki/etcd/healthcheck-client.crt\
--key=/etc/kubernetes/pki/etcd/healthcheck-client.key\
member add ${NODE_NAME} --peer-urls=https://${NODE_IP}:2380"Podman:
ETCD_IMAGE=`grep image: /etc/kubernetes/manifests/etcd.yaml | awk '{print $2}'`
ENDPOINT=<ENDPOINT_IP>
NODE_NAME="<NODE_NAME>"
NODE_IP="<NODE_IP>"
sudo podman run\
-v /etc/kubernetes/pki/etcd:/etc/kubernetes/pki/etcd\
--network host\
--entrypoint "" ${ETCD_IMAGE} /bin/bash -c "\
ETCDCTL_API=3 etcdctl\
--endpoints=https://${ENDPOINT}:2379\
--cacert=/etc/kubernetes/pki/etcd/ca.crt\
--cert=/etc/kubernetes/pki/etcd/healthcheck-client.crt\
--key=/etc/kubernetes/pki/etcd/healthcheck-client.key\
member add ${NODE_NAME} --peer-urls=https://${NODE_IP}:2380"Login to the node in step 7 via SSH.
Start etcd.
cp /tmp/etcd.yaml /etc/kubernetes/manifests/
Repeat step 7, 8, 9 to recover all remaining master nodes.
After restoring, execute the below command to confirm the procedure. A successful restoration will show master nodes in etcd member list started, and all Kubernetes nodes in STATUS Ready.
Etcdctl:
sudo ETCDCTL_API=3 etcdctl\ --endpoints=https://127.0.0.1:2379\ --cacert=/etc/kubernetes/pki/etcd/ca.crt\ --cert=/etc/kubernetes/pki/etcd/healthcheck-client.crt\ --key=/etc/kubernetes/pki/etcd/healthcheck-client.key member list # EXAMPLE 116c1458aef748bc, started, caasp-master-cluster-2, https://172.28.0.20:2380, https://172.28.0.20:2379 3d124d6ad11cf3dd, started, caasp-master-cluster-0, https://172.28.0.26:2380, https://172.28.0.26:2379 43d2c8b1d5179c01, started, caasp-master-cluster-1, https://172.28.0.6:2380, https://172.28.0.6:2379
Docker:
ETCD_IMAGE=`grep image: /etc/kubernetes/manifests/etcd.yaml | awk '{print $2}'`
# Replace <ENDPOINT_IP> with `master-0` cluster node IP address.
ENDPOINT=<ENDPOINT_IP>
sudo docker run\
-v /etc/kubernetes/pki/etcd:/etc/kubernetes/pki/etcd\
--entrypoint "" ${ETCD_IMAGE} /bin/bash -c "\
ETCDCTL_API=3 etcdctl\
--endpoints=https://${ENDPOINT}:2379\
--cacert=/etc/kubernetes/pki/etcd/ca.crt\
--cert=/etc/kubernetes/pki/etcd/healthcheck-client.crt\
--key=/etc/kubernetes/pki/etcd/healthcheck-client.key member list"
# EXAMPLE
116c1458aef748bc, started, caasp-master-cluster-2, https://172.28.0.20:2380, https://172.28.0.20:2379
3d124d6ad11cf3dd, started, caasp-master-cluster-0, https://172.28.0.26:2380, https://172.28.0.26:2379
43d2c8b1d5179c01, started, caasp-master-cluster-1, https://172.28.0.6:2380, https://172.28.0.6:2379Podman:
ETCD_IMAGE=`grep image: /etc/kubernetes/manifests/etcd.yaml | awk '{print $2}'`
# Replace <ENDPOINT_IP> with `master-0` cluster node IP address.
ENDPOINT=<ENDPOINT_IP>
sudo podman run\
-v /etc/kubernetes/pki/etcd:/etc/kubernetes/pki/etcd\
--network host\
--entrypoint "" ${ETCD_IMAGE} /bin/bash -c "\
ETCDCTL_API=3 etcdctl\
--endpoints=https://${ENDPOINT}:2379\
--cacert=/etc/kubernetes/pki/etcd/ca.crt\
--cert=/etc/kubernetes/pki/etcd/healthcheck-client.crt\
--key=/etc/kubernetes/pki/etcd/healthcheck-client.key member list"
# EXAMPLE
116c1458aef748bc, started, caasp-master-cluster-2, https://172.28.0.20:2380, https://172.28.0.20:2379
3d124d6ad11cf3dd, started, caasp-master-cluster-0, https://172.28.0.26:2380, https://172.28.0.26:2379
43d2c8b1d5179c01, started, caasp-master-cluster-1, https://172.28.0.6:2380, https://172.28.0.6:2379Kubectl:
kubectl get nodes # EXAMPLE NAME STATUS ROLES AGE VERSION caasp-master-cluster-0 Ready master 28m v1.16.2 caasp-master-cluster-1 Ready master 20m v1.16.2 caasp-master-cluster-2 Ready master 12m v1.16.2 caasp-worker-cluster-0 Ready <none> 36m36s v1.16.2
Velero is a solution for supporting Kubernetes cluster disaster recovery, data migration, and data protection by backing up Kubernetes cluster resources and persistent volumes to externally supported storage backend on-demand or by schedule.
The major functions include:
Backup Kubernetes resources and persistent volumes for supported storage providers.
Restore Kubernetes resources and persistent volumes for supported storage providers.
When backing up persistent volumes w/o supported storage provider, Velero leverages restic as an agnostic solution to back up this sort of persistent volumes under some known limitations.
User can leverage these fundamental functions to achieve user stories:
Backup whole Kubernetes cluster resources then restore if any Kubernetes resources loss.
Backup selected Kubernetes resources then restore if the selected Kubernetes resources loss.
Backup selected Kubernetes resources and persistent volumes then restore if the Kubernetes selected Kubernetes resources loss or data loss.
Replicate or migrate a cluster for any purpose, for example replicating a production cluster to a development cluster for testing.
Velero consists of below components:
A Velero server that runs on your Kubernetes cluster.
A restic deployed on each worker nodes that run on your Kubernetes cluster (optional).
A command-line client that runs locally.
Velero doesn’t overwrite objects in-cluster if they already exist.
Velero supports a single set of credentials per provider. It’s not yet possible to use different credentials for different object storage locations for the same provider.
Volume snapshots are limited by where your provider allows you to create snapshots. For example, AWS and Azure do not allow you to create a volume snapshot in a different region than where the volume is located. If you try to take a Velero backup using a volume snapshot location with a different region than where your cluster’s volume is, the backup will fail.
It is not yet possible to send a single Velero backup to multiple backup storage locations simultaneously, or a single volume snapshot to multiple locations simultaneously. However, you can set up multiple backups manually or scheduled that differ only in the storage locations.
Cross-provider snapshots are not supported. If you have a cluster with more than one type of volume (e.g. NFS and Ceph), but you only have a volume snapshot location configured for NFS, then Velero will only snapshot the NFS volumes.
Restic data is stored under a prefix/subdirectory of the main Velero bucket and will go into the bucket corresponding backup storage location selected by the user at backup creation time.
When performing cluster migration, the new cluster number of nodes should be equal or greater than the original cluster.
For more information about storage and snapshot locations, refer to Velero: Backup Storage Locations and Volume Snapshot Locations
To successfully use Velero to backup and restore the Kubernetes cluster, you first need to install Helm. Refer to Section 3.1.2.1, “Installing Helm”.
Add SUSE helm chart repository URL:
helm repo add suse https://kubernetes-charts.suse.comVelero uses object storage to store backups and associated artifacts.
It can also optionally create snapshots of persistent volumes and store them in object storage via restic if there is no supported volume snapshot provider.
Choose one of the object storage providers, which fits your environment, from the list below for backing up and restoring the Kubernetes cluster.
The object storage server checks access permission, so it is vital to have credentials ready. Provide the credentials file credentials-velero to the velero server, so that it has the permission to write or read the backup data from the object storage.
Make sure the object storage is created before you install Velero. Otherwise, the Velero server won’t be able to start successfully. This is because the Velero server checks that the object storage exists and needs to have the permission to access it during server boot.
| Provider | Object Storage | Plugin Provider Repo |
|---|---|---|
Amazon Web Services (AWS) | AWS S3 | |
Google Cloud Platform (GCP) | Google Cloud Storage | |
Microsoft Azure | Azure Blob Storage |
AWS CLI
Install aws CLI locally, follow the doc to install.
AWS S3 bucket
Create an AWS S3 bucket to store backup data and restore data from the S3 bucket.
aws s3api create-bucket \
--bucket <BUCKET_NAME> \
--region <REGION> \
--create-bucket-configuration LocationConstraint=<REGION>Create the credential file credentials-velero in the local machine
[default] aws_access_key_id=<AWS_ACCESS_KEY_ID> aws_secret_access_key=<AWS_SECRET_ACCESS_KEY>
For details, please refer to Velero Plugin For AWS.
GCP CLIs
Install gcloud and gsutil CLIs locally, follow the doc to install.
Create GCS bucket
gsutil mb gs://<BUCKET_NAME>/Create the service account
# View current config settings
gcloud config list
# Store the project value to PROJECT_ID environment variable
PROJECT_ID=$(gcloud config get-value project)
# Create a service account
gcloud iam service-accounts create velero \
--display-name "Velero service account"
# List all accounts
gcloud iam service-accounts list
# Set the SERVICE_ACCOUNT_EMAIL environment variable
SERVICE_ACCOUNT_EMAIL=$(gcloud iam service-accounts list \
--filter="displayName:Velero service account" \
--format 'value(email)')
# Attach policies to give velero the necessary permissions
ROLE_PERMISSIONS=(
compute.disks.get
compute.disks.create
compute.disks.createSnapshot
compute.snapshots.get
compute.snapshots.create
compute.snapshots.useReadOnly
compute.snapshots.delete
compute.zones.get
)
# Create iam roles
gcloud iam roles create velero.server \
--project $PROJECT_ID \
--title "Velero Server" \
--permissions "$(IFS=","; echo "${ROLE_PERMISSIONS[*]}")"
# Bind iam policy to project
gcloud projects add-iam-policy-binding $PROJECT_ID \
--member serviceAccount:$SERVICE_ACCOUNT_EMAIL \
--role projects/$PROJECT_ID/roles/velero.server
gsutil iam ch serviceAccount:$SERVICE_ACCOUNT_EMAIL:objectAdmin gs://<BUCKET_NAME>Create the credential file credentials-velero in the local machine
gcloud iam service-accounts keys create credentials-velero \
--iam-account $SERVICE_ACCOUNT_EMAILFor details, please refer to Velero Plugin For GCP.
Azure CLI
Install az CLI locally, follow the doc to install.
Create a resource group for the backups storage account
Create the resource group named Velero_Backups, change the resource group name and location as needed.
AZURE_RESOURCE_GROUP=Velero_Backups
az group create -n $AZURE_RESOURCE_GROUP --location <location>Create the storage account
az storage account create \
--name $AZURE_STORAGE_ACCOUNT_ID \
--resource-group $AZURE_RESOURCE_GROUP \
--sku Standard_GRS \
--encryption-services blob \
--https-only true \
--kind BlobStorage \
--access-tier HotCreate a blob container
Create a blob container named velero. Change the name as needed.
BLOB_CONTAINER=velero
az storage container create -n $BLOB_CONTAINER --public-access off --account-name $AZURE_STORAGE_ACCOUNT_IDCreate the credential file credentials-velero in the local machine
# Obtain your Azure Account Subscription ID
AZURE_SUBSCRIPTION_ID=`az account list --query '[?isDefault].id' -o tsv`
# Obtain your Azure Account Tenant ID
AZURE_TENANT_ID=`az account list --query '[?isDefault].tenantId' -o tsv`
# Generate client secret
AZURE_CLIENT_SECRET=`az ad sp create-for-rbac --name "velero" --role "Contributor" --query 'password' -o tsv`
# Generate client ID
AZURE_CLIENT_ID=`az ad sp list --display-name "velero" --query '[0].appId' -o tsv`
cat << EOF > ./credentials-velero
AZURE_SUBSCRIPTION_ID=${AZURE_SUBSCRIPTION_ID}
AZURE_TENANT_ID=${AZURE_TENANT_ID}
AZURE_CLIENT_ID=${AZURE_CLIENT_ID}
AZURE_CLIENT_SECRET=${AZURE_CLIENT_SECRET}
AZURE_RESOURCE_GROUP=${AZURE_RESOURCE_GROUP}
EOFFor details, please refer to Velero Plugin For Azure.
radosgw) #SUSE supports the SUSE Enterprise Storage 6 Ceph Object Gateway (radosgw) as an S3-compatible object storage provider.
Installation Refer to the SES 6 Object Gateway Manual Installation on how to install it.
Create the credential file credentials-velero in the local machine
[default] aws_access_key_id=<SES_STORAGE_ACCESS_KEY_ID> aws_secret_access_key=<SES_STORAGE_SECRET_ACCESS_KEY>
Besides SUSE Enterprise Storage, there is an alternative open-source S3-compatible object storage provider minio.
Prepare an external host and install Minio on the host
# Download Minio server
wget https://dl.min.io/server/minio/release/linux-amd64/minio
chmod +x minio
# Expose Minio access_key and secret_key
export MINIO_ACCESS_KEY=<access_key>
export MINIO_SECRET_KEY=<secret_key>
# Start Minio server
mkdir -p bucket
./minio server bucket &
# Download Minio client
wget https://dl.min.io/client/mc/release/linux-amd64/mc
chmod +x mc
# Setup Minio server
./mc config host add Velero http://localhost:9000 $MINIO_ACCESS_KEY $MINIO_SECRET_KEY
# Create bucket on Minio server
./mc mb -p velero/veleroCreate the credential file credentials-velero in the local machine
[default] aws_access_key_id=<MINIO_STORAGE_ACCESS_KEY_ID> aws_secret_access_key=<MINIO_STORAGE_SECRET_ACCESS_KEY>
For the rest of the S3-compatible storage providers, refer to Velero: Supported Providers.
A volume snapshotter can snapshot its persistent volumes if its volume driver supports volume snapshot and corresponding API.
If a volume provider does not support volume snapshot or volume snapshot API or does not have Velero supported storage plugin, Velero leverages restic as an agnostic solution to backup and restore this sort of persistent volumes.
| Provider | Volume Snapshotter | Plugin Provider Repo |
|---|---|---|
Amazon Web Services (AWS) | AWS EBS |
For the other snapshotter providers refer to Velero: Supported Providers.
When restoring dex and gangway, Velero reports NodePort cannot be restored since dex and gangway are deployed by an addon already and the same NodePort has been registered.
However, this does not break the dex and gangway service access from outside.
You can add a label to services oidc-dex and oidc-gangway to skip Velero backup.
kubectl label -n kube-system services/oidc-dex velero.io/exclude-from-backup=true
kubectl label -n kube-system services/oidc-gangway velero.io/exclude-from-backup=trueUse Helm CLI to install Velero deployment and restic (optional) if the storage does not provide volume snapshot API.
If Velero installed other than default namespace velero, setup velero config to the Velero installed namespace.
velero client config set namespace=<NAMESPACE>
For the cases that the Kubernetes cluster do not use external storage or the external storage would handle take volume snapshot by itself, it does not need Velero to backup persistent volume.
Backup To A Public Cloud Provider
Amazon Web Services (AWS)
The backup bucket name BUCKET_NAME. (The bucket name in AWS S3 object storage)
The backup region name REGION_NAME. (The region name for the AWS S3 object storage. For example, us-east-1 for AWS US East (N. Virginia))
The Velero installed namespace NAMESPACE, the default namespace is velero. (optional)
helm install velero \
--namespace=<NAMESPACE> \
--create-namespace \
--set-file credentials.secretContents.cloud=credentials-velero \
--set configuration.provider=aws \
--set configuration.backupStorageLocation.name=default \
--set configuration.backupStorageLocation.bucket=<BUCKET_NAME> \
--set configuration.backupStorageLocation.config.region=<REGION_NAME> \
--set snapshotsEnabled=false \
--set initContainers[0].name=velero-plugin-for-aws \
--set initContainers[0].image=registry.suse.com/caasp/v4.5/velero-plugin-for-aws:1.1.0 \
--set initContainers[0].volumeMounts[0].mountPath=/target \
--set initContainers[0].volumeMounts[0].name=plugins \
suse/veleroThen, suggest creating at least one additional backup locations point to the different object storage server to prevent object storage server single point of failure.
velero backup-location create secondary \
--provider=aws \
--bucket=<SECONDARY_BUCKET_NAME> \
--region=<REGION_NAME>Google Cloud Platform (GCP)
The backup bucket name BUCKET_NAME. (The bucket name in Google Cloud Storage object storage)
The Velero installed namespace NAMESPACE, the default namespace is velero. (optional)
helm install velero \
--namespace=<NAMESPACE> \
--create-namespace \
--set-file credentials.secretContents.cloud=credentials-velero \
--set configuration.provider=gcp \
--set configuration.backupStorageLocation.name=default \
--set configuration.backupStorageLocation.bucket=<BUCKET_NAME> \
--set snapshotsEnabled=false \
--set initContainers[0].name=velero-plugin-for-gcp \
--set initContainers[0].image=registry.suse.com/caasp/v4.5/velero-plugin-for-gcp:1.1.0 \
--set initContainers[0].volumeMounts[0].mountPath=/target \
--set initContainers[0].volumeMounts[0].name=plugins \
suse/veleroThen, suggest creating at least one additional backup locations point to the different object storage server to prevent object storage server single point of failure.
velero backup-location create secondary \
--provider=gcp \
--bucket=<SECONDARY_BUCKET_NAME>Microsoft Azure
The backup bucket name BUCKET_NAME. (The bucket name in Azure Blob Storage object storage)
The resource group name AZURE_RESOURCE_GROUP. (The Azure resource group name)
The storage account ID AZURE_STORAGE_ACCOUNT_ID. (The Azure storage account ID)
The Velero installed namespace NAMESPACE, the default namespace is velero. (optional)
helm install velero \
--namespace=<NAMESPACE> \
--create-namespace \
--set-file credentials.secretContents.cloud=credentials-velero \
--set configuration.provider=azure \
--set configuration.backupStorageLocation.name=default \
--set configuration.backupStorageLocation.bucket=<BUCKET_NAME> \
--set configuration.backupStorageLocation.config.resourceGroup=<AZURE_RESOURCE_GROUP> \
--set configuration.backupStorageLocation.config.storageAccount=<AZURE_STORAGE_ACCOUNT_ID> \
--set snapshotsEnabled=false \
--set initContainers[0].name=velero-plugin-for-microsoft-azure \
--set initContainers[0].image=registry.suse.com/caasp/v4.5/velero-plugin-for-microsoft-azure:1.1.0 \
--set initContainers[0].volumeMounts[0].mountPath=/target \
--set initContainers[0].volumeMounts[0].name=plugins \
suse/veleroThen, suggest creating at least one additional backup locations point to the different object storage server to prevent object storage server single point of failure.
velero backup-location create secondary \
--provider=azure \
--bucket=<SECONDARY_BUCKET_NAME> \
--region resourceGroup=<AZURE_RESOURCE_GROUP>,storageAccount=<AZURE_STORAGE_ACCOUNT_ID>Backup To A S3-Compatible Provider
The backup bucket name BUCKET_NAME. (The bucket name in S3-compatible object storage)
The backup region name REGION_NAME. (The region name for the S3-compatible object storage. For example, radosgw or default/secondary if you have an HA backup servers)
The S3-compatible object storage simulates the S3-compatible object storage. Therefore, the configuration for S3-compatible object storage have to setup additional configurations.
--set configuration.backupStorageLocation.config.s3ForcePathStyle=true \
--set configuration.backupStorageLocation.config.s3Url=<S3_COMPATIBLE_STORAGE_SERVER_URL> \If the S3-Compatible storage server is secured with a self-signed certificate, add the below command when helm install and pass --cacert flag when using Velero CLI, refer to Velero: Self Signed Certificates. (optional)
--set configuration.backupStorageLocation.caCert=`cat <PATH_TO_THE_SELF_SIGNED_CA_CERTIFICATE> | base64 -w 0 && echo` \Install Velero Deployment.
helm install velero \
--namespace=<NAMESPACE> \
--create-namespace \
--set-file credentials.secretContents.cloud=credentials-velero \
--set configuration.provider=aws \
--set configuration.backupStorageLocation.name=default \
--set configuration.backupStorageLocation.bucket=<BUCKET_NAME> \
--set configuration.backupStorageLocation.config.region=<REGION_NAME> \
--set configuration.backupStorageLocation.config.s3ForcePathStyle=true \
--set configuration.backupStorageLocation.config.s3Url=<S3_COMPATIBLE_STORAGE_SERVER_URL> \
--set snapshotsEnabled=false \
--set initContainers[0].name=velero-plugin-for-aws \
--set initContainers[0].image=registry.suse.com/caasp/v4.5/velero-plugin-for-aws:1.1.0 \
--set initContainers[0].volumeMounts[0].mountPath=/target \
--set initContainers[0].volumeMounts[0].name=plugins \
suse/veleroThen, suggest creating at least one additional backup location point to the different object storage server to prevent object storage server single point of failure.
velero backup-location create secondary \
--provider=aws \
--bucket=<SECONDARY_BUCKET_NAME> \
--config region=secondary,s3ForcePathStyle=true,s3Url=<S3_COMPATIBLE_STORAGE_SERVER_URL>For the case that the Kubernetes cluster uses external storage and the external storage would not handle volume snapshot by itself (either external storage does not support volume snapshot or administrator want use velero to take volume snapshot when velero do cluster backup).
Backup To A Public Cloud Provider
Amazon Web Services (AWS)
The backup bucket name BUCKET_NAME. (The bucket name in AWS S3 object storage)
The backup region name REGION_NAME. (The region name for the AWS S3 object storage. For example, us-east-1 for AWS US East (N. Virginia))
The Velero installed namespace NAMESPACE, the default namespace is velero. (optional)
If the Kubernetes cluster in AWS and uses AWS EBS as storage, please remove the
--set deployRestic=true \
at below to use AWS EBS volume snapshot API to take volume snapshot. Otherwise, it would install restic and velero server will use restic to take a volume snapshot and the volume data will store to AWS S3 bucket.
helm install velero \
--namespace=<NAMESPACE> \
--create-namespace \
--set-file credentials.secretContents.cloud=credentials-velero \
--set configuration.provider=aws \
--set configuration.backupStorageLocation.name=default \
--set configuration.backupStorageLocation.bucket=<BUCKET_NAME> \
--set configuration.backupStorageLocation.config.region=<REGION_NAME> \
--set snapshotsEnabled=true \
--set deployRestic=true \
--set configuration.volumeSnapshotLocation.name=default \
--set configuration.volumeSnapshotLocation.config.region=<REGION_NAME> \
--set initContainers[0].name=velero-plugin-for-aws \
--set initContainers[0].image=registry.suse.com/caasp/v4.5/velero-plugin-for-aws:1.1.0 \
--set initContainers[0].volumeMounts[0].mountPath=/target \
--set initContainers[0].volumeMounts[0].name=plugins \
suse/veleroThen, suggest creating at least one additional backup locations point to the different object storage server to prevent object storage server single point of failure.
velero backup-location create secondary \
--provider=aws \
--bucket=<SECONDARY_BUCKET_NAME> \
--config region=<REGION_NAME>Google Cloud Platform (GCP)
The backup bucket name BUCKET_NAME. (The bucket name in Google Cloud Storage object storage)
The Velero installed namespace NAMESPACE, the default namespace is velero. (optional)
helm install velero \
--namespace=<NAMESPACE> \
--create-namespace \
--set-file credentials.secretContents.cloud=credentials-velero \
--set configuration.provider=gcp \
--set configuration.backupStorageLocation.name=default \
--set configuration.backupStorageLocation.bucket=<BUCKET_NAME> \
--set snapshotsEnabled=true \
--set deployRestic=true \
--set configuration.volumeSnapshotLocation.name=default \
--set initContainers[0].name=velero-plugin-for-gcp \
--set initContainers[0].image=registry.suse.com/caasp/v4.5/velero-plugin-for-gcp:1.1.0 \
--set initContainers[0].volumeMounts[0].mountPath=/target \
--set initContainers[0].volumeMounts[0].name=plugins \
suse/veleroThen, suggest creating at least one additional backup locations point to the different object storage server to prevent object storage server single point of failure.
velero backup-location create secondary \
--provider=gcp \
--bucket=<SECONDARY_BUCKET_NAME>Microsoft Azure
The backup bucket name BUCKET_NAME. (The bucket name in Azure Blob Storage object storage)
The resource group name AZURE_RESOURCE_GROUP. (The Azure resource group name)
The storage account ID AZURE_STORAGE_ACCOUNT_ID. (The Azure storage account ID)
The Velero installed namespace NAMESPACE, the default namespace is velero. (optional)
helm install velero \
--namespace=<NAMESPACE> \
--create-namespace \
--set-file credentials.secretContents.cloud=credentials-velero \
--set configuration.provider=azure \
--set configuration.backupStorageLocation.name=default \
--set configuration.backupStorageLocation.bucket=<BUCKET_NAME> \
--set configuration.backupStorageLocation.config.resourceGroup=<AZURE_RESOURCE_GROUP> \
--set configuration.backupStorageLocation.config.storageAccount=<AZURE_STORAGE_ACCOUNT_ID> \
--set snapshotsEnabled=true \
--set deployRestic=true \
--set configuration.volumeSnapshotLocation.name=default \
--set initContainers[0].name=velero-plugin-for-microsoft-azure \
--set initContainers[0].image=registry.suse.com/caasp/v4.5/velero-plugin-for-microsoft-azure:1.1.0 \
--set initContainers[0].volumeMounts[0].mountPath=/target \
--set initContainers[0].volumeMounts[0].name=plugins \
suse/veleroThen, suggest creating at least one additional backup locations point to the different object storage server to prevent object storage server single point of failure.
velero backup-location create secondary \
--provider=azure \
--bucket=<SECONDARY_BUCKET_NAME> \
--region resourceGroup=<AZURE_RESOURCE_GROUP>,storageAccount=<AZURE_STORAGE_ACCOUNT_ID>Backup To A S3-Compatible Provider
The backup bucket name BUCKET_NAME. (The bucket name in S3-compatible object storage)
The backup region name REGION_NAME. (The region name for the S3-compatible object storage. For example, radosgw or default/secondary if you have an HA backup servers)
The S3-compatible object storage simulates the S3-compatible object storage. Therefore, the configuration for S3-compatible object storage have to setup additional configurations.
--set configuration.backupStorageLocation.config.s3ForcePathStyle=true \
--set configuration.backupStorageLocation.config.s3Url=<S3_COMPATIBLE_STORAGE_SERVER_URL> \If the S3-Compatible storage server is secured with a self-signed certificate, add the below command when helm install and pass --cacert flag when using Velero CLI, refer to Velero: Self Signed Certificates. (optional)
--set configuration.backupStorageLocation.caCert=`cat <PATH_TO_THE_SELF_SIGNED_CA_CERTIFICATE> | base64 -w 0 && echo` \Install Velero Deployment and restic DaemonSet.
Mostly the on-premise persistent volume does not support volume snapshot API or does not have community-supported snapshotter providers. Therefore, we have to deploy the restic DaemonSet.
helm install velero \
--namespace=<NAMESPACE> \
--create-namespace \
--set-file credentials.secretContents.cloud=credentials-velero \
--set configuration.provider=aws \
--set configuration.backupStorageLocation.name=default \
--set configuration.backupStorageLocation.bucket=<BUCKET_NAME> \
--set configuration.backupStorageLocation.config.region=<REGION_NAME> \
--set configuration.backupStorageLocation.config.s3ForcePathStyle=true \
--set configuration.backupStorageLocation.config.s3Url=<S3_COMPATIBLE_STORAGE_SERVER_URL> \
--set snapshotsEnabled=true \
--set deployRestic=true \
--set configuration.volumeSnapshotLocation.name=default \
--set configuration.volumeSnapshotLocation.config.region=minio \
--set initContainers[0].name=velero-plugin-for-aws \
--set initContainers[0].image=registry.suse.com/caasp/v4.5/velero-plugin-for-aws:1.1.0 \
--set initContainers[0].volumeMounts[0].mountPath=/target \
--set initContainers[0].volumeMounts[0].name=plugins \
suse/veleroThen, suggest creating at least one additional backup locations point to the different object storage server to prevent object storage server single point of failure.
velero backup-location create secondary \
--provider=aws \
--bucket=<SECONDARY_BUCKET_NAME> \
--config region=secondary,s3ForcePathStyle=true,s3Url=<S3_COMPATIBLE_STORAGE_SERVER_URL>Annotate Persistent Volume (optional)
If the persistent volume in the supported volume snapshotter provider, skip this procedure.
However, if we deploy the restic DaemonSet and want to backup the persistent volume by restic, we have to add annotation backup.velero.io/backup-volumes=<VOLUME_NAME_1>,<VOLUME_NAME_2>,… to the pods which have mounted the volume manually.
For example, we deploy an Elasticsearch cluster and want to backup the Elasticsearch cluster’s data. Add the annotation to the Elasticsearch cluster pods:
kubectl annotate pod/elasticsearch-master-0 backup.velero.io/backup-volumes=elasticsearch-master
kubectl annotate pod/elasticsearch-master-1 backup.velero.io/backup-volumes=elasticsearch-master
kubectl annotate pod/elasticsearch-master-2 backup.velero.io/backup-volumes=elasticsearch-masterVelero currently does not provide a mechanism to detect persistent volume claims that are missing the restic backup annotation.
To solve this, there is a community provided controller velero-pvc-watcher which integrates Prometheus to generate alerts for volumes that are not in the backup or backup-exclusion annotation.
Manual Backup
velero backup create <BACKUP_NAME>Scheduled Backup
The schedule template in cron notation, using UTC time. The schedule can also be expressed using @every <duration> syntax.
The duration can be specified using a combination of seconds (s), minutes (m), and hours (h), for example: @every 2h30m.
# Create schedule template
# Create a backup every 6 hours
velero schedule create <SCHEDULE_NAME> --schedule="0 */6 * * *"
# Create a backup every 6 hours with the @every notation
velero schedule create <SCHEDULE_NAME> --schedule="@every 6h"
# Create a daily backup of the web namespace
velero schedule create <SCHEDULE_NAME> --schedule="@every 24h" --include-namespaces web
# Create a weekly backup, each living for 90 days (2160 hours)
velero schedule create <SCHEDULE_NAME> --schedule="@every 168h" --ttl 2160h0m0s| Character Position | Character Period | Acceptable Values |
|---|---|---|
1 | Minute |
|
2 | Hour |
|
3 | Day of Month |
|
4 | Month |
|
5 | Day of Week |
|
When creating multiple backups to different backup locations closely, you might hit the object storage server API rate limit issues. Now, the velero does not have a mechanism on retry backups when the rate limit occurred. Consider shifting the time to create multiple backups.
Optional Flags
Granularity
Without passing extra flags to velero backup create, Velero will backup the whole Kubernetes cluster.
Namespace
Pass flag --include-namespaces or --exclude-namespaces to specify which namespaces to include/exclude when backing up.
For example:
# Create a backup including the nginx and default namespaces
velero backup create backup-1 --include-namespaces nginx,default
# Create a backup excluding the kube-system and default namespaces
velero backup create backup-1 --exclude-namespaces kube-system,defaultResources
Pass flag --include-resources or --exclude-resources to specifies which resources to include/exclude when backing up.
For example:
# Create a backup including storageclass resource only
velero backup create backup-1 --include-resources storageclassesUse kubectl api-resources to lists all API resources on the server.
Label Selector
Pass --selector to only back up resources matching the label selector.
# Create a backup for the elasticsearch cluster only
velero backup create backup-1 --selector app=elasticsearch-masterLocation
Pass --storage-location to specify where to store the backup.
For example, if we have an HA object storage server called default and secondary respectively.
# Create a backup to the default storage server
velero backup create backup2default --storage-location default
# Create a backup to the secondary storage server
velero backup create backup2secondary --storage-location secondaryGarbage Collection
Pass --ttl to specify how long the backup should be kept. After the specified time the backup will be deleted.
The default time for a backup before deletion is 720 hours (30 days).
Exclude Specific Items from Backup
You can exclude individual items from being backed up, even if they match the resource/namespace/label selectors defined in the backup spec. To do this, label the item as follows:
kubectl label -n <ITEM_NAMESPACE> <RESOURCE>/<NAME> velero.io/exclude-from-backup=trueList Backups
velero backup getDescribe Backups
velero backup describe <BACKUP_NAME_1> <BACKUP_NAME_2> <BACKUP_NAME_3>Retrieve Backup Logs
velero backup logs <BACKUP_NAME>Manual Restore
velero restore create <RESTORE_NAME> --from-backup <BACKUP_NAME>For example:
# Create a restore named "restore-1" from backup "backup-1"
velero restore create restore-1 --from-backup backup-1
# Create a restore with a default name ("backup-1-<timestamp>") from backup "backup-1"
velero restore create --from-backup backup-1Scheduled Backup
velero restore create <RESTORE_NAME> --from-schedule <SCHEDULE_NAME>For example:
# Create a restore from the latest successful backup triggered by schedule "schedule-1"
velero restore create --from-schedule schedule-1
# Create a restore from the latest successful OR partially-failed backup triggered by schedule "schedule-1"
velero restore create --from-schedule schedule-1 --allow-partially-failedOptional Flags
Granularity
Without passing extra flags to velero restore create, Velero will restore whole resources from the backup or the schedule.
Namespace
Pass flag --include-namespaces or --exclude-namespaces to velero restore create to specifies which namespaces to include/exclude when restoring.
For example:
# Create a restore including the nginx and default namespaces
velero restore create --from-backup backup-1 --include-namespaces nginx,default
# Create a restore excluding the kube-system and default namespaces
velero restore create --from-backup backup-1 --exclude-namespaces kube-system,defaultResources
Pass flag --include-resources or --exclude-resources to velero restore create to specifies which resources to include/exclude when restoring.
For example:
# create a restore for only persistentvolumeclaims and persistentvolumes within a backup
velero restore create --from-backup backup-1 --include-resources persistentvolumeclaims,persistentvolumesUse kubectl api-resources to lists all API resources on the server.
Label Selector
Pass --selector to only restore the resources matching the label selector.
For example:
# create a restore for only the elasticsearch cluster within a backup
velero restore create --from-backup backup-1 --selector app=elasticsearch-masterRetrieve restores
velero restore getDescribe restores
velero restore describe <RESTORE_NAME_1> <RESTORE_NAME_2> <RESTORE_NAME_3>Retrieve restore logs
velero restore logs <RESTORE_NAME>Use the scheduled backup function for periodical backups. When the Kubernetes cluster runs into an unexpected state, recover from the most recent scheduled backup.
Backup
Run the scheduled backup, this creates a backup file with the name <SCHEDULE_NAME>-<TIMESTAMP>.
velero schedule create <SCHEDULE_NAME> --schedule="@daily"Restore
When a disaster happens, make sure the Velero server and restic DaemonSet exists (optional). If not, reinstall from the helm chart.
Update the backup storage location to read-only mode (it prevents the backup file from being created or deleted in the backup storage location during the restore process):
kubectl patch backupstoragelocation <STORAGE_LOCATION_NAME> \
--namespace <NAMESPACE> \
--type merge \
--patch '{"spec":{"accessMode":"ReadOnly"}}'Create a restore from the most recent backup file:
velero restore create --from-backup <SCHEDULE_NAME>-<TIMESTAMP>After restoring finished, change the backup storage location back to read-write mode:
kubectl patch backupstoragelocation <STORAGE_LOCATION_NAME> \
--namespace <NAMESPACE> \
--type merge \
--patch '{"spec":{"accessMode":"ReadWrite"}}'Migrate the Kubernetes cluster from cluster 1 to cluster 2, as long as you point different cluster’s Velero instances to the same external object storage location.
Velero does not support the migration of persistent volumes across public cloud providers.
(At cluster 1) Backup the entire Kubernetes cluster manually:
velero backup create <BACKUP_NAME>(At cluster 2) Prepare a Kubernetes cluster deployed by skuba:
(At cluster 2) Helm install Velero and make sure the backup-location and snapshot-location point to the same location as cluster 1:
velero backup-location get
velero snapshot-location getThe default sync interval is 1 minute. You could change the interval with the flag --backup-sync-period when creating a backup location.
(At cluster 2) Make sure the cluster 1 backup resources are sync to the external object storage server:
velero backup get <BACKUP_NAME>
velero backup describe <BACKUP_NAME>(At cluster 2) Restore the cluster from the backup file:
velero restore create --from-backup <BACKUP_NAME>(At cluster 2) Verify the cluster is behaving correctly:
velero restore get
velero restore describe <RESTORE_NAME>
velero restore logs <RESTORE_NAME>(At cluster 2) Since Velero doesn’t overwrite objects in-cluster if they already exist, a manual check of all addon configurations is desired after the cluster is restored:
Check dex configuration:
# Download dex.yaml
kubectl -n kube-system get configmap oidc-dex-config -o yaml > oidc-dex-config.yaml
# Edit oidc-dex-config.yaml to desired
vim oidc-dex-config.yaml
# Apply new oidc-dex-config.yaml
kubectl apply -f oidc-dex-config.yaml --force
# Restart oidc-dex deployment
kubectl rollout restart deployment/oidc-dex -n kube-systemCheck gangway configuration:
# Download gangway.yaml
kubectl -n kube-system get configmap oidc-gangway-config -o yaml > oidc-gangway-config.yaml
# Edit oidc-gangway-config.yaml to desired
vim oidc-gangway-config.yaml
# Apply new oidc-gangway-config.yaml
kubectl apply -f oidc-gangway-config.yaml --force
# Restart oidc-gangway deployment
kubectl rollout restart deployment/oidc-gangway -n kube-systemCheck kured is disabled automatically reboots
kubectl get daemonset kured -o yamlCheck that psp is what you wish it to be:
kubectl get psp suse.caasp.psp.privileged -o yaml
kubectl get clusterrole suse:caasp:psp:privileged -o yaml
kubectl get rolebinding suse:caasp:psp:privileged -o yaml
kubectl get psp suse.caasp.psp.unprivileged -o yaml
kubectl get clusterrole suse:caasp:psp:unprivileged -o yaml
kubectl get clusterrolebinding suse:caasp:psp:default -o yamlRemove the Velero server deployment and restic DaemonSet if it exist.
Then, delete Velero custom resource definitions (CRDs).
helm uninstall velero -n <NAMESPACE>
kubectl delete crds -l app.kubernetes.io/name=veleroIn some cases you must configure the container runtime to use a proxy to pull container images.
The CRI-O runtime uses the system-wide proxy configuration, defined at /etc/sysconfig/proxy.
This file can be edited a number of ways.
It can be pre-configured at build time via AutoYaST, as described in the
AutoYaST documentation.
On an existing system, the file can be edited via YaST by running yast2 proxy.
If preferred, it can alternatively be edited manually as described in the SUSE Knowledge Base article
CRI-O and skuba both support four types of comma-separated entries in the NO_PROXY variable:
An exact IP address (1.2.3.4)
CIDR IP range (1.2.3.4/16)
DNS domain name (eg.com matches www.eg.com and eg.com)
Restricted DNS subdomain (.eg.com matches www.eg.com but not eg.com)
All standard programs should ignore unsupported values in that variable and continue to work (albeit without the configured proxy) when encountering an unsupported value.
Not all programs on all systems will respect CIDR ranges or restricted subdomains.
After you have configured the system proxy for your environment, restart the container runtime with:
systemctl restart crioThe configuration example in this text uses VERSION 2 of the CRI-O registries
configuration syntax. It is not compatible with the VERSION 1 syntax present
in some upstream examples.
Please refer to: https://raw.githubusercontent.com/containers/image/master/docs/containers-registries.conf.5.md
You can create and deploy a custom registries.conf during the initial bootstrap of the cluster with skuba.
Create the file <CLUSTER_NAME>/addons/containers/registries.conf and apply your changes there.
This file will be rolled out during node bootstrapping and upgrading.
Every registry-related configuration needs to be done in the TOML file
/etc/containers/registries.conf. After any change of this file, CRI-O
needs to be restarted.
The configuration is a sequence of [[registry]] entries. For example, a
single registry entry within that configuration could be added like this:
/etc/containers/registries.conf
[[registry]]
blocked = false
insecure = false
location = "example.net/bar"
prefix = "example.com/foo/images"
mirror = [
{ location = "example-mirror-0.local", insecure = false },
{ location = "example-mirror-1.local", insecure = true, mirror-by-digest-only = true }
]
[[registry]]
blocked = false
insecure = false
location = "example.net/mymirror"
prefix = "example.com/mirror/images"
mirror = [
{ location = "example-mirror-2.local", insecure = false, mirror-by-digest-only = true },
{ location = "example-mirror-3.local", insecure = true }
]
unqualified-search = falseGiven an image name, a single [[registry]] TOML table is chosen based on its
prefix field.
A prefix is mainly a user-specified image name and can have one of the following formats:
host[:port]
host[:port]/namespace[/namespace…]
host[:port]/namespace[/namespace…]/repo
host[:port]/namespace[/namespace…]/repo[:tag|@digest]
The user-specified image name must start with the specified prefix (and
continue with the appropriate separator) for a particular [[registry]] TOML
table to be considered. Only the TOML entry with the longest match is used.
As a special case, the prefix field can be missing. If so, it defaults to the
value of the location field.
insecure (true or false): By default, container runtimes require TLS
when retrieving images from a registry. If insecure is set to true,
unencrypted HTTP as well as TLS connections with untrusted certificates are
allowed.
blocked (true or false): If true, pulling images with matching names
is forbidden.
The user-specified image reference is, primarily, a "logical" image name, always used for naming the image. By default, the image reference also directly specifies the registry and repository to use, but the following options can be used to redirect the underlying accesses to different registry servers or locations. This can be used to support configurations with no access to the Internet without having to change Dockerfiles, or to add redundancy.
location #Accepts the same format as the prefix field, and specifies the physical
location of the prefix-rooted namespace. By default, this is equal to prefix
(in which case prefix can be omitted and the [[registry]] TOML table can
just specify location).
prefix = "example.com/foo" location = "internal-registry-for-example.net/bar"
Requests for the image example.com/foo/myimage:latest will actually work with
the internal-registry-for-example.net/bar/myimage:latest image.
mirror #An array of TOML tables specifying (possibly partial) mirrors for the
prefix-rooted namespace.
The mirrors are attempted in the specified order. The first one that can be
contacted and contains the image will be used (and if none of the mirrors
contains the image, the primary location specified by the registry.location
field, or using the unmodified user-specified reference, is tried last).
Each TOML table in the mirror array can contain the following fields, with
the same semantics as if specified in the [[registry]] TOML table directly:
location
insecure
mirror-by-digest-only #Can be true or false. If true, mirrors will only be used during pulling
if the image reference includes a digest. Referencing an image by digest
ensures that the same one is always used (whereas referencing an image by a tag may
cause different registries to return different images if the tag mapping is out
of sync).
Note that if this is true, images referenced by a tag will only use the primary
registry, failing if that registry is not accessible.
FlexVolume drivers are external (out-of-tree) drivers usually provided by a specific vendor.
They are executable files that are placed in a predefined directory in the cluster on both worker and master nodes.
Pods interact with FlexVolume drivers through the flexvolume in-tree plugin.
The vendor driver first has to be installed on each worker and master node in a Kubernetes cluster.
On SUSE CaaS Platform 4, the path to install the drivers is /usr/lib/kubernetes/kubelet-plugins/volume/exec/.
If the drivers are deployed with DaemonSet, this will require changing
the FlexVolume directory path, which is usually stored as an environment
variable, for example for rook:
FLEXVOLUME_DIR_PATH=/usr/lib/kubernetes/kubelet-plugins/volume/exec/For a general guide to the FlexVolume configuration, see https://github.com/kubernetes/community/blob/master/contributors/devel/sig-storage/flexvolume.md
Modifying the file /etc/sysconfig/kubelet directly is not supported.
The changes made to this file will not persist through an update/upgrade of the software.
Please follow the instructions below to change the configuration for kubelet persistently.
This procedure does not override the default configuration but amends the changes from the "drop-in" configuration.
Please refer to: https://www.freedesktop.org/software/systemd/man/systemd.unit.html
If you wish to modify the configuration for kubelet you must use the "drop-in"
configuration feature of systemd. The steps need to be performed on each cluster
node whose kubelet you wish to reconfigure.
Create an appropriate .conf file (e.g. resource-handling.conf) in /usr/lib/systemd/system/kubelet.service.d/ with your desired changes.
.
Reload the service definitions
sudo systemctl daemon-reload
Restart kubelet
sudo systemctl restart kubelet
This documentation page lists all the behavioral changes and API deprecations that will happen from Kubernetes 1.17 to 1.18. You will require this information when migrating to SUSE CaaS Platform 5.x shipping with Kubernetes 1.18.
The following APIs have been deprecated:
All resources under apps/v1beta1 and apps/v1beta2: please use apps/v1 instead.
daemonsets, deployments, replicasets under extensions/v1beta1: please use apps/v1 instead.
networkpolicies under extensions/v1beta1: please use networking.k8s.io/v1 instead.
podsecuritypolicies resources under extensions/v1beta1: please use policy/v1beta1 instead.
In this section we will highlight some relevant changes that might interest you for the new Kubernetes version.
#695 Skip Volume Ownership Change [Alpha]
#1412 Immutable Secrets and ConfigMaps [Alpha]
#1495 Generic data populators [Alpha]
#770 Skip attach for non-attachable CSI volumes [Stable]
#351 Raw block device using persistent volume source [Stable]
#565 CSI Block storage support [Stable]
#603 Pass Pod information in CSI calls [Stable]
#989 Extend allowed PVC DataSources [Stable]
supportconfig Toolx509: certificate signed by unknown authorityInvalid client credentialscannot attach profile errorThis chapter summarizes frequent problems that can occur while using SUSE CaaS Platform and their solutions.
Additionally, SUSE support collects problems and their solutions online at https://www.suse.com/support/kb/?id=SUSE_CaaS_Platform .
supportconfig Tool #As a first step for any troubleshooting/debugging effort, you need to find out
the location of the cause of the problem. For this purpose we ship the supportconfig tool
and plugin with SUSE CaaS Platform. With a simple command you can collect and compile
a variety of details about your cluster to enable SUSE support to pinpoint
the potential cause of an issue.
In case of problems, a detailed system report can be created with the
supportconfig command line tool. It will collect information about the system, such as:
Current Kernel version
Hardware information
Installed packages
Partition setup
Cluster and node status
A full list of of the data collected by supportconfig can be found under
https://github.com/SUSE/supportutils-plugin-suse-caasp/blob/master/README.md.
To collect all the relevant logs, run the supportconfig command on all the master
and worker nodes individually.
sudo supportconfig
sudo tar -xvJf /var/log/nts_*.txz
cd /var/log/nts*
sudo cat kubernetes.txt crio.txtThe result is a TAR archive of files. Each of the *.txz files should be given a name that can be used to identify which cluster node it was created on.
After opening a Service Request (SR), you can upload the TAR archives to SUSE Global Technical Support.
The data will help to debug the issue you reported and assist you in solving the problem. For details, see https://documentation.suse.com/sles/15-SP2/single-html/SLES-admin/#cha-adm-support.
Apart from the logs provided by running the supportconfig tool, an additional set of data might be required for debugging purposes. This information is located at the Management node, under your cluster definition directory. This folder contains important and sensitive information about your SUSE CaaS Platform cluster and it’s the one from where you issue skuba commands.
If the problem you are facing is related to your production environment, do not upload the admin.conf as this would expose access to your cluster to anyone in possession of the collected information! The same precautions apply for the pki directory, since this also contains sensitive information (CA cert and key).
In this case add --exclude='./<CLUSTER_NAME>/admin.conf' --exclude='./<CLUSTER_NAME>/pki/' to the command in the following example. Make sure to replace ./<CLUSTER_NAME> with the actual path of your cluster definition folder.
If you need to debug issues with your private certificates, a separate call with SUSE support must be scheduled to help you.
Create a TAR archive by compressing the cluster definition directory.
# Read the TIP above
# Move the admin.conf and pki directory to another safe location or exclude from packaging
tar -czvf cluster.tar.gz /home/user/<CLUSTER_NAME>/
# If the error is related to Terraform, please copy the terraform configuration files as well
tar -czvf cluster.tar.gz /home/user/my-terraform-configuration/After opening a Service Request (SR), you can upload the TAR archive to SUSE Global Technical Support.
Some of these information are required for debugging certain cases. The data collected
via supportconfig in such cases are following:
etcd.txt (master nodes)
curl -Ls --cacert /etc/kubernetes/pki/etcd/ca.crt --key /etc/kubernetes/pki/etcd/server.key --cert /etc/kubernetes/pki/etcd/server.crt https://localhost:2379/health
curl -Ls --cacert /etc/kubernetes/pki/etcd/ca.crt --key /etc/kubernetes/pki/etcd/server.key --cert /etc/kubernetes/pki/etcd/server.crt https://localhost:2379/v2/members
curl -Ls --cacert /etc/kubernetes/pki/etcd/ca.crt --key /etc/kubernetes/pki/etcd/server.key --cert /etc/kubernetes/pki/etcd/server.crt https://localhost:2379/v2/stats/leader
curl -Ls --cacert /etc/kubernetes/pki/etcd/ca.crt --key /etc/kubernetes/pki/etcd/server.key --cert /etc/kubernetes/pki/etcd/server.crt https://localhost:2379/v2/stats/self
curl -Ls --cacert /etc/kubernetes/pki/etcd/ca.crt --key /etc/kubernetes/pki/etcd/server.key --cert /etc/kubernetes/pki/etcd/server.crt https://localhost:2379/v2/stats/store
curl -Ls --cacert /etc/kubernetes/pki/etcd/ca.crt --key /etc/kubernetes/pki/etcd/server.key --cert /etc/kubernetes/pki/etcd/server.crt https://localhost:2379/metrics
etcdcontainer=$(crictl ps --label io.kubernetes.container.name=etcd --quiet)
crictl exec $etcdcontainer sh -c \"ETCDCTL_ENDPOINTS='https://127.0.0.1:2379' ETCDCTL_CACERT='/etc/kubernetes/pki/etcd/ca.crt' ETCDCTL_CERT='/etc/kubernetes/pki/etcd/server.crt' ETCDCTL_KEY='/etc/kubernetes/pki/etcd/server.key' ETCDCTL_API=3 etcdctl check perf\"
crictl logs -t $etcdcontainer
crictl stats --id $etcdcontainer
etcdpod=$(crictl ps | grep etcd | awk -F ' ' '{ print $9 }')
crictl inspectp $etcdpodkubernetes.txt (all nodes)
export KUBECONFIG=/etc/kubernetes/admin.conf kubectl version kubectl api-versions kubectl config view kubectl -n kube-system get pods kubectl get events --sort-by=.metadata.creationTimestamp kubectl get nodes kubectl get all -A kubectl get nodes -o yaml
kubernetes-cluster-info.txt (all nodes)
export KUBECONFIG=/etc/kubernetes/admin.conf # a copy of kubernetes logs /var/log/kubernetes kubectl cluster-info dump --output-directory="/var/log/kubernetes"
kubelet.txt (all nodes)
systemctl status --full kubelet journalctl -u kubelet # a copy of kubernetes manifests /etc/kubernetes/manifests" cat /var/lib/kubelet/config.yaml
oidc-gangway.txt (all nodes)
container=$(crictl ps --label io.kubernetes.container.name="oidc-gangway" --quiet)
crictl logs -t $container
crictl inspect $container
pod=$(crictl ps | grep "oidc-gangway" | awk -F ' ' '{ print $9 }')
crictl inspectp $podoidc-dex.txt (worker nodes)
container=$(crictl ps --label io.kubernetes.container.name="oidc-dex" --quiet)
crictl logs -t $container
crictl inspect $container
pod=$(crictl ps | grep "oidc-dex" | awk -F ' ' '{ print $9 }')
crictl inspectp $podcilium-agent.txt (all nodes)
container=$(crictl ps --label io.kubernetes.container.name="cilium-agent" --quiet)
crictl logs -t $container
crictl inspect $container
pod=$(crictl ps | grep "cilium-agent" | awk -F ' ' '{ print $9 }')
crictl inspectp $podcilium-operator.txt (only from the worker node is runs)
container=$(crictl ps --label io.kubernetes.container.name="cilium-operator" --quiet)
crictl logs -t $container
crictl inspect $container
pod=$(crictl ps | grep "cilium-operator" | awk -F ' ' '{ print $9 }')
crictl inspectp $podkured.txt (all nodes)
container=$(crictl ps --label io.kubernetes.container.name="kured" --quiet)
crictl logs -t $container
crictl inspect $container
pod=$(crictl ps | grep "kured" | awk -F ' ' '{ print $9 }')
crictl inspectp $podcoredns.txt (_worker nodes)
container=$(crictl ps --label io.kubernetes.container.name="coredns" --quiet)
crictl logs -t $container
crictl inspect $container
pod=$(crictl ps | grep "coredns" | awk -F ' ' '{ print $9 }')
crictl inspectp $podkube-apiserver.txt (master nodes)
container=$(crictl ps --label io.kubernetes.container.name="kube-apiserver" --quiet)
crictl logs -t $container
crictl inspect $container
pod=$(crictl ps | grep "kube-apiserver" | awk -F ' ' '{ print $9 }')
crictl inspectp $podkube-proxy.txt (all nodes)
container=$(crictl ps --label io.kubernetes.container.name="kube-proxy" --quiet)
crictl logs -t $container
crictl inspect $container
After skuba 4.2.2
pod=$(crictl ps | grep "kube-proxy" | awk -F ' ' '{ print $9 }')
crictl inspectp $podkube-scheduler.txt (master nodes)
container=$(crictl ps --label io.kubernetes.container.name="kube-scheduler" --quiet)
crictl logs -t $container
crictl inspect $container
pod=$(crictl ps | grep "kube-scheduler" | awk -F ' ' '{ print $9 }')
crictl inspectp $podkube-controller-manager.txt (master nodes)
container=$(crictl ps --label io.kubernetes.container.name="kube-controller-manager" --quiet)
crictl logs -t $container
crictl inspect $container
pod=$(crictl ps | grep "kube-controller-manager" | awk -F ' ' '{ print $9 }')
crictl inspectp $podkube-system.txt (all nodes)
export KUBECONFIG=/etc/kubernetes/admin.conf kubectl get all -n kube-system -o yaml
crio.txt (all_nodes)
crictl version
systemctl status --full crio.service
crictl info
crictl images
crictl ps --all
crictl stats --all
journalctl -u crio
# a copy of /etc/crictl.yaml
# a copy of /etc/sysconfig/crio
# a copy of every file under /etc/crio/
# Run the following three commands for every container using this loop:
for i in $(crictl ps -a 2>/dev/null | grep -v "CONTAINER" | awk '{print $1}');
do
crictl stats --id $i
crictl logs $i
crictl inspect $i
doneIf Terraform fails to setup the required SLES infrastructure for your cluster, please provide the configuration you applied in a form of a TAR archive.
Create a TAR archive by compressing the Terraform.
tar -czvf terraform.tar.gz /path/to/terraform/configurationAfter opening a Service Request (SR), you can upload the TAR archive to Global Technical Support.
If the cluster deployment fails, please re-run the command again with setting verbosity level to 5 -v=5.
For example, if bootstraps the first master node of the cluster fails, re-run the command like
skuba node bootstrap --user sles --sudo --target <IP/FQDN> <NODE_NAME> -v=5However, if the join procedure fails at the last final steps, re-running it might not help. To verify
this, please list the current member nodes of your cluster and look for the one who failed.
kubectl get nodesIf the node that failed to join is nevertheless listed in the output as part of your cluster,
then this is a bad indicator. This node cannot be reset back to a clean state anymore and it’s not safe to keep
it online in this unknown state. As a result, instead of trying to fix its existing configuration either by hand or re-running
the join/bootstrap command, we would highly recommend you to remove this node completely from your cluster and
then replace it with a new one.
skuba node remove <NODE_NAME> --drain-timeout 5sx509: certificate signed by unknown authority #When interacting with Kubernetes, you might run into the situation where your existing configuration for the authentication has changed (cluster has been rebuild, certificates have been switched.) In such a case you might see an error message in the output of your CLI or Web browser.
x509: certificate signed by unknown authority
This message indicates that your current system does not know the Certificate Authority (CA) that signed the SSL certificates used for encrypting the communication to the cluster. You then need to add or update the Root CA certificate in your local trust store.
Obtain the root CA certificate from on of the Kubernetes cluster node, at the location /etc/kubernetes/pki/ca.crt
Copy the root CA certificate into your local machine directory /etc/pki/trust/anchors/
Update the cache for know CA certificates
sudo update-ca-certificatesInvalid client credentials #When using Dex & Gangway for authentication, you might see the following error message in the Web browser output:
oauth2: cannot fetch token: 401 Unauthorized
Response: {"error":"invalid_client","error_description":"Invalid client credentials."}This message indicates that your Kubernetes cluster Dex & Gangway client secret is out of sync.
These steps apply to skuba ≤ 1.3.5
Please update the Dex & Gangway ConfigMap to use the same client secret.
kubectl -n kube-system get configmap oidc-dex-config -o yaml > oidc-dex-config.yaml
kubectl -n kube-system get configmap oidc-gangway-config -o yaml > oidc-gangway-config.yamlMake sure the oidc’s secret in oidc-dex-config.yaml is the same as the clientSecret in oidc-gangway-config.yaml.
Then, apply the updated ConfigMap.
kubectl replace -f oidc-dex-config.yaml
kubectl replace -f oidc-gangway-config.yamlThese steps apply to skuba ≥ 1.4.1
If you have configured Dex via a kustomize patch, please update your patch to use secretEnv: OIDC_GANGWAY_CLIENT_SECRET.
Change your patch as follows, from:
- id: oidc
...
name: 'OIDC'
secret: <client-secret>
trustedPeers:
- oidc-clito
- id: oidc
...
name: 'OIDC'
secretEnv: OIDC_GANGWAY_CLIENT_SECRET
trustedPeers:
- oidc-cliDex & Gangway will then use the same client secret.
If your cluster loses a node, for example due to failed hardware, remove the node as explained in Section 2.4, “Removing Nodes”. Then add a new node as described in Section 2.3, “Adding Nodes”.
Rebooting a cluster node always requires a preceding drain.
In some cases, draining the nodes first might not be possible and some problem can occur during reboot if some RBD volumes are mapped to the nodes.
In this situation, apply the following steps.
Make sure kubelet and CRI-O are stopped:
systemctl stop kubelet crioUnmount every RBD device /dev/rbd* before rebooting. For example:
umount -vAf /dev/rbd0If there are several device mounted, this little script can be used to avoid manual unmounting:
#!/usr/bin/env bash
while grep "rbd" /proc/mounts > /dev/null 2>&1; do
for dev in $(lsblk -p -o NAME | grep "rbd"); do
if $(mountpoint -x $dev > /dev/null 2>&1); then
echo ">>> umounting $dev"
umount -vAf "$dev"
fi
done
doneThis document aims to describe debugging an etcd cluster.
The required etcd logs are part of the supportconfig, a utility that collects all the required information for debugging a problem. The rest of the document provides information on how you can obtain these information manually.
ETCD is a distributed reliable key-value store for the most critical data of a distributed system. It is running only on the master nodes in a form a container application. For instance, in a cluster with 3 master nodes, it is expected to have 3 etcd instances as well:
kubectl get pods -n kube-system -l component=etcd
NAME READY STATUS RESTARTS AGE
etcd-vm072044.qa.prv.suse.net 1/1 Running 1 7d
etcd-vm072050.qa.prv.suse.net 1/1 Running 1 7d
etcd-vm073033.qa.prv.suse.net 1/1 Running 1 7dThe specific configuration which etcd is using to start, is the following:
etcd \
--advertise-client-urls=https://<YOUR_MASTER_NODE_IP_ADDRESS>:2379 \
--cert-file=/etc/kubernetes/pki/etcd/server.crt \
--client-cert-auth=true --data-dir=/var/lib/etcd \
--initial-advertise-peer-urls=https://<YOUR_MASTER_NODE_IP_ADDRESS>:2380 \
--initial-cluster=vm072050.qa.prv.suse.net=https://<YOUR_MASTER_NODE_IP_ADDRESS>:2380 \
--key-file=/etc/kubernetes/pki/etcd/server.key \
--listen-client-urls=https://127.0.0.1:2379,https://<YOUR_MASTER_NODE_IP_ADDRESS>:2379 \
--listen-peer-urls=https://<YOUR_MASTER_NODE_IP_ADDRESS>:2380 \
--name=vm072050.qa.prv.suse.net \
--peer-cert-file=/etc/kubernetes/pki/etcd/peer.crt \
--peer-client-cert-auth=true \
--peer-key-file=/etc/kubernetes/pki/etcd/peer.key \
--peer-trusted-ca-file=/etc/kubernetes/pki/etcd/ca.crt \
--snapshot-count=10000 --trusted-ca-file=/etc/kubernetes/pki/etcd/ca.crtSince etcd is running in a container, that means it is not controlled by systemd, thus any commands related to that (e.g. journalctl) will fail, therefore you need to use container debugging approach instead.
To use the following commands, you need to connect (e.g. via SSH) to the master node where the etcd pod is running.
To see the etcd logs, connect to a Kubernetes master node and then run as root:
ssh sles@<MASTER_NODE>
sudo bash # connect as root
etcdcontainer=$(crictl ps --label io.kubernetes.container.name=etcd --quiet)
crictl logs -f $etcdcontaineretcdctl is a command line client for etcd. The new version of SUSE CaaS Platform is using the v3 API. For that, you need to make sure to set environment variable ETCDCTL_API=3 before using it. Apart from that, you need to provide the required keys and certificates for authentication and authorization, via ETCDCTL_CACERT, ETCDCTL_CERT and ETCDCTL_KEY environment variables. Last but not least, you need to also specify the endpoint via ETCDCTL_ENDPOINTS environment variable.
Example
To find out if your network and disk latency are fast enough, you can benchmark your node using the etcdctl check perf command. To do this, frist connect to a Kubernetes master node:
ssh sles@<MASTER_NODE>
sudo bash # login as rootand then run as root:
etcdcontainer=$(crictl ps --label io.kubernetes.container.name=etcd --quiet)
crictl exec $etcdcontainer sh -c \
"ETCDCTL_ENDPOINTS='https://127.0.0.1:2379' \
ETCDCTL_CACERT='/etc/kubernetes/pki/etcd/ca.crt' \
ETCDCTL_CERT='/etc/kubernetes/pki/etcd/server.crt' \
ETCDCTL_KEY='/etc/kubernetes/pki/etcd/server.key' \
ETCDCTL_API=3 \
etcdctl check perf"For most of the etcdctl commands, there is an alternative way to fetch the same information via curl. First you need to connect to the master node and then issue a curl command against the ETCD endpoint. Here’s an example of the information which supportconfig is collecting:
Health check:
sudo curl -Ls --cacert /etc/kubernetes/pki/etcd/ca.crt \ --key /etc/kubernetes/pki/etcd/server.key \ --cert /etc/kubernetes/pki/etcd/server.crt https://localhost:2379/health
Member list
sudo curl -Ls --cacert /etc/kubernetes/pki/etcd/ca.crt \ --key /etc/kubernetes/pki/etcd/server.key \ --cert /etc/kubernetes/pki/etcd/server.crt https://localhost:2379/v2/members
Leader information
# available only from the master node where ETCD **leader** runs sudo curl -Ls --cacert /etc/kubernetes/pki/etcd/ca.crt \ --key /etc/kubernetes/pki/etcd/server.key \ --cert /etc/kubernetes/pki/etcd/server.crt https://localhost:2379/v2/stats/leader
Current member information
sudo curl -Ls --cacert /etc/kubernetes/pki/etcd/ca.crt \ --key /etc/kubernetes/pki/etcd/server.key \ --cert /etc/kubernetes/pki/etcd/server.crt https://localhost:2379/v2/stats/self
Statistics
sudo curl -Ls --cacert /etc/kubernetes/pki/etcd/ca.crt \ --key /etc/kubernetes/pki/etcd/server.key \ --cert /etc/kubernetes/pki/etcd/server.crt https://localhost:2379/v2/stats/store
Metrics
sudo curl -Ls --cacert /etc/kubernetes/pki/etcd/ca.crt \ --key /etc/kubernetes/pki/etcd/server.key \ --cert /etc/kubernetes/pki/etcd/server.crt https://localhost:2379/metrics
General guidelines and instructions: https://v1-18.docs.kubernetes.io/docs/tasks/debug-application-cluster/troubleshooting/
Troubleshooting applications: https://v1-18.docs.kubernetes.io/docs/tasks/debug-application-cluster/debug-application
Troubleshooting clusters: https://v1-18.docs.kubernetes.io/docs/tasks/debug-application-cluster/debug-cluster
Debugging pods: https://v1-18.docs.kubernetes.io/docs/tasks/debug-application-cluster/debug-pod-replication-controller
Debugging services: https://v1-18.docs.kubernetes.io/docs/tasks/debug-application-cluster/debug-service
cannot attach profile error #For SUSE CaaS Platform to be properly deployed, you need to have proper IAM role, role policy and instance profile set up in AWS. Under normal circumstances Terraform will be invoked by a user with suitable permissions during deployment and automatically create these profiles. If your access permissions on the AWS account forbid Terraform from creating the profiles automatically, they must be created before attempting deployment.
Users who do not have permission to create IAM role, role policy, and instance profile using Terraform, devops should create them for you, using the instructions below:
STACK_NAME: Cluster Stack Name
Install AWS CLI:
sudo zypper --gpg-auto-import-keys install -y aws-cli
Setup AWS credentials:
aws configure
Prepare role policy:
cat <<*EOF* >"./<STACK_NAME>-trust-policy.json"
{
"Version": "2012-10-17",
"Statement": [
{
"Action": "sts:AssumeRole",
"Principal": {
"Service": "ec2.amazonaws.com"
},
"Effect": "Allow",
"Sid": ""
}
]
}
*EOF*Prepare master instance policy:
cat <<*EOF* >"./<STACK_NAME>-master-role-trust-policy.json"
{
"Version": "2012-10-17",
"Statement": [
{
"Effect": "Allow",
"Action": [
"autoscaling:DescribeAutoScalingGroups",
"autoscaling:DescribeLaunchConfigurations",
"autoscaling:DescribeTags",
"ec2:DescribeInstances",
"ec2:DescribeRegions",
"ec2:DescribeRouteTables",
"ec2:DescribeSecurityGroups",
"ec2:DescribeSubnets",
"ec2:DescribeVolumes",
"ec2:CreateSecurityGroup",
"ec2:CreateTags",
"ec2:CreateVolume",
"ec2:ModifyInstanceAttribute",
"ec2:ModifyVolume",
"ec2:AttachVolume",
"ec2:AuthorizeSecurityGroupIngress",
"ec2:CreateRoute",
"ec2:DeleteRoute",
"ec2:DeleteSecurityGroup",
"ec2:DeleteVolume",
"ec2:DetachVolume",
"ec2:RevokeSecurityGroupIngress",
"ec2:DescribeVpcs",
"elasticloadbalancing:AddTags",
"elasticloadbalancing:AttachLoadBalancerToSubnets",
"elasticloadbalancing:ApplySecurityGroupsToLoadBalancer",
"elasticloadbalancing:CreateLoadBalancer",
"elasticloadbalancing:CreateLoadBalancerPolicy",
"elasticloadbalancing:CreateLoadBalancerListeners",
"elasticloadbalancing:ConfigureHealthCheck",
"elasticloadbalancing:DeleteLoadBalancer",
"elasticloadbalancing:DeleteLoadBalancerListeners",
"elasticloadbalancing:DescribeLoadBalancers",
"elasticloadbalancing:DescribeLoadBalancerAttributes",
"elasticloadbalancing:DetachLoadBalancerFromSubnets",
"elasticloadbalancing:DeregisterInstancesFromLoadBalancer",
"elasticloadbalancing:ModifyLoadBalancerAttributes",
"elasticloadbalancing:RegisterInstancesWithLoadBalancer",
"elasticloadbalancing:SetLoadBalancerPoliciesForBackendServer",
"elasticloadbalancing:AddTags",
"elasticloadbalancing:CreateListener",
"elasticloadbalancing:CreateTargetGroup",
"elasticloadbalancing:DeleteListener",
"elasticloadbalancing:DeleteTargetGroup",
"elasticloadbalancing:DescribeListeners",
"elasticloadbalancing:DescribeLoadBalancerPolicies",
"elasticloadbalancing:DescribeTargetGroups",
"elasticloadbalancing:DescribeTargetHealth",
"elasticloadbalancing:ModifyListener",
"elasticloadbalancing:ModifyTargetGroup",
"elasticloadbalancing:RegisterTargets",
"elasticloadbalancing:SetLoadBalancerPoliciesOfListener",
"iam:CreateServiceLinkedRole",
"kms:DescribeKey"
],
"Resource": [
"*"
]
}
]
}
*EOF*Prepare worker instance policy:
cat <<*EOF* >"./<STACK_NAME>-worker-role-trust-policy.json"
{
"Version": "2012-10-17",
"Statement": [
{
"Effect": "Allow",
"Action": [
"ec2:DescribeInstances",
"ec2:DescribeRegions",
"ecr:GetAuthorizationToken",
"ecr:BatchCheckLayerAvailability",
"ecr:GetDownloadUrlForLayer",
"ecr:GetRepositoryPolicy",
"ecr:DescribeRepositories",
"ecr:ListImages",
"ecr:BatchGetImage"
],
"Resource": "*"
}
]
}
*EOF*Create roles:
aws iam create-role --role-name <STACK_NAME>_cpi_master --assume-role-policy-document file://<FILE_DIRECTORY>/<STACK_NAME>-trust-policy.json aws iam create-role --role-name <STACK_NAME>_cpi_worker --assume-role-policy-document file://<FILE_DIRECTORY>/<STACK_NAME>-trust-policy.json
Create instance role policies:
aws iam put-role-policy --role-name <STACK_NAME>_cpi_master --policy-name <STACK_NAME>_cpi_master --policy-document file://<FILE_DIRECTORY>/<STACK_NAME>-master-role-trust-policy.json aws iam put-role-policy --role-name <STACK_NAME>_cpi_worker --policy-name <STACK_NAME>_cpi_worker --policy-document file://<FILE_DIRECTORY>/<STACK_NAME>-worker-role-trust-policy.json
Create instance profiles:
aws iam create-instance-profile --instance-profile-name <STACK_NAME>_cpi_master aws iam create-instance-profile --instance-profile-name <STACK_NAME>_cpi_worker
Add role to instance profiles:
aws iam add-role-to-instance-profile --role-name <STACK_NAME>_cpi_master --instance-profile-name <STACK_NAME>_cpi_master aws iam add-role-to-instance-profile --role-name <STACK_NAME>_cpi_worker --instance-profile-name <STACK_NAME>_cpi_worker
|
AWS |
Amazon Web Services. A broadly adopted cloud platform run by Amazon. |
|
BPF |
Berkeley Packet Filter. Technology used by Cilium to filter network traffic at the level of packet processing in the kernel. |
|
CA |
Certificate or Certification Authority. An entity that issues digital certificates. |
|
CIDR |
Classless Inter-Domain Routing. Method for allocating IP addresses and IP routing. |
|
CNI |
Container Networking Interface. Creates a generic plugin-based networking solution for containers based on spec files in JSON format. |
|
CRD |
Custom Resource Definition. Functionality to define non-default resources for Kubernetes pods. |
|
FQDN |
Fully Qualified Domain Name. The complete domain name for a specific computer, or host, on the internet, consisting of two parts: the hostname and the domain name. |
|
GKE |
Google Kubernetes Engine. Manager for container orchestration built on Kubernetes by Google. Similar for example to Amazon Elastic Kubernetes Service (Amazon EKS) and Azure Kubernetes Service (AKS). |
|
HPA |
Horizontal Pod Autoscaler. Based on CPU usage, HPA controls the number of pods in a deployment/replica or stateful set or a replication controller. |
|
KVM |
Kernel-based Virtual Machine. Linux native virtualization tool that allows the kernel to function as a hypervisor. |
|
LDAP |
Lightweight Directory Access Protocol. A client/server protocol used to access and manage directory information. It reads and edits directories over IP networks and runs directly over TCP/IP using simple string formats for data transfer. |
|
OCI |
Open Containers Initiative. A project under the Linux Foundation with the goal of creating open industry standards around container formats and runtime. |
|
OIDC |
OpenID Connect. Identity layer on top of the OAuth 2.0 protocol. |
|
OLM |
Operator Lifecycle Manager. Open Source tool for managing operators in a Kubernetes cluster. |
|
POC |
Proof of Concept. Pioneering project directed at proving the feasibility of a design concept. |
|
PSP |
Pod Security Policy. PSPs are cluster-level resources that control security-sensitive aspects of pod specification. |
|
PVC |
Persistent Volume Claim. A request for storage by a user. |
|
RBAC |
Role-based Access Control. An approach to restrict authorized user access based on defined roles. |
|
RMT |
Repository Mirroring Tool. Successor of the SMT. Helps optimize the management of SUSE Linux Enterprise software updates and subscription entitlements. |
|
RPO |
Recovery Point Objective. Defines the interval of time that can occur between to backup points before normal business can no longer be resumed. |
|
RTO |
Recovery Time Objective. This defines the time (and typically service level from SLA) with which backup relevant incidents must be handled within. |
|
RSA |
Rivest-Shamir-Adleman. Asymmetric encryption technique that uses two different keys as public and private keys to perform the encryption and decryption. |
|
SLA |
Service Level Agreement. A contractual clause or set of clauses that determines the guaranteed handling of support or incidents by a software vendor or supplier. |
|
SMT |
SUSE Subscription Management Tool. Helps to manage software updates, maintain corporate firewall policy and meet regulatory compliance requirements in SUSE Linux Enterprise 11 and 12. Has been replaced by the RMT and SUSE Manager in newer SUSE Linux Enterprise versions. |
|
STS |
StatefulSet. Manages the deployment and scaling of a set of Pods, and provides guarantees about the ordering and uniqueness of these Pods for a "stateful" application. |
|
SMTP |
Simple Mail Transfer Protocol. A communication protocol for electronic mail transmission. |
|
TOML |
Tom’s Obvious, Minimal Language. Configuration file format used for configuring container registries for CRI-O. |
|
VPA |
Vertical Pod Autoscaler. VPA automatically sets the values for resource requests and container limits based on usage. |
|
VPC |
Virtual Private Cloud. Division of a public cloud, which supports private cloud computing and thus offers more control over virtual networks and an isolated environment for sensitive workloads. |
The contents of these documents are edited by the technical writers for SUSE CaaS Platform and original works created by its contributors.
This appendix contains the GNU Free Documentation License version 1.2.
Copyright © 2000, 2001, 2002 Free Software Foundation, Inc. 51 Franklin St, Fifth Floor, Boston, MA 02110-1301 USA. Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed.
The purpose of this License is to make a manual, textbook, or other functional and useful document "free" in the sense of freedom: to assure everyone the effective freedom to copy and redistribute it, with or without modifying it, either commercially or non-commercially. Secondarily, this License preserves for the author and publisher a way to get credit for their work, while not being considered responsible for modifications made by others.
This License is a kind of "copyleft", which means that derivative works of the document must themselves be free in the same sense. It complements the GNU General Public License, which is a copyleft license designed for free software.
We have designed this License to use it for manuals for free software, because free software needs free documentation: a free program should come with manuals providing the same freedoms that the software does. But this License is not limited to software manuals; it can be used for any textual work, regardless of subject matter or whether it is published as a printed book. We recommend this License principally for works whose purpose is instruction or reference.
This License applies to any manual or other work, in any medium, that contains a notice placed by the copyright holder saying it can be distributed under the terms of this License. Such a notice grants a world-wide, royalty-free license, unlimited in duration, to use that work under the conditions stated herein. The "Document", below, refers to any such manual or work. Any member of the public is a licensee, and is addressed as "you". You accept the license if you copy, modify or distribute the work in a way requiring permission under copyright law.
A "Modified Version" of the Document means any work containing the Document or a portion of it, either copied verbatim, or with modifications and/or translated into another language.
A "Secondary Section" is a named appendix or a front-matter section of the Document that deals exclusively with the relationship of the publishers or authors of the Document to the Document’s overall subject (or to related matters) and contains nothing that could fall directly within that overall subject. (Thus, if the Document is in part a textbook of mathematics, a Secondary Section may not explain any mathematics.) The relationship could be a matter of historical connection with the subject or with related matters, or of legal, commercial, philosophical, ethical or political position regarding them.
The "Invariant Sections" are certain Secondary Sections whose titles are designated, as being those of Invariant Sections, in the notice that says that the Document is released under this License. If a section does not fit the above definition of Secondary then it is not allowed to be designated as Invariant. The Document may contain zero Invariant Sections. If the Document does not identify any Invariant Sections then there are none.
The "Cover Texts" are certain short passages of text that are listed, as Front-Cover Texts or Back-Cover Texts, in the notice that says that the Document is released under this License. A Front-Cover Text may be at most 5 words, and a Back-Cover Text may be at most 25 words.
A "Transparent" copy of the Document means a machine-readable copy, represented in a format whose specification is available to the general public, that is suitable for revising the document straightforwardly with generic text editors or (for images composed of pixels) generic paint programs or (for drawings) some widely available drawing editor, and that is suitable for input to text formatters or for automatic translation to a variety of formats suitable for input to text formatters. A copy made in an otherwise Transparent file format whose markup, or absence of markup, has been arranged to thwart or discourage subsequent modification by readers is not Transparent. An image format is not Transparent if used for any substantial amount of text. A copy that is not "Transparent" is called "Opaque".
Examples of suitable formats for Transparent copies include plain ASCII without markup, Texinfo input format, LaTeX input format, SGML or XML using a publicly available DTD, and standard-conforming simple HTML, PostScript or PDF designed for human modification. Examples of transparent image formats include PNG, XCF and JPG. Opaque formats include proprietary formats that can be read and edited only by proprietary word processors, SGML or XML for which the DTD and/or processing tools are not generally available, and the machine-generated HTML, PostScript or PDF produced by some word processors for output purposes only.
The "Title Page" means, for a printed book, the title page itself, plus such following pages as are needed to hold, legibly, the material this License requires to appear in the title page. For works in formats which do not have any title page as such, "Title Page" means the text near the most prominent appearance of the work’s title, preceding the beginning of the body of the text.
A section "Entitled XYZ" means a named subunit of the Document whose title either is precisely XYZ or contains XYZ in parentheses following text that translates XYZ in another language. (Here XYZ stands for a specific section name mentioned below, such as "Acknowledgements", "Dedications", "Endorsements", or "History".) To "Preserve the Title" of such a section when you modify the Document means that it remains a section "Entitled XYZ" according to this definition.
The Document may include Warranty Disclaimers next to the notice which states that this License applies to the Document. These Warranty Disclaimers are considered to be included by reference in this License, but only as regards disclaiming warranties: any other implication that these Warranty Disclaimers may have is void and has no effect on the meaning of this License.
You may copy and distribute the Document in any medium, either commercially or non-commercially, provided that this License, the copyright notices, and the license notice saying this License applies to the Document are reproduced in all copies, and that you add no other conditions whatsoever to those of this License. You may not use technical measures to obstruct or control the reading or further copying of the copies you make or distribute. However, you may accept compensation in exchange for copies. If you distribute a large enough number of copies you must also follow the conditions in section 3.
You may also lend copies, under the same conditions stated above, and you may publicly display copies.
If you publish printed copies (or copies in media that commonly have printed covers) of the Document, numbering more than 100, and the Document’s license notice requires Cover Texts, you must enclose the copies in covers that carry, clearly and legibly, all these Cover Texts: Front-Cover Texts on the front cover, and Back-Cover Texts on the back cover. Both covers must also clearly and legibly identify you as the publisher of these copies. The front cover must present the full title with all words of the title equally prominent and visible. You may add other material on the covers in addition. Copying with changes limited to the covers, as long as they preserve the title of the Document and satisfy these conditions, can be treated as verbatim copying in other respects.
If the required texts for either cover are too voluminous to fit legibly, you should put the first ones listed (as many as fit reasonably) on the actual cover, and continue the rest onto adjacent pages.
If you publish or distribute Opaque copies of the Document numbering more than 100, you must either include a machine-readable Transparent copy along with each Opaque copy, or state in or with each Opaque copy a computer-network location from which the general network-using public has access to download using public-standard network protocols a complete Transparent copy of the Document, free of added material. If you use the latter option, you must take reasonably prudent steps, when you begin distribution of Opaque copies in quantity, to ensure that this Transparent copy will remain thus accessible at the stated location until at least one year after the last time you distribute an Opaque copy (directly or through your agents or retailers) of that edition to the public.
It is requested, but not required, that you contact the authors of the Document well before redistributing any large number of copies, to give them a chance to provide you with an updated version of the Document.
You may copy and distribute a Modified Version of the Document under the conditions of sections 2 and 3 above, provided that you release the Modified Version under precisely this License, with the Modified Version filling the role of the Document, thus licensing distribution and modification of the Modified Version to whoever possesses a copy of it. In addition, you must do these things in the Modified Version:
Use in the Title Page (and on the covers, if any) a title distinct from that of the Document, and from those of previous versions (which should, if there were any, be listed in the History section of the Document). You may use the same title as a previous version if the original publisher of that version gives permission.
List on the Title Page, as authors, one or more persons or entities responsible for authorship of the modifications in the Modified Version, together with at least five of the principal authors of the Document (all of its principal authors, if it has fewer than five), unless they release you from this requirement.
State on the Title page the name of the publisher of the Modified Version, as the publisher.
Preserve all the copyright notices of the Document.
Add an appropriate copyright notice for your modifications adjacent to the other copyright notices.
Include, immediately after the copyright notices, a license notice giving the public permission to use the Modified Version under the terms of this License, in the form shown in the Addendum below.
Preserve in that license notice the full lists of Invariant Sections and required Cover Texts given in the Document’s license notice.
Include an unaltered copy of this License.
Preserve the section Entitled "History", Preserve its Title, and add to it an item stating at least the title, year, new authors, and publisher of the Modified Version as given on the Title Page. If there is no section Entitled "History" in the Document, create one stating the title, year, authors, and publisher of the Document as given on its Title Page, then add an item describing the Modified Version as stated in the previous sentence.
Preserve the network location, if any, given in the Document for public access to a Transparent copy of the Document, and likewise the network locations given in the Document for previous versions it was based on. These may be placed in the "History" section. You may omit a network location for a work that was published at least four years before the Document itself, or if the original publisher of the version it refers to gives permission.
For any section Entitled "Acknowledgements" or "Dedications", Preserve the Title of the section, and preserve in the section all the substance and tone of each of the contributor acknowledgements and/or dedications given therein.
Preserve all the Invariant Sections of the Document, unaltered in their text and in their titles. Section numbers or the equivalent are not considered part of the section titles.
Delete any section Entitled "Endorsements". Such a section may not be included in the Modified Version.
Do not retitle any existing section to be Entitled "Endorsements" or to conflict in title with any Invariant Section.
Preserve any Warranty Disclaimers.
If the Modified Version includes new front-matter sections or appendices that qualify as Secondary Sections and contain no material copied from the Document, you may at your option designate some or all of these sections as invariant. To do this, add their titles to the list of Invariant Sections in the Modified Version’s license notice. These titles must be distinct from any other section titles.
You may add a section Entitled "Endorsements", provided it contains nothing but endorsements of your Modified Version by various parties—for example, statements of peer review or that the text has been approved by an organization as the authoritative definition of a standard.
You may add a passage of up to five words as a Front-Cover Text, and a passage of up to 25 words as a Back-Cover Text, to the end of the list of Cover Texts in the Modified Version. Only one passage of Front-Cover Text and one of Back-Cover Text may be added by (or through arrangements made by) any one entity. If the Document already includes a cover text for the same cover, previously added by you or by arrangement made by the same entity you are acting on behalf of, you may not add another; but you may replace the old one, on explicit permission from the previous publisher that added the old one.
The author(s) and publisher(s) of the Document do not by this License give permission to use their names for publicity for or to assert or imply endorsement of any Modified Version.
You may combine the Document with other documents released under this License, under the terms defined in section 4 above for modified versions, provided that you include in the combination all of the Invariant Sections of all of the original documents, unmodified, and list them all as Invariant Sections of your combined work in its license notice, and that you preserve all their Warranty Disclaimers.
The combined work need only contain one copy of this License, and multiple identical Invariant Sections may be replaced with a single copy. If there are multiple Invariant Sections with the same name but different contents, make the title of each such section unique by adding at the end of it, in parentheses, the name of the original author or publisher of that section if known, or else a unique number. Make the same adjustment to the section titles in the list of Invariant Sections in the license notice of the combined work.
In the combination, you must combine any sections Entitled "History" in the various original documents, forming one section Entitled "History"; likewise combine any sections Entitled "Acknowledgements", and any sections Entitled "Dedications". You must delete all sections Entitled "Endorsements".
You may make a collection consisting of the Document and other documents released under this License, and replace the individual copies of this License in the various documents with a single copy that is included in the collection, provided that you follow the rules of this License for verbatim copying of each of the documents in all other respects.
You may extract a single document from such a collection, and distribute it individually under this License, provided you insert a copy of this License into the extracted document, and follow this License in all other respects regarding verbatim copying of that document.
A compilation of the Document or its derivatives with other separate and independent documents or works, in or on a volume of a storage or distribution medium, is called an "aggregate" if the copyright resulting from the compilation is not used to limit the legal rights of the compilation’s users beyond what the individual works permit. When the Document is included in an aggregate, this License does not apply to the other works in the aggregate which are not themselves derivative works of the Document.
If the Cover Text requirement of section 3 is applicable to these copies of the Document, then if the Document is less than one half of the entire aggregate, the Document’s Cover Texts may be placed on covers that bracket the Document within the aggregate, or the electronic equivalent of covers if the Document is in electronic form. Otherwise they must appear on printed covers that bracket the whole aggregate.
Translation is considered a kind of modification, so you may distribute translations of the Document under the terms of section 4. Replacing Invariant Sections with translations requires special permission from their copyright holders, but you may include translations of some or all Invariant Sections in addition to the original versions of these Invariant Sections. You may include a translation of this License, and all the license notices in the Document, and any Warranty Disclaimers, provided that you also include the original English version of this License and the original versions of those notices and disclaimers. In case of a disagreement between the translation and the original version of this License or a notice or disclaimer, the original version will prevail.
If a section in the Document is Entitled "Acknowledgements", "Dedications", or "History", the requirement (section 4) to Preserve its Title (section 1) will typically require changing the actual title.
You may not copy, modify, sublicense, or distribute the Document except as expressly provided for under this License. Any other attempt to copy, modify, sublicense or distribute the Document is void, and will automatically terminate your rights under this License. However, parties who have received copies, or rights, from you under this License will not have their licenses terminated so long as such parties remain in full compliance.
The Free Software Foundation may publish new, revised versions of the GNU Free Documentation License from time to time. Such new versions will be similar in spirit to the present version, but may differ in detail to address new problems or concerns. See http://www.gnu.org/copyleft/.
Each version of the License is given a distinguishing version number. If the Document specifies that a particular numbered version of this License "or any later version" applies to it, you have the option of following the terms and conditions either of that specified version or of any later version that has been published (not as a draft) by the Free Software Foundation. If the Document does not specify a version number of this License, you may choose any version ever published (not as a draft) by the Free Software Foundation.
Copyright (c) YEAR YOUR NAME. Permission is granted to copy, distribute and/or modify this document under the terms of the GNU Free Documentation License, Version 1.2 or any later version published by the Free Software Foundation; with no Invariant Sections, no Front-Cover Texts, and no Back-Cover Texts. A copy of the license is included in the section entitled "GNU Free Documentation License".
If you have Invariant Sections, Front-Cover Texts and Back-Cover Texts, replace the “ with…Texts.” line with this:
with the Invariant Sections being LIST THEIR TITLES, with the Front-Cover Texts being LIST, and with the Back-Cover Texts being LIST.
If you have Invariant Sections without Cover Texts, or some other combination of the three, merge those two alternatives to suit the situation.
If your document contains nontrivial examples of program code, we recommend releasing these examples in parallel under your choice of free software license, such as the GNU General Public License, to permit their use in free software.
